0.65mm Pitch SMT Board to Board Connector
DF15 Series
Corresponding to automatic mounting
The vacuum area is secured the automatic mounting
machine for vacuum.
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

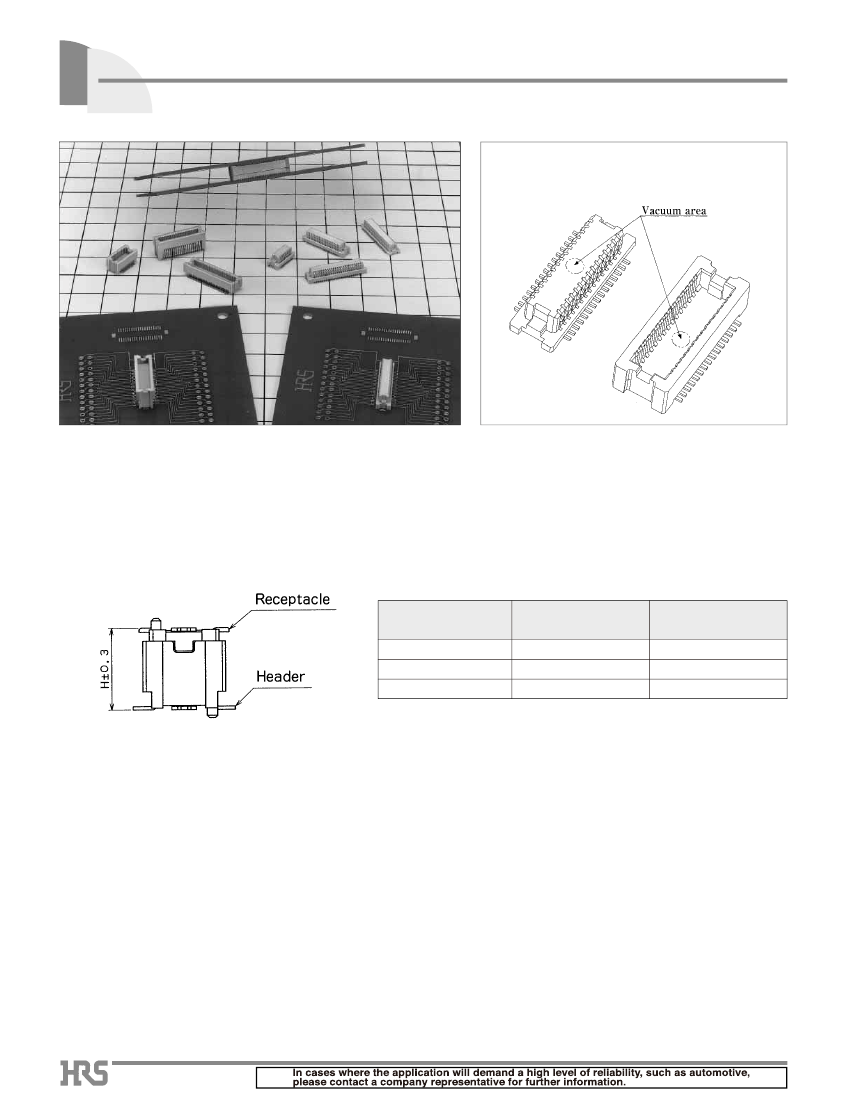

Figure 1
■Features
1. Compatibility of Miniaturization with Service Efficiency
This series considers the service efficiency to set the pitch to 0.65mm, corresponding to the 0.5mm pitch DF12 series. This connector
widely covers the definition of the mounting space or the board to board size together with the DF12 series.
2. Broad Variations in Board to Board Size
The board to board size is specified at 1mm step between 4mm and 8mm.
Header/Receptacle
DF15#(3.2)-*DP-0.65V
DF15#(4.2)-*DP-0.65V
DF15#(6.2)-*DP-0.65V
DF15#(0.8)-*DS-0.65V
4
5
7
DF15#(1.8)-*DS-0.65V
5
6
8
Combinnation with H size Combinnation with H size
Note1: The stacking height is determined by adding the header and receptacle to the figures followed by the product name
DF15#.
Note2: The stacking height (H size) doesn't include the soldering paste thickness.
3. Correspond to Automatic Mounting
The connector has the vacuum area, which enables the automatic mounting by the embossed tape packaging.
4. Metal Fitting Available
The product including the metal fitting to prevent solder peeling is prepared, considering the mounting on FPC.
■Applications
Mobile phone, LCD(Liquid Crystal Display), MO(Optical Disk), Note PC
A156
DF15 Series●0.65mm Pitch SMT Board to Board Connector
■Product
Specifications
Rating
Current rating : 0.3A
Operating Temperature Range :
–35 to +85ç
(Note 1.) Storage Temperature Range :
–10 to +60ç
(Note 2.)
Storage Humidity Range : 40
to
70% (Note 2.)
Condition
100V DC
150V AC/1 minute
100mA
Voltage rating : 50V AC Operating Humidity Range : 40
to
80%
Item
1. Insulation Resistance
2. Withstanding Voltage
3. Contact Resistance
4. Vibration
500M
ohms
min.
Specification
No flashover or insulation breakdown.
50m
ohms
max
No electrical discontinuity of 1μs or more
Contact resistance : 50m
ohms
max.
Insulation resistance: 500M
ohms
min.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
(-55ç: 30 minutes 5
to
35ç: 10 minutes
(-85ç:
30 minutes 5
to
35ç: 10 minutes) 5 cycles
50 cycles
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5.
Humidity (Steady state)
Contact resistance: 50m
ohms
max. Insulation resistance:250M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
6. Temperature Cycle
7. Durability (Mating/un-mating) Contact resistance: 50m
ohms
max.
8. Resistance to Soldering heat
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 350ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
■Material
Product
Receptacle
Part
Insulator
Contact
Metal fitting
Insulator
Header
Contact
Metal fitting
Material
Polyamide
Phosphor copper
Brass
Polyamide
Phosphor copper
Brass
Finish
Beige
Gold plated
Tin plated
Beige
Gold plated
Tin plated
Remarks
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
–––––––
Note: The gold plated product of pin herder consists of a contact area of gold plated and lead of tin plated
■Ordering
Information
●Receptacle/Header
DF15
q
#
(
**
) -
*
DS - 0.65 V (
**
)
w
e
: DF15
r
t
y
u
i
r
Number of Contacts
20, 30, 40, 50
Fitting
K
Boss
K
K
t
Connector Type
DS : Double-row receptacle
DP : Double-row header
y
Contact Pitch
u
Contact type
V
: 0.8, 1.8
: 3.2, 4.2, 6.2
: Straight SMT type
i
(56) : Embossed tape packaging
: 0.65mm
q
Series Name
w
Type
Blank
A
B
C
e
Product height
Receptacle
Header
∞
K
∞
∞
∞
A157
DF15 Series●0.65mm Pitch SMT Board to Board Connector

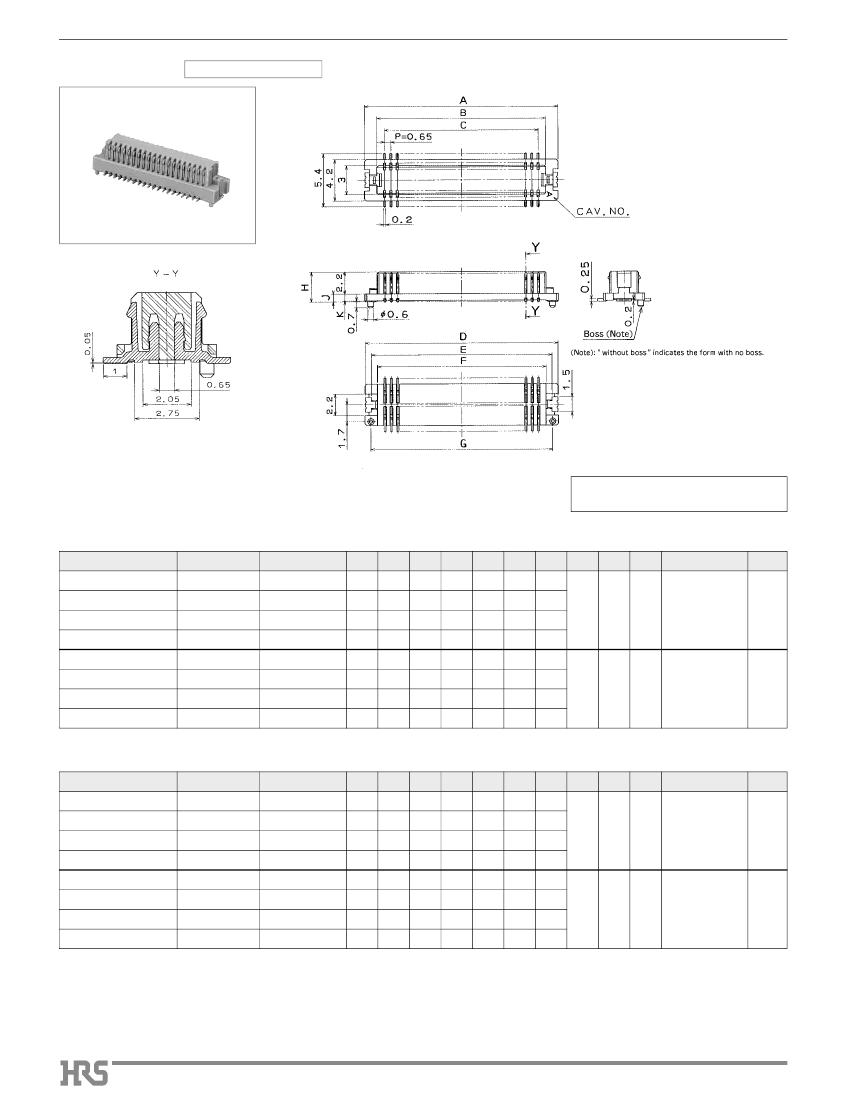

■Receptacle
With metal fitting
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
[Specific No.]
–
* *
,
(*
*)
(56) :Gold plated embossed tape packaging
●Product
Height: 0.8mm Product
Part Number
DF15B(0.8)-20DS-0.65V(
56
)
DF15B(0.8)-30DS-0.65V(
56
)
DF15B(0.8)-40DS-0.65V(
56
)
DF15B(0.8)-50DS-0.65V(
56
)
DF15B(0.8)-20DS-0.65V(
56
)
DF15B(0.8)-30DS-0.65V(
56
)
DF15B(0.8)-40DS-0.65V(
56
)
DF15B(0.8)-50DS-0.65V(
56
)
CL No.
677-0002-0-56
677-0003-3-56
677-0004-6-56
677-0005-9-56
677-0022-8-56
677-0023-0-56
677-0024-3-56
677-0025-6-56
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
B
7.35
C
5.85
9.1
15.6
5.85
9.1
15.6
D
9.65
12.9
19.4
9.65
12.9
19.4
E
8.45
11.7
18.2
8.45
11.7
18.2
F
7.35
10.6
17.1
7.35
10.6
17.1
G
8.65
11.9
18.4
–
–
–
–
3
0.8
0.7
With metal fitting
Without boss
Unit: mm
H
J
K
Remarks
RoHS
13.10 10.6
19.60 17.1
9.85
7.35
13.10 10.6
19.60 17.1
16.35 13.85 12.35 16.15 14.95 13.85 15.15
3
0.8
0.7
With metal fitting
With boss
YES
16.35 13.85 12.35 16.15 14.95 13.85
YES
●Product
Height: 1.8mm Product
Part Number
DF15B(1.8)-20DS-0.65V(
56
)
DF15B(1.8)-30DS-0.65V(
56
)
DF15B(1.8)-40DS-0.65V(
56
)
DF15B(1.8)-50DS-0.65V(
56
)
DF15B(1.8)-20DS-0.65V(
56
)
DF15B(1.8)-30DS-0.65V(
56
)
DF15B(1.8)-40DS-0.65V(
56
)
CL No.
677-0042-5-56
677-0043-8-56
677-0044-0-56
677-0045-3-56
677-0062-2-56
677-0063-5-56
677-0064-8-56
Number of Contacts
20
30
40
50
20
30
40
A
9.85
13.1
19.6
9.85
13.1
B
7.35
10.6
17.1
7.35
10.6
C
5.85
9.1
15.6
5.85
9.1
D
9.65
12.9
19.4
9.65
12.9
E
8.45
11.7
18.2
8.45
11.7
F
7.35
10.6
17.1
7.35
10.6
17.1
G
8.65
11.9
18.4
–
–
–
–
4
1.8
1.7
With metal fitting
Without boss
Unit: mm
H
J
K
Remarks
RoHS
16.35 13.85 12.35 16.15 14.95 13.85 15.15
4
1.8
1.7
With metal fitting
With boss
YES
16.35 13.85 12.35 16.15 14.95 13.85
YES
50
19.6 17.1 15.6 19.4 18.2
DF15B(1.8)-50DS-0.65V(
56
) 677-0065-0-56
Note: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A158

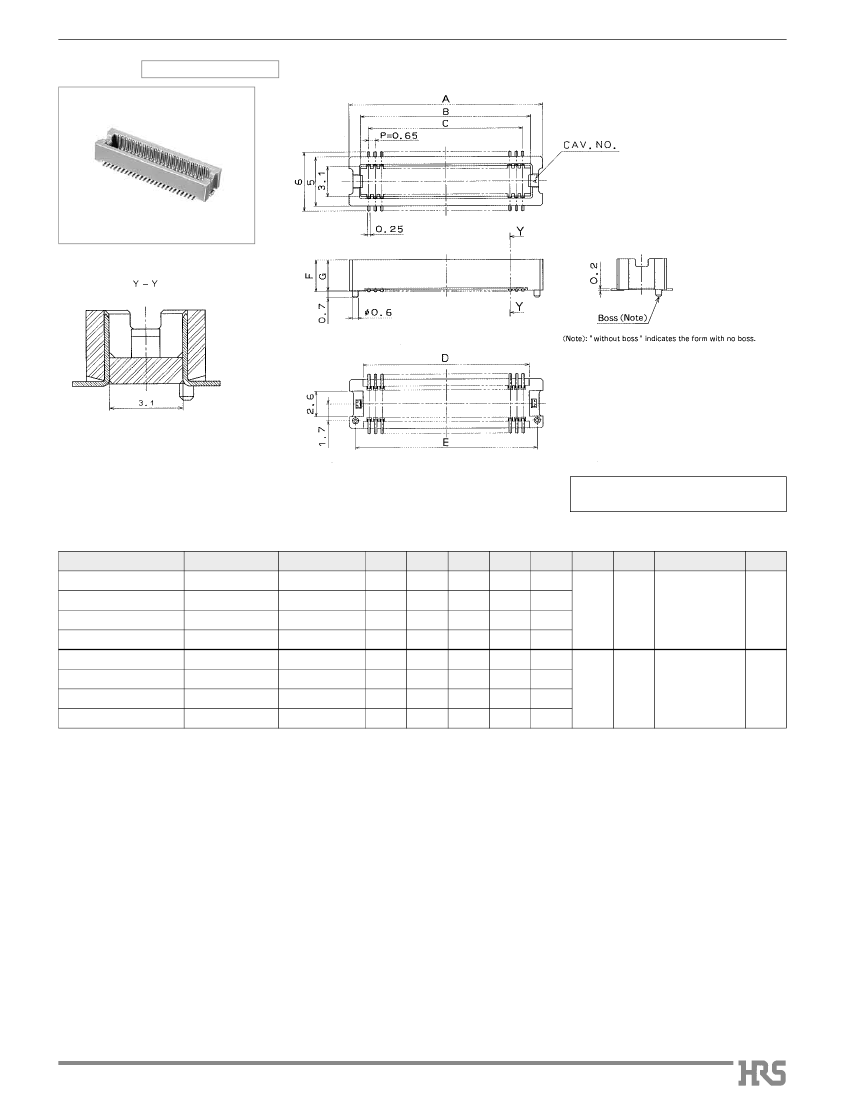

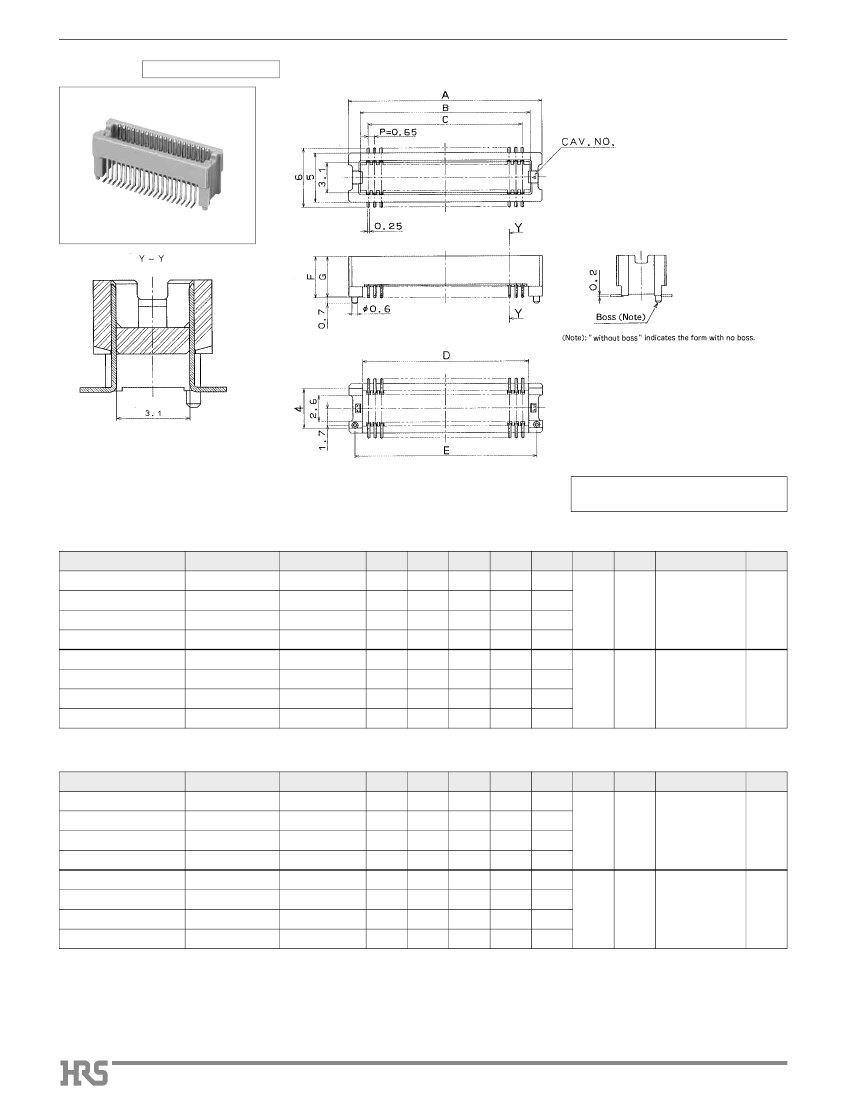

DF15 Series●0.65mm Pitch SMT Board to Board Connector
■Header
Without metal fitting
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
[Specific No.]
–
* *
,
(*
*)
(56) :Gold plated embossed tape packaging
●Product
Height: 3.2mm Product
Part Number
DF15A(3.2)-20DP-0.65V(
56
)
DF15A(3.2)-30DP-0.65V(
56
)
DF15A(3.2)-40DP-0.65V(
56
)
DF15A(3.2)-50DP-0.65V(
56
)
DF15C(3.2)-20DP-0.65V(
56
)
DF15C(3.2)-30DP-0.65V(
56
)
DF15C(3.2)-40DP-0.65V(
56
)
DF15C(3.2)-50DP-0.65V(
56
)
CL No.
677-0092-3-56
677-0093-6-56
677-0094-9-56
677-0095-1-56
677-0112-9-56
677-0113-1-56
677-0114-4-56
677-0115-7-56
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
13.1
19.6
9.85
13.1
19.6
B
7.45
10.7
17.2
7.45
10.7
17.2
C
5.85
9.1
15.6
5.85
9.1
15.6
D
7.05
10.3
16.8
7.05
10.3
16.8
E
8.65
11.9
18.4
–
–
–
–
3.2
3.1
Without metal
fitting
Without boss
Unit: mm
F
G
Remarks
Without metal
fitting
With boss
RoHS
16.35 13.95 12.35 13.55 15.15
3.2
3.1
YES
16.35 13.95 12.35 13.55
YES
Note: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A159
DF15 Series●0.65mm Pitch SMT Board to Board Connector
■Header
Without metal fitting
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
[Specific No.]
–
* *
,
(*
*)
(56) :Gold
plated
embossed tape
packaging
●Product
Height: 4.2mm Product
Part Number
DF15A(4.2)-20DP-0.65V(
56
)
DF15A(4.2)-30DP-0.65V(
56
)
DF15A(4.2)-40DP-0.65V(
56
)
DF15A(4.2)-50DP-0.65V(
56
)
DF15C(4.2)-20DP-0.65V(
56
)
DF15C(4.2)-30DP-0.65V(
56
)
DF15C(4.2)-40DP-0.65V(
56
)
DF15C(4.2)-50DP-0.65V(
56
)
CL No.
677-0132-6-56
677-0133-9-56
677-0134-1-56
677-0135-4-56
677-0152-3-56
677-0153-6-56
677-0154-9-56
677-0155-1-56
Number of Contacts
20
30
40
50
20
30
40
50
A
9.85
13.1
19.6
9.85
13.1
19.6
B
7.45
10.7
17.2
7.45
10.7
17.2
C
5.85
9.1
15.6
5.85
9.1
15.6
D
7.05
10.3
16.8
7.05
10.3
16.8
E
8.65
11.9
18.4
–
–
–
–
4.2
4.1
Without metal
fitting
Without boss
Unit: mm
F
G
Remarks
Without metal
fitting
With boss
RoHS
16.35 13.95 12.35 13.55 15.15
4.2
4.1
YES
16.35 13.95 12.35 13.55
YES
●Product
Height: 6.2mm Product
Part Number
DF15A(6.2)-20DP-0.65V(
56
)
DF15A(6.2)-30DP-0.65V(
56
)
DF15A(6.2)-40DP-0.65V(
56
)
DF15A(6.2)-50DP-0.65V(
56
)
DF15C(6.2)-20DP-0.65V(
56
)
DF15C(6.2)-30DP-0.65V(
56
)
DF15C(6.2)-40DP-0.65V(
56
)
CL No.
677-0172-0-56
677-0173-3-56
677-0174-6-56
677-0175-9-56
677-0192-8-56
677-0193-0-56
677-0194-3-56
Number of Contacts
20
30
40
50
20
30
40
A
9.85
13.1
19.6
9.85
13.1
B
7.45
10.7
17.2
7.45
10.7
C
5.85
9.1
15.6
5.85
9.1
D
7.05
10.3
16.8
7.05
10.3
E
8.65
11.9
18.4
–
–
–
–
6.2
6.1
Without metal
fitting
Without boss
Unit: mm
F
G
Remarks
Without metal
fitting
With boss
RoHS
16.35 13.95 12.35 13.55 15.15
6.2
6.1
YES
16.35 13.95 12.35 13.55
YES
50
17.2
15.6
16.8
19.6
677-0195-6-56
DF15C(6.2)-50DP-0.65V(
56
)
Note: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A160
