REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
JUN-18-2014
BY
BEN
APPR
TOMMY
Ø
TITLE:

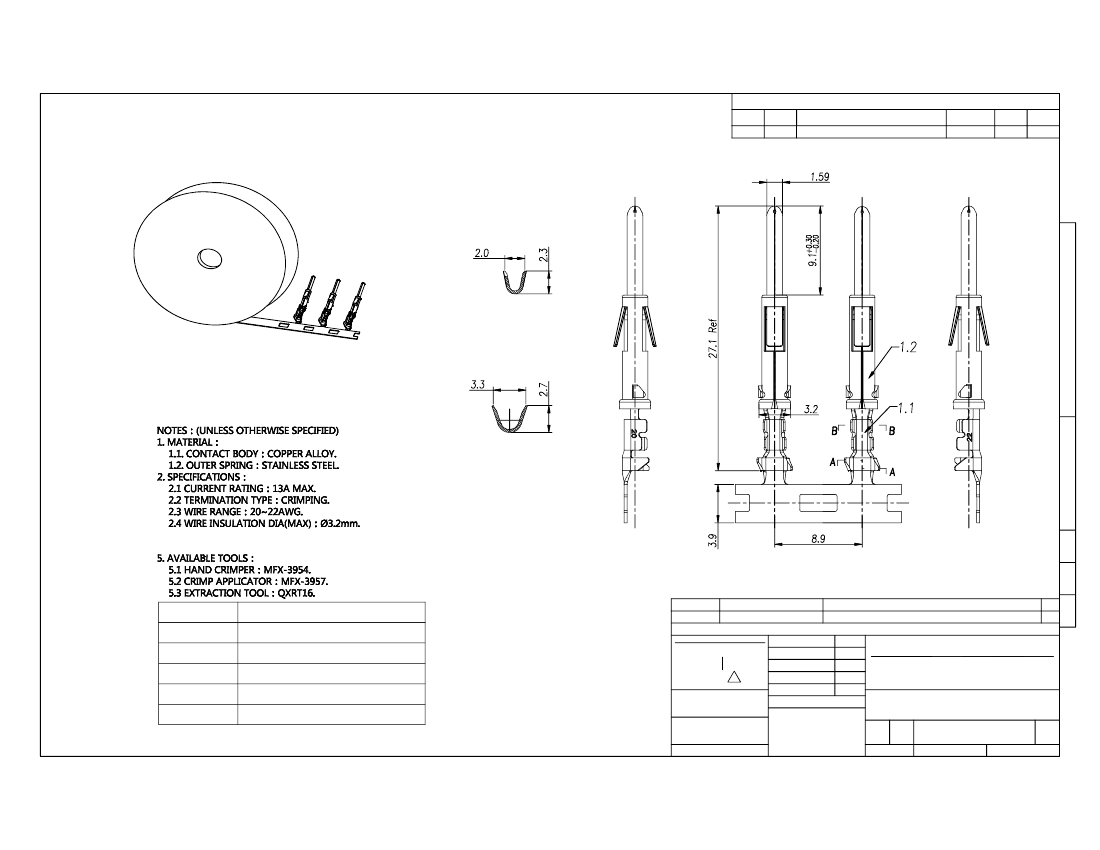

ECO-MATE,PIN CONTACT, STAMPED,20-22AWG, SIZE 16
SECTION B-B
CONTACT ORIENTATION ON ROLL
Ø
DWG NO:
SECTION A-A
SP20M1XX
3. ROHS COMPLIANT.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
REV:
B1
SH:
1
OF:
P/N
SP20M1T
SP20M1F
SP20M1G10
SP20M1G15
SP20M1G30
CONTACT PLATING(MATING AREA)
TIN PLATING OVER NICKEL.
GOLD FLASH PLATING OVER NICKEL.
10μ"GOLD PLATING OVER NICKEL.
15μ"GOLD PLATING OVER NICKEL.
30μ"GOLD PLATING OVER NICKEL.
QUANTITY
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
DATE
BEN
JUN-18-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
X
MATERIAL SPECIFICATIONS:
CUSTOMER:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,PIN CONTACT
STAMPED, 20-22AWG, SIZE 16
TYPE
DWG NO:
PROCESS SPECIFICATIONS:
REVISION
B
C-
SP20M1XX
SHEET
B1
1
OF
NEXT ASS'Y:
NONE
1
