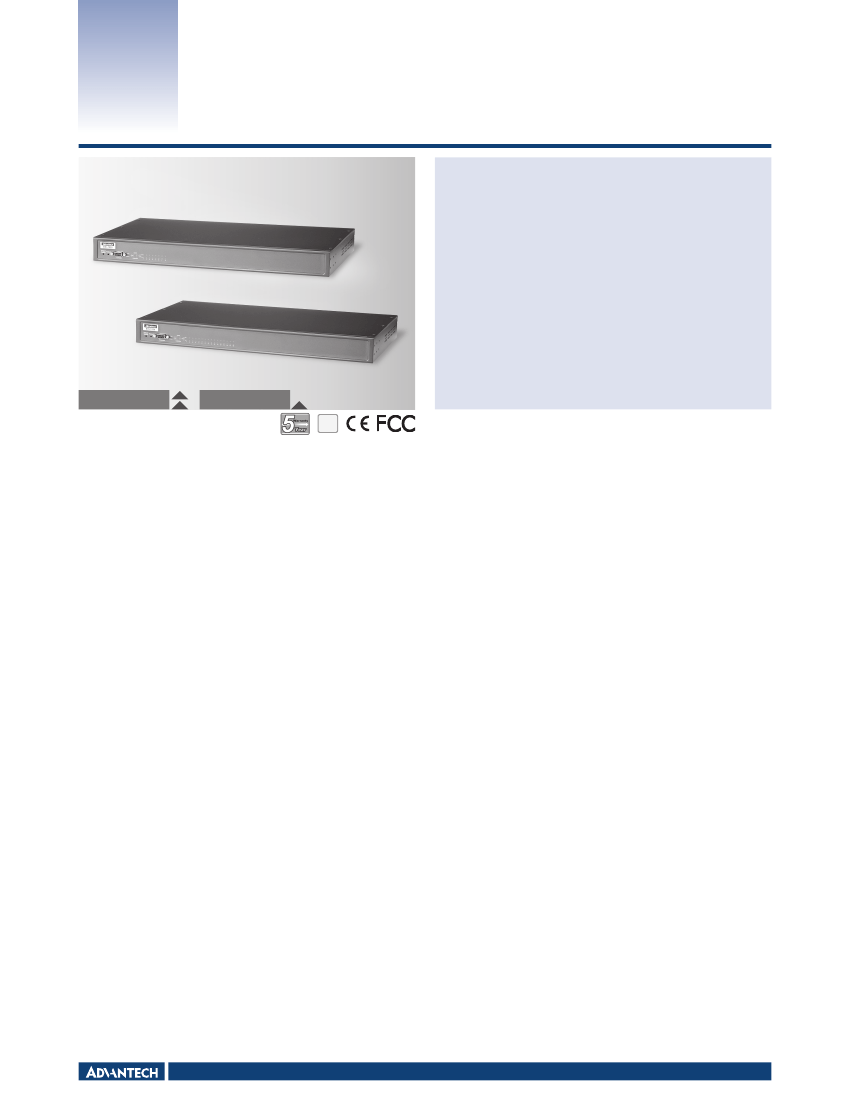

EKI-1528/I/TI
EKI-1526/I/TI
8-port RS-232/422/485 Serial Device Server
16-port RS-232/422/485 Serial Device Server
Features
8 or 16-port RS-232/422/485 serial communication
Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
Supports up to 976.5 kbps, and any baud rate setting
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Provides rich configuration methods: Windows utility, Telnet console, Web
Browser, and serial console
Built-in 15 KV ESD protection for all serial signals
SNMP MIB-II for network management
Built-in buzzer for easy location
Standard 1U rackmount size
Rear wiring
Automatic RS-485 data flow control
EKI-1528
EKI-1526
RoHS
2002/95/EC
COMPLIANT
Introduction
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales
and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to
guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to
thousand of devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or
Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.
Specifications
Ethernet Communications
Compatibility
Speed
No. of Ports
Port Connector
Protection
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
10/100/1000 Mbps, auto MDI/MDIX
2
8-pin RJ45
Built-in 1.5 KV magnetic isolation
Configuration
Protocols
Management
Windows utility, Telnet console, Web Browser, serial
console
ARP, ICMP, IPv6, TCP, UDP, BOOTP/DHCP Client, Auto
IP, Telnet, SNMP, HTTP, DNS, SMTP, NTP
SNMP MIB-II
Mechanics

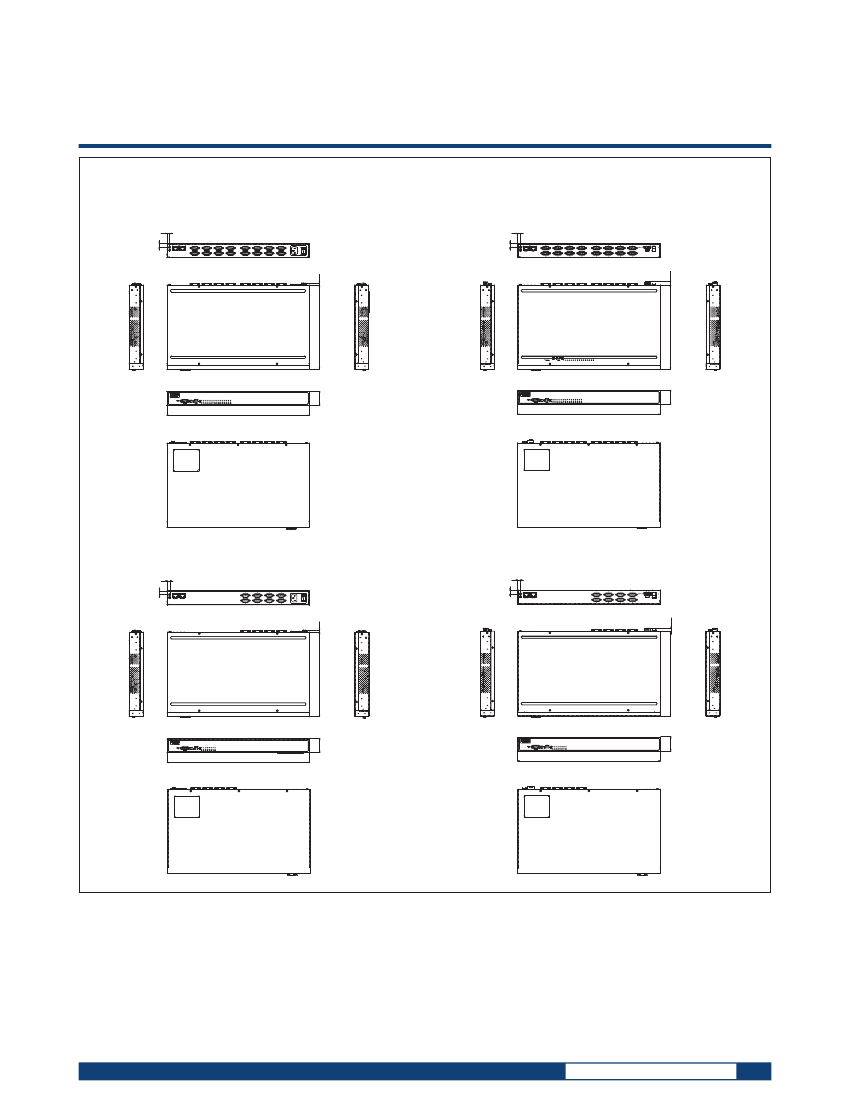

Dimensions (W x H x D)
438 x 43.6 x 259.2 mm (17.24" x 1.71" x 10.2")
Enclosure
SECC chassis
Mounting
Rack
Serial Communications
Port Type
No. of Ports
Port Connector
Data Bits
Stop Bits
Parity
Flow Control
Baud Rate
RS-232/422/485, software selectable
EKI-1528/EKI-1528I/EKI-1528TI: 8
EKI-1526/EKI-1526I/EKI-1526TI: 16
DB9 male
5, 6, 7, 8
1, 1.5, 2
None, Odd, Even, Space, Mark
XON/XOFF, RTS/CTS, DTR/DSR
50 bps ~ 976.5 kbps, any baud rate setting
16 ports up to 230.4 kbps simultaneously
RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, GND, RI
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
15 KV ESD for all signals
General
LED Indicators
System: Power, System Status
LAN: Speed, Link/Active
Serial: Tx, Rx
Built-in buzzer and RTC (real time clock)
Built-in WDT and push button for hardware reboot
Alert Tools
Reboot Trigger
Power Requirements
Power Input
EKI-1528(I)/EKI-1526(I): 100 ~ 240 V
AC
, 50 ~ 60 Hz
EKI-1528T(I)/EKI-1526T(I): 12 ~ 48 V
DC
, Terminal
Block
5.6 W
Serial Signals
Protection
Power Consumption
Software
Driver Support
Utility Software
Operation Modes
32-bit/64-bit Windows 2000/XP/Vista/7/ 8/8.1/10,
Windows Server 2003/2008/2012, and Linux
Advantech EKI Device Configuration Utility
COM port redirection mode (Virtual COM)
TCP/UDP server (polling) mode
TCP/UDP client (event handling) mode
Pair connection (peer to peer) mode
RFC2217 mode
Environment
Operating Temperature
-10 ~ 60°C (14 ~ 140°F)
"I" Model: -40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-20 ~ 80°C (-4 ~ 176°F)
Operating Humidity
10 ~ 95% RH
Regulatory Approvals
EMC
CE, FCC Part 15 Subpart B (Class A)
IP Gateway and Serial Device Servers
All product specifications are subject to change without notice
Last updated : 12-Apr-2017
