VI-HAM™, VE-HAM™
VxHAMxM
Actual Size:
4.6 x 2.4 x 0.5in
(116,8 x 61,0 x 12,7mm)
(Compatible with VI-26x and VI-J6x modules)
®
S
C
US
C
NRTL
US
Harmonic Attenuation Module
Features & Benefits
•
Unity power factor
•
Safety agency approvals:
CE marked, cTÜVus, cURus
•
Meets IEC 6100-3-2 for line
Current harmonic content
•
Reduces peak and RMS line currents
•
Universal input:
85 – 264V
AC
: 50/60Hz
•
Up to 600W of power
•
Power density up to 100W/in
3
•
Adaptive output voltage control
•
Short-circuit protection
•
Input surge current limiting
•
Converter enable
•
Power OK output
•
Efficiency: 90-94% typical
•
RoHS compliant
RoHS Designator
VI
= Non RoHS Compliant
VE
= RoHS Compliant
Absolute Maximum Ratings
Parameter
L to N voltage
Mounting torque
Pin soldering temperature
Operating temperature
Storage temperature
Auxiliary output
Rating
265
280
5 (0.57)
750
(400)
–55 to +85
–65 to +100
3
Unit
V
AC
V
AC
in- lbs (N-m)
°F
(°C)
°C
°C
mA
M-Grade
M-Grade
Notes
Continuous
100ms
#6-32 or m3.5
Note:
High Boost Ham recomended for new designs (VI-HAM-xL)
Part Numbering
VI - HAM
-
C
Product GradeTemperatures (°C)
Grade Operating
Storage
E
= –10 to +85
–40 to +100
C
= – 25 to +85
–40 to +100
I
= – 40 to +85
–55 to +100
M
= – 55 to +85
–65 to +100
M
Output
M
= 600W
Product Highlights
The Harmonic Attenuator Module (HAM)
accepts an input of 85 – 264V
AC
. It
provides a DC output compatible with
Vicor’s VI-26x, VI-J6x and user-defined
Maxi, Mini and Micro DC-DC converters.
The combination of a HAM, one or
more Vicor DC-DC converters, and
the 30205 line filter, listed on Page 8,
offers a high density power solution
meeting EN61000-3-2.
Product Type
HAM = Hamonic Attenuator Module
HAMD = Hamonic Attenuator Module
Driver
BAMD
= Hamonic Attenuator Module
Booster
(HAMD and BAMD can be used in parallel
or in arrays for applications that require more
power than that available from a single HAM)
For application information please see the
Design Guide
at vicorpower.com.
VI-HAM™, VE-HAM™
Page 1 of 10
Rev 2.5
06/2017
vicorpower.com
800 927.9474
Not Recommneded for New Designs
Electrical Characteristics
VxHAMxM
Electrical characteristics apply over the specified operating voltage range, output load and baseplate temperature, unless otherwise specified. All
temperatures refer to the operating temperature of the baseplate. Specifications apply for AC mains having no more than 5% total harmonic distortion.
INPUT SPECIFICATIONS (HAM-xM, HAMD-xM, BAMD-xM)
Parameter
Operating input voltage
HAM, HAMD, BAMD
AC line frequency
Power factor
Total harmonic distortion
(line current)
Inrush current
CM Filter Inductance
DM Filter Inductance
3
0.2
6
0.35
0.75
Min
85
47
0.99
7.5
8.5
20
13
%
%
Amps
Amps
mH
mH
Typ
Max
264
63
Unit
V
AC
Hz
Notes
Rectified AC for HAMD, BAMD
Unit will operate at 400Hz but may not meet
PF or THD specs
115/230V
AC
, 50 – 100% of full load
115V
AC
, sinusoidal input, full load
230V
AC
, sinusoidal input, full load
230V
AC
, full load
115V
AC
, full load
External to HAM module (see Figure 10)
External to HAM module (see Figure 10)
OUTPUT SPECIFICATIONS
Parameter
Maximum output power
Output voltage
Efficiency
External hold up capacitance
per HAM
Ride through / hold up time
Ripple
Short circuit shut down current
258
360
90
93
500
16
7
5
10
6
100
260
365
Min
Typ
Max
600
262
370
91
94
3,000
Unit
Watts
V
DC
V
DC
%
%
µF
ms
Vp-p
Vp-p
mA
Notes
See power derating graph, Figure 3
115V
AC
IN
230V
AC
IN (See Figure 3)
115V
AC
, sinusoidal input, full load
230V
AC
, sinusoidal input, full load
Includes external rectifier
loss for HAMD and BAMD
300W, 500µF minimum, external to HAM
600W, 1,000µF minimum, external to HAM
600W output with 1,000µF hold up capacitor, external to HAM
115V
AC
, full load, 1,000µF hold up capacitor, external to HAM
230V
AC
, full load, 1,000µF hold up capacitor, external to HAM
Foldback current limiting
CONTROL SPECIFICATIONS
Parameter
Power OK threshold
Module enable/disable
threshold
Auxiliary output
19
Min
Typ
230
240
23
3
Max
Unit
V
DC
V
DC
V
DC
mA
≤
3mA
Do not overload or add external capacitance
Notes
VI-HAM™, VE-HAM™
Page 2 of 10
Rev 2.5
06/2017
vicorpower.com
800 927.9474
Not Recommneded for New Designs
Electrical Characteristics (Cont.)
VxHAMxM
ELECTROMAGNETIC COMPATIBILITY
Parameter
Transient / surge immunity
Line disturbance / immunity
Flicker / inrush
Harmonic current
Standard
EN61000-4-5
EN61000-4-11
EN61000-3-3
EN61000-3-2
Notes
1kV L-N, 2kV L-PE, 30205 filter and 30076 MOV
Main’s interruption or brown out
20A peak inrush at 230V
AC
input
7.5% THD
SAFETY SPECIFICATIONS
Parameter
Isolation (IN to OUT)
Dielectric withstand
(I/O to baseplate)
Capacitance
2,121
150
Min
Typ
None
V
DC
pF
Max
Unit
Notes
Isolation provided by DC-DC converters
Baseplate earthed
Input to baseplate
AGENCY APPROVALS
Safety Standards
UL60950-1, EN60950-1, CSA 60950-1
Markings
cTÜVus, cURus
CE Marked
Low Voltage Directive
Notes
GENERAL SPECIFICATIONS
Parameter
Size
Weight
Pin material
Cover material
Thermal shut down
MTBF
HAM
HAMD
BAMD
90
420,000
424,000
818,000
Min
Typ
4.6 x 2.4 x 0.5
(116,8 x 61,0 x 12,7)
6.4 (180)
Solder plate
over copper alloy
GE ULtem 2100 black
#7310 UL94-VO rated
100
°C
hrs
hrs
hrs
Baseplate temperature
GB, 25°C
GB, 25°C
GB, 25°C
Max
Unit
in
(mm)
oz (g)
Notes
VI-HAM™, VE-HAM™
Page 3 of 10
Rev 2.5
06/2017
vicorpower.com
800 927.9474
Not Recommneded for New Designs

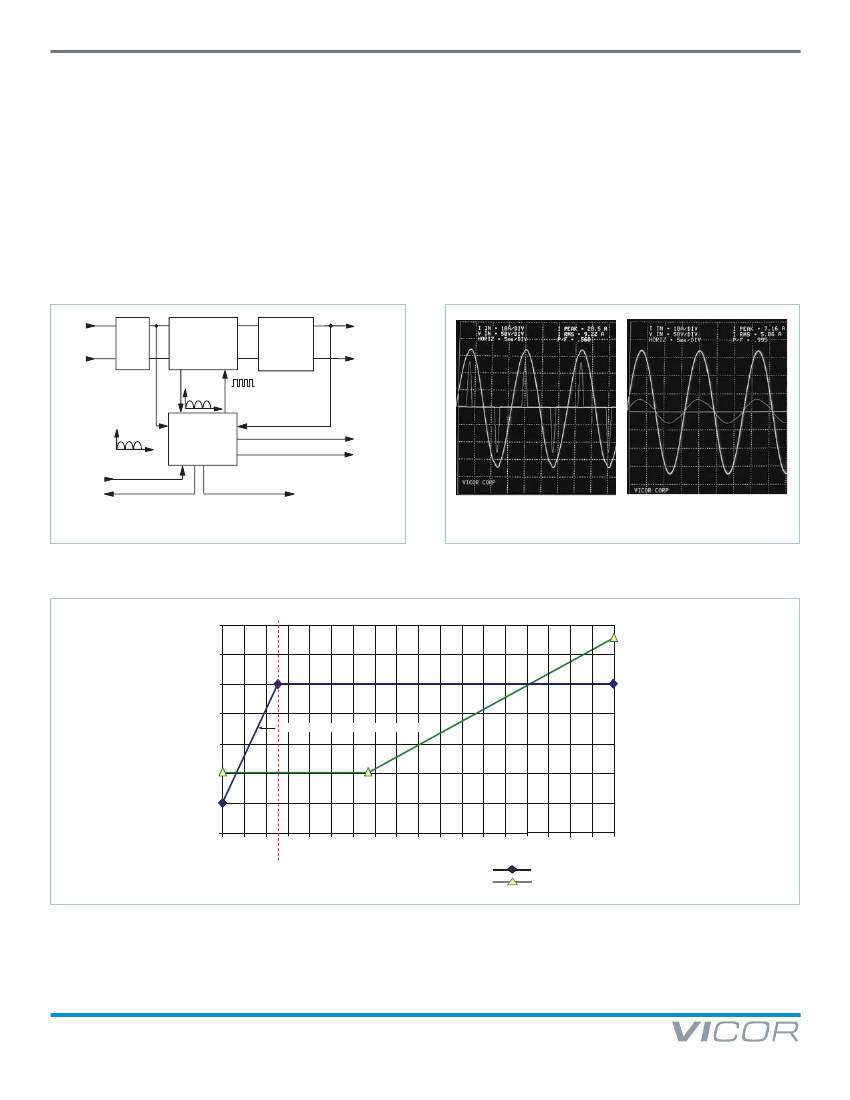

Technical Description
The HAM Figure 1, consists of a full-wave rectifier, a
high-frequency zero-current switching (ZCS) boost converter,
active inrush current limiting, short-circuit protection, control and
housekeeping circuitry. The incoming AC line is rectified and fed
to the boost converter. The control circuitry varies the operating
frequency of the boost converter to maintain the output voltage
of the HAM above the peak of the incoming line, while forcing
the input current to follow the waveshape and phase of the line
voltage. The AC input current follows the voltage waveform and a
power factor better than 0.99 is achieved. Operating efficiency of
the boost converter is optimized at any incoming line voltage by
an adaptive output voltage control scheme.
VxHAMxM
The output voltage of the HAM varies as a function of incoming
AC line voltage, Figure 3. On a nominal 120V
AC
line the output
voltage of the HAM is 260V
DC
— well within the input operating
voltage range of Vicor VI-26x and VI-J6x converters. As input
line increases, so does the HAM output voltage; at 220V
AC
the
delivered voltage will be about 350V. For any given input line
voltage, the HAM maintains enough headroom between the
output voltage and peak input voltage to ensure high quality
active power factor correction without unnecessarily sacrificing
operating efficiency.
AC
Line
Recti-
fier
ZCS
Boost
Converter
Current
Sense
Inrush
& Short
Circuit
Protection
DC
OUT
+
–
Voltage
Waveform
High Frequency
Control
Output Voltage
Control
Module Enable
& House-
keeping
Power OK
Circuitry
Aux. Supply
Note:
Non-Isolated
Output
Gate IN
Gate OUT
NOTE: No input to output isolation.
Without PFC
With PFC
Figure 1 —
HAM block diagram
Figure 2 —
Input voltage and current wave forms, with and
without power factor correction
700
650
435
400
365
330
295
260
225
190
95 105 115 125 135 145 155 165 175 185 195 205 215 225 235 245 255 265
110V
AC
Output Power (W)
600
550
500
450
400
350
85
derate output power 8W/V forV
IN
<110V
AC
Input Voltage
V
RMS
Rated Output Power
Output Voltage
Figure 3 —
Output voltage and power rating versus input voltage
VI-HAM™, VE-HAM™
Page 4 of 10
Rev 2.5
06/2017
vicorpower.com
800 927.9474
Output Voltage (V
DC
)
Not Recommneded for New Designs
F3
VxHAMxM
VI-26x or VI-J6x DC-DC Converters
F1
C5
Input
V1
L1
GND
L2/N
LINE
Vicor
Line Filter
P/N 30205
6.3 A
L1
L1
GATE IN
GATE OUT
VI-HAM-xM
+ OUT
P/OK
E/O
A/S
– OUT
R1
D1
C1
D2
C2
+IN
G ATE IN
L2/N
LOAD
L2/N
D4
C9
G ATE OUT
-IN
C6
Driver
Y-Capacitor
Component
Designation
C1
C2, C3
C4
R1
C9, C10
R4*
D1
D2, D3
D4, D5
V1
C5–C8
F1, F2
F3
Description
0.1
µ
F ceramic, 50V
0.01
µ
F ceramic, 50V
Hold up capacitor,
500 to 3,000
µ
F
Vicor
Part Number
C7
50k
0.2
µ
F to 500V
100k , 2W
1N4691 zener, 6.2V
1N4006 diode, 800V
00670
1N5817 schottky diode, 20V
26108
275V MOV
30076
4,700pF Y2 cap.
01000
Use recommended fusing for specific
DC-DC Converters
10A, 250V
Available as a HUB
from Vicor (see
adjoining table)
F2
D3
C4
R4*
C3
D5
C10
+IN
G ATE IN
G ATE OUT
-IN
C8
Driver
Y-Capacitor
Hold up Box (HUB)
µ
µ
* A 100K, 2 Watt resistor is used for every
1,000µF of hold up capacitance.
µ
Figure 4 —
Connection diagram HAM / DC-DC converters
Pin Function/Description
L1 and L2/N (HAM)
An appropriate line filter is required to limit conducted emissions
and ensure reliable operation of the HAM, see Page 8. Connect
single phase AC mains to the input of the line filter via a 10A,
250V fuse. Connect the output of the filter to L1 and L2/N of the
HAM. Do not put an X-capacitor across the input of the HAM or
use a line filter with an X-capacitor on its output as power factor
correction may be impacted.
+IN, –IN (HAMD, BAMD)
These pins are connected to the output of the external bridge
rectifier in HAMD / BAMD configurations Figure 5.
Gate IN (HAM)
The user should not make any connection to this pin.
Gate IN (HAMD)
This pin provides line voltage envelope and phase information for
power factor correction. This connection must be made through
the synchronization diodes between the line filter and bridge
rectifier Figure 5.
Gate IN (BAMD)
The Gate In pin is an interface pin to the Gate Out pin of a HAMD
or BAMD depending on configuration. The user should not make
any other connection to this pin.
Gate OUT
The Gate Out pin is a synchronization pin for HAMD/BAMD
arrays; the user should not make any other connection to this pin.
+OUT and -OUT
Connect the +OUT of the HAM to the +IN of the respective Vicor
DC-DC converters with the recommended fuse. Connect the -OUT
of the HAM to the -IN of the converters. In addition, an external
hold-up capacitor of 1,000µF with a minimum voltage rating
of 450V
DC
, is required (across the output of the HAM) for 16ms
ride through time at full power (500µF for half power, etc). This
capacitor must be in close proximity to the HAM. Do not exceed
3,000µF of total output capacitance.
Lower values of capacitance may be used for reduced hold up
requirements, but not less than 500µF. Lower capacitance values
may degrade power factor specifications.
VI-HAM™, VE-HAM™
Page 5 of 10
Rev 2.5
06/2017
vicorpower.com
800 927.9474
京公网安备 11010802033920号
EEWORLD
