GT17 Series
— Automotive Shielded Connector —
(2mm Pitch)
For Network, High speed communication
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT7
GT3
GT32
GT17
GT11
GT36
GT26
GT21
GT19
PO5G
GT16
GT10

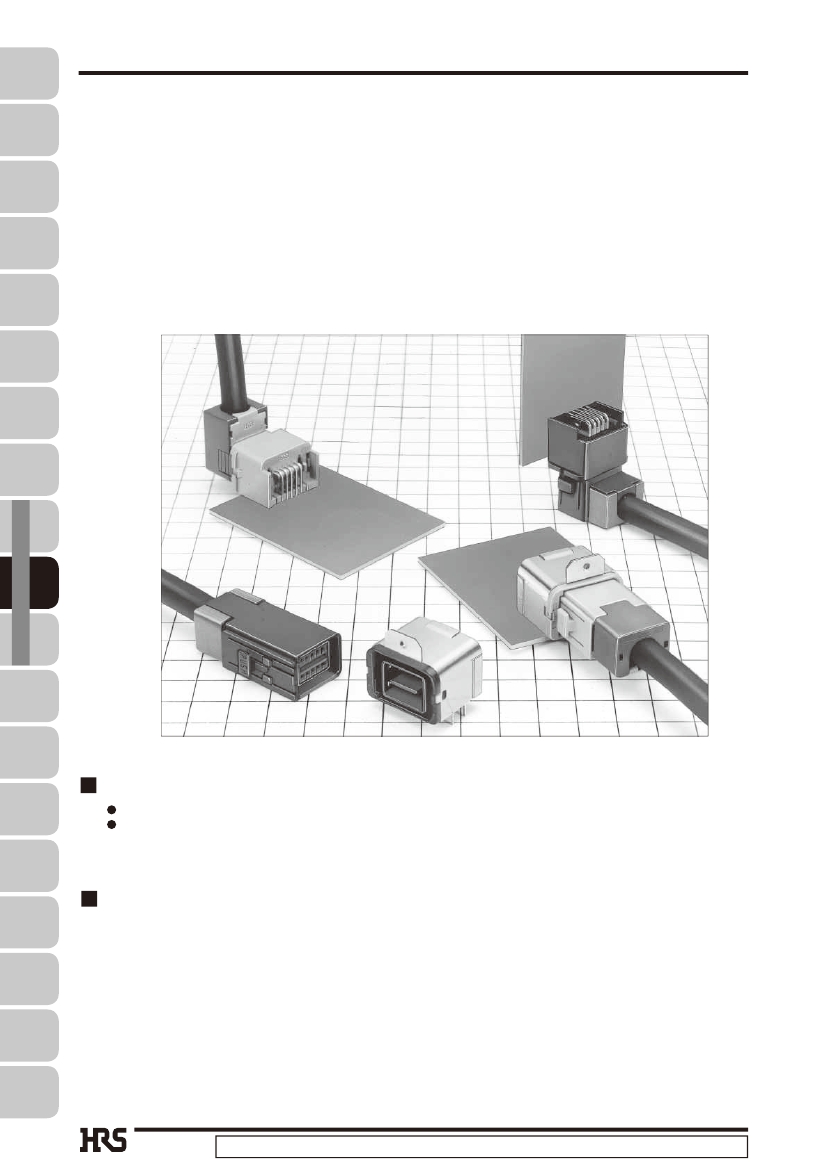

Features
All surface shielded construction.
Ideal for use as automotive USB connectors.
GT18W
GT25
Applications
In-car data communications, etc.
(For USB2.0, LVDS)
GT15
GT9
GT8E
120
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
GT17 Series
●
For Network, High speed communication
GT5
F Connectors
Center Terminals
(Used with 6, 8, and 10 pos. cable)
GT13
GT16
PO5G
14.35
21.1
GT19
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT21
1.7
2.1
1.45
GT26
GT36
Part No.
GT17-2022SCF
GT17-2428SCF
GT17-30SCF
GT17B-2428SCF
HRS No.
767- 0009 -0
767- 0010 -0
767- 0064 -9
767- 0122-3
Material
Plating
Copper alloy
Tin plating
Conductor Size (AWG)
20 to 22 AWG
24 to 28 AWG
30 AWG
24 to 28 AWG
Outer Diameter
φ1.1
to 1.3
φ0.7
to 1.0
φ1.1
to 1.3
φ0.5
to 0.7
Packaging
RoHS
10,000 pcs/reel
YES
For Network, High speed communication
GT11
GT17
M Connectors
Center Terminals
(Used with 6, and 10 pos. cable)
GT32
GT3
GT7
GT10
1.7
18
GT18W
GT25
0.64
0.9
GT8E
GT9
Part No.
GT17-2022PCF
GT17-2428PCF
GT17A-2428PCF
HRS No.
767-0082-0
767-0076-8
767-0121-0
Material
Brass
Plating
Tin plating
Conductor Size (AWG)
20 to 22 AWG
24 to 28 AWG
Outer Diameter
φ1.1
to 1.3
φ0.7
to 1.0
φ1.1
to 1.3
Packaging
10,000 pcs/reel
RoHS
YES
121
GT15
GT17 Series
●
For Network, High speed communication
GT5

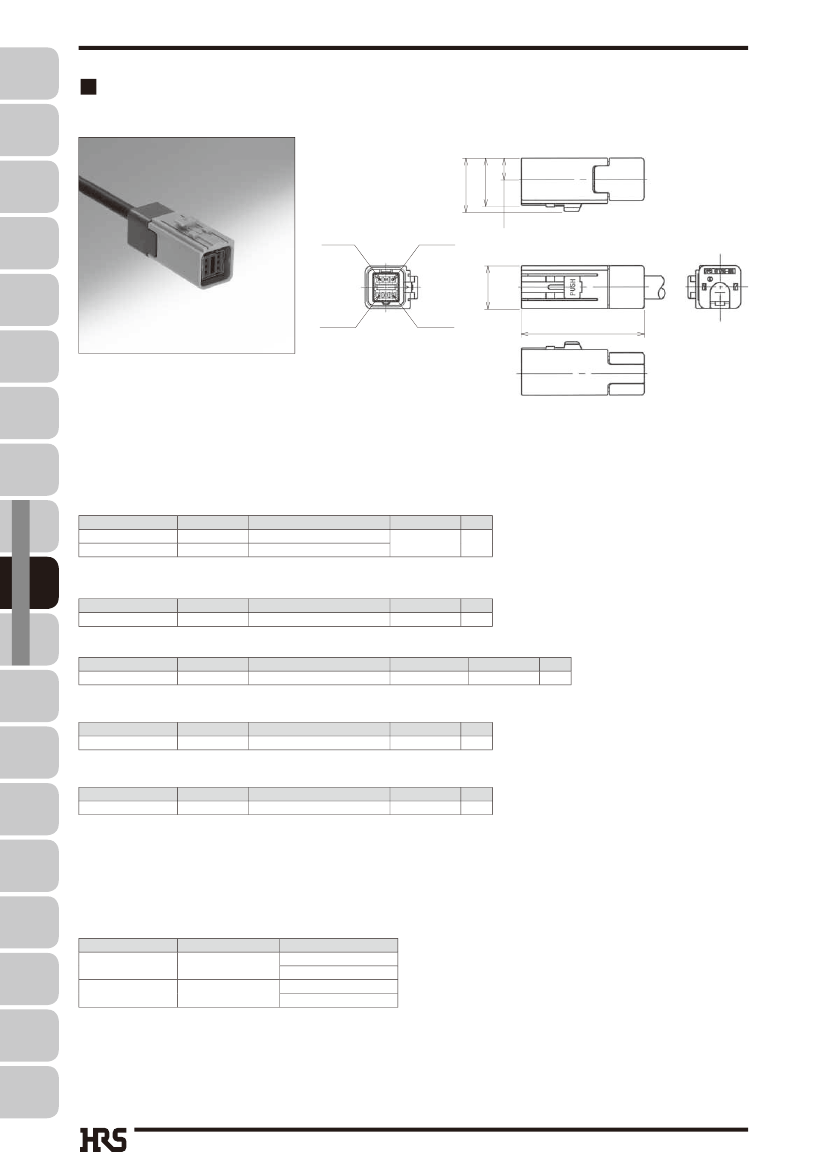

6 Pos. Straight Connectors
B
By using two key codings for different purposes, incorrect insertion can be prevented.
GT16
GT13
16.6
14.7
13.3
6.6
PO5G
Contact
No.3
Contact
No.1
For Network, High speed communication
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT19
Contact
No.6
Contact
No.4
38.5
GT26
GT36
GT11
GT21
B
The product comprises 6 parts.
(Housing, insulator, outer terminal, shield plate, retainer, and center terminal)
●
Housing
Part No.
GT17VS- 6DS -HU
GT17VSA-6DS-HU
HRS No.
767- 0051-7
767- 0052-0
Material / Plating or Color
PBT/Light Gray
PBT/Black
Packaging
1
RoHS
YES
GT17
●
Insulator
Part No.
GT17V-6DS-2C
●
Outer terminal
Part No.
GT17VS- 6DS -5CF
HRS No.
767- 0050-4
Material / Plating or Color
Copper alloy / Tin plating
Outer Diameter
φ4.8
to 5.2
Packaging
1
RoHS
YES
HRS No.
767-0026-0
Material / Plating or Color
PBT/Dark Gray
Packaging
1
RoHS
YES
GT3
GT32
●
Shield plate
Part No.
GT17VS- 6DS -SC
●
Retainer
HRS No.
767- 0049-5
Material / Plating or Color
Copper alloy / Tin plating
Packaging
1
RoHS
YES
GT7
GT10
Part No.
GT17VS- 6DS -R
HRS No.
767- 0053-2
Material / Plating or Color
PBT/Dark Gray
Packaging
1
RoHS
YES
GT18W
GT25
●
Center terminal
Used with 6,8, and 10 pos. cable
B
Mating Table
Color
Cable side connector
GT17VS- 6DS-HU
GT17VSA- 6DS-HU
Board connector
GT17V- 6DP- DS
（70）
- 6DP- DS
GT17VB
（70）
GT17VA - 6DP- DS
（70）
GT17VC - 6DP- DS
（70）
GT8E
Gray
Black
GT15
GT9
122
GT17 Series
●
For Network, High speed communication
GT5
6 Pos. Right-angle Connectors
B
By using two key codings for different purposes, incorrect insertion can be prevented.
GT13
GT16
PO5G
Contact
No.3
Contact
No.1
GT19
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Contact
No.6
Contact
No.4
GT21
GT26
B
The product comprises 6 parts.
(Housing, insulator, outer terminal, shield plate, retainer, and center terminal)
●
Housing
Part No.
GT17V-6DS-HU
GT17VA-6DS-HU
●
Insulator
Part No.
GT17V-6DS-2C
●
Outer terminal
Part No.
GT17V-6DS-5CF
GT17V-6DS-3.8CF
●
Shield plate
Part No.
GT17V-6DS-SC
●
Retainer
HRS No.
767-0028-5
Material / Plating or Color
Copper alloy / Tin plating
Packaging
1
RoHS
YES
HRS No.
767-0027-2
767-0075-5
Material / Plating or Color
Copper alloy / Tin plating
Outer Diameter
φ4.8
to 5.2
φ3.6
to 4.0
Packaging
1
RoHS
YES
HRS No.
767-0026-0
Material / Plating or Color
PBT / Dark Gray
Packaging
1
RoHS
YES
HRS No.
767-0029-8
767-0030-7
Material / Plating or Color
PBT / Light Gray
PBT / Black
Packaging
1
RoHS
YES
GT36
For Network, High speed communication
GT11
GT17
GT32
GT3
GT7
GT10
Part No.
GT17V-6DS-R
●
Center terminal
HRS No.
767- 0031-0
Material / Plating or Color
PBT / Dark Gray
Packaging
1
RoHS
YES
GT18W
Used with 6,8, and 10 pos. cable
B
Mating Table
Color
Gray
Black
Cable side connector
GT17V-6DS-HU
GT17VA-6DS-HU
Board connector
GT17V- 6DP-DS(70)(Cable exit direction, up side from mounting side)
GT17VB- 6DP-DS(70)(Cable exit direction, down side from mounting side)
GT17VA- 6DP-DS(70)(Cable exit direction, up side from mounting side)
GT17VC- 6DP-DS(70)(Cable exit direction, down side from mounting side)
123
GT25
GT8E
GT9
GT15
GT17 Series
●
For Network, High speed communication
GT5
6 Pos. Printed Circuit Board Connectors
B
By using two key codings for different purposes, incorrect insertion can be prevented.
GT13
●
Cable extraction facing up
In Combination with a Right-angle Connector
(Facing Up)
16.5
15
13.1
（
GT17V-6DP-DS 70）
2
3
GT17V-6DS-R
PO5G
GT16
GT19
15.7
For Network, High speed communication
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
GT17V-6DP-DS(70)
GT21
12.2
T=1.6
PC BOARD
PANEL
GT17V-6DS-HU
GT26
In Combination with a Straight Connector
16.5
13.1
GT17V-6DP-DS 70）
（
2
GT17VS-6DS-R
26.5
GT36
23.2
22
GT11
15.7
12.2
GT17
Ｔ=1.6
PC BOARD
PANEL
GT17VS-6DS-HU
GT32
Part No.
HRS No.
GT17V-6DP-DS(70)
767-0024-4 70
GT3
Material / Plating or Color
Housing: PBT/Light Gray
Center terminal: Brass /Tin plating
Outer terminal: Copper alloy /Tin plating
Packaging
1
RoHS
YES
GT7
●
Cable extraction facing down
In Combination with a Right-angle Connector
(Facing Down)
16.5
PANEL
GT17V-6DS-HU
13.1
GT17VB-6DP-DS
（70）
GT18W
GT10
12.2
23.2
GT25
GT17VB- 6DP-DS(70)
22
GT17V-6DS-R
GT8E
3
15
2
PC BOARD
GT9
Part No.
HRS No.
GT17VB-6DP-DS(70)
767-0032-2 70
GT15
Material / Plating or Color
Housing: PBT/Light Gray
Center terminal: Brass /Tin plating
Outer terminal: Copper alloy /Tin plating
Packaging
1
RoHS
YES
124
T=1.6
15.7
14.5
