IC1BA-68RD-1.27SH(52) datasheet, PDF

Datasheet> All Categories > The connector> Memory connector> Memory card connector> IC1BA-68RD-1.27SH(52)

IC1BA-68RD-1.27SH(52): DescriptionMemory card connector SOC MEM CARD 2.8MM DUAL; CategoryThe connector Memory connector Memory card connector; File Size153KB，4 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

IC1BA-68RD-1.27SH(52) Overview

Memory card connector SOC MEM CARD 2.8MM DUAL

IC1BA-68RD-1.27SH(52) Parametric

Parameter Name	Attribute value
Maker	Hirose
Product Category	memory card connector
product	Card Connectors
type	I, II, III
Number of contacts	68
Number of rows	2 Row
Pitch	1.27 mm
Termination type	SMD
Current rating	500 mA
Contact plating	Gold
Shell material	Thermoplastic
Installation type	Top / Bottom
direction	Vertical
series	IC1
Voltage rating	125 V
Contact material	Beryllium Copper
Flammability rating	UL 94 V-0
Insulation resistance	1000 MOhms
Operation cycle	10000
Factory packaging quantity	1

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

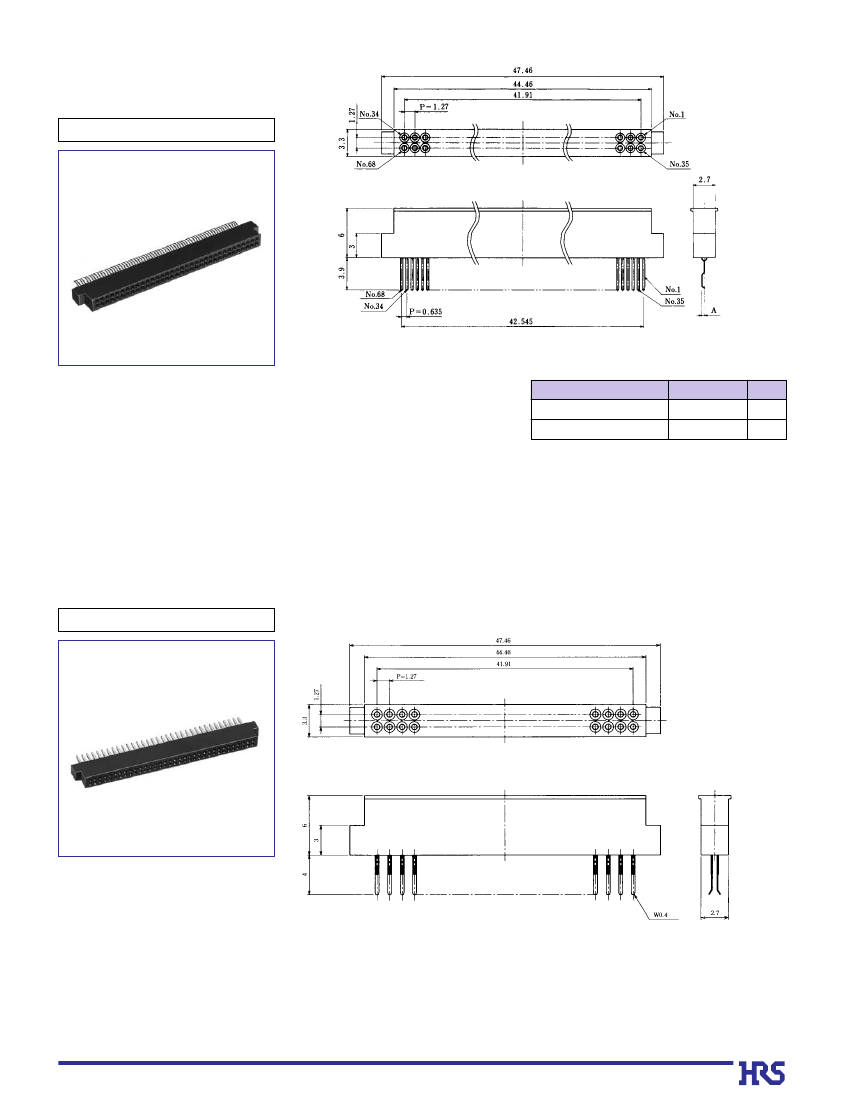

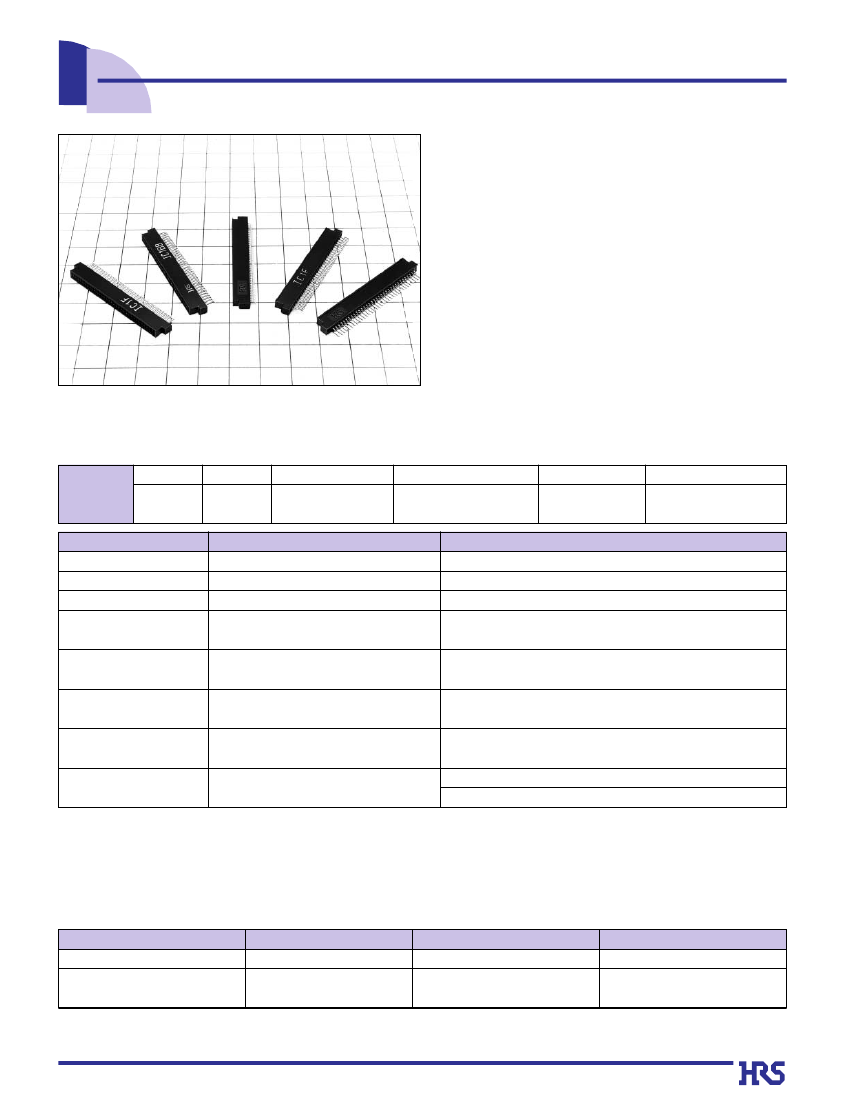

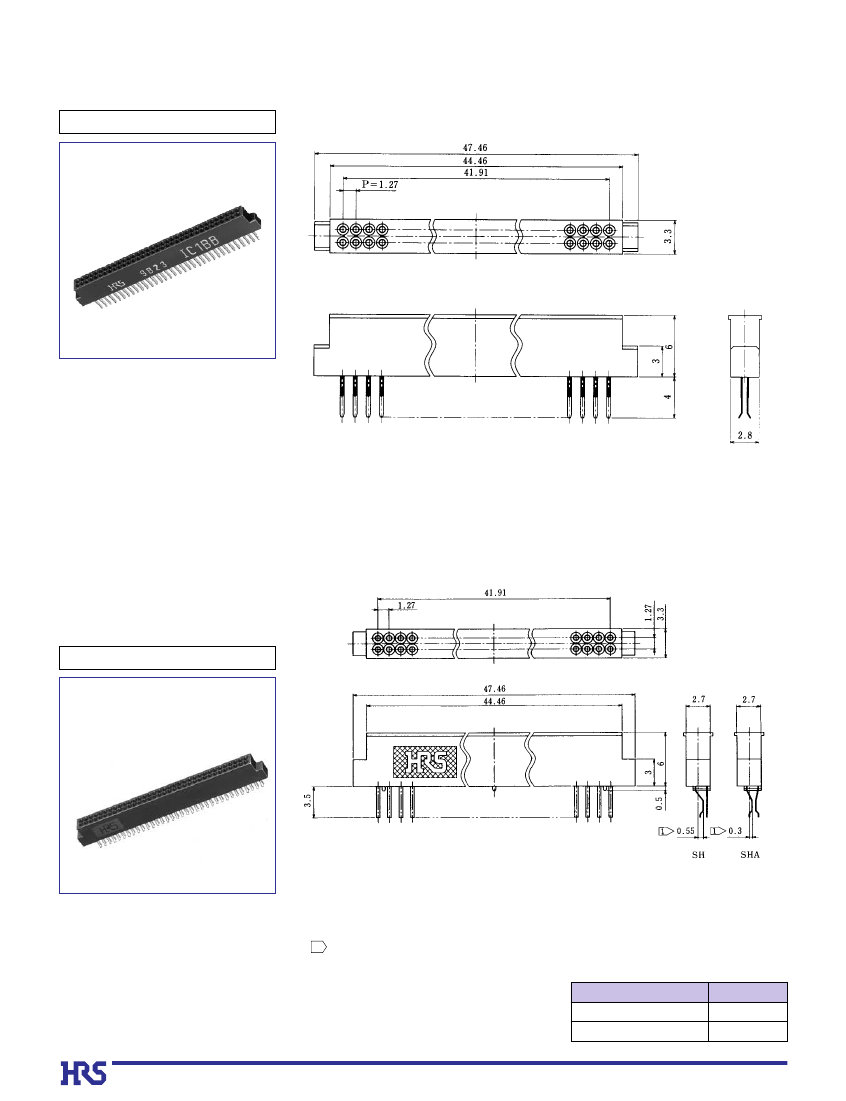

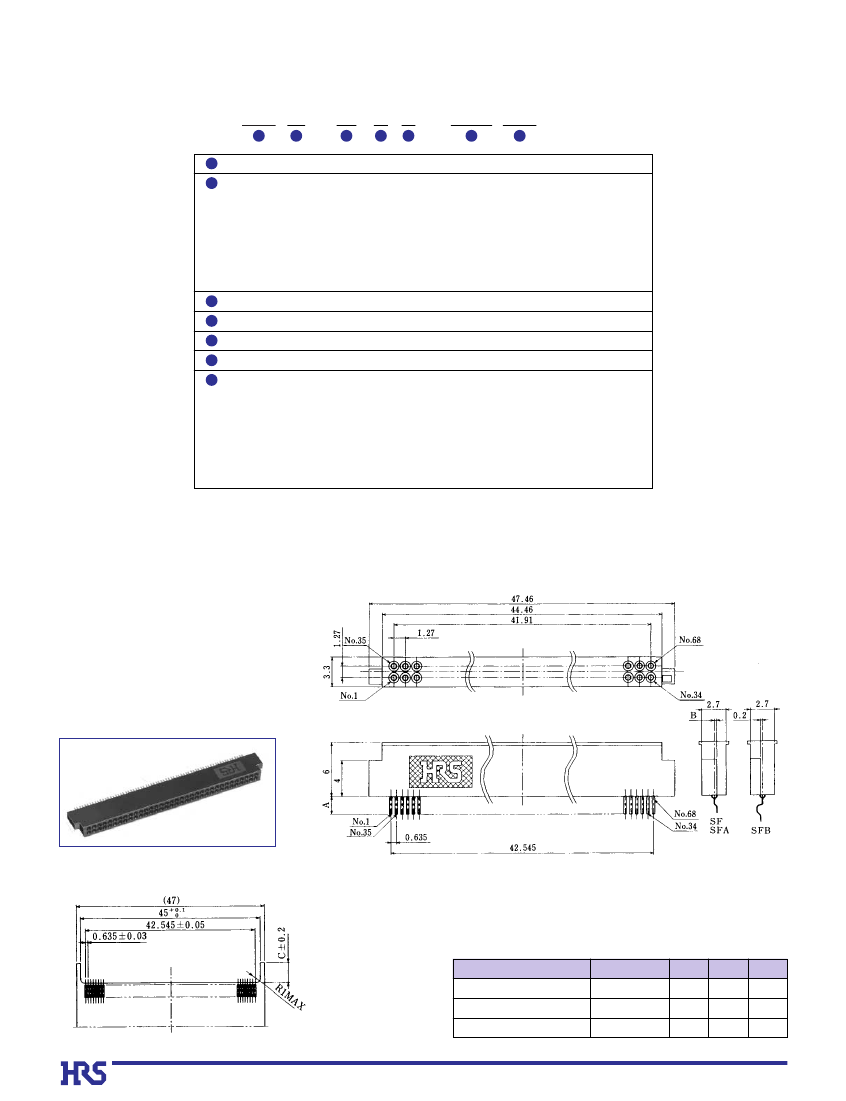

PC Card Socket Connector Complies with PC card Standard

IC1 Series

sFeatures

1. Compliant with PC Card Standards

Polarized entry prevents wrong insertion into a

corresponding connector. And sequential

contact engagement prevents electorostatic

discharge, avoiding possible damage to sensitive

board circuits.

2. Suited to Automatic Mounting

Packaged for a board placement with aoutmated

equipment.

3. Lead Offset

Available with several board termination

levels,to allow use of different height board

components.

In relation to the center line of connector,-

0.2mm,+0.3mm,+0.55mm,+0.9mm and

terminations on board center are available.

-55ç to +85ç (Note 1)

95% R.H. max.

(No condensation)

Specification

1000Mø min.

No flashover or insulation breakdown.

40 mø max. (initial value) (Note 3)

No electrical discontinuity of 100ns or

500 V DC

500 V AC / 1 minute

1 mA

Frequency: 10 to 2000 Hz, single amplitude of 1.52 mm or

acceleration of 147 m/s

(peak), 4 hours in each of the 3 directions.

96 hours at temperature of 40ç and humidity of 90% to 95%

-55ç, 30 min

/15

to 30ç, within 5 min/85ç, 30 min

/15

to 35ç, within 5 min, for 5 cycles

10000 cycles at 400 to 600 cycles per hour

Reflow: At the recommended temperature profile

Manual soldering: 300ç for 3 seconds

Storage temperature

Storage humidity

Conditions

-40ç to +70ç (Note 2)

40% to 70% (Note 2)

sProduct

Specifications

Current rating 0.5 A

Ratings

Voltage rating 125 V AC

Item

1. Insulation resistance

2. Withstanding voltage

3. Contact resistance

4. Vibration

Operating temperature

Operating humidity

Humidity (Steady state)

Insulation resistance: 100 Mø min.

Temperature cycle

Durability

(Insertion/withdrawal)

8. Resistance to

soldering heat

No damage, cracks, or parts looseness.

Change of contact resistance from the

start should be 20 mø max.

No deformation of components

affecting performance.

Note 1: Includes temperature rise caused by current flow.

Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature

Range and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during

transportation.

sMaterials

Part

Insulator

Contact

Material

PPS

IC1K,IC1HA:Phosphor bronze

Others:Beryllium copper

Finish

Color : Black

Contact Area : gold plating

Lead Area

: solder plating

Remarks

UL94V-0

-----------------

A73
