505432-3601 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Header and line shell> 505432-3601

505432-3601: DescriptionHeader and Wire Housing Micro-Lock Plus HSG DR 36CKT W/POSLK BLK; CategoryThe connector Header and line shell; File Size38KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

505432-3601 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	505432-3601	-	-	View	Buy Now

505432-3601 Overview

Header and Wire Housing Micro-Lock Plus HSG DR 36CKT W/POSLK BLK

505432-3601 Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	Headers and wire housings
Shipping restrictions	Mouser does not currently sell this product.
product	Wire Housings
type	Receptacle Housing
Number of locations	36 Position
Pitch	1.25 mm
Number of rows	2 Row
Installation style	Free Hanging
Termination type	-
Installation angle	Straight
Contact type	-
Contact plating	-
Matching column length	-
Termination post length	-
series	505432
Encapsulation	Bulk
Contact type	Socket
Current rating	-
Shell material	Polybutylene Terephthalate (PBT)
Voltage rating	-
Contact material	-
Flammability rating	Socket (Female)
line spacing	1.25 mm
Plastic shell interface type	Female
Locking type	Unlatched
Maximum operating temperature	+ 105 C
Minimum operating temperature	- 40 C
Factory packaging quantity	7200
unit weight	690.788 mg

Preview

Download Datasheet

View All

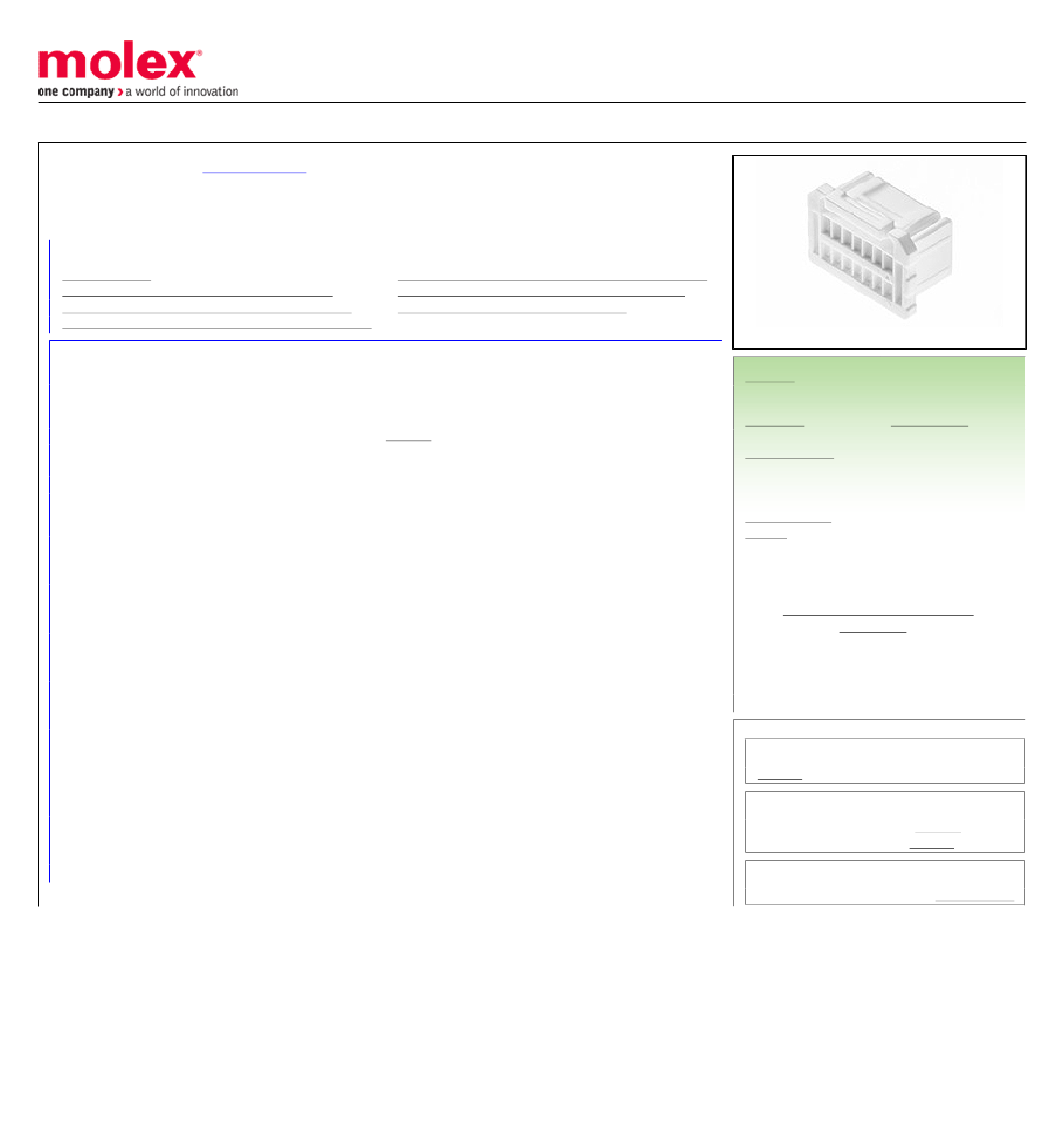

This document was generated on 04/21/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5054324206

Active

Micro-Lock™ PLUS Receptacle Housing, 1.25mm Pitch, Dual Row, with Positive Lock,

42 Circuits, Green

Documents:

Drawing (PDF)

Product Specification 5054320000-002 (PDF)

Product Specification PS-505432-001-001 (PDF)

Application Specification AS-505432-001-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Temperature Range - Operating

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Application Specification AS-505432-002-001 (PDF)

Packaging Specification 5054329200-200 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

Crimp Housings

505432

Signal, Wire-to-Board

Micro-Lock™ PLUS

889056425834

Green

Receptacle

None

Yes

Polyester

778.635/mg

Bag

1.25mm

Yes

-40°C to +105°C

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2017 (12

January 2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

505432 Series

Mates With

Dual Row Vertical Header 505433 <br>Dual

Row Right Angle Header 505448

Use With

Micro-Lock™ PLUS Terminal 505431-1000

AS-505432-001-001, AS-505432-002-001

5054329200-200

5054320000-002, PS-505432-001-001

5054320000-000

This document was generated on 04/21/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
