Document 1304-1

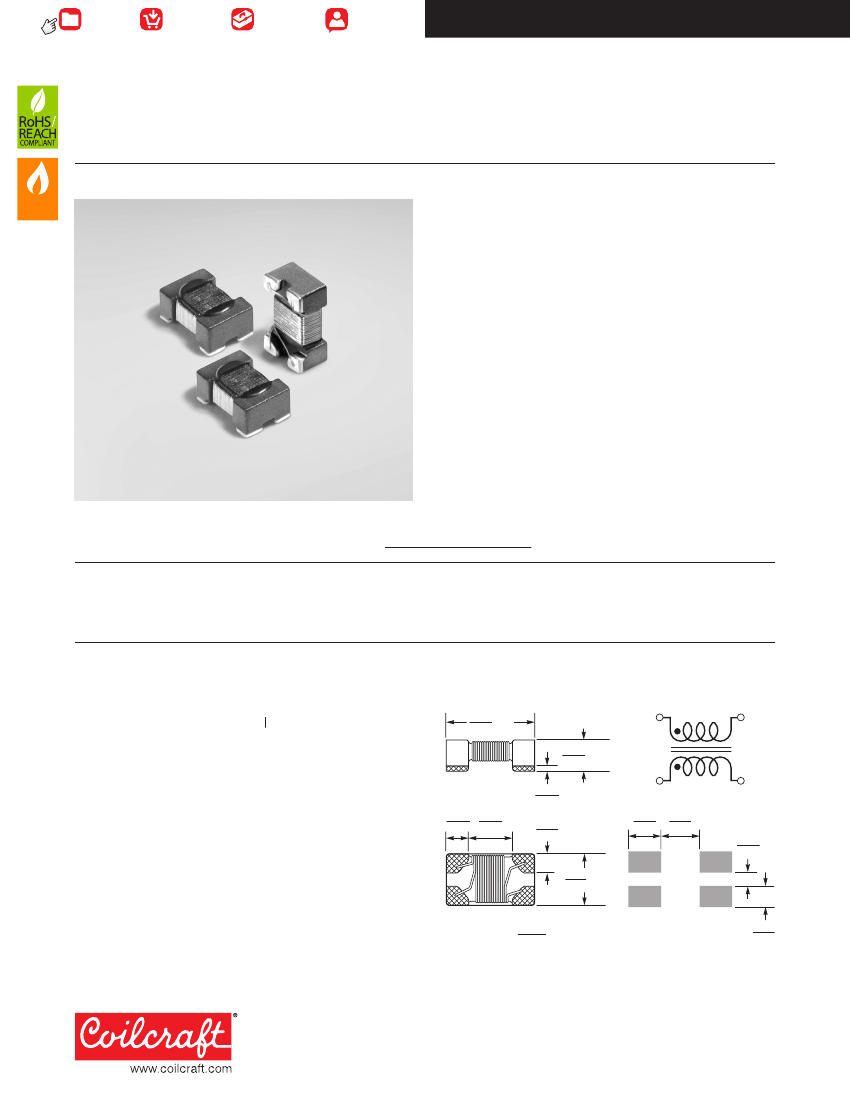

Ultra Low Profile Common Mode Choke
0805
Halogen
Free
Q200
+
85°C
AEC
• For noise suppression in super high speed signal lines: USB 3.x,
HDMI 2.0, HDBaseT™, DiplayPort, DVI, etc.; and in high speed
differential signal lines: USB 2.0, IEEE1394, LVDS, etc.
• Up to 6.5 GHz differential mode 3 dB cutoff frequency; up to
35 dB common mode noise attenuation in GHz range
• Lowest profile 0805 common mode choke – 0.93 mm tall
Core material
Ferrite
Environmental
RoHS compliant
Terminations
Matte tin over nickel over silver-palladium-glass frit.
Weight
9.0 – 13.0 mg
Ambient temperature
–40°C to +125°C with
Irms
current.
Maximum part temperature
140°C
Storage temperature
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
2000/7″ reel; 7500/13″ reel; Plastic tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.07 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part
number
1
Common mode
peak impedance
(kOhms)
Common mode
Cutoff
attenuation typ (dB)
2
frequency
(GHz)
10 MHz 100 MHz 500 MHz
DCR
Inductance
3
max
4
min (nH)
(Ohms)
Isolation
5
Irms
6
(Vrms) (mA)
0805USBN-121MR_
0805USBN-271MR_
0805USBN-481MR_
0805USBN-701MR_
0805USBN-941MR_
0805USBN-132MR_
0805USBN-162MR_
0805USBN-222MR_
0.14 @ 2.6 GHz
0.30 @ 2.5 GHz
0.60 @ 3.0 GHz
0.79 @ 2.0 GHz
1.28 @ 1.4 GHz
1.61 @ 1.2 GHz
2.00 @ 1.0 GHz
2.47 @ 0.96 GHz
6.4
5.1
3.4
3.4
3.5
2.3
1.5
1.7
0.04
0.09
0.13
0.18
0.30
0.50
0.78
1.14
0.5
1.4
3.5
5.3
7.6
10.0
12.1
14.0
5.0
10.0
14.7
17.4
21.1
24.4
27.3
30.0
0.087
max
2,2
14
30
53
77
105
140
182
252
0.11
0.14
0.22
0.235
0.27
0.32
0.37
0.63
1
250
250
250
250
250
250
250
250
500
500
500
500
500
500
450
350
2
1. When ordering, please specify
packaging
code:
0805USBN-222MRC
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plas-
tic tape (7500 parts per full reel).
2 Frequency at which the differential mode attenuation equals −3 dB
3. Inductance measured at 100 MHz using an Agilent/HP 4286A
impedance analyzer and a Coilcraft SMD-A fixture.
4. DCR is specified per winding.
5. Winding to winding isolation (hipot) tested for one minute.
6. Current per winding that causes a 15°C rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
0.037
max
0,93
0.004
0,10
0.020 0.040
0,51 1,02
0.018
0,46
2
4
0.030
0,76
2
3
0.036
0,91
1
0.014
0,36
1
0.055 max
1,4
4
3
3
4
Dimensions are in
inches
mm
Recommended
Land Pattern
0.020
0,51
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1304-1
Revised 06/07/16
© Coilcraft Inc. 2018
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 1304-2
Designer’s Kit C470
contains 10 each of all 0603USB,
0805USB, 0805USBF, 0805USBN and 1206USB parts
Ultra Low Profile Common Mode Choke — 0805

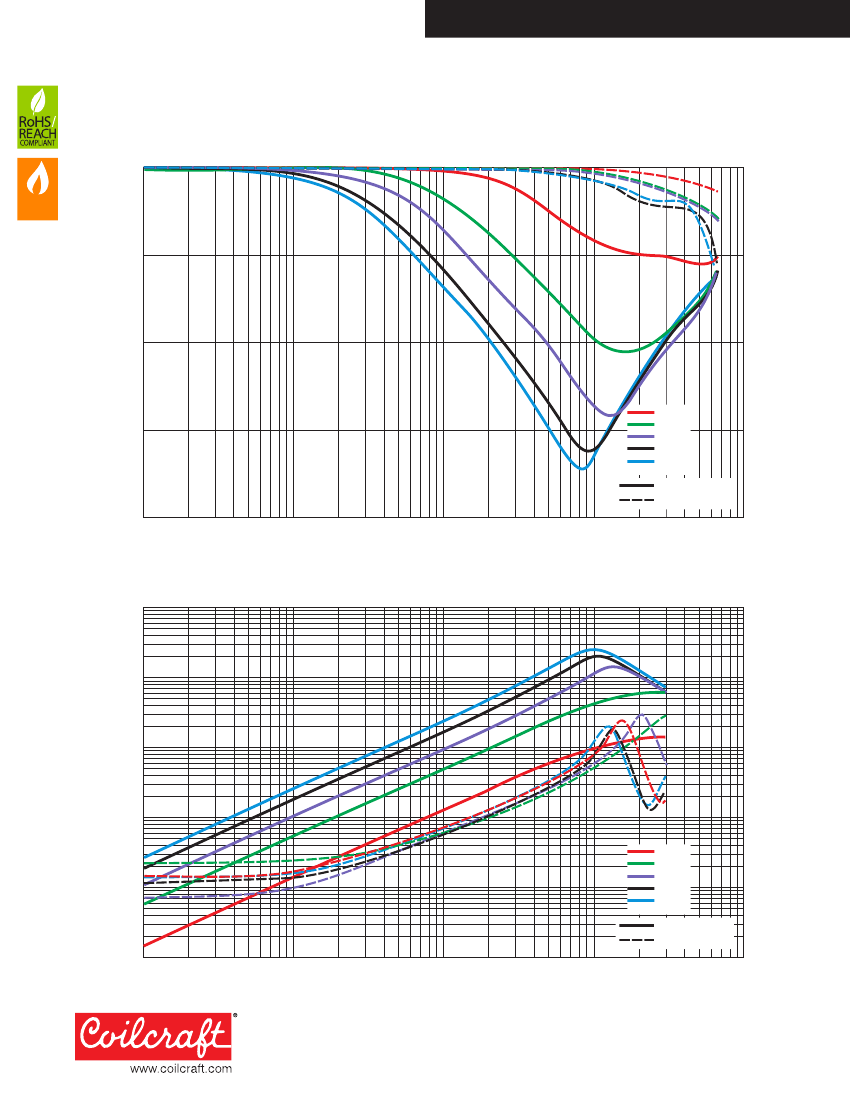

Typical Attenuation
(Ref: 50 Ohms)
0
Halogen
Free
10
Q200
+
85°C
AEC
Attenuation (dB)
20
30
-121
-481
-941
-162
-222
Common mode
Differential mode
40
1
10
100
1000
10,000
Frequency (MHz)
Typical Impedance vs Frequency
10,000
1000
Impedance (Ohms)
100
10
1.0
-121
-481
-941
-162
-222
Common mode
Differential mode
0.1
1
10
100
1000
10,000
Frequency (MHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1304-2
Revised 06/07/16
© Coilcraft Inc. 2018
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
