SS3P3L, SS3P4L
www.vishay.com
Vishay General Semiconductor
High Current Density Surface Mount
Schottky Barrier Rectifiers
eSMP
®
Series
K
FEATURES
• Very low profile - typical height of 1.1 mm
• Ideal for automated placement
• Low forward voltage drop, low power losses
• High efficiency
1
2
Available
• Low thermal resistance
• Meets MSL level 1, per
LF maximum peak of 260 °C
J-STD-020,
SMPC (TO-277A)
K
Cathode
Anode 1
Anode 2
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
3.0 A
30 V, 40 V
150 A
20 mJ
0.335 V
150 °C
SMPC (TO-277A)
Single
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
E
AS
V
F
at I
F
= 3.0 A
T
J
max.
Package
Circuit configuration
MECHANICAL DATA
Case:
SMPC (TO-277A)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-M3 - halogen-free, RoHS-compliant, and
commercial grade
Base P/NHM3_X - halogen-free, RoHS-compliant and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,.....)
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix
meets JESD 201 class 2 whisker test
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Device marking code
Maximum repetitive peak reverse voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 10 ms single half sine-wave
superimposed on rated load
Non-repetitive avalanche energy at I
AS
= 2.0 A, T
J
= 25 °C
Operating junction and storage temperature range
V
RRM
I
F(AV)
I
FSM
E
AS
T
J
, T
STG
SYMBOL
SS3P3L
S33
30
3.0
150
20
-55 to +150
SS3P4L
S34
40
V
A
A
mJ
°C
UNIT
Revision: 22-Mar-18
Document Number: 88986
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS3P3L, SS3P4L
www.vishay.com
Vishay General Semiconductor
TEST CONDITIONS
I
F
= 1.5 A
I
F
= 3.0 A
I
F
= 1.5 A
I
F
= 3.0 A
T
A
= 25 °C
V
F (1)
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
I
R (2)
C
J
SYMBOL
TYP.
0.384
0.427
0.268
0.335
61.8
26.7
280
MAX.
-
0.47
-
0.38
250
40
-
μA
mA
μA
V
UNIT
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous forward
voltage
Maximum reverse current
Typical junction capacitance
Rated V
R
4.0 V, 1 MHz
Notes
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
40 ms
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise specified)
PARAMETER
Typical thermal resistance
Note
(1)
Units mounted on recommended PCB 1 oz. pad layout
SYMBOL
R
JA
R
JL
(1)
SS3P3L
60
3
SS3P4L
UNIT
°C/W
ORDERING INFORMATION
(Example)
PREFERRED P/N
SS3P4L-M3/86A
SS3P4L-M3/87A
SS3P4LHM3_A/H
(1)
SS3P4LHM3_A/I
(1)
(1)
UNIT WEIGHT (g)
0.10
0.10
0.10
0.10
PACKAGE CODE
86A
87A
H
I
BASE QUANTITY
1500
6500
1500
6500
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Note
AEC-Q101 qualified
Revision: 22-Mar-18
Document Number: 88986
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS3P3L, SS3P4L
www.vishay.com
Vishay General Semiconductor
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise specified)
3.0
1000
Resistive or Inductive Load
2.5
Average Forward Rectified Current (A)
Instantaneous Reverse Current (mA)
100
10
T
A
= 150 °C
2.0
T
A
= 125 °C
1
0.1
T
A
= 25 °C
0.01
0.001
1.5
1.0
0.5
0
80
90
100
110
120
130
140
150
T
L
measured
at the Cathode Band Terminal
10
20
30
40
50
60
70
80
90
100
Lead Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)

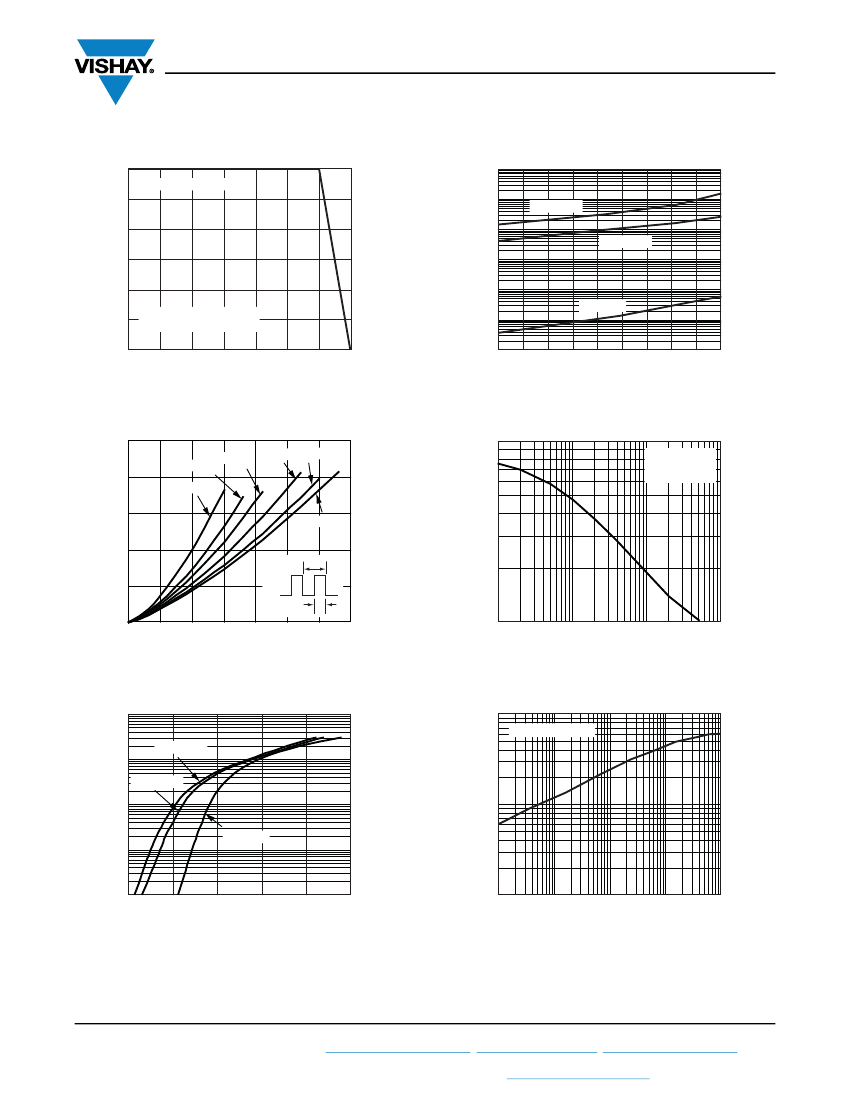

Fig. 1 - Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Characteristics
1.5
D = 0.2
D = 0.3
D = 0.5
D = 0.8
1000
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Average Power Loss (W)
1.2
D = 0.1
0.9
D = 1.0
0.6
T
0.3
D = t
p
/T
0
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
t
p
Junction Capacitance (pF)
100
0.1
1
10
100
Average Forward Current (A)
Reverse Voltage (V)
Fig. 2 - Forward Power Loss Characteristics
Fig. 5 - Typical Junction Capacitance
100
100
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
Junction to Ambient
T
A
= 150 °C
10
T
A
= 125 °C
1
10
T
A
= 25 °C
0.1
0.01
0
0.2
0.4
0.6
0.8
1.0
1
0.01
0.1
1
10
100
Instantaneous Forward Voltage (V)
t - Pulse Duration (s)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Transient Thermal Impedance
Revision: 22-Mar-18
Document Number: 88986
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SS3P3L, SS3P4L
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
SMPC
(TO-277A)
0.187 (4.75)
0.175 (4.45)
K
0.016 (0.40)
0.006 (0.15)
Vishay General Semiconductor
0.262 (6.65)
0.250 (6.35)
0.242 (6.15)
0.238 (6.05)
2
1
0.171 (4.35)
0.167 (4.25)
0.146 (3.70)
0.134 (3.40)
0.087 (2.20)
0.075 (1.90)
0.047 (1.20)
0.039 (1.00)
Mounting Pad Layout
0.189 (4.80)
MIN.
0.189 (4.80)
0.173 (4.40)
0.155 (3.94)
NOM.
0.030 (0.75) NOM.
0.268
(6.80)
0.186 (4.72)
MIN.
0.049 (1.24)
0.037 (0.94)
0.084 (2.13) NOM.
0.053 (1.35)
0.041 (1.05)
Conform to JEDEC
®
TO-277A
0.050 (1.27)
MIN.
0.041
(1.04)
0.055 (1.40)
MIN.
Revision: 22-Mar-18
Document Number: 88986
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
