74HC597DB,112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74HC597DB,112

74HC597DB,112: DescriptionCounter shift register 8-BIT SHIFT REGISTER; Categorylogic logic; File Size812KB，23 Pages; ManufacturerNexperia; Websitehttps://www.nexperia.com; Environmental Compliance

Download Datasheet Parametric Compare View All

74HC597DB,112 Overview

Counter shift register 8-BIT SHIFT REGISTER

74HC597DB,112 Parametric

Parameter Name	Attribute value
Brand Name	Nexperia
Is it Rohs certified?	conform to
Maker	Nexperia
Parts packaging code	SSOP1
Contacts	16
Manufacturer packaging code	SOT338-1
Reach Compliance Code	compliant
Samacsys Description	74HC(T)597 - 8-bit shift register with input flip-flops@en-us
Counting direction	RIGHT
series	HC/UH
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	6.2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN SERIAL OUT
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	53 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	POSITIVE EDGE
width	5.3 mm
minfmax	20 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

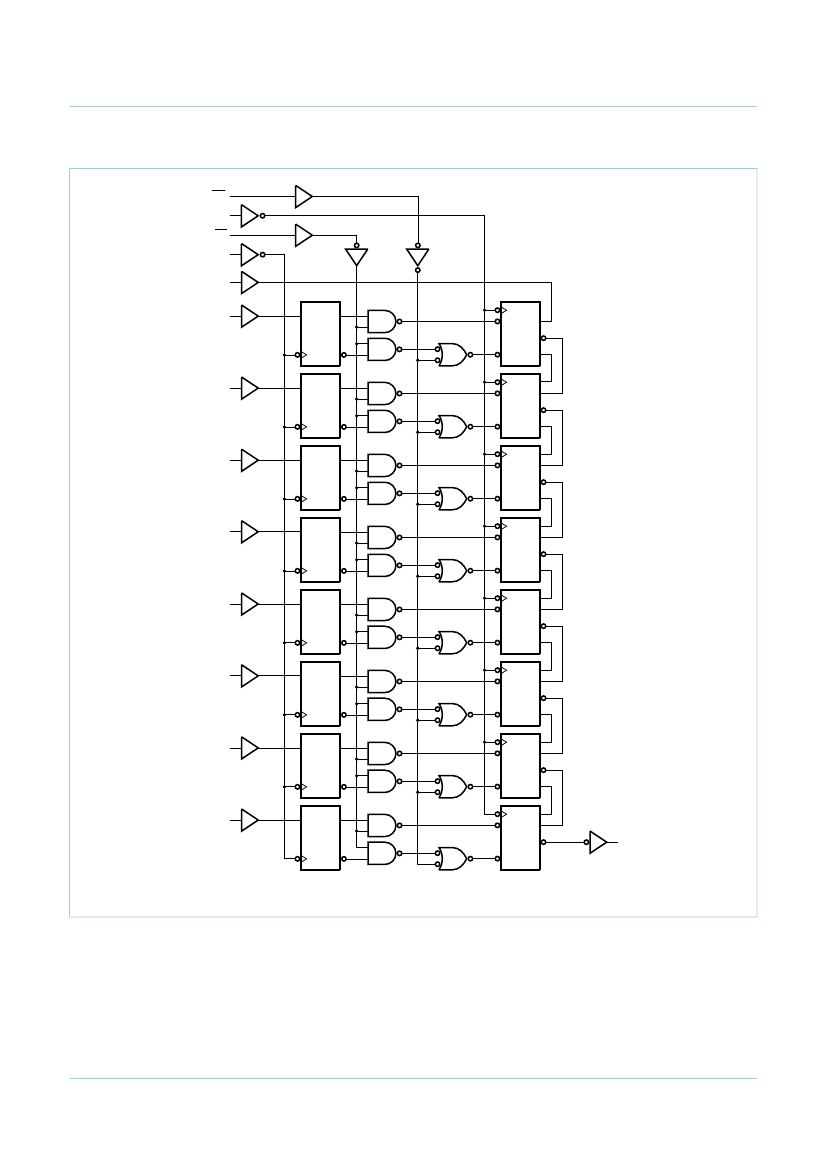

74HC597; 74HCT597

8-bit shift register with input flip-flops

Rev. 4 — 25 February 2016

Product data sheet

1. General description

The 74HC597; 74HCT597 is an 8-bit shift register with input flip-flops. It consists of an

8-bit storage register feeding a parallel-in, serial-out 8-bit shift register. Both the storage

has direct load (from storage) and clear inputs. Inputs include clamp diodes that enable

the use of current limiting resistors to interface inputs to voltages in excess of V

2. Features and benefits



Complies with JEDEC standard JESD7A



Input levels:



For 74HC597: CMOS level



For 74HCT597: TTL level



8-bit parallel storage register inputs



Shift register has direct overriding load and clear



ESD protection:



HBM EIA/JESD22-A114F exceeds 2000 V



MM EIA/JESD22-A115-A exceeds 200 V



Specified from

40 C

to +85

C

and from

40 C

to +125

C



Multiple package options

3. Ordering information

Table 1.

Ordering information

Package

Temperature range

74HC597D

74HCT597D

74HC597DB

74HCT597DB

74HC597PW

40 C

to +125

C

TSSOP16

40 C

to +125

C

SSOP16

40 C

to +125

C

Name

SO16

Description

plastic small outline package; 16 leads; body width

3.9 mm

plastic shrink small outline package; 16 leads;

body width 5.3 mm

plastic thin shrink small outline package; 16 leads;

body width 4.4 mm

Version

SOT109-1

SOT338-1

SOT403-1

Type number

74HC597DB,112 Related Products

	74HC597DB,112	74HC597PW,118	74HC597DB,118
Description	Counter shift register 8-BIT SHIFT REGISTER	Counter shift register 8-BIT SHIFT REG	Counter shift register 8-BIT SHIFT REG W/INPUT LATCH
Brand Name	Nexperia	Nexperia	Nexperia
Is it Rohs certified?	conform to	conform to	conform to
Maker	Nexperia	Nexperia	Nexperia
Parts packaging code	SSOP1	TSSOP	SSOP1
Contacts	16	16	16
Manufacturer packaging code	SOT338-1	SOT403-1	SOT338-1
Reach Compliance Code	compliant	compliant	compliant
Samacsys Description	74HC(T)597 - 8-bit shift register with input flip-flops@en-us	74HC(T)597 - 8-bit shift register with input flip-flops@en-us	74HC(T)597 - 8-bit shift register with input flip-flops@en-us
Counting direction	RIGHT	RIGHT	RIGHT
series	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e4	e4	e4
length	6.2 mm	5 mm	6.2 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT
Humidity sensitivity level	1	1	1
Number of digits	8	8	8
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260
propagation delay (tpd)	53 ns	53 ns	53 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	1.1 mm	2 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	5.3 mm	4.4 mm	5.3 mm
minfmax	20 MHz	20 MHz	20 MHz
Base Number Matches	1	1	1
