SF61G - SF68G
Taiwan Semiconductor
CREAT BY ART

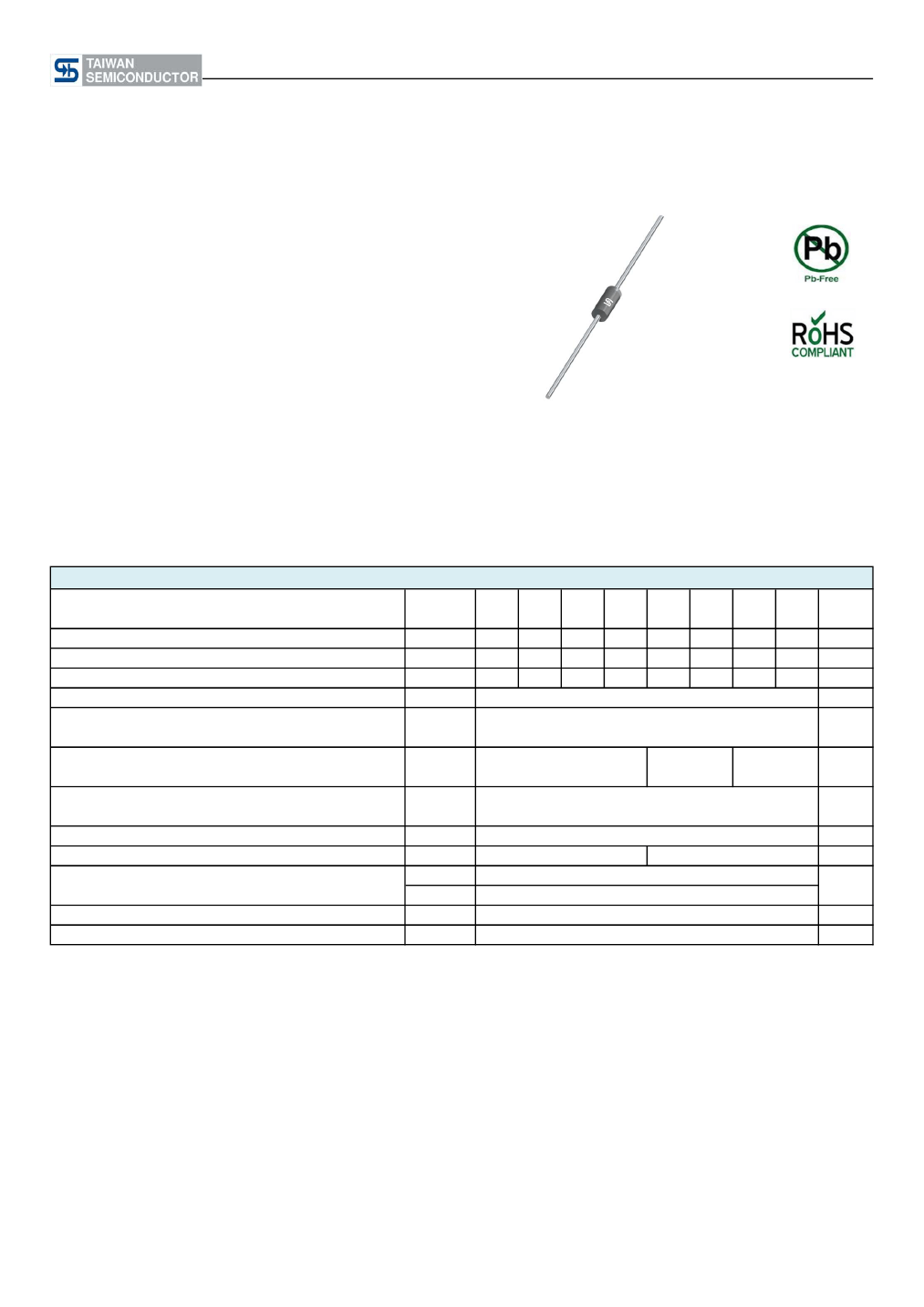

6A, 50V - 600V Glass Passivated Super Fast Rectifiers
FEATURES
- High efficiency
- High current capability, Low VF
- High reliability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
MECHANICAL DATA
Case:
DO-201AD
Molding compound: UL flammability classification rating 94V-0
Part No. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Pure tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Weight:
1.2 g (approximately)
DO-201AD
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@6A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Test conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and applied reverse voltage of 4.0V DC.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJL
R
θJA
T
J
T
STG
100
5
40
- 55 to +150
- 55 to +150
0.975
5
100
35
50
SF
61G
50
35
50
SF
62G
100
70
100
SF
63G
150
105
150
SF
64G
200
140
200
6
150
1.3
1.7
SF
65G
300
210
300
SF
66G
400
280
400
SF
67G
500
350
500
SF
68G
600
420
600
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Version: F1511
SF61G - SF68G
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
PACKING
CODE
A0
SF6xG
(Note 1)
H
R0
B0
X0
Note 1: "x" defines voltage from 50V (SF61G) to 600V (SF68G)
*: Optional available
G
PACKING CODE
SUFFIX
(*)
PACKAGE
DO-201AD
DO-201AD
DO-201AD
DO-201AD
PACKING
500 / Ammo box
1,250 / 13" Paper reel
500 / Bulk packing
Forming
EXAMPLE
EXAMPLE P/N
SF68GHA0G
PART NO.
SF68G
PART NO.
SUFFIX
H
PACKING CODE
A0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

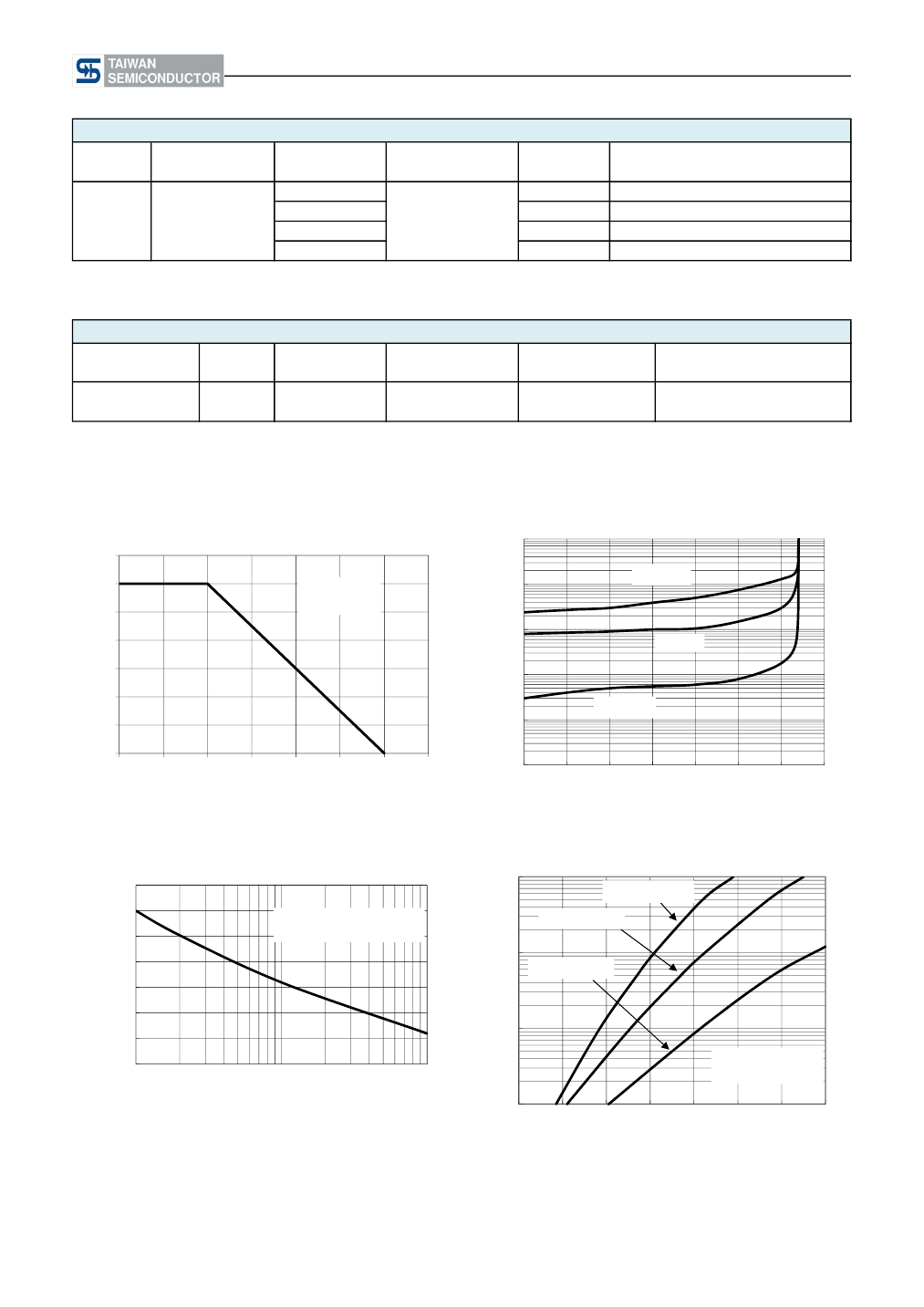

FIG.1 MAXIMUM AVERAGE FORWARD
CURRENT DERATING
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
1000
7
AVERAGE FORWARD CURRENT (A)
6
5
4
3
2
1
0
0
25
50
75
Resistive or
inductive load
100
T
J
=125°C
10
T
J
=75°C
1
0.1
T
J
=25°C
100
125
150
175
0.01
0
20
40
60
80
100
120
140
AMBIENT TEMPERATURE (
°
C)
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT(A)
INSTANTANEOUS FORWARD CURRENT(A)
175
150
125
100
75
50
25
0
1
10
100
8.3ms single half sine wave
FIG.4 TYPICAL FORWARD CHARACTERISTICS
100
SF61G~SF64G
SF65G~SF66G
10
SF67G~SF68G
1
Pulse width=300μs
1% duty cycle
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
NUMBER OF CYCLES AT 60 Hz
Version: F1511
SF61G - SF68G
Taiwan Semiconductor
CREAT BY ART

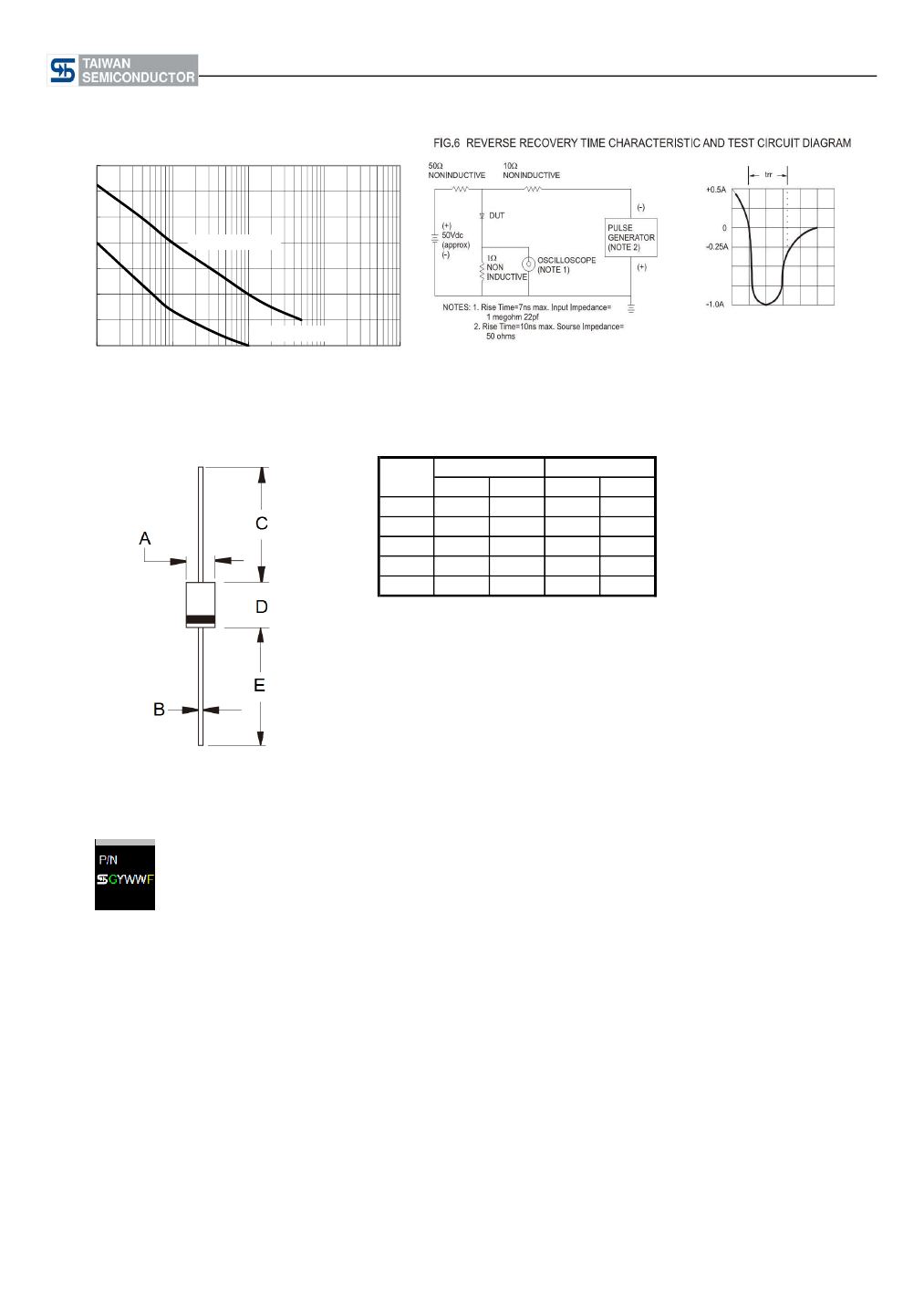

FIG. 5 TYPICAL JUNCTION CAPACITANCE
180
JUNCTION CAPACITANCE (pF)
160
140
120
100
80
60
40
0.1
1
10
REVERSE VOLTAGE (V)
SF61G~SF64G
SF65G~SF68G
100
1000
PACKAGE OUTLINE DIMENSIONS
DO-201AD
DIM.
A
B
C
D
E
Unit (mm)
Min
5.00
1.20
25.40
8.50
25.40
Max
5.60
1.30
-
9.50
-
Unit (inch)
Min
0.197
0.048
1.000
0.335
1.000
Max
0.220
0.052
-
0.375
-
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
Version: F1511
SF61G - SF68G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: F1511
