MLX90366
Triaxis
®
Position Sensor IC feat. SENT
Features and Benefits
Triaxis
®
Hall Technology
On Chip Signal Processing for Robust Absolute Position Sensing
Simple Magnetic Design
Programmable Measurement Range
Programmable Linear Transfer Characteristic (Multi-points)
SENT output (according to SAE J2716-2010)
12 bit Resolution - 10 bit Thermal Accuracy
48 bit ID Number option
Single Die – SOIC-8 Package RoHS Compliant
Dual Die (Full Redundant) – TSSOP-16 Package RoHS Compliant
Applications
Absolute Rotary Position Sensor
Pedal Position Sensor
Throttle Position Sensor
Ride Height Position Sensor
Absolute Linear Position Sensor
Steering Wheel Position Sensor
Float-Level Sensor
Non-Contacting Potentiometer
Ordering Information
1
Part No.
MLX90366
MLX90366
MLX90366
MLX90366
MLX90366
MLX90366
MLX90366
MLX90366
MLX90366
Legend:
Temperature Code:
Package Code:
Option Code:
E for Temperature Range -40° to 85°
C
C
K for Temperature Range -40° to 125°
C
C
L for Temperature Range -40° to 150°
C
C
VS for DMP-4 Package
AAA-123:
AAA: die version
1: IMC placement
23: Trim and form option:
•
50: Standard (straight leads) see section 20.1
•
51: Trim and Form STD1 2.54 see section 20.2
•
53: Trim and Form STD2 2.54 see section 20.3
RE for Reel (face-up)
RX for Reel (face-down)
SP for sample pack
MLX90366LVS-ADU-250-RE
Temperature Suffix
L (− 40° to + 150°
C
C)
L (− 40° to + 150°
C
C)
L (− 40° to + 150°
C
C)
L (− 40° to + 150°
C
C)
L (− 40° to + 125°
C
C)
L (− 40° to + 150°
C
C)
L (− 40° to + 150°
C
C)
L (− 40° to + 150°
C
C)
L (− 40° to + 150°
C
C)
Package Code
VS
VS
VS
VS
VS
VS
VS
VS
VS
Die Revision
ADU
ADU
ADU
ADU
ADU
ADU
ADU
ADU
ADU
Option code
250
250
250
251
251
251
253
253
253
Packing
RE
RX
SP
RE
RX
SP
RE
RX
SP
Packing Form:
Ordering example:
1
See your sales representative for more details.
Page 1 of 34
Datasheet
09/11/2015
MLX90366
Rev 1.2
MLX90366
Triaxis
®
Position Sensor IC feat. SENT
1. Functional Diagram
V
DIG
DSP
Reg
V
X
Rev.Pol.
&
OverVolt
.
V
DD
V
SS
-
V
Y
V
Z
M
U
X
G
A
D
µ
C
R
O
M
-
F/W
RAM
Out (SENT)
EEP
ROM

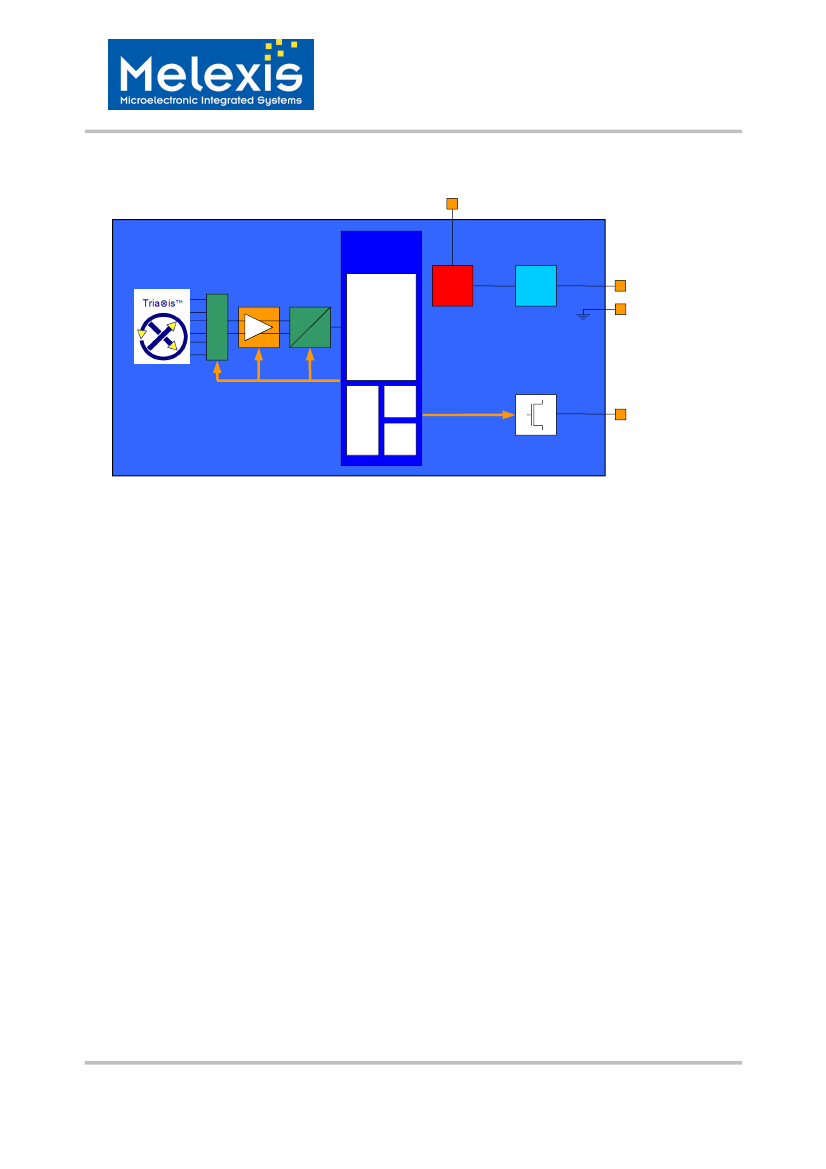

Figure 1 - MLX 90366 Block Diagram
MLX90366
Rev 1.2
Page 2 of 34
Datasheet
09/11/2015
MLX90366
Triaxis
®
Position Sensor IC feat. SENT
2.
Description

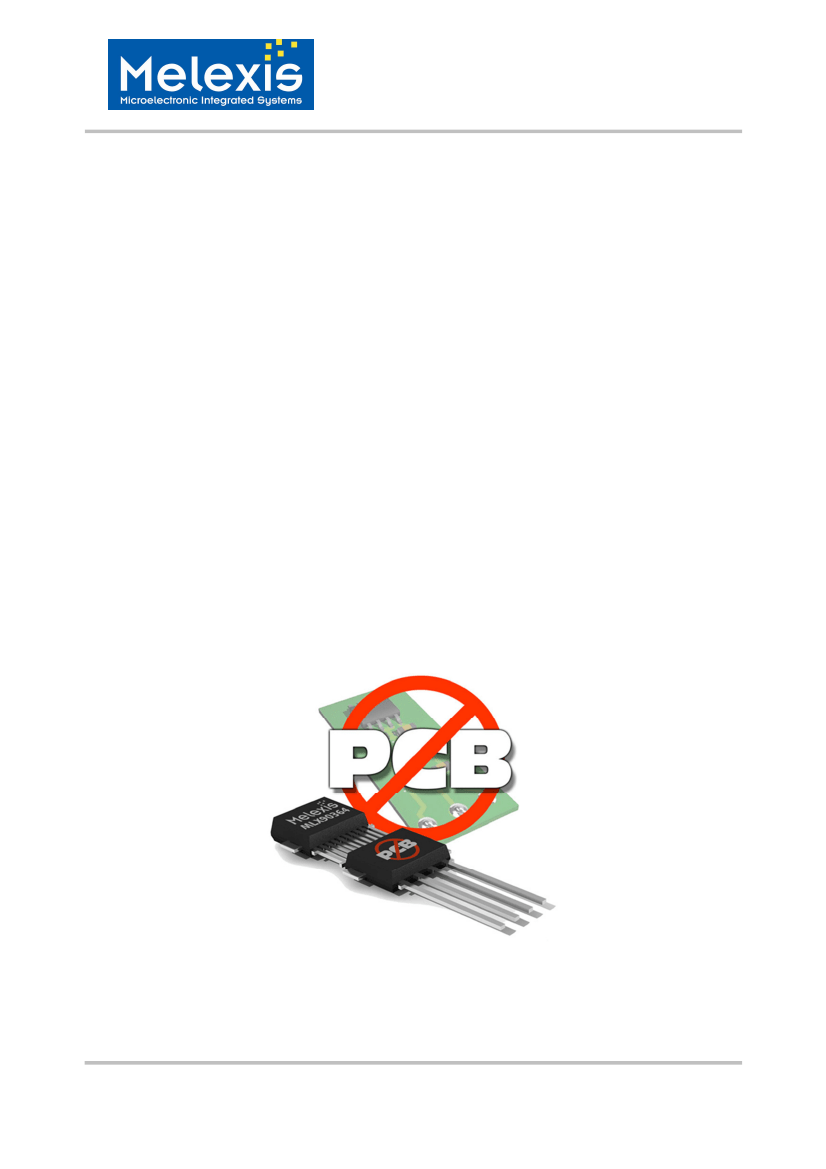

The MLX90366 Triaxis® Position Sensor Assembly is a high accuracy linear and angular position sensor
which eliminates need for inclusion of a printed circuit board (PCB) within sensing modules.
This device is based on a Dual Mold Package (DMP) construction, which integrates a Triaxis position
sensing die together with the decoupling capacitors necessary to meet the strenuous ESD and EMC
requirements. No PCB is needed.
The Triaxis position sensing die is nothing but the one used for the MLX90367 in conventional surface-
mount packages (SOIC-8 – single die & TSSOP-16 – dual die).
The decoupling capacitors are X8R capacitors well suited for package integration and the target operating
temperature range.
The MLX90366 is sensitive to the three components of the flux density applied to the IC (i.e. B
X
, B
Y
and
B
Z
). This allows the MLX90366 with the correct magnetic circuit to decode the absolute position of any
moving magnet (e.g. rotary position from 0 to 360 Degrees or linear displacement, stroke - Figure 2). It
enables the design of novel generation of non-contacting position sensors that are frequently required for
both automotive and industrial applications.
MLX90366 provides SENT Frames encoded according the Secure Sensor format.
The circuit delivers enhanced serial messages providing error codes, and user-defined values.
MLX90366 Triaxis® Position Sensor Assembly enables the realization of position sensor modules for
which a PCB is no longer needed: this yield to an increase of the electrical, mechanical and environmental
robustness of the final application.
MLX90366
Rev 1.2
Page 3 of 34
Datasheet
09/11/2015
MLX90366
Triaxis
®
Position Sensor IC feat. SENT
TABLE of CONTENTS
FEATURES AND BENEFITS ....................................................................................................................... 1
APPLICATIONS ............................................................................................................................................ 1
ORDERING INFORMATION......................................................................................................................... 1
1.
2.
3.
4.
5.
6.
7.
8.
FUNCTIONAL DIAGRAM ...................................................................................................................... 2
DESCRIPTION ....................................................................................................................................... 3
GLOSSARY OF TERMS
−
ABBREVIATIONS
−
ACRONYMS ............................................................ 6
PINOUT .................................................................................................................................................. 6
ABSOLUTE MAXIMUM RATINGS ....................................................................................................... 6
DESCRIPTION ....................................................................................................................................... 7
MLX90366 ELECTRICAL SPECIFICATION ......................................................................................... 8
MLX90366 TIMING SPECIFICATION ................................................................................................... 9
8.1.
8.2.
9.
T
IMING DIAGRAMS
........................................................................................................................................ 10
A
PPLICATION DIAGRAM USED FOR RISE AND FALL TIME MEASUREMENT
....................................................... 11
MLX90366 ACCURACY SPECIFICATION ......................................................................................... 12
10. MLX90366 MAGNETIC SPECIFICATION .......................................................................................... 13
11. MLX90366 CPU & MEMORY SPECIFICATION ................................................................................. 13
12. MLX90366 END-USER PROGRAMMABLE ITEMS ........................................................................... 14
13. SENT OUTPUT PROTOCOL .............................................................................................................. 15
13.1.
G
ENERALITY
............................................................................................................................................. 15
13.2.
T
HROTTLE POSITION
/ S
INGLE
S
ECURE
F
AST
C
HANNEL
............................................................................ 15
13.2.1. Frame Content...................................................................................................................................... 15
13.2.2. Diagnostic Reporting through the fast channel .................................................................................... 15
13.2.3. Pause pulse........................................................................................................................................... 16
13.2.4. Fast Channel CRC................................................................................................................................ 16
13.3.
S
LOW
C
HANNEL
........................................................................................................................................ 16
13.3.1. Enhanced Serial Message .................................................................................................................... 16
13.3.2. Serial Message Sequence ..................................................................................................................... 17
13.3.3. Serial message sequence period ........................................................................................................... 18
13.3.4. Serial Message Error Code .................................................................................................................. 18
13.4.
S
TART
-
UP
.................................................................................................................................................. 19
13.5.
F
IELD SENSING
(A2D
CONVERSIONS
)
AND THE FRAME
S
YNCHRONIZATION PULSE
................................... 19
14. DESCRIPTION OF END-USER PROGRAMMABLE ITEMS .............................................................. 20
14.1.
O
UTPUT
T
RANSFER
C
HARACTERISTIC
....................................................................................................... 20
14.1.1. CLOCKWISE Parameter ...................................................................................................................... 20
14.1.2. Discontinuity Point (or Zero Degree Point) ......................................................................................... 21
14.1.3. 3-Pts LNR Parameters.......................................................................................................................... 21
14.1.4. CLAMPING Parameters ...................................................................................................................... 22
14.2.
I
DENTIFICATION
........................................................................................................................................ 22
14.3.
S
ENSOR
F
RONT
-E
ND
................................................................................................................................. 22
14.3.1. MAPXYZ ............................................................................................................................................... 22
14.3.2. SMISM, k and SEL_k Parameters ........................................................................................................ 23
14.3.3. GAINMIN and GAINMAX Parameters ................................................................................................ 23
14.4.
F
ILTER
...................................................................................................................................................... 24
MLX90366
Rev 1.2
Page 4 of 34
Datasheet
09/11/2015
MLX90366
Triaxis
®
Position Sensor IC feat. SENT
14.5.
14.6.
D
IAGNOSTIC
F
EATURES
............................................................................................................................ 24
EEPROM
ENDURANCE
............................................................................................................................. 24
15. MLX90366 SELF DIAGNOSTIC .......................................................................................................... 25
16. BUILT-IN CAPACITORS AND RECOMMENDED APPLICATION DIAGRAMS ................................ 27
17. STANDARD INFORMATION REGARDING MANUFACTURABILITY OF MELEXIS PRODUCTS
WITH DIFFERENT LEAD PRE-FORMING AND SOLDERING/WELDING PROCESSES ....................... 27
18. ESD PRECAUTIONS ........................................................................................................................... 27
19. PACKAGE INFORMATION ................................................................................................................. 28
19.1.
19.2.
19.3.
19.4.
19.5.
DMP-4 – P
ACKAGE
O
UTLINE
D
IMENSIONS
(POD) – S
TRAIGHT
L
EADS
.................................................... 28
DMP-4 – P
ACKAGE
O
UTLINE
D
IMENSIONS
(POD) – T
RIMMED
& F
ORMED
L
EADS
[1] ............................. 29
DMP-4 – P
ACKAGE
O
UTLINE
D
IMENSIONS
(POD) – T
RIMMED
& F
ORMED
L
EADS
[2] ............................. 30
DMP-4 - M
ARKING
................................................................................................................................... 31
DMP-4 - S
ENSITIVE
S
POT
P
OSITIONING
& S
ENSE DIRECTION
................................................................... 32
20. DISCLAIMER ....................................................................................................................................... 34
REVISIONS ................................................................................................................................................. 35
MLX90366
Rev 1.2
Page 5 of 34
Datasheet
09/11/2015
