BYWE29-200-E3/45 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BYWE29-200-E3/45

BYWE29-200-E3/45: DescriptionRectifier 8.0 Amp 200 Volt; CategoryDiscrete semiconductor diode; File Size120KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

BYWE29-200-E3/45 Overview

Rectifier 8.0 Amp 200 Volt

BYWE29-200-E3/45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.025 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

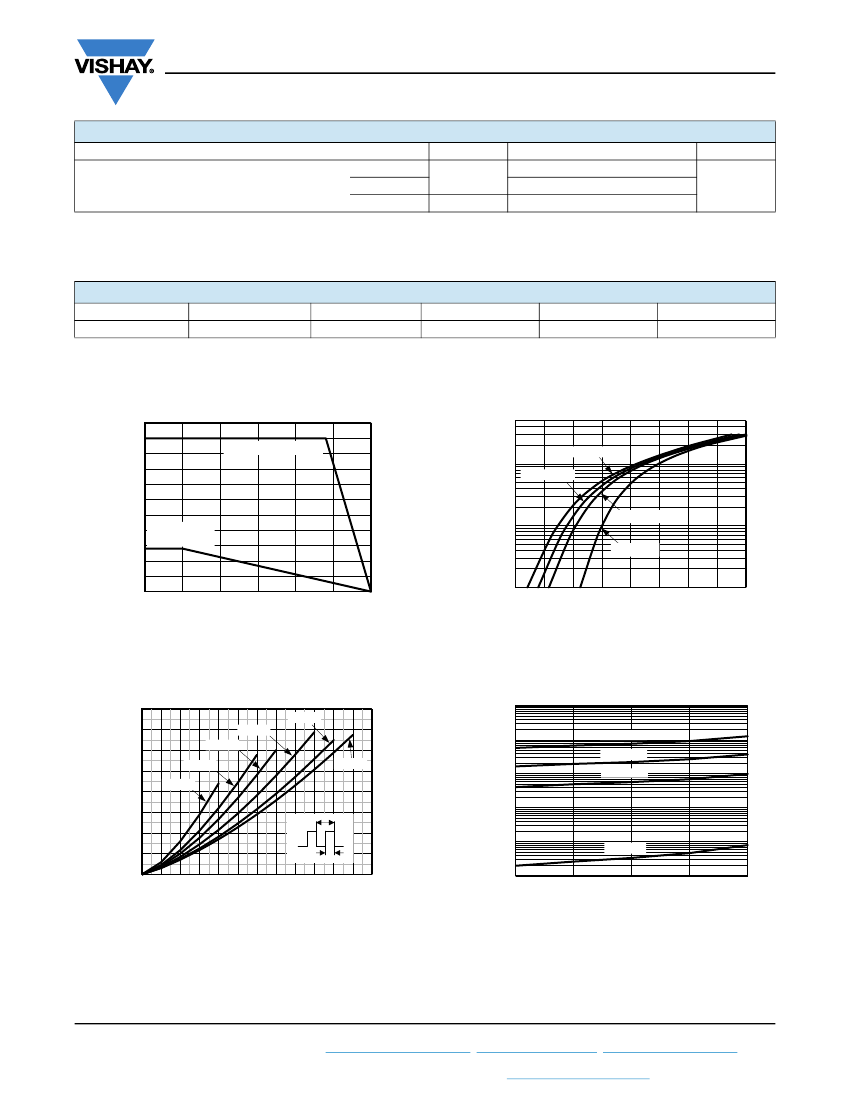

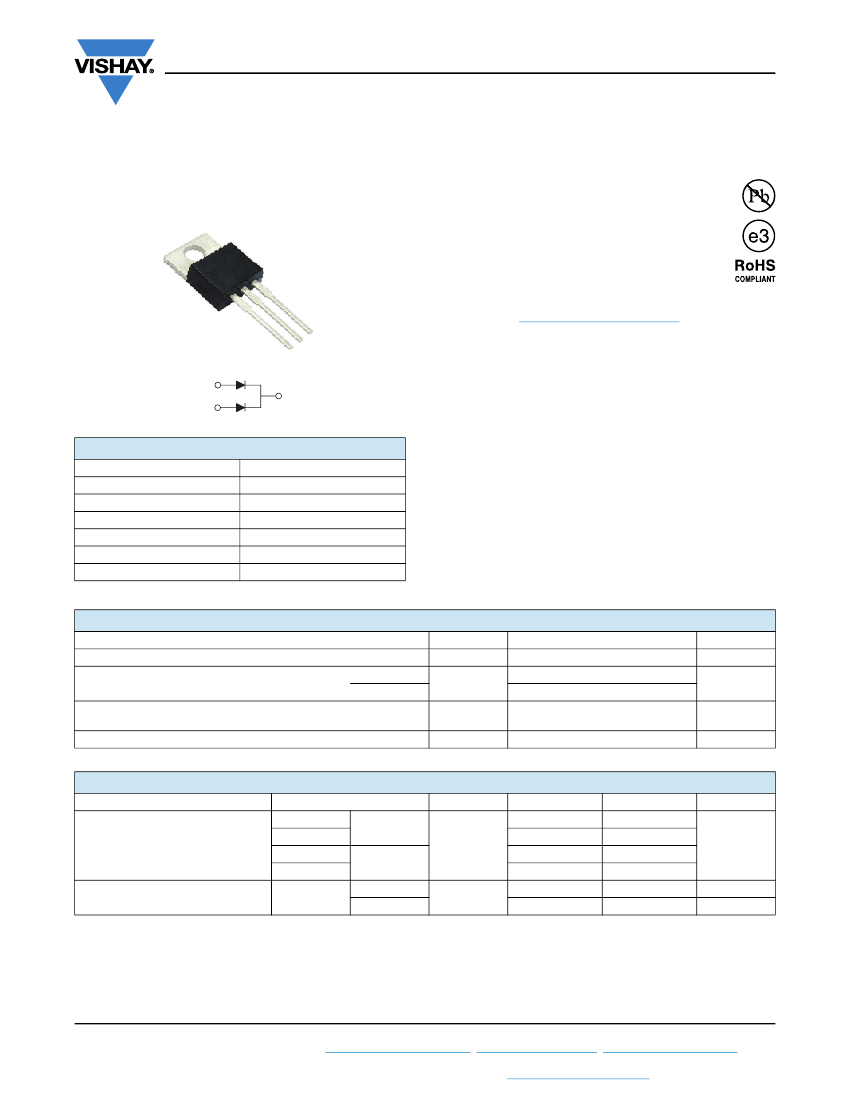

VE2045C-E3

www.vishay.com

Vishay General Semiconductor

Ultra Low V

= 0.42 V at I

= 5 A

Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

TMBS

TO-220AB

FEATURES

• Power pack

• Trench MOS Schottky technology

• Low forward voltage drop, low power losses

• High efficiency operation

• Solder dip 275 °C max. 10 s, per JESD 22-B106

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

VE2045C

PIN 1

PIN 3

PIN 2

CASE

TYPICAL APPLICATIONS

For use in low voltage, high frequency rectifier of switching

power supplies, freewheeling diodes, DC/DC converters,

and polarity protection application.

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 10 A (T

= 125 °C)

max.

Package

Diode variations

2 x 10 A

45 V

100 A

0.54 V

150 °C

TO-220AB

Common cathode

MECHANICAL DATA

Case:

TO-220AB

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

per

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum average forward rectified current (fig. 1)

per device

per diode

SYMBOL

RRM

F(AV)

FSM

, T

STG

VE2045C-E3

100

-40 to +150

UNIT

°C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load per diode

Operating junction and storage temperature range

ELECTRICAL CHARACTERISTICS

= 25 °C unless otherwise noted)

PARAMETER

Instantaneous forward voltage

per diode

TEST CONDITIONS

= 5 A

= 10 A

= 5 A

= 10 A

Reverse current per diode

= 45 V

= 25 °C

F (1)

= 125 °C

= 25 °C

= 125 °C

R (2)

SYMBOL

TYP.

0.50

0.60

0.42

0.54

MAX.

0.70

0.63

500

μA

UNIT

Notes

(1)

Pulse test: 300 μs pulse width, 1 % duty cycle

(2)

Pulse test: Pulse width



5 ms

Revision: 20-Dec-13

Document Number: 89980

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000
