BRS-2-RAHPD-18-C-GD05 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BRS-2-RAHPD-18-C-GD05

BRS-2-RAHPD-18-C-GD05: DescriptionBasic information of LT1797IS5#PBF amplifier: LT1797IS5#PBF is an operational amplifier - operational amplifier (Op Amps - Operational Amplifierss) from Analog Devices Inc. It belongs to the LT1797 series of products. LT1797IS5#PBF amplifier core information: The corresponding working power supply current is 1.1 mA. The output current of each channel is: 45 mA. The gain bandwidth product (GBP, Gain Bandwidth Product) of the LT1797IS5#PBF is 10 MHz. As a parameter to simply measure the performance of the amplifier, if you are not just choosing your amplifier, you can use this as a relatively simple measurement indicator. The corresponding input voltage noise density is 20 nV/rtHz and the corresponding input noise current density is 0.15 pA/rtHz. Related dimensions of LT1797IS5#PBF: Number of channels in total: 1 Channel. LT1797IS5#PBF amplifier other information: And its more detailed single package form is: SOT-5.; CategoryThe connector The connector; File Size149KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance; Alternative parts：BRS-2-RAHPD-18-C-GD05

Download Datasheet Parametric View All

BRS-2-RAHPD-18-C-GD05 Overview

Basic information of LT1797IS5#PBF amplifier:

LT1797IS5#PBF is an operational amplifier - operational amplifier (Op Amps - Operational Amplifierss) from Analog Devices Inc. It belongs to the LT1797 series of products.

LT1797IS5#PBF amplifier core information:

The corresponding working power supply current is 1.1 mA. The output current of each channel is: 45 mA.

The gain bandwidth product (GBP, Gain Bandwidth Product) of the LT1797IS5#PBF is 10 MHz. As a parameter to simply measure the performance of the amplifier, if you are not just choosing your amplifier, you can use this as a relatively simple measurement indicator. The corresponding input voltage noise density is 20 nV/rtHz and the corresponding input noise current density is 0.15 pA/rtHz.

Related dimensions of LT1797IS5#PBF:

Number of channels in total: 1 Channel.

LT1797IS5#PBF amplifier other information:

And its more detailed single package form is: SOT-5.

BRS-2-RAHPD-18-C-GD05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.191 inch
subject depth	0.283 inch
body length	0.709 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BRS-2-RAHPX
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	5u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Contact plating:

Insulator material:

Insulator resistance:

Withstanding:

Operating temp.:

Phos. bronze

20 milliohms max.

Gold or tin

Nylon-6T, UIL 94V-0

1000 Megohms min.

500 VAC

-40°C to +105°C

7.2

6.7

Dimensions

3.0

2.8

5.1

4.6

RoHS compliant

Rev.

Description

Date

Approved

Series

ROWS

BRS

2mm (.079”) 01=1

receptacle

02=2

strip

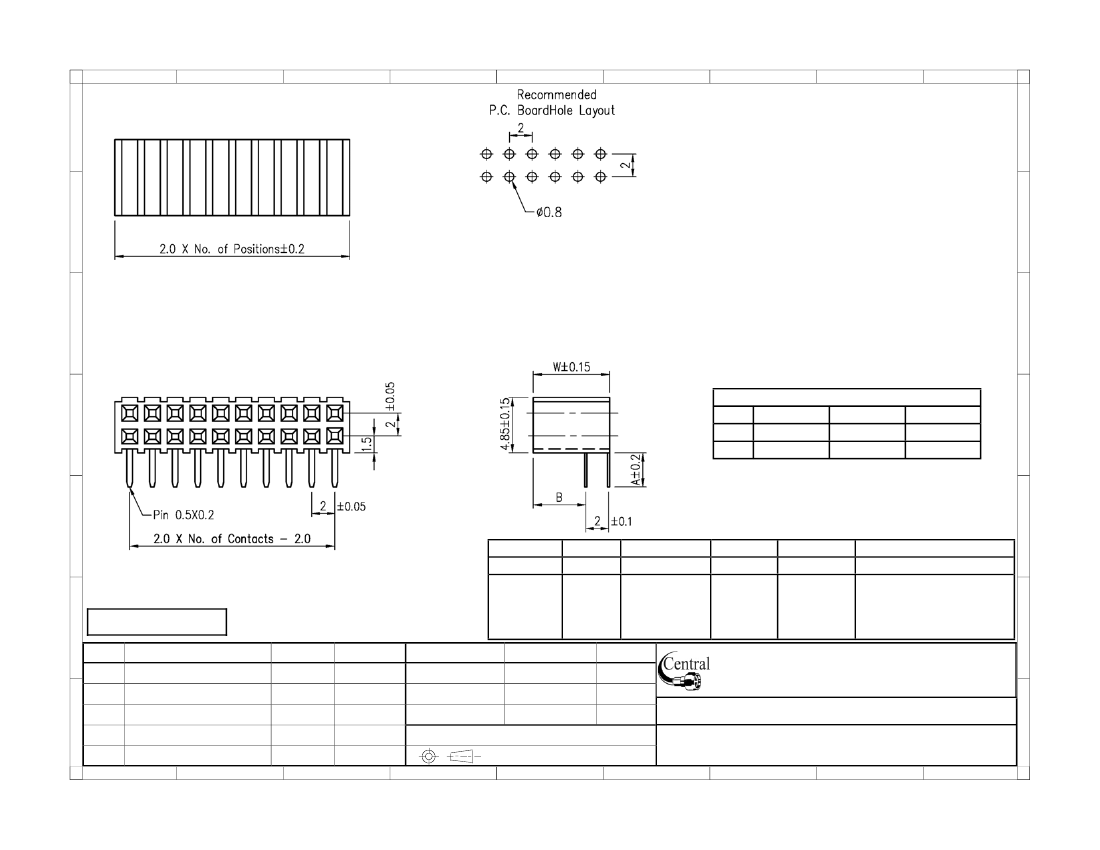

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Profile (w)

RAHPX

Right angle

X: D=7.2mm

F=6.7mm

Positions

02-80

Tail length

2.8-3.0mm

Plating

TN=Tin

GDXX=Gold

SGXX=Selective gold

XX=flash if blank, 5, 15, 30µ”

Date

8/10/99

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Part No.:

BRS-2-RAHPX-XX-C-XX

0.00 ± 0.20 Angles ± 3°

UNIT: mm

Description: 2mm right angle receptacle strip
