CCE-B-30-A-GD-MER datasheet, PDF

Datasheet> All Categories > The connector> The connector> CCE-B-30-A-GD-MER

CCE-B-30-A-GD-MER: DescriptionCard Edge Connector, 30 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CCE-B-30-A-GD-MER Overview

Card Edge Connector, 30 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal

CCE-B-30-A-GD-MER Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.354 inch
subject depth	0.472 inch
body length	3.183 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	5000VAC V
Durability	200 Cycles
maximum insertion force	LIF N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	CCE-B
Plug contact pitch	0.156 inch
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.189 inch
Termination type	SOLDER LUG
Total number of contacts	30

Preview

Download Datasheet

View All

SPECIFICATIONS

Voltage rating:

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulation resistance:

Insulator material:

Operating temperature:

500 volts

3 amps

Phosphor bronze

Gold over nickel

20 milliohms max.

5,000 megohms min. at 500VDC

PBT with 30% glass fiber, UL94V-0

-40°C to +105°C

Circuit

15.84

19.80

27.72

35.64

43.56

47.52

51.48

55.44

59.40

67.32

75.24

Dimension

24.06 27.40 34.94

28.02 31.36 38.90

35.94 39.28 46.82

43.86 47.20 54.74

51.78 55.12 62.66

55.74 59.08 66.62

59.70 63.04 70.58

63.66 67.00 74.54

67.62 70.96 78.50

75.54 78.88 86.42

83.46 86.80 94.34

41.24

45.20

53.12

61.04

68.96

72.92

76.88

80.84

84.80

92.72

100.64

Circuit

Dimension

83.16 91.38 94.72 102.26 108.56

87.12 95.34 98.68 106.22 112.52

95.04 103.26 106.60 114.14 120.44

106.92 115.14 118.48 126.02 132.32

114.84 123.06 126.40 133.94 140.24

118.80 127.02 130.36 137.90 144.20

122.76 130.98 134.32 141.86 148.16

134.64 142.86 146.20 153.74 160.04

138.60 146.82 150.16 157.70 164.00

166.32 174.54 177.88 185.49 191.48

RoHS compliant

Rev.

Description

Date

Approved

Series

Positions

Type

Plating

Mounting Options

CCE-B

XXX

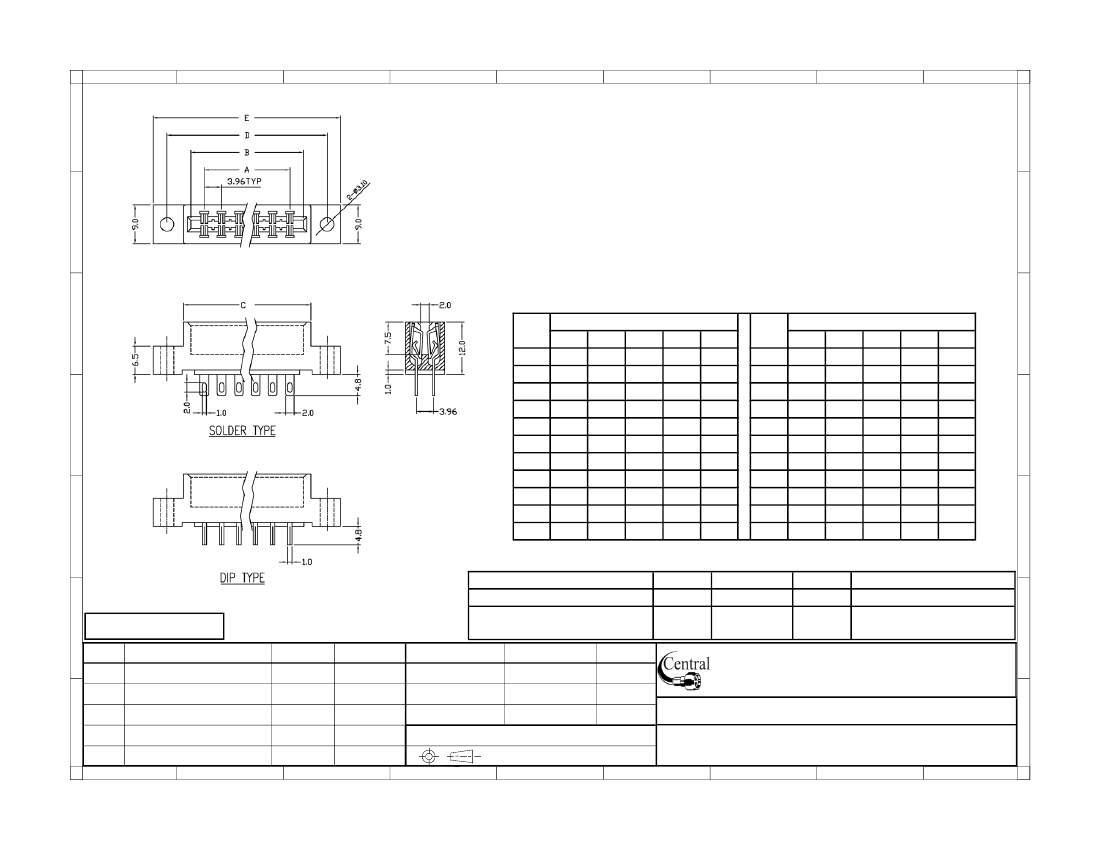

3.96mm pitch card edge connector See table A=Solder type GD=Gold MER=With mounting ears

B=DIP type

[blank]=Without mounting ears

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

05/11/06

05/11/06 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

CCE-B-XX-X-GD-XXX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Card edge connector, 3.96mm pitch, with mounting ears

CCE-B-30-A-GD-MER Related Products

	CCE-B-30-A-GD-MER	CCE-B-36-A-GD-MER	CCE-B-20-A-GD-MER
Description	Card Edge Connector, 30 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal	Card Edge Connector, 36 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal	Card Edge Connector, 20 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.354 inch	0.354 inch	0.354 inch
subject depth	0.472 inch	0.472 inch	0.472 inch
body length	3.183 inch	3.65 inch	2.403 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	5000VAC V	5000VAC V	5000VAC V
Durability	200 Cycles	200 Cycles	200 Cycles
maximum insertion force	LIF N	LIF N	LIF N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	CCE-B	CCE-B	CCE-B
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch
Installation type	PANEL	PANEL	PANEL
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.189 inch	0.189 inch	0.189 inch
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	30	36	20
