5.0SMDJ12CA-T7

Description
ESD Suppressor/TVS Diode 5kW 12V 5% Bi-Directional
CategoryDiscrete semiconductor    diode
File Size1MB,7 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5.0SMDJ12CA-T7 Overview

ESD Suppressor/TVS Diode 5kW 12V 5% Bi-Directional

5.0SMDJ12CA-T7 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerLittelfuse
Parts packaging codeDO-214AB
package instructionR-PDSO-J2
Contacts2
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresEXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Maximum breakdown voltage14.7 V
Minimum breakdown voltage13.3 V
Breakdown voltage nominal value14 V
Maximum clamping voltage19.9 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 codeDO-214AB
JESD-30 codeR-PDSO-J2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak reverse power dissipation5000 W
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
polarityBIDIRECTIONAL
Maximum power dissipation6.5 W
GuidelineIEC-61000-4-2; IEC-61000-4-4
Maximum repetitive peak reverse voltage12 V
surface mountYES
technologyAVALANCHE
Terminal surfaceMatte Tin (Sn)
Terminal formJ BEND
Terminal locationDUAL
Maximum time at peak reflow temperature40
Base Number Matches1
TVS Diodes
Surface Mount – 5000W > 5.0SMDJ series

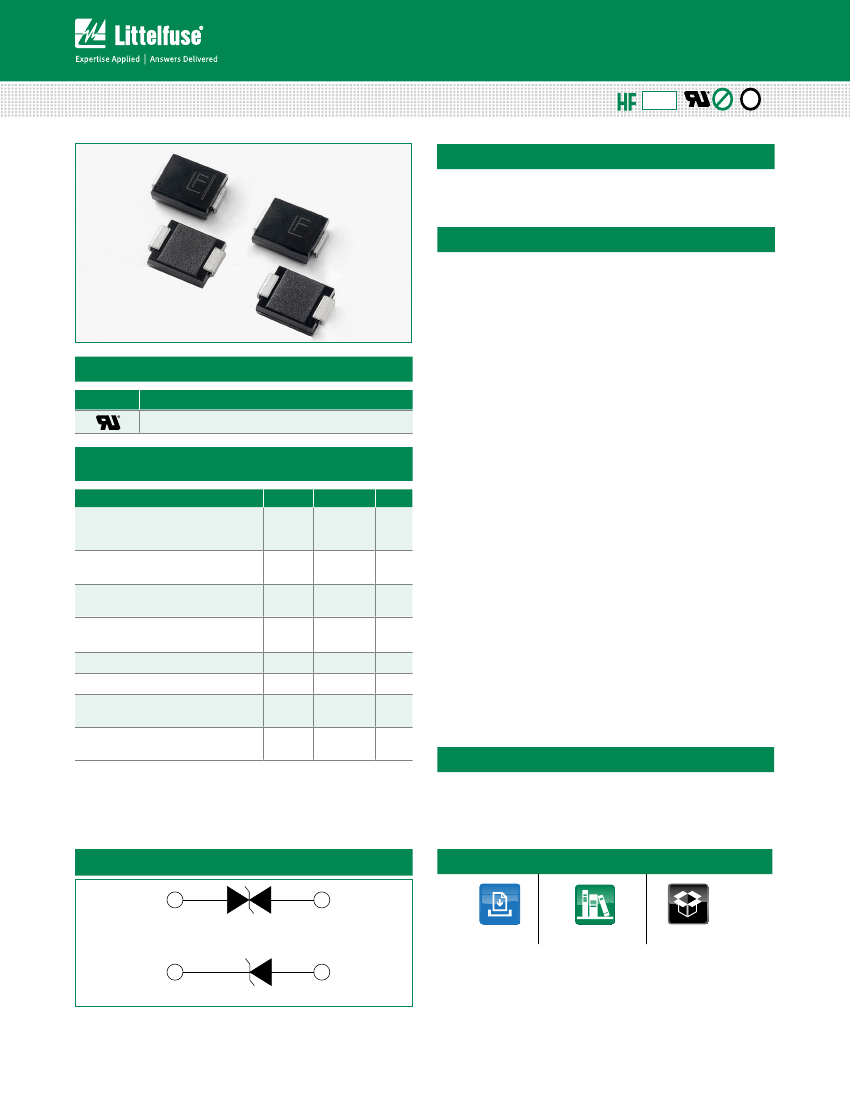

5.0SMDJ Series
Description
RoHS
Pb
e3
Uni-directional
The 5.0SMDJ series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
Bi-directional
• 5000W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• SMD low profile
surface mount package
minimizing PCB footprint
• Typical failure mode is
short from over-specified
voltage or current
• Whisker test is conducted
based on JEDEC
JESD201A per its table 4a
and 4c
• IEC 61000-4-2 ESD
30kV(Air), 30kV (Contact)
• ESD protection of data
lines in accordance with
IEC 61000-4-2
• EFT protection of data
lines in accordance with
IEC 61000-4-4
• Built-in strain relief
• Glass passivated chip
junction
• Fast response time:
typically less than 1.0ps
from 0V to BV min
• Excellent clamping
capability
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic
applications.
Additional Infomarion
• Low incremental surge
resistance
• Typical I
R
less than 5μA
when V
BR
min>22V
• High temperature
to reflow soldering
guaranteed: 260°C/40sec
• V
BR
@ T
J
= V
BR
@25°C
x (1+
α
T x (T
J
- 25))
(
α
T:Temperature
Coefficient,)
• UL Recognized compound
meeting flammability
rating V-0
• Meet MSL level1, per
J-STD-020, LF maximun
peak of 260
°
C
• Matte tin lead–free plated
• Halogen free and RoHS
compliant
• Pb-free E3 means 2nd
level interconnect is
Pb-free and the terminal
finish material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)
Agency Approvals
Agency
Agency File Number
E230531

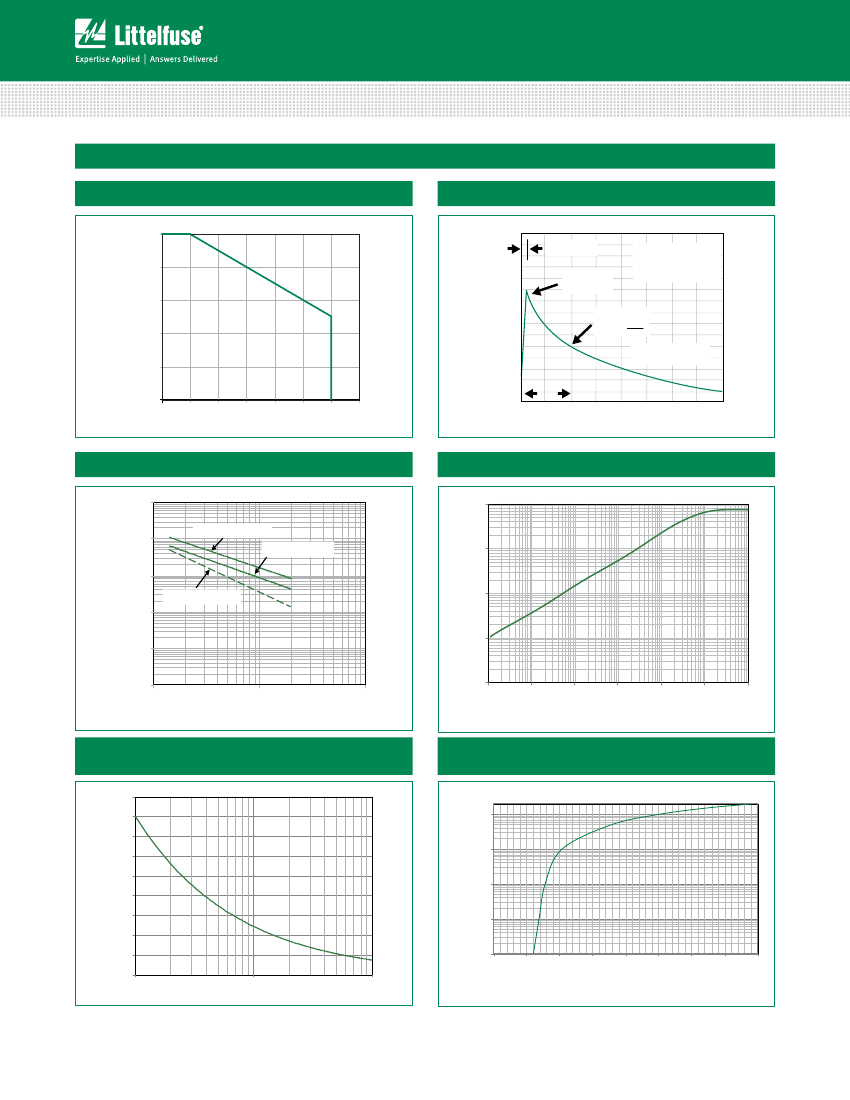

Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at T
L
=25
O
C
by 10/1000µs Waveform (Fig.2)(Note 1),
(Note 2)
Power Dissipation on Infinite Heat Sink
at T
L
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
Only
Operating Temperature Range
Storage Temperature Range
Typical Thermal Resistance Junction to
Lead
Typical Thermal Resistance Junction to
Ambient
Symbol
P
PPM
P
D
I
FSM
V
F
T
J
T
STG
R
ƟJL
R
ƟJA
Value
5000
Unit
W
6.5
300
5.0
-65 to 150
-65 to 175
15
75
W
A
V
°C
°C
°C/W
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 4 and derated above T
J
(initial) =25
O
C per Fig. 3.
2. Mounted on copper pad area of 0.31x0.31” (8.0 x 8.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
component only, duty cycle = 4 per minute maximum.
Functional Diagram
Bi-directional
Datasheet
Anode
Resources
Samples
Cathode
Uni-directional
© 2019 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/17/19

5.0SMDJ12CA-T7 Related Products

5.0SMDJ12CA-T7 5.0SMDJ75A-T7
Description ESD Suppressor/TVS Diode 5kW 12V 5% Bi-Directional ESD Suppressor/TVS Diode 5kW 75V 10% Uni-Directional
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker Littelfuse Littelfuse
Parts packaging code DO-214AB DO-214AB
package instruction R-PDSO-J2 R-PDSO-J2
Contacts 2 2
Reach Compliance Code not_compliant not_compliant
ECCN code EAR99 EAR99
Other features EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Maximum breakdown voltage 14.7 V 92.1 V
Minimum breakdown voltage 13.3 V 83.3 V
Breakdown voltage nominal value 14 V 87.7 V
Maximum clamping voltage 19.9 V 121 V
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type TRANS VOLTAGE SUPPRESSOR DIODE TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code DO-214AB DO-214AB
JESD-30 code R-PDSO-J2 R-PDSO-J2
JESD-609 code e3 e3
Humidity sensitivity level 1 1
Maximum non-repetitive peak reverse power dissipation 5000 W 5000 W
Number of components 1 1
Number of terminals 2 2
Maximum operating temperature 150 °C 150 °C
Minimum operating temperature -65 °C -65 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260
polarity BIDIRECTIONAL UNIDIRECTIONAL
Maximum power dissipation 6.5 W 6.5 W
Guideline IEC-61000-4-2; IEC-61000-4-4 IEC-61000-4-2; IEC-61000-4-4
Maximum repetitive peak reverse voltage 12 V 75 V
surface mount YES YES
technology AVALANCHE AVALANCHE
Terminal surface Matte Tin (Sn) Matte Tin (Sn)
Terminal form J BEND J BEND
Terminal location DUAL DUAL
Maximum time at peak reflow temperature 40 40
Base Number Matches 1 1
