Basic information of LT1413S8#PBF amplifier:
LT1413S8#PBF is a precision amplifier (Precision Amplifiers) from Analog Devices Inc. It belongs to the LT1413 series of products.

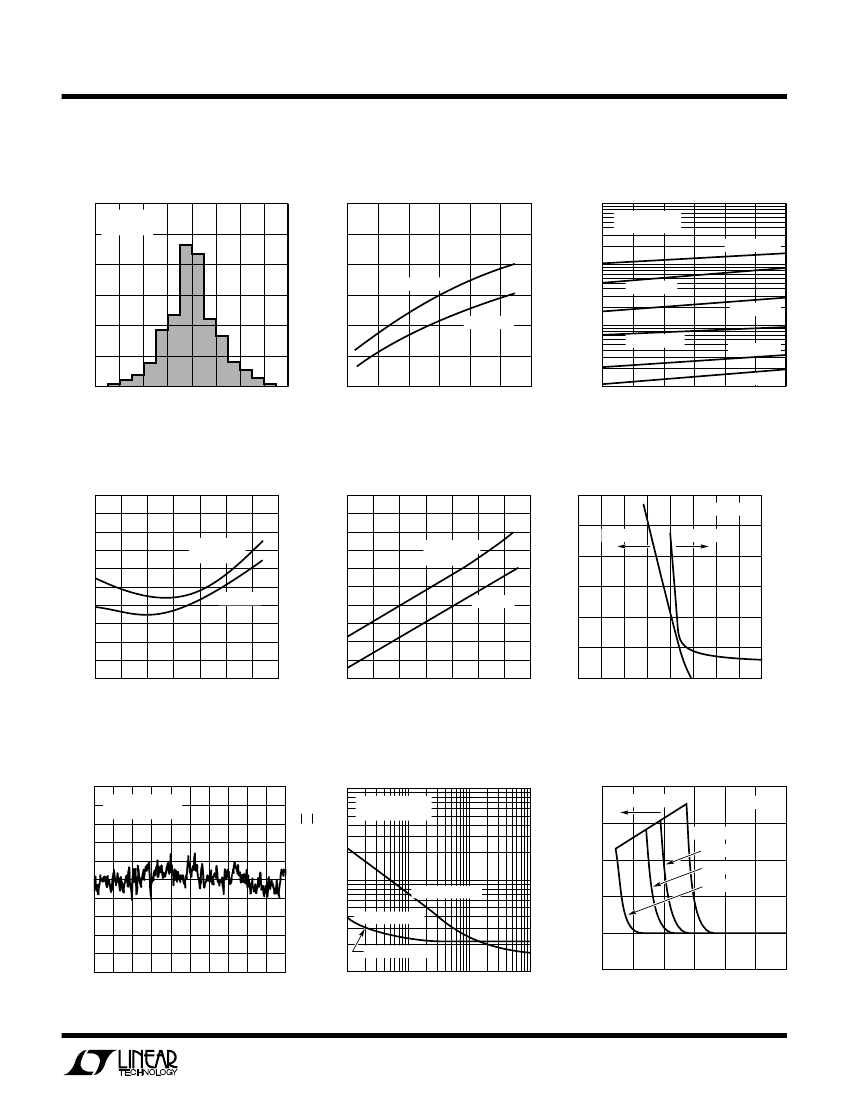

LT1413S8#PBF amplifier core information:
The minimum operating temperature of LT1413S8#PBF is - 40 C and the maximum operating temperature is + 85 C. The corresponding working power supply current is 0.33 mA. The output current of each channel is: 2 mA.
The LT1413S8#PBF has a power supply rejection ratio of 118 dB. (Power supply rejection ratio (PSRR): An indicator used to determine the impact of the amplifier output on the power supply. PSRR = 20log[(Ripple(in) / Ripple(out))], that is, the larger the value, the less the amplifier output is affected by the power input. The smaller.) The amplifier gain of LT1413S8#PBF can reach: 1400 V/mV (The amplifier gain is the logarithm of the ratio of the amplifier output power to the input power, which is used to indicate the degree of power amplification. It also refers to the amplification factor of voltage or current. Similarly , decibel is the unit of amplifier gain) and its voltage gain is 63 dB. The gain bandwidth product (GBP, Gain Bandwidth Product) of LT1413S8#PBF is 950 kHz. As a parameter to simply measure the performance of the amplifier, if you are not only choosing your amplifier, you can use this as a relatively simple measurement indicator. The corresponding input voltage noise density is 23 nV/rtHz and the corresponding input noise current density is .02 pA/rtHz
When a voltage difference of 80 uV is input between the LT1413S8#PBF input pins, the output voltage of the amplifier is 0V. (That is, its input bias voltage is 80 uV)
Related dimensions of LT1413S8#PBF:
Number of channels in total: 2 Channels.
LT1413S8#PBF amplifier other information:
Its more detailed single package form is: SO-8. When suppliers on the market sell LT1413S8#PBF, they use the form: Tube.
Basic information of LT1413S8#PBF amplifier:
LT1413S8#PBF is a precision amplifier (Precision Amplifiers) from Analog Devices Inc. It belongs to the LT1413 series of products.
LT1413S8#PBF amplifier core information:
The minimum operating temperature of LT1413S8#PBF is - 40 C and the maximum operating temperature is + 85 C. The corresponding working power supply current is 0.33 mA. The output current of each channel is: 2 mA.
The LT1413S8#PBF has a power supply rejection ratio of 118 dB. (Power supply rejection ratio (PSRR): An indicator used to determine the impact of the amplifier output on the power supply. PSRR = 20log[(Ripple(in) / Ripple(out))], that is, the larger the value, the less the amplifier output is affected by the power input. The smaller.) The amplifier gain of LT1413S8#PBF can reach: 1400 V/mV (The amplifier gain is the logarithm of the ratio of the amplifier output power to the input power, which is used to indicate the degree of power amplification. It also refers to the amplification factor of voltage or current. Similarly , decibel is the unit of amplifier gain) and its voltage gain is 63 dB. The gain bandwidth product (GBP, Gain Bandwidth Product) of LT1413S8#PBF is 950 kHz. As a parameter to simply measure the performance of the amplifier, if you are not only choosing your amplifier, you can use this as a relatively simple measurement indicator. The corresponding input voltage noise density is 23 nV/rtHz and the corresponding input noise current density is .02 pA/rtHz
When a voltage difference of 80 uV is input between the LT1413S8#PBF input pins, the output voltage of the amplifier is 0V. (That is, its input bias voltage is 80 uV)
Related dimensions of LT1413S8#PBF:
Number of channels in total: 2 Channels.
LT1413S8#PBF amplifier other information:
Its more detailed single package form is: SO-8. When suppliers on the market sell LT1413S8#PBF, they use the form: Tube.
| Parameter Name | Attribute value |
| Brand Name | Analog Devices Inc |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | conform to |
| Maker | ADI |
| package instruction | SOP, |
| Contacts | 8 |
| Manufacturer packaging code | 05-08-1610 (S8) |
| Reach Compliance Code | compliant |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.03 µA |
| Nominal Common Mode Rejection Ratio | 99 dB |
| Maximum input offset voltage | 570 µV |
| JESD-30 code | R-PDSO-G8 |
| JESD-609 code | e3 |
| length | 4.9 mm |
| Humidity sensitivity level | 1 |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum slew rate | 1.16 mA |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | INDUSTRIAL |
| Terminal surface | Matte Tin (Sn) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| Nominal Uniform Gain Bandwidth | 950 kHz |
| width | 3.9 mm |
| LT1413S8#PBF | LT1413CN8#PBF | |
|---|---|---|
| Description | Precision amplifier Dual +5V Supply Precision OA | Precision amplifier Dual +5V Supply Precision OA |
| Brand Name | Analog Devices Inc | Analog Devices Inc |
| Is it lead-free? | Contains lead | Contains lead |
| Is it Rohs certified? | conform to | conform to |
| Maker | ADI | ADI |
| package instruction | SOP, | DIP, |
| Contacts | 8 | 8 |
| Manufacturer packaging code | 05-08-1610 (S8) | 05-08-1510 (N8) |
| Reach Compliance Code | compliant | compliant |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.03 µA | 0.018 µA |
| Nominal Common Mode Rejection Ratio | 99 dB | 99 dB |
| Maximum input offset voltage | 570 µV | 280 µV |
| JESD-30 code | R-PDSO-G8 | R-PDIP-T8 |
| JESD-609 code | e3 | e3 |
| Humidity sensitivity level | 1 | 1 |
| Number of functions | 2 | 2 |
| Number of terminals | 8 | 8 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | 260 | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 3.937 mm |
| Nominal supply voltage (Vsup) | 5 V | 5 V |
| surface mount | YES | NO |
| technology | BIPOLAR | BIPOLAR |
| Temperature level | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Matte Tin (Sn) | MATTE TIN |
| Terminal form | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL |
| Maximum time at peak reflow temperature | 30 | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 950 kHz | 950 kHz |
| width | 3.9 mm | 7.62 mm |
