DF33C-5RS-3.3

Description
Header and Line Housing Retainer Single Row 5 Pos
CategoryThe connector    Header and line shell
File Size358KB,9 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Environmental Compliance
Download Datasheet Parametric View All

DF33C-5RS-3.3 Overview

Header and Line Housing Retainer Single Row 5 Pos

DF33C-5RS-3.3 Parametric

Parameter NameAttribute value
MakerHirose
Product CategoryHeaders and wire housings
productAccessories
type-
Number of locations5 Position
Pitch-
Number of rows1 Row
Installation style-
Termination type-
Installation angle-
Contact type-
Contact plating-
Matching column length-
Termination post length-
seriesDF33C
EncapsulationBulk
Attachment typeRetainer
Contact type-
Current rating-
Voltage rating-
Contact material-
line spacing-
Plastic shell interface type-
Factory packaging quantity100
unit weight130 mg
3.3mm Pitch Small Size Connectors for Internal Power Source
DF33C Series
Positive
Lock
Completely enclosed
locking system
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Protection from
shorts circuits
between adjacent
contacts

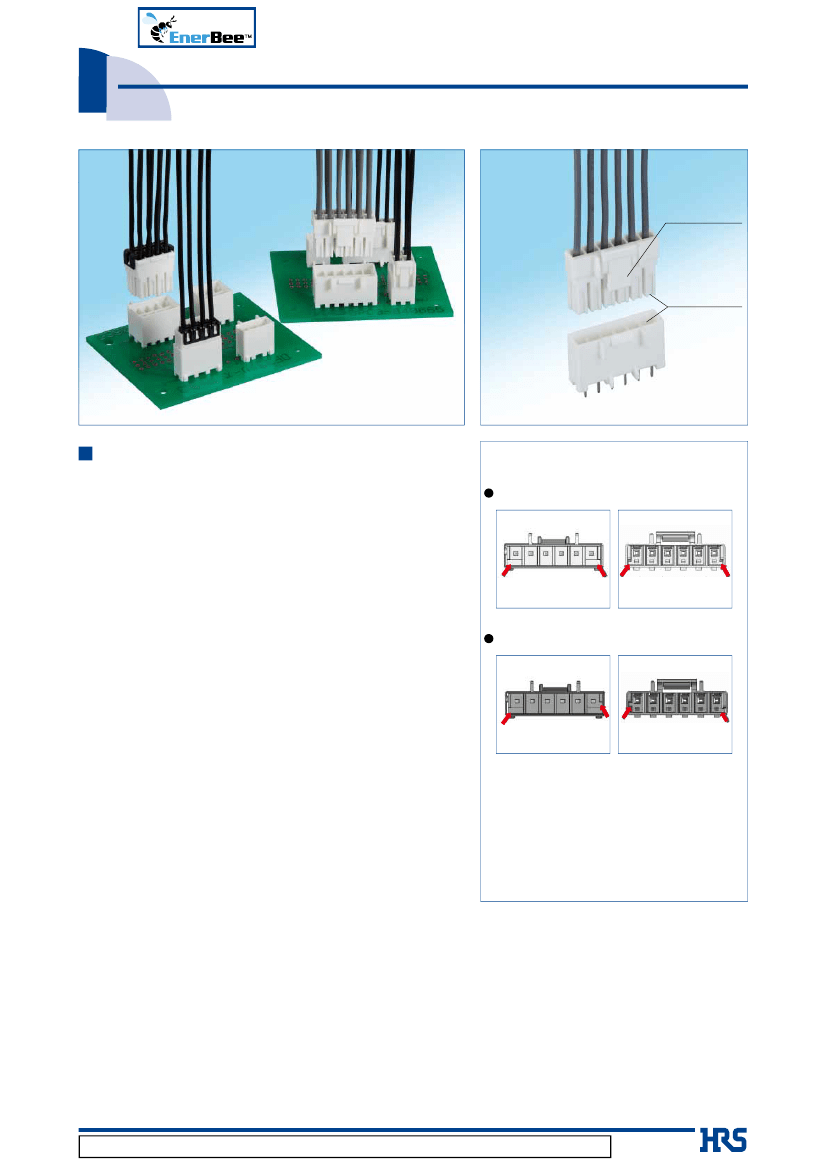

Fig.1
Features
1. 5 Amps capacity
When used with 20 AWG wire, this connector has a
maximum capacity of 5A.
(For rated current with other types of wires, please refer to
the table on the next page)
Keying for multiple use
Standard type (Resin: White)
2. Secure lock mechanism
Outer locking mechanism prevents accidental unmating due
to external shocks or drops. (Fig.1)
3. Incorrect mating prevention
Two different housings, a standard and R type, are available
to ensure mis-mating does not occur when using multiple
DF33C connectors on the same design. (Fig.2)
R type (Resin: Black)
4. Accurate board placement
Guide posts are used to help with board placement and
prevent incorrect mating to the PCB.
5. Supports resin sealing
Accepts resin sealing up to 6.5mm without affecting the
performance.
6. Short circuit prevention
The housing protects each contact by enclosing them in a “box”
which also makes each contact independent of each other.
This design prevents short circuits between adjacent contacts.

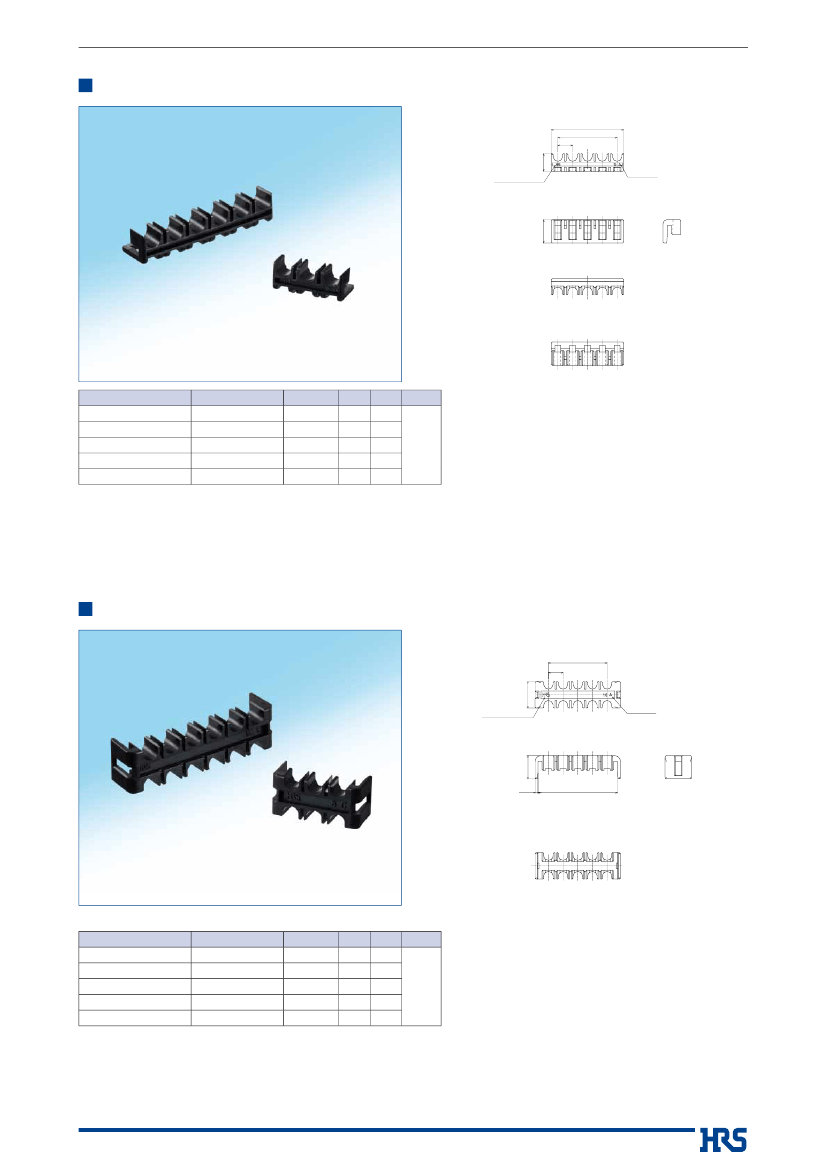

7. Excellent contact retention
A retainer is available to increase contact/cable retention and
to assure complete contact insertion. The retainer should
also be used when any mechanical stress cold be applied to
the cable.

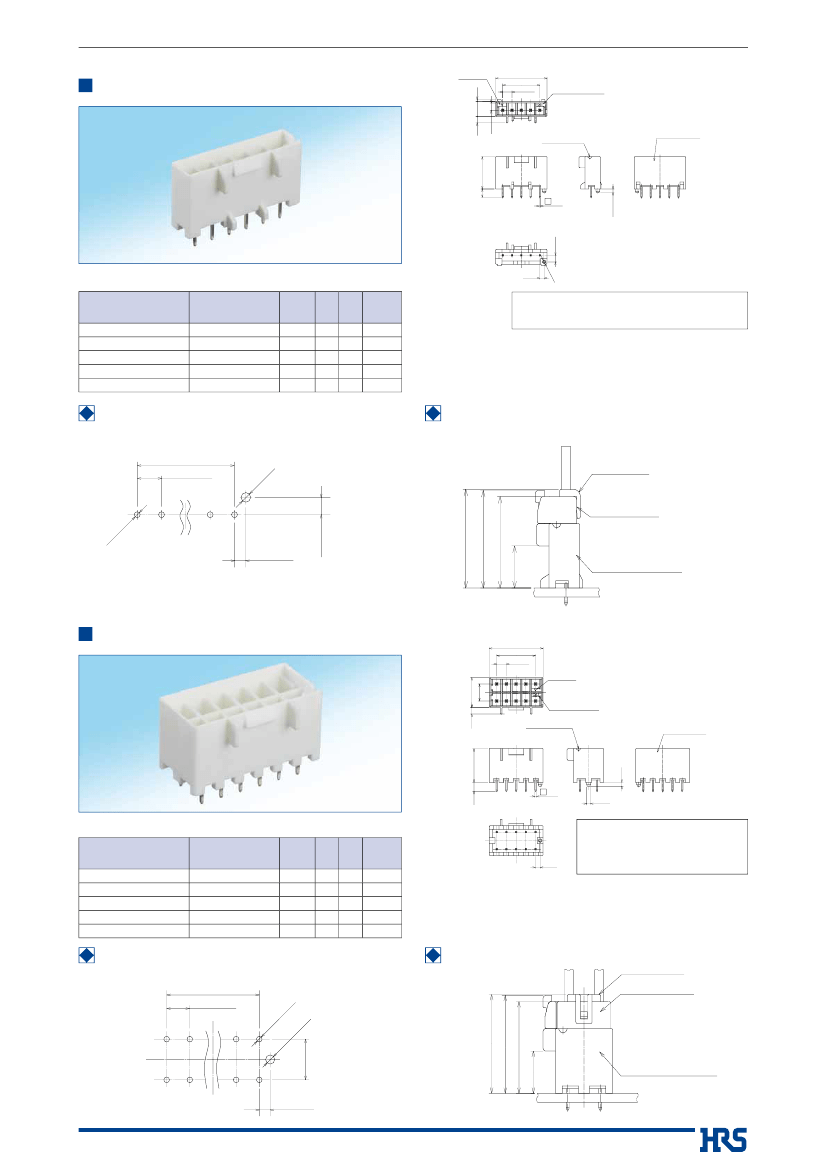

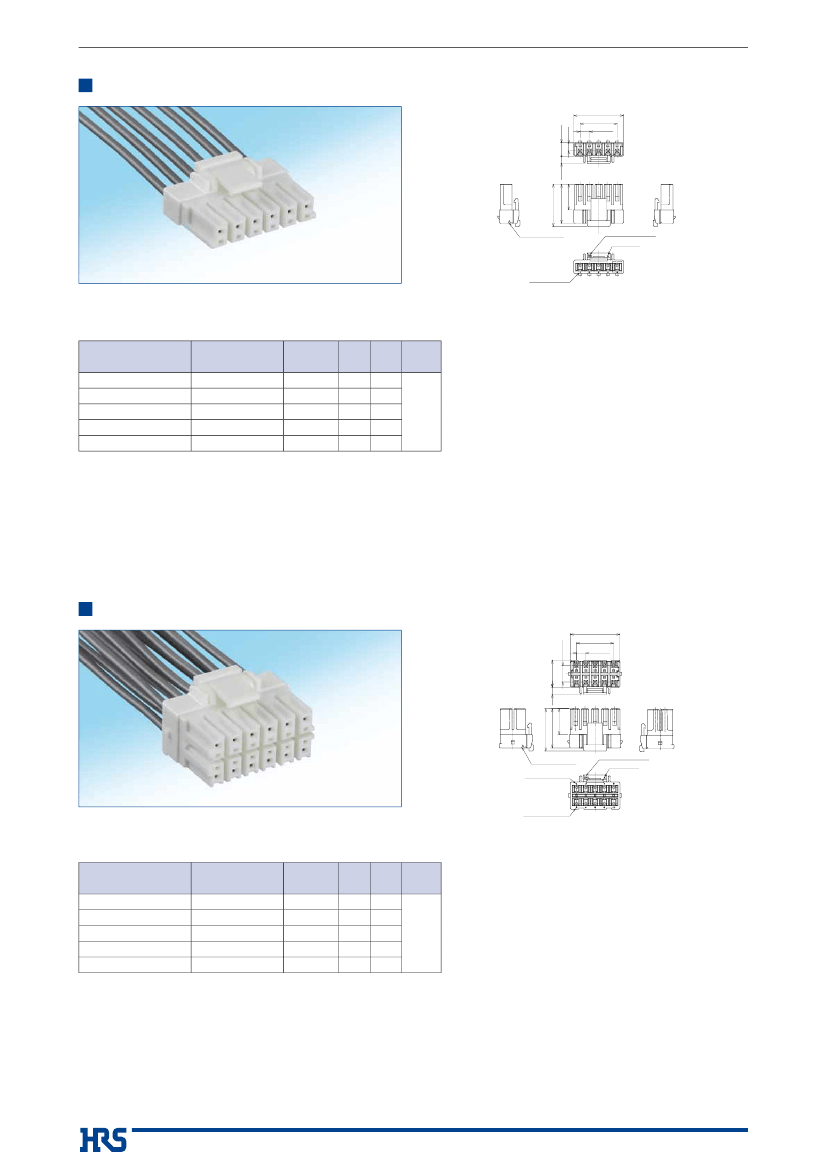

* The image on the left show header (the board
dip side), the image on the right show the
socket (cabel side).
* This guide key position is indicated in position
facing the mating surface of the header.
Fig.2
8. Prevents solder cracking
To avoid solder crack, a glass-filled resin is used in the
header housing to decrease thermal shrinkage.
9. Easy mating operation
A clear tactile click is delivered upon the completion of the
mating process. This simplifies mating and increases work
efficiency, especially when operating in a noisy environment.
10. Glow Wire compliance (Compliant with IEC 60695-2-11)
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2015.11t
