ROHS COMPLIANT
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED

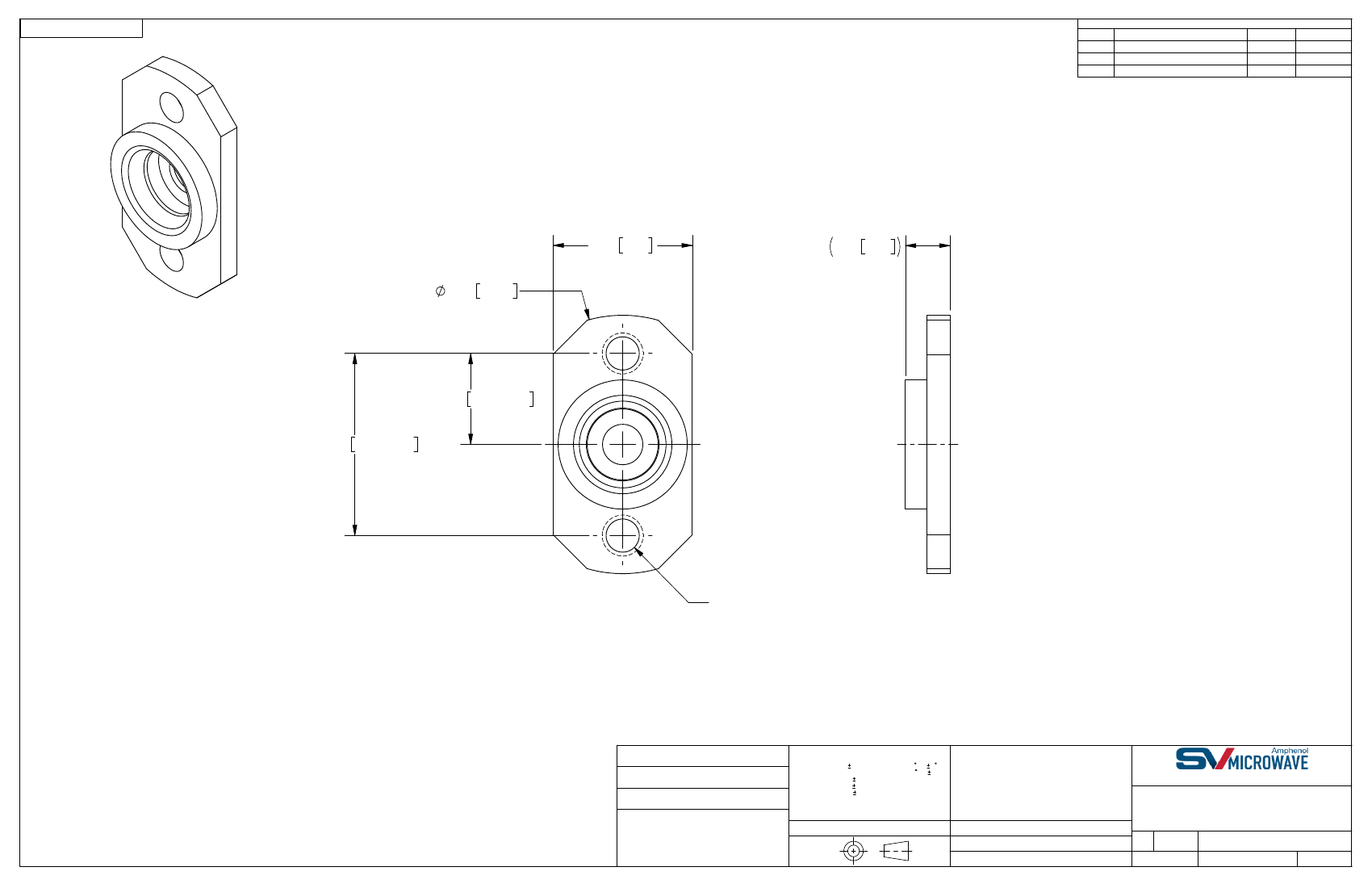

PRODUCT DATA DRAWING
-
DCN 46856
9/17
FSG
.216 5.49
.400 10.16
.069 1.75
.141±.001 3.58±0.03
.282±.002 7.16±0.05
2X 0-80-UNF 2B
MATERIAL:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1;
OR ASTM A582 TYPE 303, COND. A
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .004 T.I.R.
7) REMOVE ALL BURRS
FINISH:
PASSIVATED PER AMS-2700
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
GPF 9/26/17
FSG 9/26/17
FSG 9/26/17
3mm SMOOTH BORE
FLANGE
95077
SIZE CAGE CODE DWG. NO.
B
012-80-487/020
SHEET 1 OF 1
SCALE: 8:1
