F-219
UPPT–08–01–01–L–RA–SD
POWER
™
(3.81 mm) .150"
STRIP
20
UPPT–02–01–01–L–RA–SD
UPPT–06–01–01–L–RA–SD

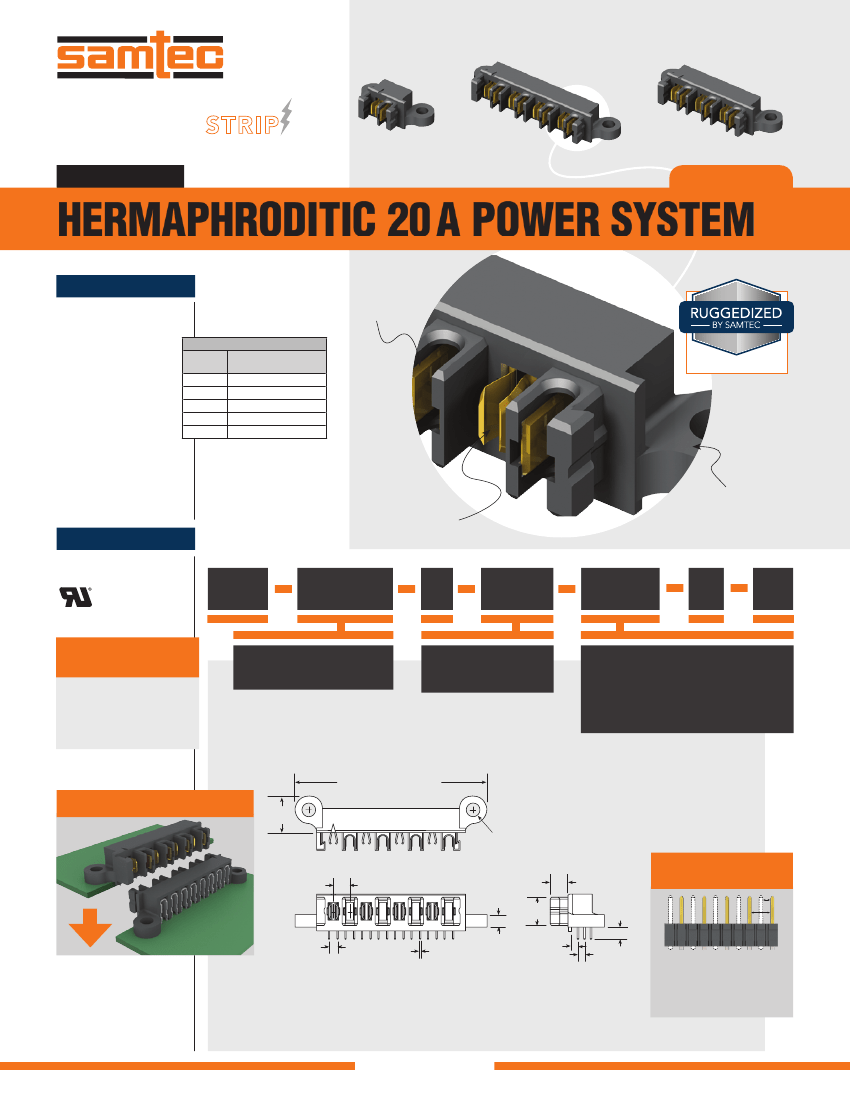

UPPT SERIES
HERMAPHRODITIC 20 A POWER SYSTEM
SPECIFICATIONS
For complete specifications
see www.samtec.com?UPPT
Insulator Material:
Black LCP
Terminal Material:
Copper Alloy
Plating:
Sn or Au over 50 µ"
(1.27 µm) Ni
Operating Temp Range:
-55 °C to +105 °C with Tin;
-55 °C to +125 °C with Gold
Voltage Rating:
425 VAC/600 VDC
Standard Creepage:
(1.91 mm) .075"
Standard Clearance:
(1.51 mm) .059"
RoHS Compliant:
Yes
Lead–Free Solderable:
Yes
UPPT/UPPT
CURRENT RATING
(PER CONTACT)
21.4 A
19.8 A
17.1 A
16.9 A
14.1 A
Mates with:
UPPT
Dual blade
post
PINS
1
2
3
4
8
• Screw down option
Screw Down
Dual leaf
contacts
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
FILE NO. E111594
UPPT
NO. OF
POSITIONS
01
TAIL
LENGTH
PLATING
RA
SD
ALSO AVAILABLE
(MOQ Required)
• Solder Leads for
(2.36 mm) .093" thick board
• Locking Clip
(Manual placement required)
• Tape & Reel Packaging
–02, –04,
–06, –08
= (1.60 mm) .062"
Thick PCB
– 01
=10 µ" (0.25 µm) Gold on contact,
Matte Tin on tail
–L
–T
= Matte Tin
No. of positions x
(3.81) .150 + (13.87) .546
APPLICATION
(8.42)
.332
(3.18)
.125
DIA
(3.81)
.150
(4.10)
.161
(2.88)
.113
(6.50)
.256
(1.54)
.061
(2.82)
.111
CREEPAGE
AND CLEARANCE
(2.00)
.0787
(0.30)
.012
(1.50)
.059
Selectively loading
contacts achieves customer
specific creepage and
clearance requirements.
Contact asp@samtec.com
Note:
Some sizes, styles
and options are non-standard,
non-returnable.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
