BNC5-J-C-GN-ST-BH2 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Rf interconnection> RF connector/coaxial connector> BNC5-J-C-GN-ST-BH2

Preview

BNC5-J-C-GN-ST-BH2: DescriptionRF Connector/Coaxial Connector 50 Ohm BNC Cable Connector; CategoryThe connector Rf interconnection RF connector/coaxial connector; File Size867KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BNC5-J-C-GN-ST-BH2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BNC5-J-C-GN-ST-BH2	-	-	View	Buy Now

BNC5-J-C-GN-ST-BH2 Overview

RF Connector/Coaxial Connector 50 Ohm BNC Cable Connector

BNC5-J-C-GN-ST-BH2 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	RF Connector/Coaxial Connector
Shipping restrictions	Mouser does not currently sell this product.
Encapsulation	Bulk
series	BNC5
Factory packaging quantity	1

Preview

Download Datasheet

View All

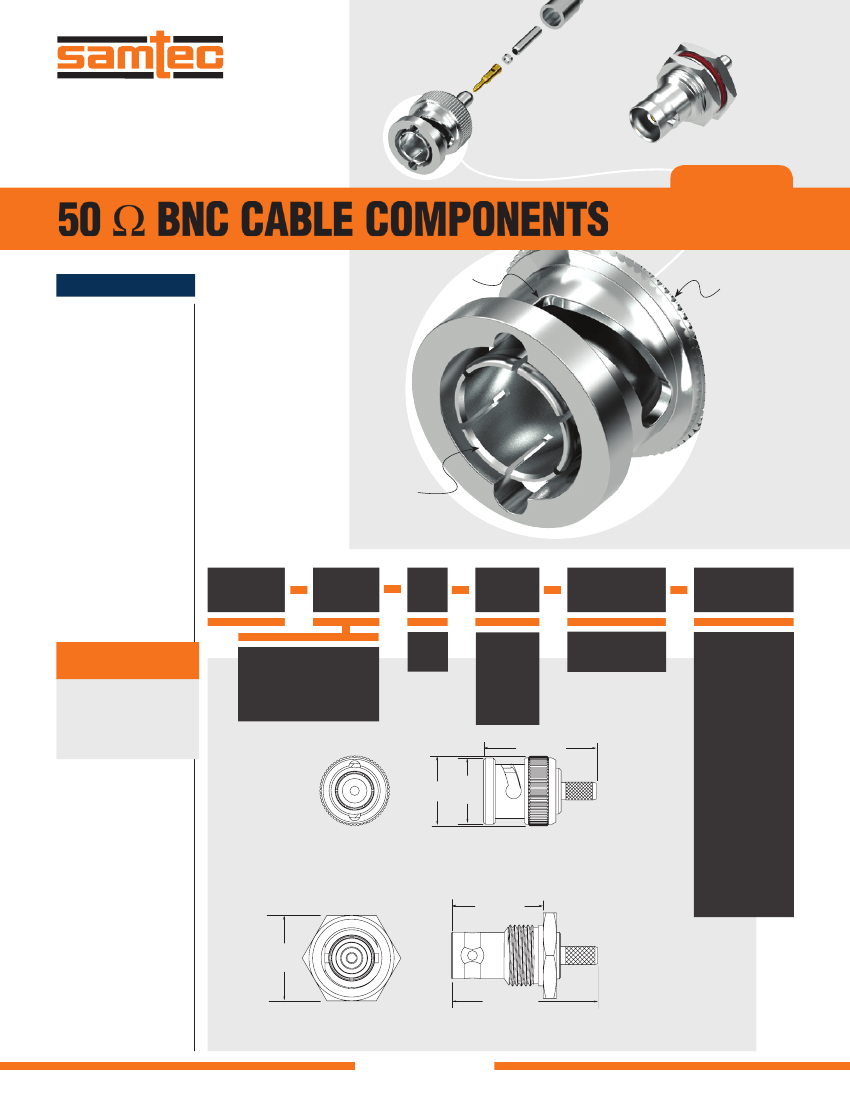

RF-18

BNC5–P–C–GN–ST–CA1

BNC5–J–C–GN–ST–BH1

BNC5 SERIES

50

W

BNC CABLE COMPONENTS

SPECIFICATIONS

For complete specifications

and assembly instructions see

www.samtec.com?BNC5-CA

Shell Material:

Brass

Contact Material:

Brass (-P)

Copper Alloy (-J)

Center Contact:

Soldered

Outer Contact:

Crimped

Impedance:

50

W

Frequency Range:

0~4 GHz

(Cable dependent)

Working Voltage:

500 Vrms max

Dielectric Withstanding:

1500 Vrms min

Operating Temp Range:

-65 °C to +125 °C

Locking feature

Fits RG 174,

RG 178 &

RG 316 cable

Plug or jack

BNC5

OTHER

SOLUTIONS

• 50

W

BNC Board Jacks

• 50

W

TNC Board Jacks

• 50

W

TNC Cable

Components

Contact Samtec.

GENDER

TYPE

PLATING

ORIENTATION

TERMINATION

= Plug

–P

–J

= Cable

–C

= Jack

= 10 µ"

(0.25 µm)

Gold on

contact,

Nickel on

body

(23.40) .921

–GN

= Straight

–ST

= RG 174 / 316 Cable

(–P only)

–CA1

–CA2

–BH1

–BH2

= RG 178 Cable

(–P only)

(14.50)

.571

(13.80)

.543

DIA

= Bulkhead,

RG 174 / 316 Cable

(–J only)

–P

= Bulkhead,

RG 178 Cable

(–J only)

(18.70) .736

= Bulkhead,

RG 316 Cable,

Double Shield

(–J only)

–BH1S

(17.50)

.689

Hex.

(29.80) 1.173

–J

Supplied with pins, washers, nuts, gaskets and ferrules. See website for dimensions.

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

BNC5-J-C-GN-ST-BH2 Related Products

	BNC5-J-C-GN-ST-BH2	BNC5-J-P-GN-ST-TH2D	BNC5-P-C-MN-ST-CA1	BNC5-P-C-GN-ST-CA2	BNC5-J-C-HN-ST-BH1	BNC5-P-C-HN-ST-CA1	BNC5-J-C-GN-ST-BH1	BNC5-P-C-GN-ST-CA1
Description	RF Connector/Coaxial Connector 50 Ohm BNC Cable Connector	RF Connector/Coaxial Connector 50 Ohm BNC Cable Connector	RF Connector/Coaxial Connector 50 Ohm BNC Cable Connector	RF Connector/Coaxial Connector 50 Ohm BNC Cable Connector	RF Connector/Coaxial Connector 50 Ohm BNC Cable Connector	RF Connector/Coaxial Connector 50 Ohm BNC Cable Connector	RF Connector/Coaxial Connector 50 Ohm BNC Cable Connector	RF Connector/Coaxial Connector 50 Ohm BNC Cable Connector
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Is it lead-free?	-	Lead free	-	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	-	-	conform to	conform to	conform to	conform to
package instruction	-	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	-	compliant	compliant	-	compliant	compliant	compliant	compliant
Factory Lead Time	-	2 weeks	2 weeks	-	2 weeks	2 weeks	2 weeks	2 weeks
Body/casing type	-	JACK	PLUG	-	JACK	PLUG	JACK	PLUG
Characteristic impedance	-	50 Ω	50 Ω	-	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	-	RF BNC CONNECTOR	RF BNC CONNECTOR	-	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	-	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	-	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (50)	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL
Contact completed and terminated	-	Gold (Au) - with Nickel (Ni) barrier	GOLD (10) OVER NICKEL (50)	-	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (50)	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	-	FEMALE	MALE	-	FEMALE	MALE	FEMALE	MALE
Contact material	-	PHOSPHOR BRONZE	NOT SPECIFIED	-	COPPER ALLOY	BRASS	COPPER ALLOY	BRASS
Coupling type	-	BAYONET	BAYONET	-	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	-	NO	NO	-	NO	NO	NO	NO
Filter function	-	NO	NO	-	NO	NO	NO	NO
IEC compliance	-	NO	NO	-	NO	NO	NO	NO
insulator material	-	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	-	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	-	e4	e4	-	e4	e4	e4	e4
MIL compliance	-	NO	NO	-	NO	NO	NO	NO
Installation method	-	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	-	BOARD	CABLE	-	CABLE	CABLE	CABLE	CABLE
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	-	NO	NO	-	YES	NO	YES	NO
Termination type	-	SOLDER	CRIMP SOLDER	-	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER
