ZML-136-02-S-D: DescriptionBoard Stacking Connector, 72 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size763KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

ZML-136-02-S-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZML-136-02-S-D	-	-	View	Buy Now

ZML-136-02-S-D Overview

Board Stacking Connector, 72 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

ZML-136-02-S-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1652911636
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	France, Malaysia
ECCN code	EAR99
Factory Lead Time	3 weeks
YTEOL	8.65
body width	0.37 inch
subject depth	0.56 inch
body length	1.925 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZATION NOTCH
Terminal length	0.12 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	72

Preview

Download Datasheet

View All

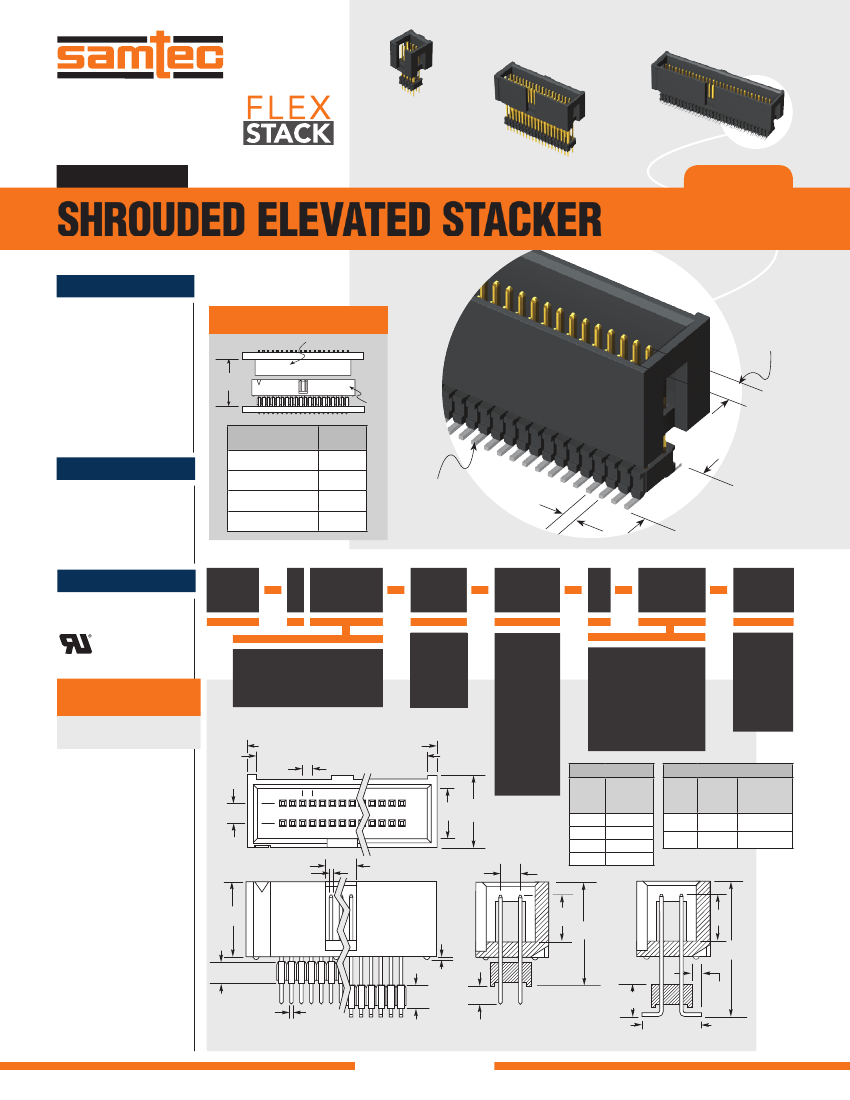

F-219

ZML–132–54–L–D–650–SM

ZML–105–03–G–D

(1.27 mm) .050"

ZML–120–04–G–D

ZML SERIES

SHROUDED ELEVATED STACKER

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?ZML

Insulator Material:

Black LCP

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C with Tin;

-55 °C to +125 °C with Gold

RoHS Compliant:

Yes

Mates with:

SMS, RSM

APPLICATIONS

SMS

(2.54 mm)

.100"

BOARD

SPACE

ZML

APPLICATIONS

ZML Style -01

mated with SMS

ZML Style -02

mated with SMS

ZML Style -03

mated with SMS

ZML Style -04

mated with SMS

BOARD

SPACE

(13.72)

.540

(15.11)

.595

(17.53)

.690

(20.57)

.810

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (05-20)

(0.15 mm) .006" max (32)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

Surface

mount or

through-hole

(1.27 mm)

.050"

(7.62 mm)

.300"

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

ZML

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

BODY

HEIGHT

TAIL

STYLE

(Leave

blank for

Through-

hole)

FILE NO. E111594

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Other platings

(Standard sizes)

05, 08,

10, 20, 32

= 10 µ"

(0.25 µm)

Gold on post,

Matte Tin

on tail

–L

(Leave blank for

Through-hole)

No. of Positions x (1.27) .050 + (3.18) .125

No. of Positions x (1.27) .050 + (0.64) .025

(1.27) .050

= 10 µ"

(0.25 µm)

Gold on post,

Gold flash

on tail

(6.60) (9.40)

.260 .370

–G

= –SM Body Height

(Specify board space “B”

in inches from lead

style charts.)

THROUGH-HOLE

BODY

LEAD

HEIGHT

STYLE

(C)

(12.83) .505

–01

(14.22) .560

–02

(16.64) .655

–03

(19.69) .775

–04

–“XXX”

= Surface

Mount

–SM

SURFACE MOUNT

POST

LEAD HEIGHT

STYLE

(A)

–53

–54

(3.05)

.120

(5.84)

.230

(2.54)

.100

BODY

HEIGHT

(B)

(13.46) (20.19)

.530 to .795

(13.46) (17.40)

.530 to .685

(0.46) .018 SQ TYP

(3.56) .140

(2.54)

.100

(9.65)

.380

(5.84)

.230

Notes:

For added mechanical

stability, Samtec recommends

mechanical board spacers be

used in applications with gold or

selective gold plated connectors.

Contact ipg@samtec.com for

more information.

This Series is non-standard,

non-returnable.

(2.54)

.100

(2.54)

.100

(0.38)

.015

(0.51) .020

DIA TYP

(3.05)

.120

(3.81)

.150

(7.62) .300

THROUGH-

HOLE

(1.25)

.050

TYP

SURFACE MOUNT

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

ZML-108-01-L-D ZML-110-54-S-D-685-SM ZML-125-53-S-D-787-SM ZML-108-03-L-D ZML-125-54-S-D-760-SM

ZML-132-04-L-D ZML-120-54-G-D-685-SM ZML-120-54-L-D-560-SM ZML-108-54-G-D-650-SM ZML-110-01-L-D

ZML-110-03-L-D ZML-136-03-L-D ZML-105-54-L-D-600-SM ZML-120-04-L-D ZML-111-04-S-D ZML-113-54-S-D-

685-SM ZML-115-54-G-D-700-SM ZML-118-54-G-D-530-SM ZML-107-54-S-D-685-SM ZML-136-53-G-D-750-SM

ZML-110-02-L-D ZML-110-04-L-D ZML-135-01-L-D ZML-140-02-L-D ZML-140-54-S-D-685-SM ZML-110-54-S-D-

620-SM ZML-105-53-G-D-530-SM ZML-136-04-G-D ZML-105-03-L-D ZML-105-54-S-D-685-SM ZML-130-54-G-D-

551-SM ZML-115-54-G-D-537-SM ZML-115-01-L-D ZML-130-04-L-D ZML-110-54-L-D-650-SM ZML-132-54-L-D-

570-SM ZML-108-54-L-D-665-SM ZML-112-54-L-D-570-SM ZML-108-54-G-D-615-SM ZML-110-54-G-D-795-SM

ZML-108-54-G-D-670-SM ZML-106-03-L-D ZML-115-54-G-D-530-SM ZML-113-54-G-D-685-SM ZML-120-54-L-D-

685-SM ZML-105-54-G-D-670-SM ZML-117-54-G-D-615-SM ZML-117-54-L-D-680-SM ZML-105-54-S-D-610-SM

ZML-107-03-S-D ZML-108-01-G-D ZML-110-02-G-D ZML-114-01-G-D ZML-115-02-S-D ZML-115-54-S-D-530-SM

ZML-130-54-T-D-795-SM ZML-132-02-S-D ZML-136-54-S-D-685-SM ZML-136-54-T-D-685-SM ZML-140-01-G-D

ZML-140-54-T-D-685-SM ZML-108-02-S-D ZML-110-01-S-D ZML-110-53-S-D-795-SM ZML-115-54-S-D-685-SM

ZML-120-04-G-D ZML-130-03-G-D ZML-130-54-S-D-795-SM ZML-132-54-G-D-530-SM ZML-136-54-S-D-560-SM

ZML-140-03-G-D ZML-140-53-S-D-795-SM ZML-136-54-S-D-550-SM ZML-140-01-S-D ZML-140-54-S-D-550-SM

ZML-120-54-S-D-685-SM ZML-124-04-G-D ZML-125-03-S-D ZML-136-54-S-D-590-SM ZML-140-02-S-D ZML-140-

54-G-D-530-SM ZML-130-02-G-D ZML-130-02-S-D ZML-136-02-G-D ZML-140-02-G-D ZML-108-54-G-D-530-SM

ZML-110-54-S-D-625-SM ZML-110-54-S-D-635-SM ZML-117-03-G-D ZML-117-03-S-D ZML-120-54-G-D-530-SM

ZML-125-53-S-D-795-SM ZML-136-54-G-D-650-SM ZML-140-04-S-D ZML-140-53-S-D-530-SM ZML-124-02-G-D

ZML-125-04-G-D ZML-125-54-S-D-530-SM ZML-130-04-G-D ZML-136-54-S-D-540-SM
