TSM-104-02-L-SH-A-K datasheet, PDF

Datasheet> All Categories > The connector> The connector> TSM-104-02-L-SH-A-K

TSM-104-02-L-SH-A-K: DescriptionHeader and Wire Housing.100" Surface Mount Terminal Strip; CategoryThe connector The connector; File Size805KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TSM-104-02-L-SH-A-K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TSM-104-02-L-SH-A-K	-	-	View	Buy Now

TSM-104-02-L-SH-A-K Overview

Header and Wire Housing.100" Surface Mount Terminal Strip

TSM-104-02-L-SH-A-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
Factory Lead Time	2 weeks
Other features	E.L.P.
Board mount options	PEG
body width	0.12 inch
subject depth	0.29 inch
body length	0.4 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

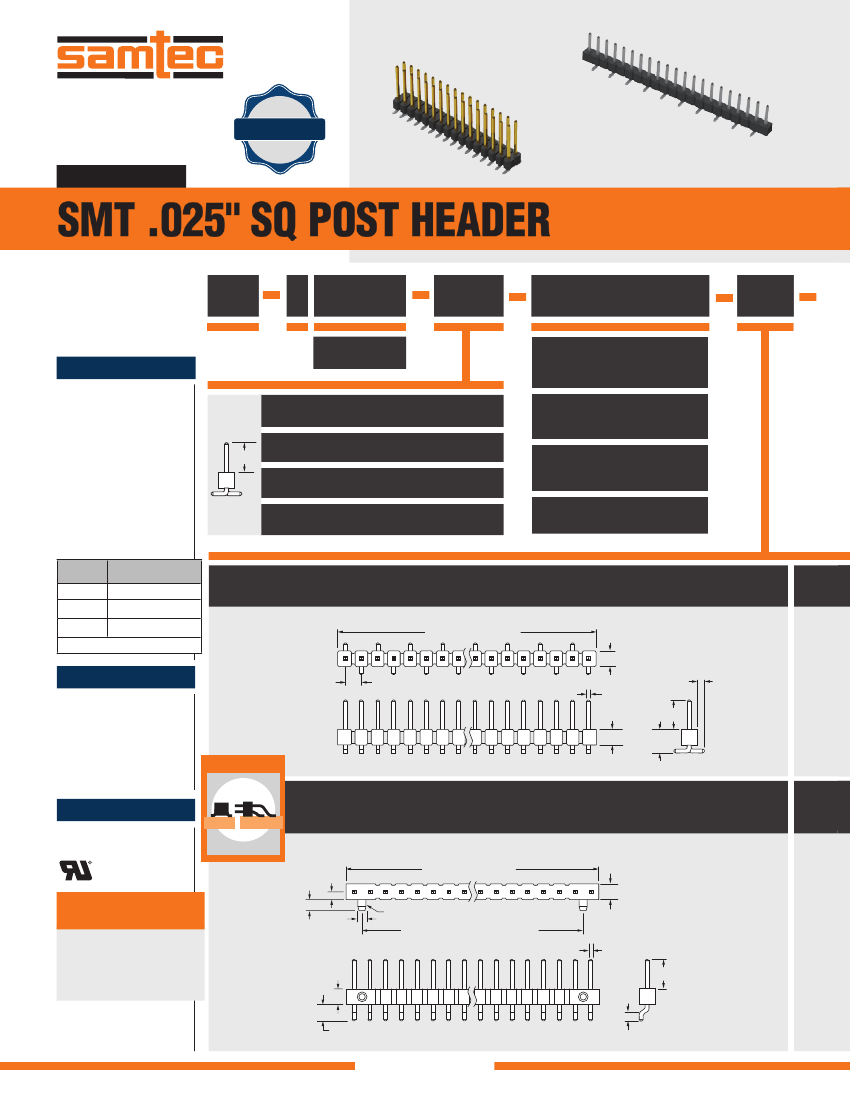

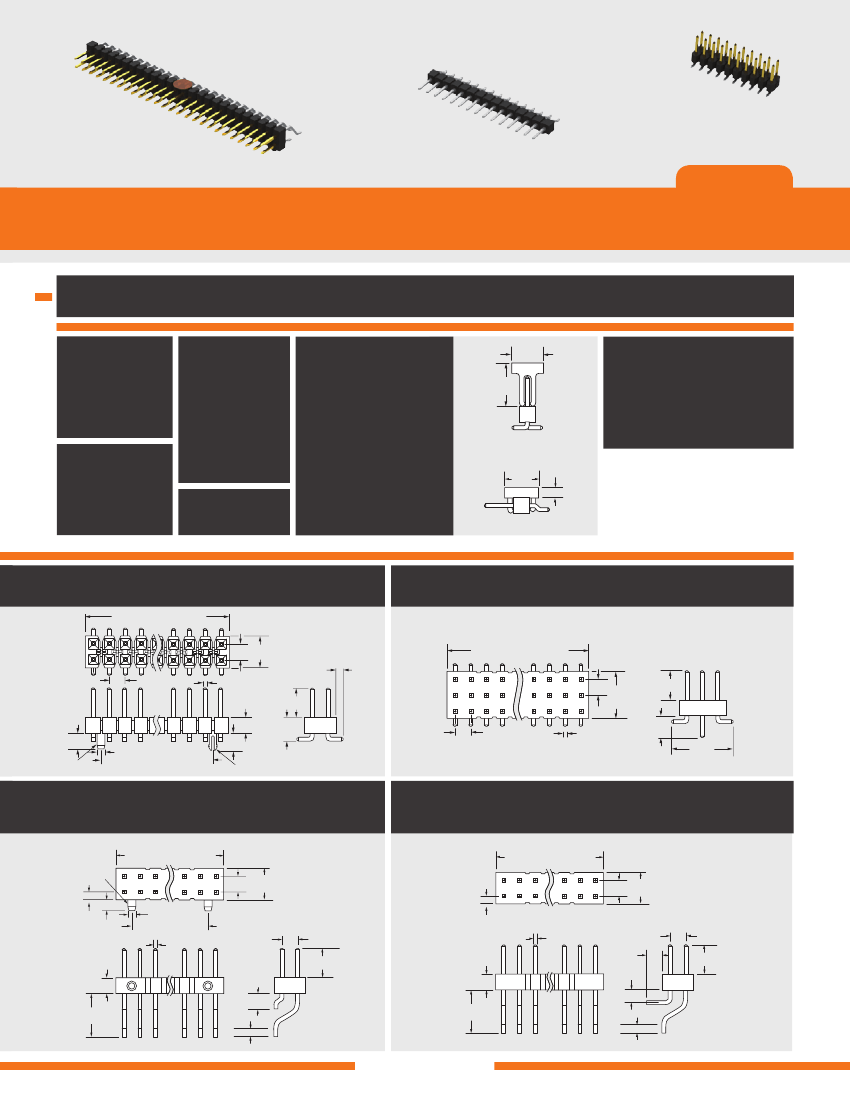

F-219

TSM–116–02–S–DV–LC

EXTENDED LIFE

PRODUCT

HIGH MATING

CYCLES

10 YEAR MFG

WITH 30 µ" GOLD

TSM–121–01–T–SV

(2.54 mm) .100"

SMT .025" SQ POST HEADER

Board Mates:

SSW, SSQ, SSM, BSW, ESW,

ESQ, BCS, SLW, CES, HLE

Cable Mates:

IDSS, IDSD

TSM

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

ROW

OPTION

SPECIFICATIONS

For complete specifications

and recommended PCB layouts

see www.samtec.com?TSM

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +105 °C with Tin;

-55 °C to +125 °C with Gold

Voltage Rating:

475 VAC -SV/-DV mated with

BCS or SSM

RoHS Compliant:

Yes

MATES

TSM/SSW

TSM/SSM

TSM/HLE

CURRENT RATING

(PER PIN)

4.7 A

5.4 A

4.1 A

thru

–01

= .230" (5.84 mm) Post Height IDSS, IDSD)

(Mates with SSW, BCS, SSM,

Post

Height

= Gold flash on post,

Matte Tin on tail

–F

–L

= 10 µ" (0.25 µm) Gold on post,

Matte Tin on tail

.320" (8.13

–02

= (Mates withmm) Post Height

SSM -DH)

.420" (10.67

Height

–03

= (For Bottom mm) PostPass Through)

Mount &

.120" (3.05

–04

= (Mates withmm) Post Height

SLW, CES, HLE)

= 30 µ" (0.76 µm) Gold on post,

Matte Tin on tail

–S

–T

= Matte Tin

= Single Row Vertical Pin

–SV

2 PINS POWERED

(2.54) .100 x No. of positions

(2.54)

.100

PROCESSING

Lead–Free Solderable:

Yes

-DH/-SH Lead Coplanarity:

(0.15 mm) .006" max (02-36)*

-DV/-SV Lead Coplanarity:

(0.10 mm) .004" max (02-05)

(0.13 mm) .005" max (06-10)*

(0.15 mm) .006" max (11-36)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

(2.54)

.100

(0.64)

.025

(1.14)

.045

REF

Post

Height

(2.54)

.100

(3.81)

.150

APPLICATIONS

SSM

TSM

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

HORIZONTAL

(1.40)

.055

(1.78)

.070

= Single Row

Horizontal Pin

–SH

(2.54) .100 x No. of positions

(3.05)

.120

FILE NO. E111594

ALSO AVAILABLE

(MOQ Required)

• Edge Mount and

Locking Clips for –SV

• Solder Locks for –DH and

Shrouds for –DV

• Other platings

(1.58)

.062

DIA

(2)

Optional Alignment Pin (–A)

(No. of positions x (2.54) .100) – (5.08) .200

(0.64)

.025

Post

Height

(2.54)

.100

(2.03)

.080

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

–01= (4.57) .180

–02, –03, –04 = (4.82) .190

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

TSM-102-01-S-DV-LC-TR TSM-102-02-L-DV-001-P-TR TSM-103-04-T-SH-LC-001-P-TR TSM-104-03-S-DH-A-K-TR

TSM-105-01-F-DH-A-006 TSM-105-04-F-SV-A TSM-105-04-S-DH-A-K-TR TSM-106-03-L-DH-A-K TSM-106-03-L-

SH-P-TR TSM-107-01-G-DV-012-P-TR TSM-107-01-T-SH-A-TR TSM-107-02-F-DH TSM-107-02-F-DV-006-P-TR

TSM-108-02-F-DV-A-P TSM-110-01-F-DH TSM-110-01-F-DV-A-P TSM-110-02-T-SV-008-P-TR TSM-110-03-F-SH

TSM-110-03-F-SV TSM-113-01-S-DH-SL-P-TR TSM-113-01-S-DH-SL-TR TSM-114-02-L-SH-LC-P TSM-116-01-F-

SH-A-P TSM-120-04-F-DV-A-P-TR TSM-120-04-F-SV-A TSM-120-04-T-DH-P-TR TSM-122-04-L-SV-A TSM-122-04-

L-SV-A-P-TR TSM-125-01-SS-DV TSM-125-01-SS-SH-A TSM-108-02-T-SV-LC-TR TSM-109-02-T-SH-K-TR TSM-

115-01-T-DH-022-P TSM-116-03-F-SH-A-P TSM-120-02-L-DH-K TSM-121-03-L-DH-LC TSM-123-04-T-DV-A-P

TSM-127-01-SS-DV-A-P-TR TSM-128-01-F-SH-K-TR TSM-125-01-T-DV-LC-P TSM-102-01-F-SV-A-P-TR TSM-102-

01-LM-DH-A-TR TSM-102-01-F-SH-A-TR TSM-102-01-H-DV-A-P-TR TSM-102-02-S-SH-K-TR TSM-103-02-F-DH-K-

TR TSM-103-02-F-DV-A-P-TR TSM-103-02-L-DV-003 TSM-103-03-F-DH TSM-104-01-LM-DH-A-TR TSM-105-01-S-

DV-A-002-P TSM-105-01-SS-DH-A TSM-105-01-TM-SH-A-K TSM-102-02-F-DH-A TSM-102-02-F-SV-A-TR TSM-

103-01-F-SV-A TSM-103-01-L-DV-LC-TR TSM-104-01-SS-DV-A-P TSM-103-01-F-DH-A-TR TSM-103-02-F-DH-A-P-

TR TSM-103-02-S-DH-A-P-TR TSM-103-03-F-DH-A-P-TR TSM-104-01-FM-SH-LC TSM-104-04-F-SH TSM-105-01-

S-DV-A-002-P-TR TSM-105-01-TM-DH-009-P-TR TSM-105-02-F-DH-A-P TSM-105-02-L-DH-SL-002 TSM-105-03-H-

DV-A-P TSM-105-03-L-DH-001-K-TR TSM-105-04-F-DV-A-TR TSM-105-04-L-DH-TR TSM-105-04-S-DV-001 TSM-

103-02-F-SH-A-TR TSM-103-02-F-SV-TR TSM-104-01-G-SH-LC-TR TSM-104-03-F-SH TSM-105-01-H-DV-A-P-TR

TSM-105-01-S-DH-A-009 TSM-105-02-F-DV-A-TR TSM-105-02-F-SH-A TSM-105-03-S-SV-A-TR TSM-105-03-T-DH-

A-K-TR TSM-106-01-F-SH-LC-002 TSM-106-02-F-SV-P-TR TSM-107-01-F-DH-A-P-TR TSM-102-02-L-DV-002-TR

TSM-103-01-F-DH-P-TR TSM-103-01-T-DV-006-TR TSM-104-01-F-SH-A-K-TR TSM-104-01-L-DV-005-P-TR TSM-

104-02-L-DH-SL-007-K-TR TSM-102-01-F-DH-A TSM-102-01-F-DH-A-K-TR TSM-102-04-F-DV-P-TR TSM-104-01-F-
