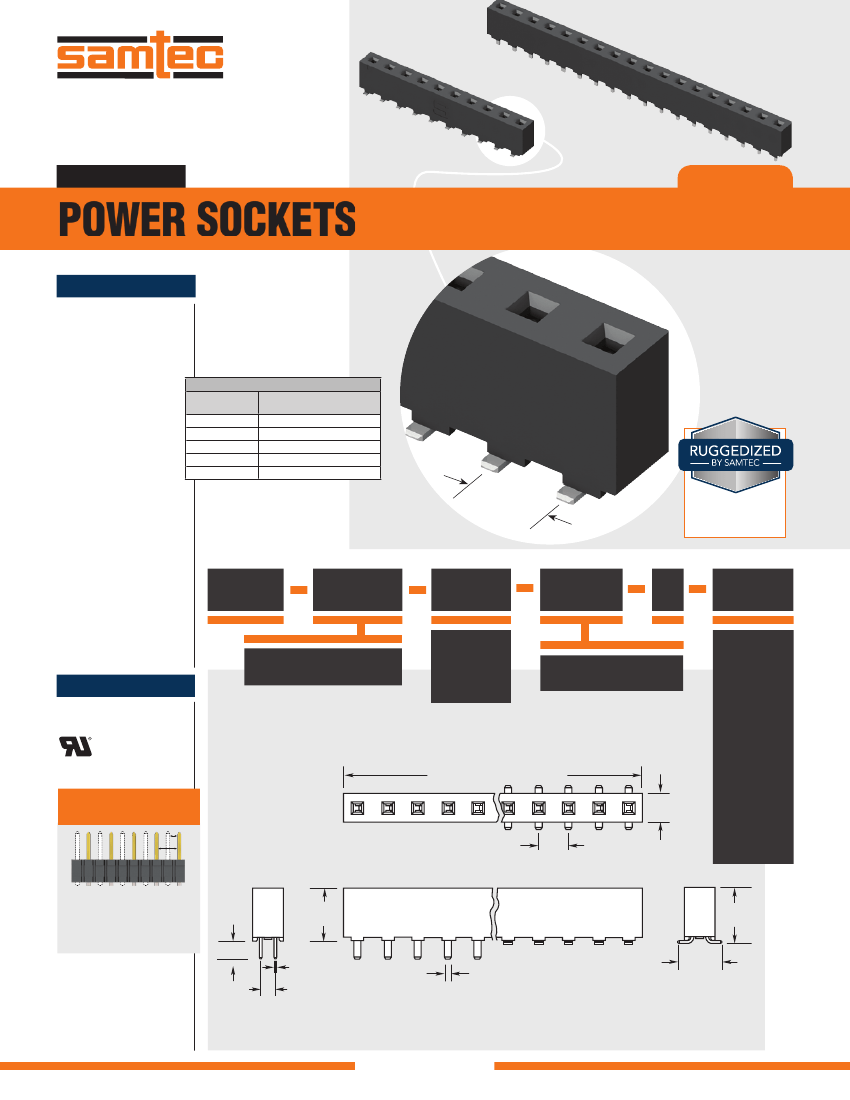

F-219
HPF–18–01–T–S
HPF–10–02–T–S
(5.08 mm) .200"
HPF SERIES
POWER SOCKETS
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?HPF
Insulator Material:
Black LCP
Contact Material:
BeCu
Plating:
Sn over
50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +105 °C
Voltage Rating:
850 VAC/1200 VDC
Insertion Depth:
(3.68 mm) .145" to (8.26 mm)
.325" (.368" (9.35 mm) plus
board thickness minimum for
bottom entry)
Wiping Distance:
(0.38 mm) .015"
Standard Creepage:
(2.82 mm) .111" (without -LC)
(1.38 mm) .054" (with -LC)
Standard Clearance:
(2.5 mm) .098" (without -LC)
(1.05 mm) .041" (with -LC)
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0.15 mm) .006" max (02-10)*
(0.20 mm) .008" max (11-20)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
RoHS Compliant:
Yes
Mates with:
HPM, HPW
Surface Mount
or
Through-hole
PINS
1
2
3
4
20
HPF/HPM
CURRENT RATING
(PER CONTACT)
16.6 A
14.4 A
13.2 A
12.7 A
8.9 A
(5.08 mm)
.200" pitch
• Three-finger
Power Eye contact
• Locking clip option
HPF
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
S
OTHER
OPTIONS
02 thru 20
= Through-hole
–01
–02
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
= Matte Tin
–T
= Surface Mount
= Locking Clip
(Manual
placement
required)
(Style –02 only)
–LC
FILE NO. E111594
No. of Positions x (5.08) .200
= (6.50 mm) .256"
DIA Polyimide
Film Pick &
Place Pad
–K
CREEPAGE
AND CLEARANCE
(5.08)
.200
(5.08)
.200
= Tape & Reel
Packaging
(14 positions
maximum)
(Style –02 only)
–TR
Selectively loading
contacts achieves customer
specific creepage and
clearance requirements.
Contact asp@samtec.com
(2.59)
.102
(8.89)
.350
(9.35)
.368
(7.11)
.280
–02
(0.46)
.018
(2.46)
.097
–01
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
(1.14)
.045
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
