TFML-120-02-L-D-A-K datasheet, PDF

Datasheet> All Categories > The connector> The connector> TFML-120-02-L-D-A-K

TFML-120-02-L-D-A-K: DescriptionHeaders and Wire Housings.050" Tiger Eye High-Reliability Locking Terminal Strip; CategoryThe connector The connector; File Size458KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TFML-120-02-L-D-A-K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TFML-120-02-L-D-A-K	-	-	View	Buy Now

TFML-120-02-L-D-A-K Overview

Headers and Wire Housings.050" Tiger Eye High-Reliability Locking Terminal Strip

TFML-120-02-L-D-A-K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
Connector type	BOARD CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

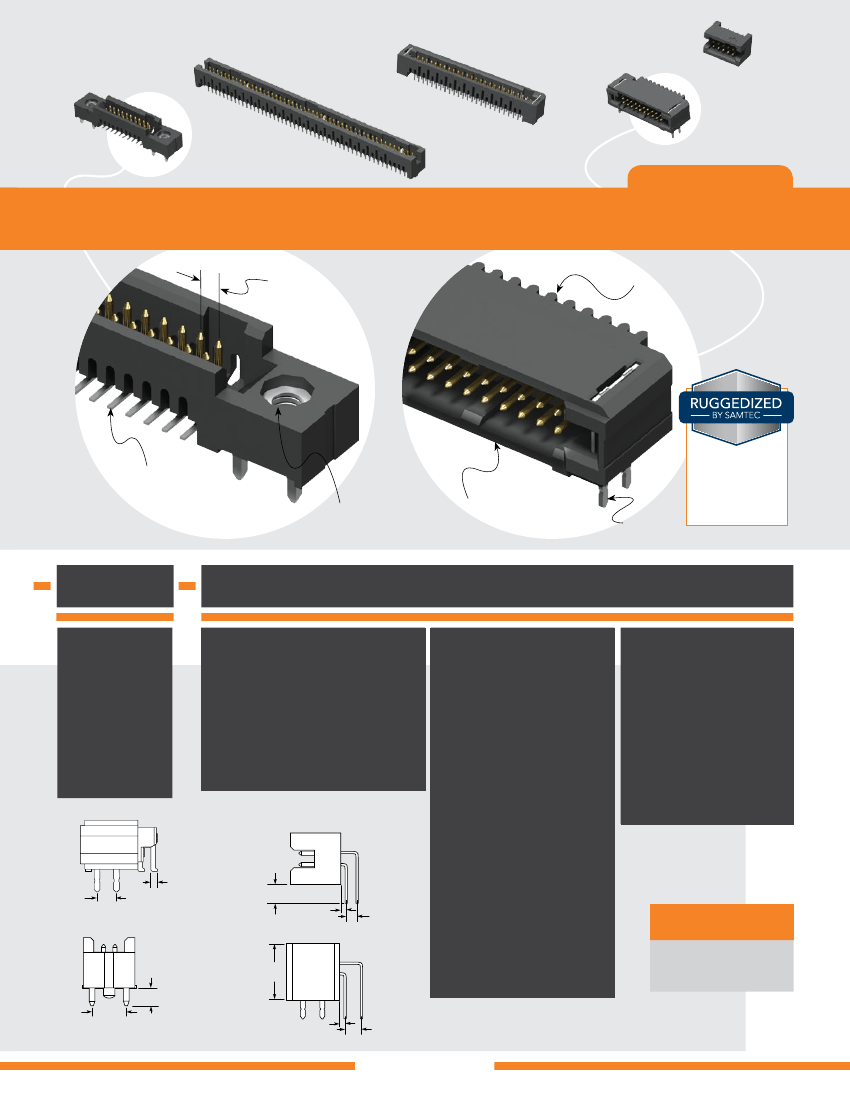

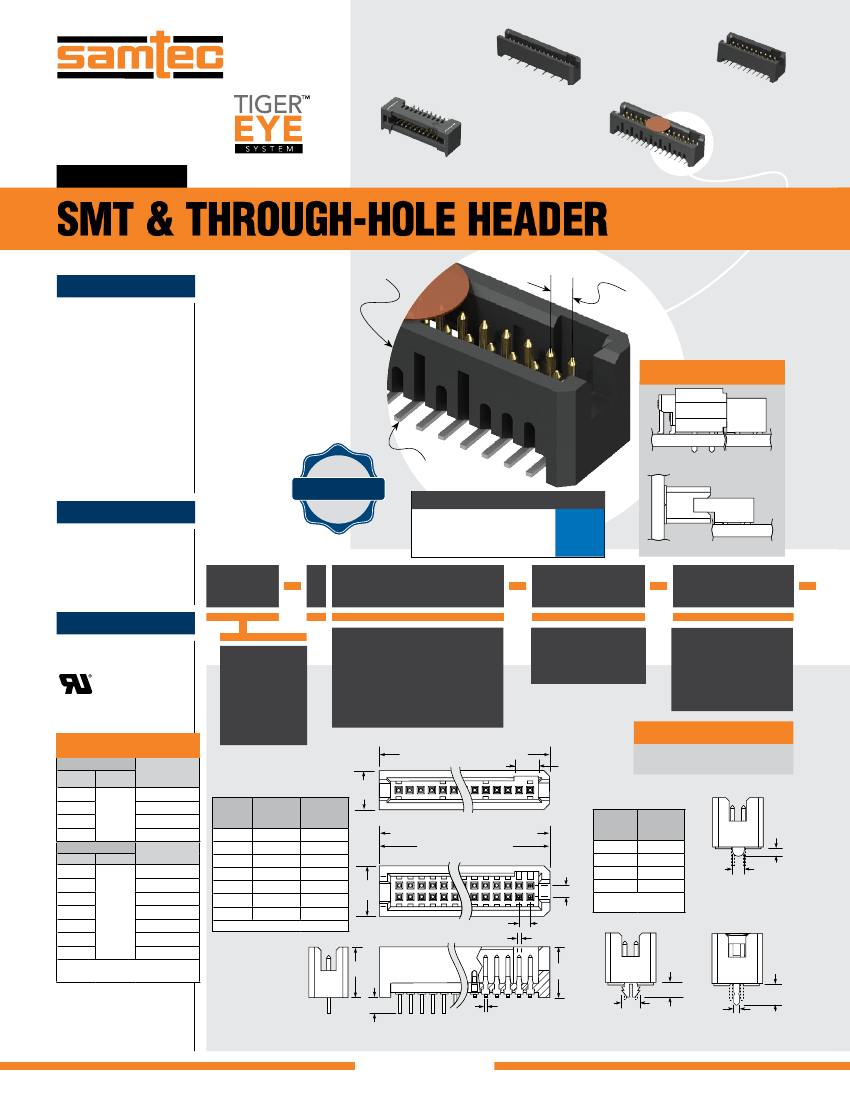

F-219 (Rev 23JAN19)

TFM–115–02–L–S

TFM–110–02–L–D–LC

(1.27 mm) .050"

TFM–110–01–L–D–RE1–WT

TFML–115–02–L–D–K

SMT & THROUGH-HOLE HEADER

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?TFM or

www.samtec.com?TFML

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Au or Sn over 50 µ" (1.27 µm) Ni

Current Rating (TFM/SFM):

3.2 A per pin

(2 pins powered)

Voltage Rating:

250 VAC mated with SFM

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

TFM Board Mates:

SFM, SFMC

TFM Cable Mates:

SFSD

TFML Board Mates:

SFML

TFM-DH Board Mates:

SFM (-DH), SFMC

TFM-DH Cable Mates:

SFSDX (-S, -D, -SR, -DR)

Shrouded body

for blind mating

(1.27 mm x 1.27 mm)

.050" x .050"

micro pitch

APPLICATIONS

EXTENDED LIFE

PRODUCT

HIGH MATING

CYCLES

10 YEAR MFG

WITH 30 µ" GOLD

Surface mount or

through-hole tails

TFM-DH to SFM-DH SHOWN

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max (05-25)

(0.15 mm) .006" max (30-50)*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

HIGH-SPEED CHANNEL PERFORMANCE

Rating based on Samtec reference

channel. For full SI performance data

visit Samtec.com or contact

SIG@samtec.com

G b p s

TFM to SFM-SH SHOWN

TYPE

STRIP

NO. PINS

PER ROW

LEAD STYLE

PLATING

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

= Standard

TFM

03, 04, 06, 08

(TFM –01 & –02 only)

FILE NO. E111594

MATED HEIGHTS

LEAD STYLE

TFM

SFM

MATED

HEIGHT*

(6.35) .250

= Locking

(–01 & –02

lead style only)

TFML

05, 07, 10, 15, 20,

25, 30, 35, 40, 45, 50

(Standard sizes)

(1.27) .050 x

No. of Positions + (3.18) .125

(4.45)

.175

Specify

LEAD STYLE

from chart

= 15 µ" (0.38 µm)

Gold on post,

Matte Tin on tail

(Call Samtec for

E.L.P.™ plating option)

–L

OTHER SOLUTIONS

(2.79)

.110

• Lower cost plating options.

See TFC Series.

– 02

– 12

– 22

– 32

–01

–03

–11

–13

–21

–23

–31

–02

(8.13) .320

(9.91) .390

(11.81) .465

MATED

HEIGHT*

(5.97) .235

(7.75) .305

LEAD

STYLE

(T/H)

SINGLE ROW

LEAD STYLE

TFM

SFM

–01

(7.75) .305

(9.53) .375

(11.43) .450

–01

–03*

–11*

–13*

–21*

–23*

–31*

(5.59) .220 (1.97) .078

(5.59) .220 (2.77) .109

(7.37) .290 (1.97) .078

(7.37) .290 (2.77) .109

(9.14) .360 (1.97) .078

(9.14) .360 (2.77) .109

(11.05) .435 (1.97) .078

(See website for –DS & –WT OAL)

–REX = (1.27) .050 x

No. of Positions + (6.68) .263

LEAD

STYLE

(SMT)

(5.72) .225

(7.49) .295

(9.27) .365

(1.14)

.045

(1.27)

.050

DIA

–A

(SMT or TH)

(1.27)

.050

(5.72)

.225

(11.18) .440

* N/A with 07, -DH or

-S row option

–02

–12*

–22*

–32*

* Not Available with 07 or -S row option

DOUBLE ROW

(1.27) .050

(0.46) .018 DIA

(1.40)

.055

(1.42)

.056

(2.35)

(0.64)

.093

.025

–WT

(–01 & –02 ONLY)

*Processing conditions will

affect mated height.

(0.36) .014

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

THROUGH-HOLE

SURFACE MOUNT

–LC

(SMT or TH)

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

TFML-150-02-S-D-LC TFML-130-02-SM-D TFML-140-02-S-D-LC-K-TR TFML-140-02-SM-D TFML-145-02-S-D-A

TFML-110-01-SM-D TFML-110-02-SM-D TFML-115-01-L-D TFML-115-01-S-D-K TFML-115-02-SM-D-LC TFML-120-

01-L-D TFML-125-01-SM-D-RA TFML-125-02-S-D-LC-K TFML-132-02-S-D TFML-135-02-L-D-LC TFML-150-01-SM-

D-RA TFML-110-02-H-D-A TFML-110-02-H-D-LC-P-TR TFML-112-02-S-D-A TFML-120-02-S-D-LC-K-TR TFML-125-

02-S-D-A-TR TFML-105-02-F-D-A-K-TR TFML-105-02-L-D-A-K TFML-150-02-H-D TFML-110-01-S-D-LC TFML-110-

02-S-D-A-P TFML-150-01-S-D-RA TFML-115-02-S-D-LC-P-TR TFML-140-01-S-D-RA TFML-145-02-S-D TFML-112-

02-S-D-LC TFML-110-02-S-D-K TFML-110-02-S-D-LC-K TFML-110-02-S-D-P TFML-120-01-S-D-A TFML-112-02-S-

D TFML-130-02-S-D-A-P TFML-132-02-S-D-LC TFML-137-02-S-D-LC TFML-120-01-S-D-LC TFML-135-01-S-D

TFML-135-02-S-D-A TFML-135-02-S-D-LC TFML-135-02-S-D-P-TR TFML-140-02-S-D-A TFML-110-01-S-D-A

TFML-115-02-S-D-K TFML-110-01-S-D-P TFML-115-02-S-D-K-TR TFML-126-02-S-D-LC TFML-150-02-S-D TFML-

115-02-S-D-LC-P TFML-115-02-S-D-LC-TR TFML-125-01-S-D-A TFML-125-02-S-D-K TFML-115-02-S-D-LC-K

TFML-120-02-S-D-LC-P TFML-120-02-S-D-LC-TR TFML-140-01-S-D-A TFML-110-02-S-D-LC-P-TR TFML-130-01-S-

D-A TFML-130-01-S-D-K TFML-125-01-S-D-LC TFML-135-02-S-D-K-TR TFML-120-02-S-D-K-TR TFML-140-02-S-D-

A-P TFML-140-02-S-D-A-P-TR TFML-140-02-S-D-LC TFML-125-02-S-D-A-K-TR TFML-135-01-S-D-LC TFML-135-

02-S-D-K TFML-145-01-S-D-A TFML-115-02-S-D-A-K-TR TFML-122-02-S-D TFML-150-02-S-D-A TFML-115-02-S-

D-A-P TFML-115-02-S-D-P TFML-145-02-S-D-K-TR TFML-115-01-S-D-A TFML-135-01-S-D-RA TFML-115-02-S-D-

P-TR TFML-110-01-F-D-RA TFML-110-02-S-D-LC-P TFML-110-02-S-D-TR TFML-125-02-S-D-P-TR TFML-140-01-

S-D-LC TFML-115-02-S-D-LC-K-TR TFML-117-02-S-D-A TFML-120-02-S-D-A-K-TR TFML-120-02-S-D-A-TR TFML-

130-01-S-D-LC TFML-130-02-SM-D-A-K TFML-110-02-H-D-LC TFML-112-01-S-D-RA TFML-113-02-S-D-A TFML-

115-02-SM-D-A-K-TR TFML-120-02-S-D-LC-K TFML-125-02-L-D-LC TFML-125-02-S-D-K-TR TFML-130-02-S-D-LC-

P-TR
