USB-B-S-F-W-SM-R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> USB-B-S-F-W-SM-R

Preview

USB-B-S-F-W-SM-R: DescriptionUSB ConnectorUSB 2.0 Interface, Type A; CategoryThe connector The connector; File Size643KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

USB-B-S-F-W-SM-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	USB-B-S-F-W-SM-R	-	-	View	Buy Now

USB-B-S-F-W-SM-R Overview

USB ConnectorUSB 2.0 Interface, Type A

USB-B-S-F-W-SM-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	USB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYAMIDE9T
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

F-219

USBR–B–S–F–O–TH

USB–B–S–S–B–SM

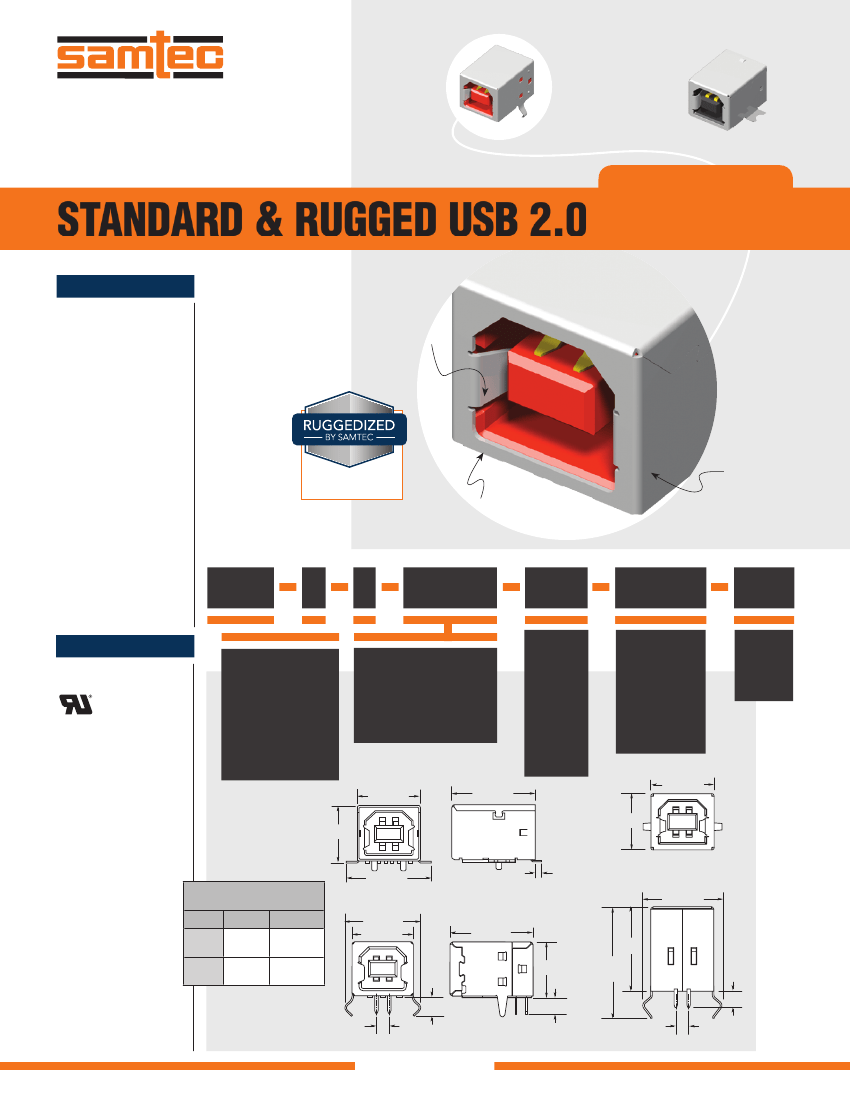

USB-B, USBR-B SERIES

STANDARD & RUGGED USB 2.0

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?USB-B

or www.samtec.com?USBR-B

Insulator Material:

High Temperature

Thermoplastic

Contact Material:

Phosphor Bronze

Plating:

Gold on Contacts,

Nickel on Shell, Tin on Tails

Operating Temp Range:

-50 °C to +85 °C

Voltage Rating:

30 VAC

Cycles:

1500 (maximum

number of cycles tested)

Packaging:

Packaged and shipped in

Bulk Packaging Trays; Trays

suitable for automation are

available upon request.

RoHS Compliant:

Yes

Lead–Free Solderable:

USB-SM=Yes

USB-TH= Yes

(Wave Solder only)

USBR=Yes (Wave Solder only)

TID Number:

USB-B-S-X-X-TH (61001155)

Minimum 15N

withdrawal force

• High retention

option

Through-hole

option

Increased

retention option

TYPE

B

S

PLATING

COLOR

TERMINATION

OTHER

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

(USB only)

FILE NO. E225096

(USBR only)

= Standard Connector

USB

= Increased

Retention Connector

(Complies with Class 1,

DIV II minimum

withdrawal

requirement of 15N)

USBR

= Gold Flash on Mating Area,

Tin on Tails

= 30 µ" (0.76 µm) Gold on

Mating Area, Tin on Tails

–F

= Black

(USB only)

–B

= Through-hole

–TH

–S

= White

(USB only)

–W

–O

= Surface Mount

(USB only)

–SM

–VT

= Tape

and Reel

Packaging

(–SM only)

–TR

= Orange

(USBR only)

(12.00) .472

(16.00) .630

= Vertical Top Entry

(12.10) .476

(10.90)

.429

(11.10)

.437

(16.20) .638

(1.15)

.045

MATING / UNMATING FORCE

(100 CYCLES)

SERIES MATING UNMATING

USB

USBR

5.3

(23.59 N)

11.8

(52.51 N)

6.1

(27.15 N)

11.5

(51.18 N)

(14.80) .583

(12.10) .476

–SM

(14.78) .582

(16.20) .638

(16.10)

.634

(10.80)

.425

(21.15)

.833

(3.64)

.143

(2.50)

.098

(3.10)

.122

(2.50) .098

(3.10)

.122

–TH

–VT

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

USB-B-S-F-W-SM-R Related Products

	USB-B-S-F-W-SM-R	USB-B-S-S-B-VT	USB-B-S-F-B-SM-TR	USB-B-S-F-B-SM	USB-B-S-S-W-VT	USB-B-S-F-B-SM-R	USB-B-S-F-W-SM-TR
Description	USB ConnectorUSB 2.0 Interface, Type A	USB ConnectorUSB 2.0 Interface, Type A	USB ConnectorUSB 2.0 Interface, Type A	USB ConnectorUSB 2.0 Interface, Type A	USB ConnectorUSB 2.0 Interface, Type A	USB ConnectorUSB 2.0 Interface, Type A	USB ConnectorUSB 2.0 Interface, Type A
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	2 weeks	8 weeks	2 weeks	3 weeks	3 weeks	3 weeks	3 weeks
Connector type	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (30) OVER NICKEL	GOLD FLASH	GOLD FLASH	GOLD (30) OVER NICKEL	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYAMIDE9T	POLYBUTYLENE TEREPHTHALATE	POLYETHYLENE	POLYETHYLENE	POLYBUTYLENE TEREPHTHALATE	POLYAMIDE9T	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	FRONT-TIN AND REAR-NICKEL	NICKEL	NICKEL	FRONT-TIN AND REAR-NICKEL	NICKEL	NICKEL
Shell material	STEEL	PHOSPHOR BRONZE	BRASS	STEEL	PHOSPHOR BRONZE	STEEL	BRASS
Termination type	SURFACE MOUNT	SOLDER	SURFACE MOUNT	SURFACE MOUNT	SOLDER	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	4	4	4	4	4	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Is it Rohs certified?	conform to	-	conform to	-	-	conform to	conform to
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	-	RECEPTACLE
Contact completed and terminated	-	MATTE TIN OVER NICKEL	Tin (Sn)	TIN	MATTE TIN OVER NICKEL	-	-
JESD-609 code	-	e3	e3	e3	e3	-	-
Number of connectors	-	ONE	ONE	ONE	ONE	-	ONE
Plating thickness	-	30u inch	FLASH inch	FLASH inch	30u inch	-	FLASH inch
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal pitch	-	2.4892 mm	2.4892 mm	2.4892 mm	-	-	2.4892 mm
