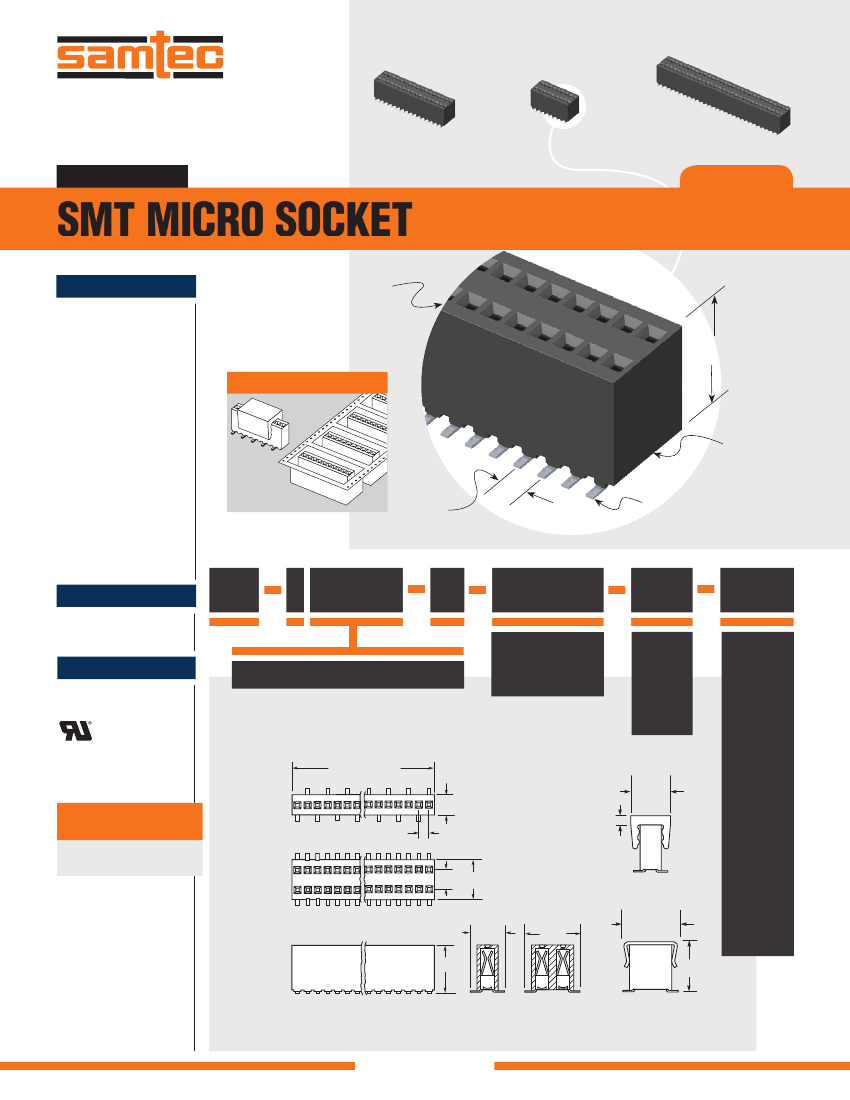

F-219
RSM–130–02–L–D
RSM–117–02–L–D
RSM–109–02–L–D
(1.27 mm) .050"
RSM SERIES
SMT MICRO SOCKET
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?RSM
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
Phosphor Bronze
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Current Rating (RSM/FTR):
3.1 A per pin
(2 pins powered)
Operating Temp Range:
-55 °C to +125 °C
Lead Size Accepted:
(0.46 mm) .018" SQ
Insertion Depth:
Top Entry = (2.64 mm) .104"
to (5.84 mm) .230" with
(0.38 mm) .015" wipe, or
pass-through.
Bottom Entry = (5.49 mm)
.216" minimum
(Add board thickness for
correct post OAL)
RoHS Compliant:
Yes
Mates with:
FTR, HTMS, HDWM,
DWM, TML, ZML, TMS
Optional
pick & place
pad
(6.10 mm)
.240"
OPTIONS
–P OPTION
Optional
tape & reel
packaging
–TR OPTION
(1.27 mm)
.050"
Surface mount
PROCESSING
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max
RSM
1
NO. PINS
PER ROW
02
PLATING
OPTION
ROW
OPTION
OPTION
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
02 thru 36
= 10 µ" (0.25 µm)
Gold on contact,
Matte Tin on tail
–L
= Single
Row
–S
= Double
Row
–D
FILE NO. E111594
(1.27) .050 x No.
of Positions + (0.25) .010
36
ALSO AVAILABLE
(MOQ Required)
• Other platings
• Locking clips
(2.54)
.100
01
72
(5.21)
.205
x
(7.62)
.300
(1.27)
.050
= (6.25 mm)
.246" DIA
Polyimide film
Pick &
Place Pad
(5 positions
minimum
for –D)
(7 positions
minimum
for –S)
–K
(1.27)
.050
02
(2.54) (5.08)
.100 .200
71
01
–S option
Pick & Place Pad
(7.11) .280
x
(6.35) .250
= Plastic
Pick &
Place Pad
(–D = 5
positions
minimum
–S = 6
positions
minimum)
–P
(3.94)
.155
(6.10)
.240
(6.48)
.255
= Tape &
Reel
(6.22)
.245
–TR
–D option
Pick & Place Pad
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
