HPFC-103-02-L-D-04-LC datasheet, PDF

Datasheet> All Categories > The connector> The connector> HPFC-103-02-L-D-04-LC

HPFC-103-02-L-D-04-LC: DescriptionPower to board.100" Signal/Power Combo Socket Strip; CategoryThe connector The connector; File Size348KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HPFC-103-02-L-D-04-LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HPFC-103-02-L-D-04-LC	-	-	View	Buy Now

HPFC-103-02-L-D-04-LC Overview

Power to board.100" Signal/Power Combo Socket Strip

HPFC-103-02-L-D-04-LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	POWER-BERYLLIUM COPPER; SIGNAL-PHOSPHOR BRONZE
Contact resistance	10 mΩ
Contact style	HYBRID
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	HPFC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	10u inch
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SURFACE MOUNT
Total number of contacts	6
Evacuation force-minimum value	.834 N
Base Number Matches	1

Preview

Download Datasheet

View All

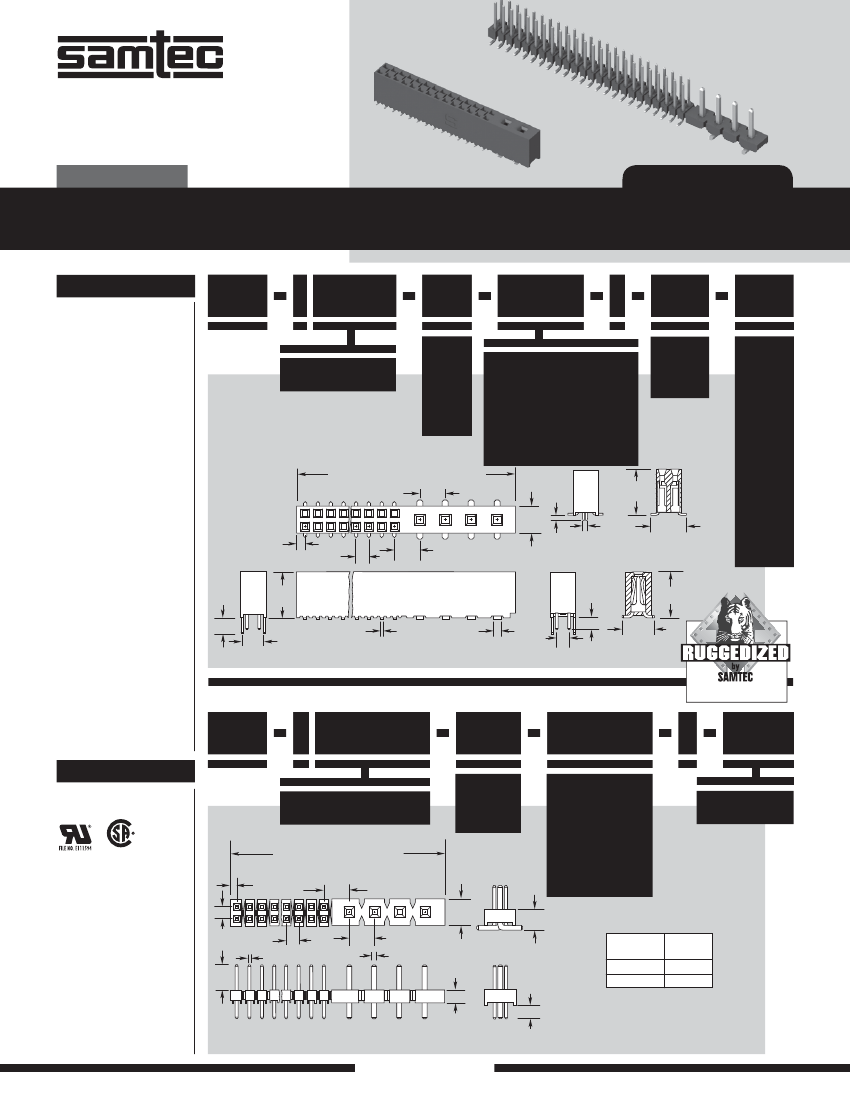

F-215 SUPPLEMENT

HPMC–124–04–L–D–04

HPFC–114–02–L–D–02

(2,54 mm) .100"

HPFC, HPMC SERIES

SIGNAL POWER COMBO SYSTEM

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?HPFC

or www.samtec.com?HPMC

Insulator Material:

Black Liquid Crystal Polymer

Signal Contact (HPFC):

Phosphor Bronze

Power Contact (HPFC):

BeCu

Terminal (HPMC):

Phosphor Bronze

(Signal & Power)

Plating:

Sn or Au over 50µ" (1,27 µm)

Ni on signal pins; Sn over 50µ"

(1,27 µm) Ni on power pins

Operating Temp Range:

-55°C to +105°C with Tin;

-55°C to +125°C with Gold

Contact Resistance:

10 mΩ

Insertion Depth:

(3,68 mm) .145" to

(8,26 mm) .325"

Wiping Distance:

(0,381 mm) .015"

Insertion Force:

(Single contact only)

5 oz (1,39 N) avg. (signal pins)

56 oz (15,57 N) avg. (power pins)

Withdrawal Force:

(Single contact only)

3 oz (0,83 N) avg. (signal pins)

52 oz (14,46 N) avg. (power pins)

Voltage Rating:

850 VAC/1201 VDC

RoHS Compliant:

Yes

HPFC

Mates with:

HPMC

SIGNAL PIN

PER ROW

LEAD

STYLE

SIGNAL PIN

PLATING

POWER

PINS

OPTION

–01

02 thru 24

= Through

-Hole

–L

= 10µ" (0,25 µm)

Gold on contact area,

Matte Tin on tail

(Power Pins = All Matte Tin)

thru

–LC

= Locking

Clip

(Manual

placement

required)

(Not

available

with –01

lead style)

–02

= Surface

Mount

–T

= Matte Tin

No. Signal positions x (2,54) .100 +

(No. Power positions x (5,08) .200 + (2,54) .100)

(5,08) .200

(5,08)

.200

(1,27)

.050

(2,54)

.100

(5,08)

.200

(2,26)

.089

(0,51) (0,25)

.020 x .010

(1,14) (0,46)

.045 x .018

(6,86)

.270

(1,12)

.044

(9,02)

.355

(1,42)

.056

(7,11)

.280

–K

= (6,50 mm)

.256" DIA

Polyimide

ﬁlm Pick &

Place Pad

(5 positions

minimum)

Style –02

(Signal End)

(3,12)

.123

(8,89)

.350

(9,02)

.355

Style –01

(Signal End)

(4,14)

.163

(2,46)

.097

Style –01

(Power End)

Style –02

(Power End)

Processing:

• Locking clip option

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15 mm) .006" max (02-20)

(0,20 mm) .008" max (21-24)

HPMC

Mates with:

HPFC

SIGNAL PIN

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from chart

SIGNAL PIN

PLATING

POWER

PINS

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

–L

= 10µ" (0,25 µm)

Gold on contact

area, Matte Tin on tail

(Power Pins =

All Matte Tin)

02 thru 24

No. Signal positions x (2,54) .100 +

(No. of Power positions x

(5,08) .200 + (1,27) .050)

(Add (0,76) .030 for –04 Power Pins)

(1,27) .050

(5,08) .200

02 thru 04

FILE NO: 090871_0_000

–T

= Matte Tin

(5,08)

.200

(3,81)

.150

(2,54)

.100

(2,54)

.100

(0,64) .025 SQ

(5,08)

.200

(1,14) .045 SQ

Style

–02 & –04

(2,54)

.100

LEAD

STYLE

–01, –02

–03, –04

(5,84) .230

(8,13) .320

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(2,54)

.100

Style

–01 & –03

WWW.SAMTEC.COM

Due to technical progress, all designs, speciﬁcations and components are subject to change without notice.

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

HPFC-102-02-L-D-04-LC HPFC-106-01-T-D-03 HPFC-109-01-T-D-02 HPFC-110-02-L-D-02-LC HPFC-113-01-L-D-

04 HPFC-110-02-L-D-02 HPFC-116-01-L-D-04 HPFC-109-01-L-D-04 HPFC-124-01-L-D-04 HPFC-102-02-T-D-02

HPFC-106-01-L-D-04 HPFC-103-01-L-D-04 HPFC-108-02-L-D-04-K HPFC-110-01-L-D-02 HPFC-124-02-L-D-04

HPFC-115-01-L-D-02 HPFC-102-02-T-D-04 HPFC-105-02-T-D-03-LC HPFC-110-02-L-D-04 HPFC-124-02-T-D-04

HPFC-105-02-L-D-02 HPFC-105-02-L-D-04 HPFC-114-02-T-D-04 HPFC-120-02-L-D-04 HPFC-102-01-L-D-04

HPFC-106-01-T-D-04 HPFC-110-01-L-D-04 HPFC-102-02-L-D-02 HPFC-110-01-T-D-04 HPFC-124-01-T-D-04

HPFC-104-01-L-D-04 HPFC-108-01-T-D-04 HPFC-102-01-L-D-02 HPFC-109-01-T-D-04 HPFC-110-01-L-D-03

HPFC-105-01-L-D-03 HPFC-105-01-L-D-04 HPFC-105-02-L-D-03-LC-K HPFC-112-01-L-D-04 HPFC-120-01-L-D-04

HPFC-102-01-L-D-03 HPFC-106-02-L-D-04 HPFC-111-02-L-D-04 HPFC-107-01-L-D-04 HPFC-106-02-L-D-04-LC

HPFC-107-01-T-D-02 HPFC-103-01-L-D-02 HPFC-103-02-T-D-02 HPFC-106-01-T-D-02 HPFC-107-01-L-D-02

HPFC-102-01-LM-D-04 HPFC-104-01-L-D-02 HPFC-105-02-L-D-03 HPFC-108-02-L-D-04-LC HPFC-117-01-L-D-04

HPFC-106-01-L-D-03 HPFC-106-02-T-D-04 HPFC-102-02-L-D-04 HPFC-104-01-T-D-04 HPFC-105-01-T-D-02

HPFC-108-01-L-D-04 HPFC-102-01-T-D-03 HPFC-104-01-T-D-02 HPFC-107-02-L-D-04-LC HPFC-108-02-L-D-04

HPFC-103-01-L-D-03 HPFC-103-02-L-D-02 HPFC-103-02-L-D-04-LC HPFC-105-02-L-D-04-LC HPFC-105-02-L-D-

04-LC-K HPFC-111-01-L-D-04 HPFC-115-01-L-D-04 HPFC-104-02-L-D-04-LC HPFC-104-02-L-D-03-LC HPFC-104-

02-T-D-02 HPFC-104-02-T-D-04 HPFC-107-01-L-D-03 HPFC-107-01-LM-D-03 HPFC-107-02-L-D-04 HPFC-103-01-

T-D-02 HPFC-105-02-T-D-04-K HPFC-105-02-T-D-04-LC HPFC-112-01-T-D-04 HPFC-105-01-T-D-03 HPFC-108-

02-T-D-04-LC HPFC-116-02-T-D-04-LC HPFC-102-02-L-D-03 HPFC-113-01-L-D-03 HPFC-105-01-TM-D-04 HPFC-

102-02-L-D-03-LC HPFC-115-01-L-D-04-K HPFC-120-02-L-D-04-LC HPFC-102-01-T-D-04 HPFC-109-01-T-D-02-K

HPFC-110-01-T-D-03 HPFC-110-02-L-D-04-LC HPFC-103-01-LM-D-04 HPFC-103-02-L-D-03 HPFC-114-01-L-D-03

HPFC-103-02-LM-D-04-LC
