BUSSMANN
SERIES
ATC

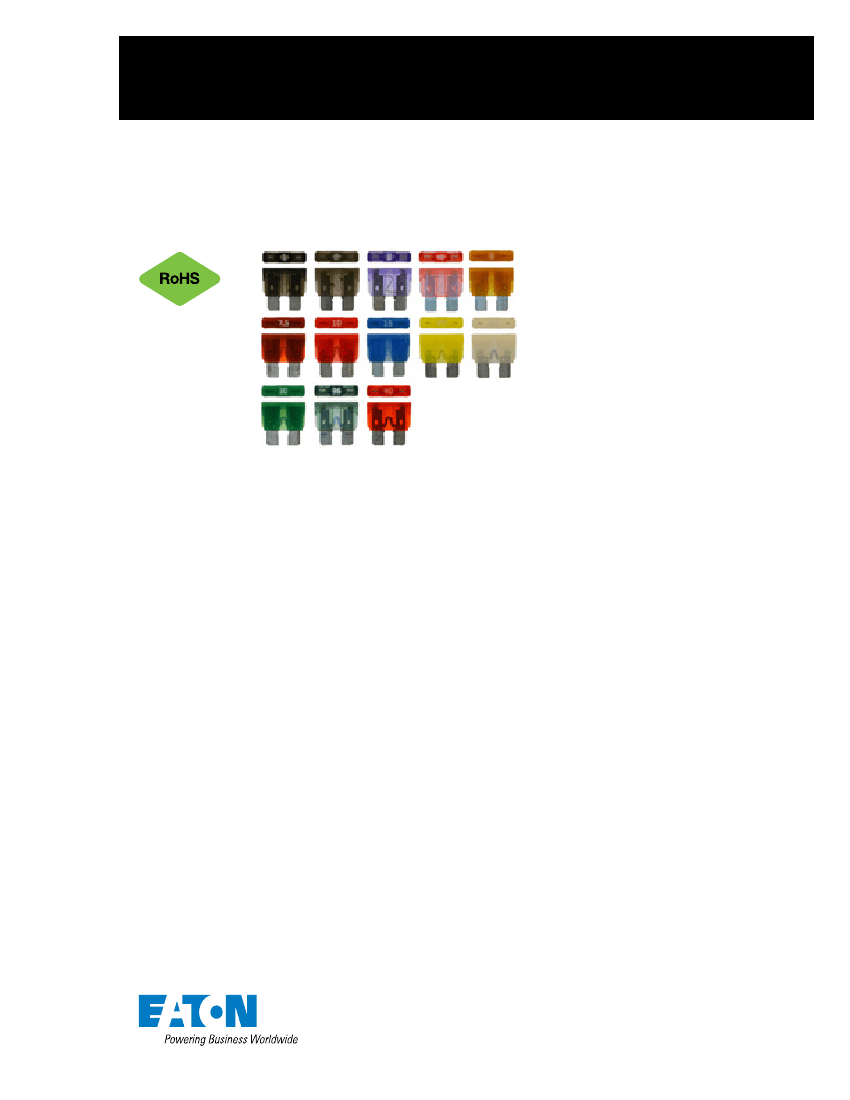

Blade fuses
Features and benefits:
•
Industry standard color coding for quick
identification of amp rating
Tin-plated zinc terminals for corrosion
resistance and enhanced conductivity
UL Recognized for use in low voltage control
circuits
Wide -40°C to +100°C operating temperature
range meets the needs of extreme
environments
Lead free, halogen free and RoHS complaint
Test points on specific part/package numbers
may speed up circuit troubleshooting
•
•
•
•
•
Product description:
A range of UL
®
Recognized fast-acting ATC
blade fuses for automotive and low-voltage
control circuits.
Featuring the same form, fit, and electrical
and performance characteristics, ATC fuses
are available in a variety of housing materials
specific to orderable catalog numbers to meet
application needs.
Technical Data 2009
Effective December 2015
ATC blade fuses
Catalog symbol: ATC
Applications:
•
Electrical characteristics @23°C* for all available catalog
numbers
% of fuse amp rating Min
110
135
160
200
350
600
Operating time (sec)
Max
100 Hrs
—
0.75
120 (240**)
0.25
50
0.15
5
0.04
0.5
0.02
0.1
Automotive and low-voltage control circuits.
Ratings:
•
Volts
•
32V
1-40A
1kA
•
Amps
•
•
Interrupting rating
•
* Fuse derating with change in ambient temperature = -0.15% / 1°C
** 135% Operating time of less than 4 amps.
Agency information:
•
•
•
Recommended fuse panels, holders and fuseclips
Part no.
15600-_-20
HHC
HHD
HHF
HHG
HHR
BP/HHS-RP
BP/HHA-RP
ATC-FHID
1A5600*
1A5780*
Description
ATC Fuse panel in 4- to 20-poles
Yellow, water resistant in-line
fuse holder
Black, heavy-duty in-line fuse
holder
Black, in-line fuse holder w/
cover
Black, heavy-duty in-line fuse
holder w/cover
Heavy-duty, water resistant in-
line fuse holder
Self-stripping in-line fuse holder
Add-A-Fuse
Illuminating in-line fuse holder
PCB Fuseclip
PCB Fuseclip
Max Lead wire
amps length/size
20A
—
20A
30A
20A
30A
30A
20A
10A
20A
20A
15A
2x4”/#16
2x4”/#12
2x4”/#14
2x4”/#12
2x5”/#12
#18 to #14
N/A
2x6”/#16
—
—
UL Recognized File E56412, Guide JFHR2, UL 248-1 (1-40A).
ISO 8820-3 / SAE J1284 / JASO 612 (1-40A).
SAE J1171 (Ignition protection) see catalog number tables for
specific orderable product.
RoHS compliant
•
Materials:
•
Terminals
•
Tin-plated zinc
•
•
Element
Tin-plated zinc
Housing (see catalog number tables for specific housing
materials)
Housing flammability rating
•
•
•
UL 94
Environmental:
•
* See Data Sheet No. 2131 for details.
Operating temperature range -40°C to 100°C,
95% RH non-condensing.
Storage temperature range -5°C to 35°C or lower,
85% RH non-condensing.
•
Dimensions - mm
19.10
Basic part numbers*
Part number
(amp)
ATC-1
ATC-2
ATC-3
ATC-4
ATC-5
ATC-7½
ATC-10
Color code
Black
Gray
Violet
Pink
Tan
Brown
Red
Part number
(amp)
ATC-15
ATC-20
ATC-25
ATC-30
ATC-35
ATC-40
Color code
Blue
Yellow
Clear
Green
Blue/Green
Orange
Test points on select constructions.
See catalog number tables for details.
5.10
4.0
2.29
* See catalog number tables on page four for specific construction, housing
material and package availability.
18.70
6.42
0.65
4.0
3.65
14.5
Dimensions shown are basic for all ampacities, constructions and housing materials.
2
Eaton.com/bussmannseries
ATC blade fuses
Technical Data 2009
Effective October 2015

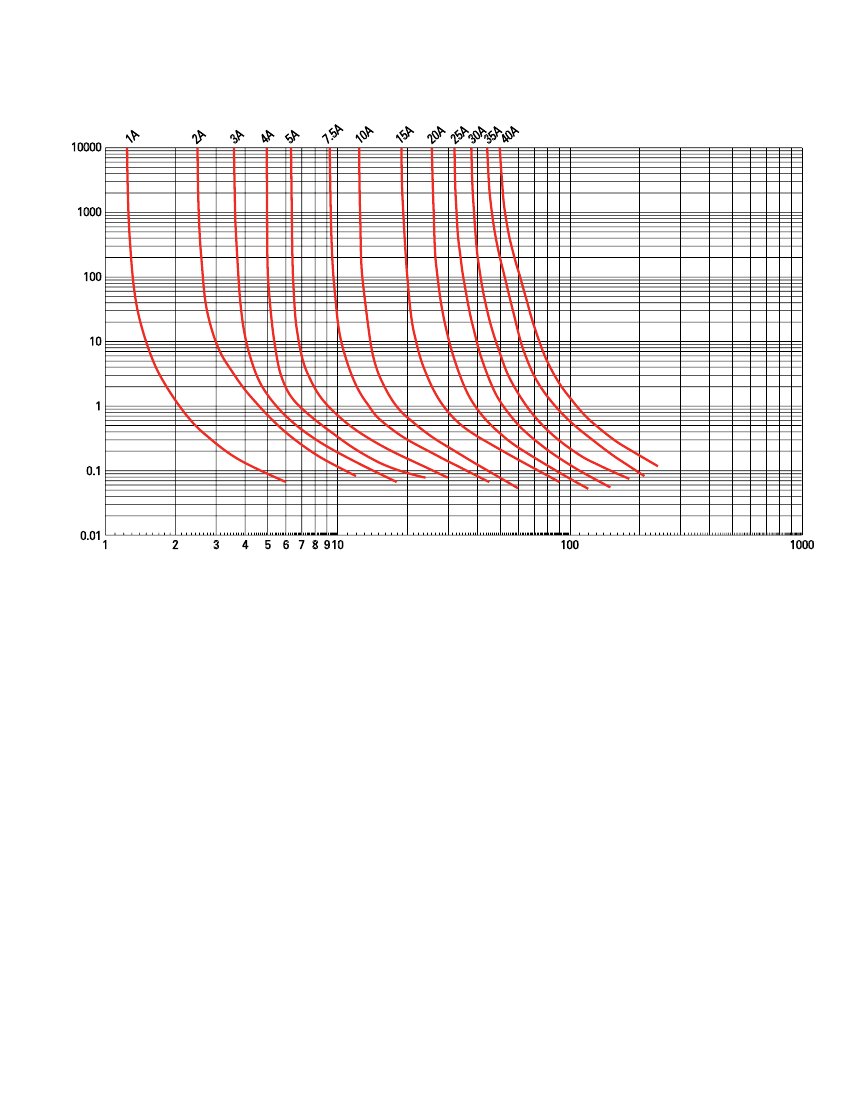

Time-current characteristic curves — average melt - for all fuse constructions/housing materials
Time in seconds
Current in amps
Eaton.com/bussmannseries
3
Technical Data 2009
Effective December 2015
ATC blade fuses
ATC fuse construction and housing material availability by catalog number
Table 1. ATC fuse catalog number availability for open body housing without test points*
Reload
ATC-5RLD
ATC-7½RLD
ATC-10RLD
ATC-15RLD
ATC-20RLD
ATC-25RLD
ATC-30RLD
—
Bulk packs
BK/ATC-5
BK/ATC-7½
BK/ATC-10
BK/ATC-15
BK/ATC-20
BK/ATC-25
BK/ATC-30
—
Blister packs
BP/ATC-5-RP
BP/ATC-7½-RP
BP/ATC-10-RP
BP/ATC-15-RP
BP/ATC-20-RP
BP/ATC-25-RP
BP/ATC-30-RP
—
Assortments/kits/trays
BP/ATC-A5-RP (fuse assortment)
BP/ATC-AH8-RPP (fuse emergency kit)
BP/ATC-AL8-RP (low amp assortment)
DIA-1 (diagnostic kit)
NO.44 (fuse emergancy kit)
NO.80 (bulk assortment)
NO.95BK (ATC/ATM bulk assortment)
NO.53 (ATC/MAX fuse emergency kit)
NO.160BK (bulk assortment)
NO.225 (tilt bin assortment)
Housing material
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
Nylon
* For specific quantities and amp ratings, see consumer aftermarket product catalog No. 5084.
Table 2. ATC fuse catalog number availability for closed body housing with test points and SAE J1171 ignition protected
Reload
—
—
ATC-3RLD
ATC-4RLD
—
—
—
—
—
—
—
—
—
—
—
Bulk packs*
BK/ATC-1
BK/ATC-2
BK/ATC-3
BK/ATC-4
BK/ATC-5M
BK/ATC-71/2M
BK/ATC-10M
BK/ATC-15M
BK-ATC-20M
BK-ATC-25M
BK-ATC-30M
BK-ATC-35
BK-ATC-40
—
—
Blister packs
BP/ATC-1-RP
BP/ATC-2-RP
BP/ATC-3-RP
BP/ATC-4-RP
—
—
—
—
—
—
—
—
BP/ATC-40-RP
—
—
5-in tins**
ATC-1
ATC-2
ATC-3
ATC-4
ATC-5
ATC-71/2
ATC-10
ATC-15
ATC-20
ATC-25
ATC-30
ATC-35
ATC-40
—
—
Value packs
—
—
—
—
VP/ATC-5-RP
VP/ATC-7-1/2-RP
VP/ATC-10-RP
VP/ATC-15-RP
VP/ATC-20-RP
VP/ATC-25-RP
VP/ATC-30-RP
—
—
—
—
Assortments
—
—
—
—
—
—
—
—
—
—
—
—
—
CDY10TRY-ATC (fuse
tray)***
NO.290
†
Housing material
Polycarbonate
Polycarbonate
Polycarbonate
Polycarbonate
Polycarbonate
Polycarbonate
Polycarbonate
Polycarbonate
Polycarbonate
Polycarbonate
Polycarbonate
Polysulfone
Polyethersulfone
—
—
** 5 fuses per tin.
*** Contains (5 each) – ATC 3, 4, 5,and 7-1/2.
(10 each) – ATC 10, 15, 20, 25, 30, 35 and 40A.
† Contains one 5-in tin each of ATC 3, 4, 5, 7 1/2, 10, 15, 20, 25, 30, 35 and 40A.
* 2000 fuses per pack.
