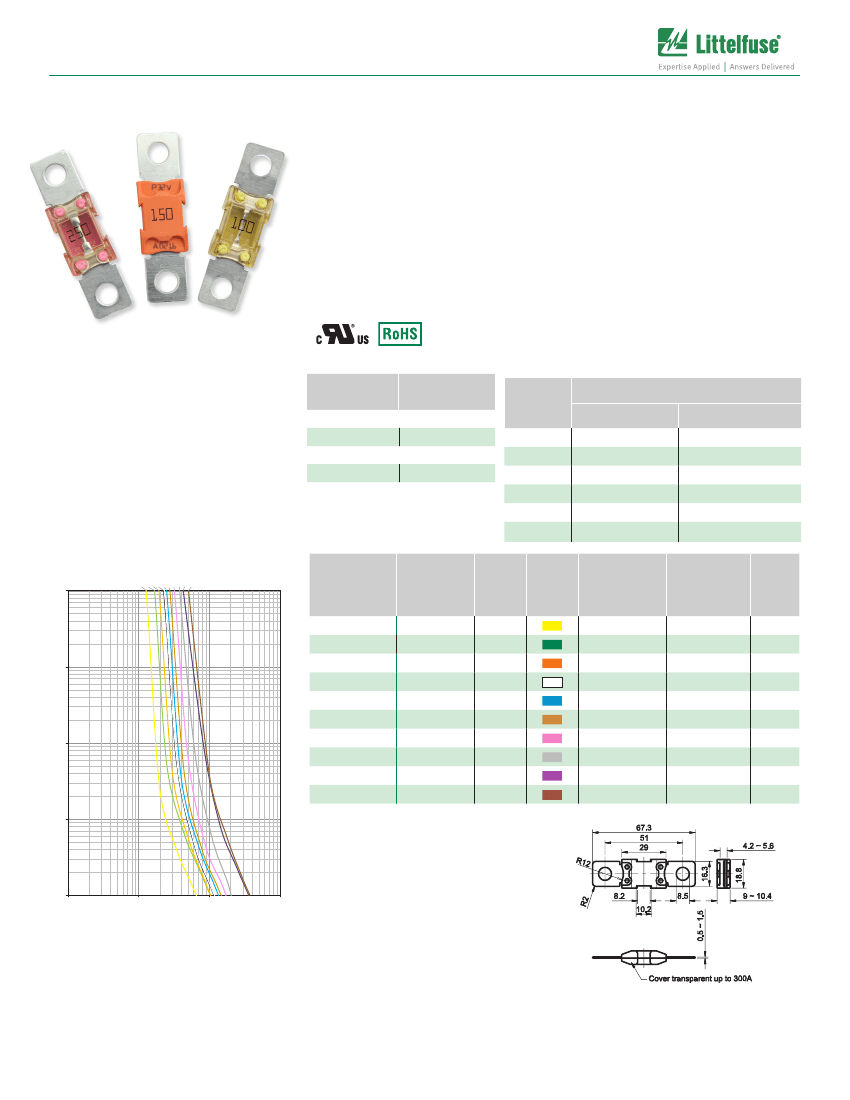

High Current Fuses
BF2 Fuses Rated 32V
This BF2 fuse is rated at 32V and offers a bolt-on fuse for high current wiring protection.
Current rating 100A - 500A; with transparent housing material for easy detection of
blown fuses.
Specifications
Housing Material:
Clear Housing Material:
Terminal:
Mounting Torque:
Breaking Capacity:
Complies with:
BF2 Fuses
PET-GF30
PES
Copper alloy, gal. Sn
2 x M8 bolts, Distance 51 mm
12.0 Nm +/- 1Nm
100 A - 300 A: 2.000 A, 32V, DC
400 A - 500 A: 1.500 A, 32V, DC
ISO 8820-5, UL 248 Special Purpose Fuses
Ordering Information
Part Number
Standard M8 Holes
153.5395.xxxx
M6 Holes
153.7011.xxxx
200
200
Package Size
Time Current Characteristics
% of Rating
75
100
135
200
350
600
Current
Rating
(A)
100
125
150
175
200
225
250
300
400
500
Opening Time Min / Max (s)
100A - 250A
–/–
4h/–
120 s / 1,800 s
1 s / 15 s
0.300 s / 5 s
0.100 s / 1 s
300A - 500A
4h/–
–/–
–/–
1 s / 15 s
0.500 s / 5 s
0.100 s / 1 s
Time-Current Characteristic Curves
TIME-CURRENT CHARACTERISTIC CURVES (RECORDED@23°C)
1000
100A
125A
150A
175A
200A
225A
250A
300A
400A
500A
Ratings
Part Number
M8 Holes
153.5395.610_
153.5395.612_
153.5395.615_
153.5395.617_
153.5395.620_
153.5395.622_
Part Number
M6 Holes
153.7011.610_
153.7011.612_
153.7011.615_
153.7011.617_
153.7011.620_
153.7011.622_
153.7011.625_
153.7011.630_*
153.7011.640_*
153.7011.650_*
Housing
Color
Typ. Voltage Drop Cold Resistance
(mV)
(mΩ)
110
110
110
110
110
110
110
110
110
110
0.70
0.52
0.42
0.36
0.34
0.29
0.25
0.21
0.13
0.12
I
2
t
(A
2
s)
46,800
118,100
113,400
154,400
288,000
236,000
292,500
486,000
964,000
1,449,000
100
TIME [s]
10
153.5395.625_
153.5395.630_*
153.5395.640_*
153.5395.650_*
1
Last figure of article no. = packaging code
Corresponding holder see Section “Fuse Holders.”
* Parts with asterisk are short circuit protectors only.
Dimensions
0,1
10
100
CURRENT [A]
100A-300A: F
L
=1,25 (max. operating current: 0,8 x I
rat
at 23°C)
400A-500A: F
L
=2,00 (max. operating current: 0,5 x I
rat
at 23°C)
1000
10000
Dimensions in mm
