LMIN015.VP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> The fuse> Auto fuse> LMIN015.VP

LMIN015.VP: DescriptionCar Fuse 15A MINI Blade Low Profile; CategoryCircuit protection The fuse Auto fuse; File Size354KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LMIN015.VP Overview

Car Fuse 15A MINI Blade Low Profile

LMIN015.VP Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Product Category	car fuse
Shipping restrictions	Mouser does not currently sell this product.
product	Fuse Kits
Current rating	15 A
Voltage ratingDC	32 VDC
Installation style	Holder
Termination type	Blade
Fuse type	Fast Blow
series	MINI Low Profile
Encapsulation	Bulk
high	3.8 mm
length	10.9 mm
width	8.8 mm
Factory packaging quantity	5

Preview

Download Datasheet

View All

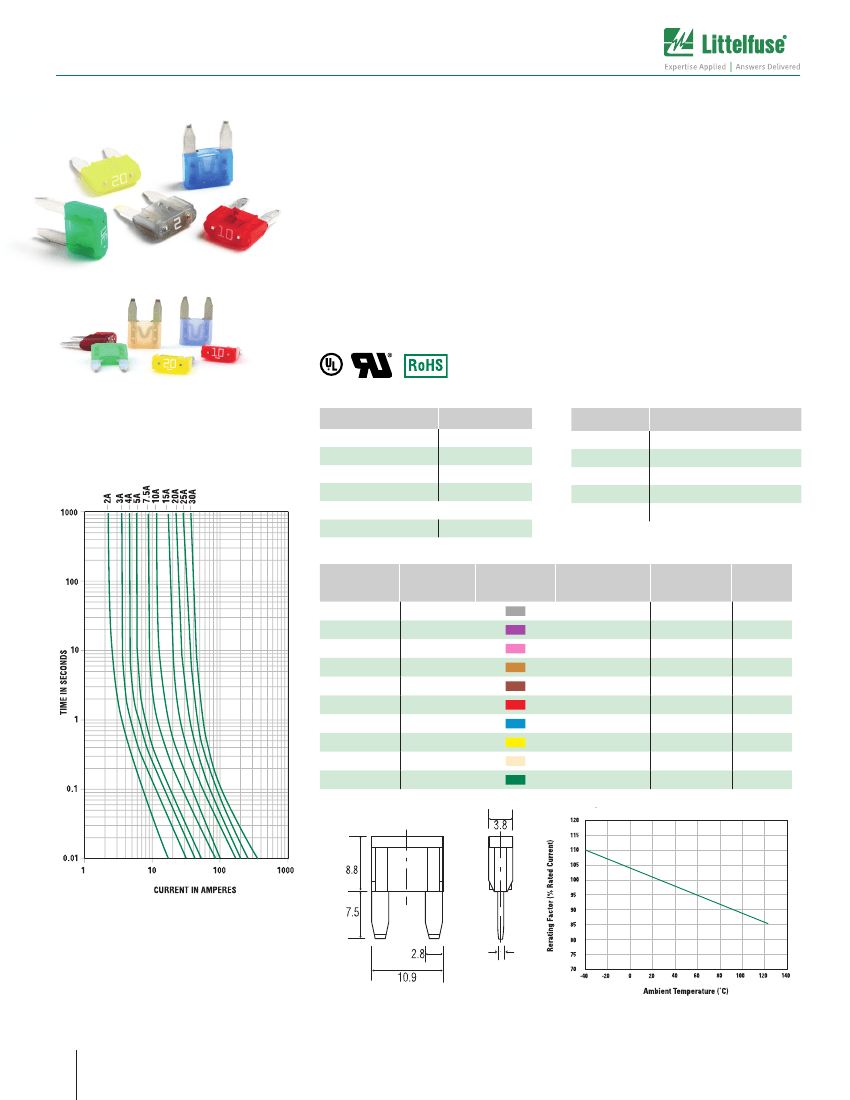

Blade Fuses

MINI

Blade Fuses Rated 32V

The MINI

Fuse is the standard for vehicle circuit protection. Its miniature design meets the

need for more circuits to be protected while utilizing less space, and its ability to cope with

high temperatures in adverse environments makes the MINI

Fuse of recommended choice

for protection.

Specification

MINI

Blade Fuses

MINI

(Silver Plated)

Interrupting Rating:

1000A @ 32 VDC

Voltage Rating:

32 VDC

*Component Level Temperature Range:

-40˚C to +125˚C

**System Level Temperature Range:

-40˚C to +105˚C

105°C and 85°C are typical system level temperature requirements.

Terminals:

Ag plated zinc alloy

Housing Material:

PA66

Complies with:

SAE J2077, ISO 8820-3,

UL 248 Special Purpose Fuses

MINI Sn

(Tin Plated)

1000A @ 32 VDC

32 VDC

-40˚C to +105˚C

-40˚C to +85˚C

Sn plated zinc alloy

PA66

SAE J2077, ISO 8820-3

not UL recognized

MINI

Sn (Tin plated)

Blade Fuses

Ordering Information

Part Number

0297xxx.WXNV

0297xxx.U

0297xxx.H

0297xxx.L

MINI Sn Fuse

Time-Current Characteristics

Package Size

3000

500

100

3000

% of Rating

110

135

200

350

600

Opening Time Min / Max (s)

360,000 s / –

0.75 s / 600 s

0.15 s / 5 s

0.080 s / 0.500 s

0.030 s / 0.100 s

Time-Current

Characteristic Curves

0297xxx.WXT

Ratings

Part Number

0297002._

0297003._

0297004._

0297005._

029707.5_

0297010._

0297015._

0297020._

0297025._

0297030._

Current Rating

(A)

7.5

Housing

Material Color

Typ. Voltage Drop

(mV)

171

153

121

129

135

108

Cold Resistance

(mΩ)

55.60

33.75

23.48

17.75

10.85

7.42

4.58

3.21

2.36

1.85

(A²s)

2.8

9.4

270

380

625

1130

Dimensions

Dimensions in mm

Temperature Rerating Curve

*Component

Level Temperature

= the maximum ambient temperature that a

single fuse will survive. This does not factor-in the heat from a populated

fuse box, but does include the heat from the current load with the proper

rerating. **System

Level Temperature

represents the ambient temperature of

the fuse box at a location within the vehicle. The temperature within a

populated fuse box (in a given location) will be higher. The limiting factor is

the plating. Sn-plating’s temperature limit is

≈130°C,

and Ag-plating allows up

to 150°C at the terminal interface.

0.825

Littelfuse products are not designed for, and shall not be used for, any purpose (including, without limitation, automotive, military, aerospace, medical, life-saving, life-sustaining or nuclear facility applications, devices intended for

surgical implant into the body, or any other application in which the failure or lack of desired operation of the product may result in personal injury, death, or property damage) other than those expressly set forth in applicable Littelfuse

product documentation. Warranties granted by Littelfuse shall be deemed void for products used for any purpose not expressly set forth in applicable Littelfuse documentation. Littelfuse shall not be liable for any claims or damages

arising out of products used in applications not expressly intended by Littelfuse as set forth in applicable Littelfuse documentation. The sale and use of Littelfuse products is subject to Littelfuse Terms and Conditions of Sale, unless

otherwise agreed by Littelfuse.

littelfuse.com

LMIN015.VP Related Products

	LMIN015.VP	0297004.WXUL	0297900.WXNV
Description	Car Fuse 15A MINI Blade Low Profile	Car fuse 32V 4A MINI UL	Fuse holder accessories Fast Acting
Maker	Littelfuse	Littelfuse	Littelfuse
Product Category	car fuse	car fuse	Fuse holder accessories
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
product	Fuse Kits	Blade Fuse	Shunts
Current rating	15 A	4 A	20 A
Installation style	Holder	Holder	Press Fit
Termination type	Blade	Blade	Blade
series	MINI Low Profile	297	297
Encapsulation	Bulk	Bulk	Bulk
length	10.9 mm	10.9 mm	10.92 mm
width	8.8 mm	3.8 mm	8.04 mm
Factory packaging quantity	5	3000	3000
Voltage ratingDC	32 VDC	32 VDC	-
Fuse type	Fast Blow	Fast Blow	-
high	3.8 mm	8.8 mm	-
Fuse size/group	-	MINI 297	MINI
Minimum operating temperature	-	- 40 C	- 40 C
Maximum operating temperature	-	+ 125 C	+ 125 C
type	-	Blade Fuse	Shunt Assembly
