Thermal-Magnetic Circuit Breakers 3500/4000
Description
Single pole thermal-magnetic circuit breaker with tease-free, trip-free,
snap action mechanism and two button operation (M-type TM CBE
to EN 60934). Featuring a flange for panel mounting, and optional
auxiliary contacts and unprotected shunt tap terminal. Type 4000 offers
lower internal resistance values and is fitted as standard with auxiliary
contacts and an intermediate reset position in which all contacts are
isolated.
Approved to CBE standard EN 60934 (IEC 60934).
Typical applications
Control systems, instrumentation, medical equipment, machine tools,
robotics, communications systems.
3500
standard type
4000
low-resistance type
2
Ordering information
Type No.
3500
standard version
4000
low resistance version
Mounting (optional)
F11
flange with additional M3 insertion nuts
Terminal design
P10
blade terminals 6.3-0.8 (QC .250), tinned
K20
screw terminals M3.5x5.5 with clamp
(not with -Si or type 4000)
Shunt terminal (optional)
A3
same as main terminals
(up to I
N
= 7 A, max. load 5 A)
Auxiliary contacts (optional with type 3500)
Si
auxiliary contacts, silver plated
terminals one each N/O and N/C
ZR-Si
auxiliary contacts with intermediate
position (standard with type 4000)
Current ratings
0.05...16 A
(type 3500)
0.05...10 A
(type 4000)
3500 - .. - P10 - A3 - Si - 10 A
ordering example
Technical data
For further details please see chapter: Technical Information
Voltage rating
AC 240 V, 50/60 Hz; DC 65 V
(UL: AC 250 V; DC 80 V)
Current rating range
3500: 0.05...16 A
4000: 0.05...10 A
Auxiliary circuit
1 A, AC 240 V / DC 65 V
Typical life
5,000 operations at 1 x I
N
, inductive
5,000 operations at 2 x I
N
, resistive
Ambient temperature
-30...+60 °C (-22...+140 °F)
Insulation co-ordination
rated impulse
pollution
(IEC 60664 and 60664 A) withstand voltage
degree
2.5 kV
2
reinforced insulation in operating area
Dielectric strength
(IEC 60664 and 60664A)
test voltage
operating area
AC 3,000 V
main/aux. circuit
AC 1,500 V
aux. circuit 4-5/6-7
AC 840 V
Insulation resistance
> 100 MΩ (DC 500 V)
Interrupting capacity I
cn
3500
4000
0.05...0.8 A 0.05...0.2 A self-limiting
1...2 A
0.3...2 A
200 A
2.5...16 A
2.5...10 A
400 A
Interrupting capacity
I
N
U
N
(UL 1077)
0.05...16 A
AC 250 V
1,000 A
type 3500: 0.05...16 A
DC 80 V
1,000 A
Degree of protection
operating area IP40
(IEC 60529/DIN 40050)
terminal area IP00
Vibration
5 g (57-500 Hz), ±0.38 mm (10-57 Hz)
to IEC 60068-2-6, test Fc
10 frequency cycles/axis
Shock
25 g (11 ms) to IEC 60068-2-27, test Ea
Corrosion
96 hours at 5 % salt mist
to IEC 60068-2-11, test Ka
Humidity
240 hours at 95 % RH
to IEC 60068-2-3, test Ca
Mass
approx. 40 g
The exact part number required can be built up from the table of choices shown
above. Ordering references for optional features should be omitted if not required.
Standard current ratings and typical internal resistance values
Current
Internal resistance (Ω)
ratings (A) 3500
4000
Current
Internal resistance (Ω)
ratings (A) 3500
4000
0.05
0.1
0.2
0.3
0.4
0.5
0.6
0.8
1
1.5
2
2.5
447
131
40
19.3
10.4
7.1
4.3
2.5
1.67
0.61
0.38
0.24
211
48
12.4
5.4
3.1
2.0
1.32
0.76
0.49
0.21
0.101
0.078
3
4
5
6
7
8
10
12
14
15
16
0.19
0.090
0.061
0.041
0.034
≤ 0.02
≤ 0.02
≤ 0.02
≤ 0.02
≤ 0.02
≤ 0.02
0.054
0.035
0.025
≤ 0.02
≤ 0.02
≤ 0.02
≤ 0.02
Approvals
Authority
3500:
VDE (EN 60934)
CSA, UL
4000:
VDE (EN 60934)
CSA
Voltage ratings
AC 240 V; DC 65 V
AC 250 V; DC 80 V
AC 240 V; DC 65 V
AC 250 V
Current ratings
0.05...16 A
0.05...16 A
0.05...10 A
0.05...10 A
06/07
www.e-t-a.com
2
- 51

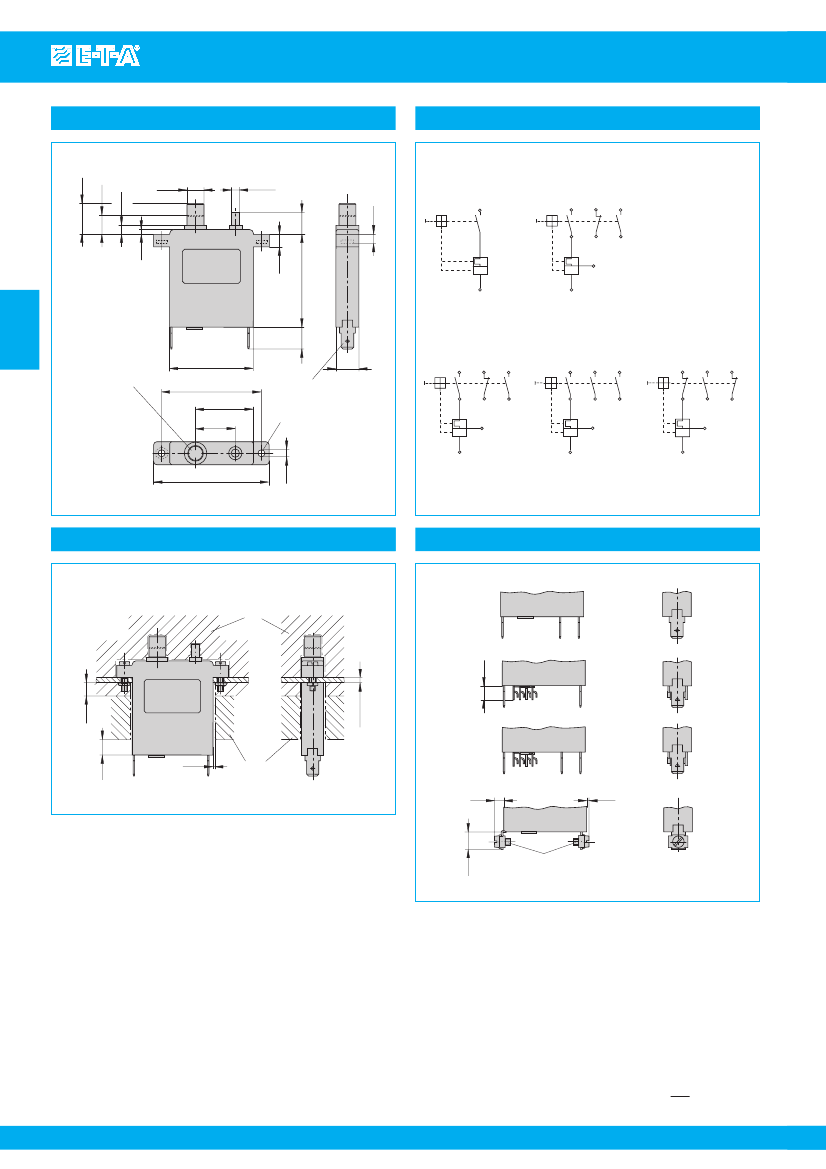

Thermal-Magnetic Circuit Breakers 3500/4000
Typical time/current characteristics
3500 0.05 … 7 A
10000
AC
1)
3500 8 … 16 A
10000
AC
1)
4000 0.05 … 10 A
10000
DC
2)
1000
1000
1000
100
Trip time in seconds
Trip time in seconds
100
Trip time in seconds
100
10
10
10
1
1
1
2
0.1
0.1
0.1
0.01
0.01
0.01
0.001
1
2
4 6 8 10
20
40 60 80 100
… times rated current
+23
°C
+73.4
°F
-30
°C
-22
°F
0.001
1
2
4 6 8 10
20
40 60 80 100
… times rated current
0.001
1
2
4 6 8 10
20
40 60 80100
… times rated current
+60
°C
+140
°F
1)
2)
Magnetic tripping currents are increased by 20% on DC supplies.
Magnetic tripping currents are decreased by 20% on AC supplies.
The time/current characteristic curve depends on the ambient temperature
prevailing. In order to eliminate nuisance tripping, please multiply the circuit
breaker current ratings by the derating factor shown below. See also
section 9 – Technical information.
Ambient temperature °F -22 -4
+14 +32 +73.4 +104 +122 +140
°C -30 -20 -10 0
+23 +40 +50 +60
Derating factor
0.76 0.79 0.83 0.88 1
1.08 1.16 1.24
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved.Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
06/07
www.e-t-a.com
2
- 53
Thermal-Magnetic Circuit Breakers 3500/4000
Special version 3500-...-2100
Single pole thermal-magnetic overcurrent circuit breaker with slow
magnetic trip curve, suitable for high inrush currents (up to 12 x I
N
).
Suffix -2100 is also available for types 3400 and 3600.
Enquire for further details.
Special version 3500-...-2350
Single pole thermal-magnetic circuit breaker suitable for high ambient
temperatures. The special rating of the circuit breaker allows resetting
at no load in ambient temperatures up to +80 °C.
Suffix -2350 is also available for types 3400 and 3600.
Enquire for further details.
Typical applications
Industrial control systems, telecommunications, etc.
Typical applications
Industrial control systems.
2
Standard current ratings and typical internal resistance values
Current
rating (A)
0.06
0.1
0.2
0.3
0.4
0.5
0.6
0.8
1
1.5
2
2.5
Internal
resistance (Ω)
292
165
41.7
19.7
12.1
7.9
5.5
2.6
1.88
0.77
0.42
0.24
Current
rating (A)
3
4
5
6
7
8
10
12
14
15
16
Internal
resistance (Ω)
0.18
0.11
0.067
0.052
0.035
0.031
0.022
≤ 0.02
≤ 0.02
≤ 0.02
≤ 0.02
Standard current ratings and typical internal resistance values
Current
rating (A)
0.05
0.1
0.2
0.3
0.4
0.5
0.8
1
1.5
2
Internal
resistance (Ω)
583
167
49.9
23.1
12.8
8.7
3.45
2.3
0.89
0.48
Current
rating (A)
2.5
3
4
5
6
10
12
15
16
Internal
resistance (Ω)
0.42
0.21
0.13
0.11
0.056
0.022
≤ 0.02
≤ 0.02
≤ 0.02
Typical time/current characteristics at +23 °C
AC/DC
1)
10000
Typical time/current characteristics
AC/DC
1)
10000
+80
°C
+176
°F
+23
°C
+73.4
°F
1000
1000
Trip time in seconds
10
Trip time in seconds
100
100
10
1
1
0.1
0.1
0.01
0.01
0.001
1
2
4 6 8 10
20
40 60 80 100
… times rated current
1)
0.001
1
2
4 6 8 10
20
40 60 80 100
… times rated current
1)
Magnetic tripping currents are increased by 20% on DC supplies.
Magnetic tripping currents are increased by 20% on DC supplies.
2
- 54
www.e-t-a.com
06/07
