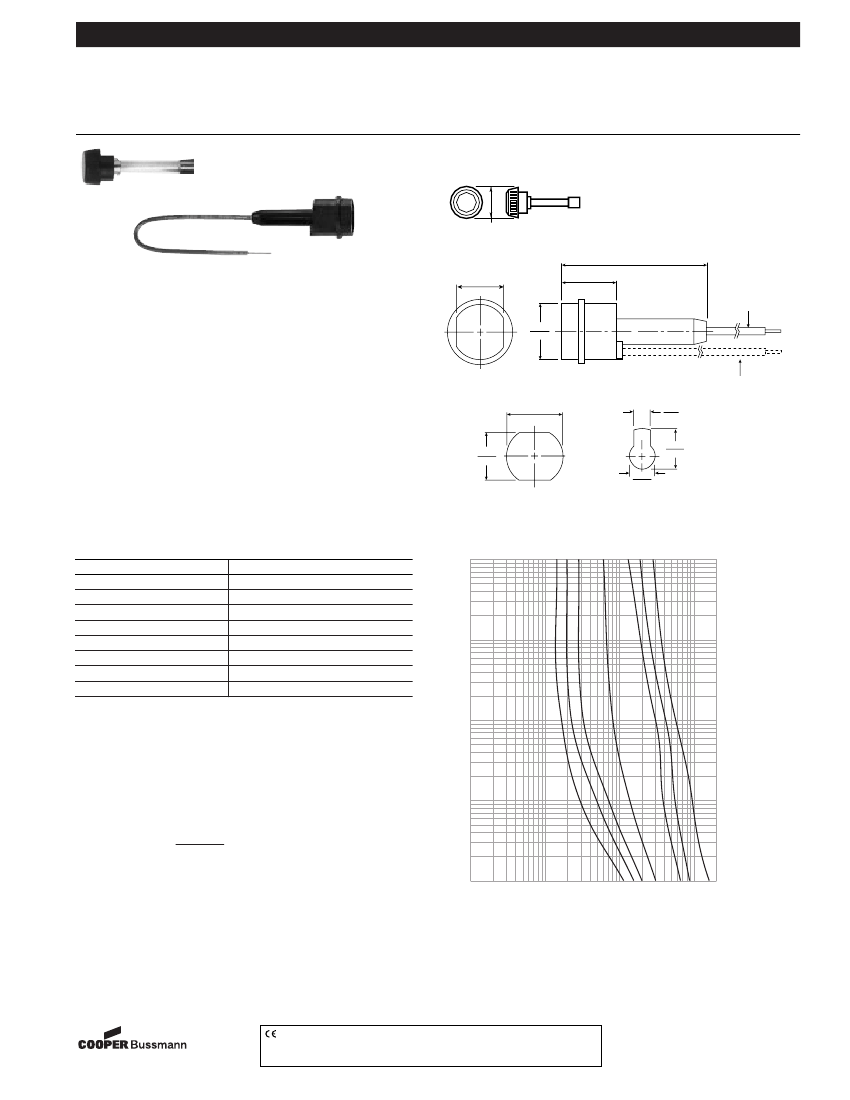

Bussmann
®
Specialty Fuse
Fast-Acting, Non-Rejecting
Dimensional Data
FUSE
GLR
& HLR
0.63"
(15.9mm)
FUSE AND CARRIER
Catalog Symbol:
GLR (Fuse) HLR (Fuseholder)
Fast-Acting, Non-Rejection Style Fuse
Ampere Rating:
‹Ω¡§-15 Amperes
Voltage Rating:
300 Volts AC or less
Interrupting Rating:
10,000 Amperes
Agency Information:
GLR Fuse:
UL Listed, Std. 248-14
‹Ω¡§-15A/300 Vac, Guide JDYX, File E19180
CSA Certified, C22.2 No. 248.14, 0-10A/300 Vac
Class 1422-01, File 53787
HLR Fuseholder:
UL Recognized, 12A, 300 Vac, Guide IZLT2, File E14853
CSA Certified, 12A, 300 Vac, Class 6225-01, File 47235
HLR-2A:
UL Recognized, 15A, 300 Vac, Guide IZLT2, File E14853
CSA Certified, 15A, 300 Vac, Class 6225-01, File 47235
Electrical Ratings for Type GLR Fuses and Non-Rejection
Style Carriers
Fuse
GLR-‹Ω
¡§
GLR-⁄Ω
™
GLR-1
GLR-1⁄Ω
™
GLR-1flΩ
¡º
GLR-2
GLR-3
GLR-4
Carrier
HLR
HLR
HLR
HLR
HLR
HLR
HLR
HLR
Fuse
GLR-5
GLR-6
GLR-7
GLR-8
GLR-9
GLR-10
GLR-12
GLR-15
Carrier
HLR
HLR
HLR
HLR
HLR
HLR
HLR
HLR-2A
2.250''
57.15mm
.850''
21.59mm
Line Lead
.720''
18.29mm
.850''
21.59mm
C
L
Load Lead
MOUNTING HOLE
.870''
22.10mm
.255''
6.48mm
.740''
18.80mm
.635''
16.13mm
.410''
10.41mm
Knockout Hole
Keyhole Punch
Time-Current Characteristic Curves–Average Melt
100
AMPERE
RATING
1
1.5
7
10
15
2
5
10
General Information:
• HLR carrier comes with
6∑
of #18 red insulated solid copper wire
attached to the line side.
• Customer inserts a #18 insulated solid copper wire into load side
receptacle.
• Order part number HLR-2A to obtain
6∑
of #18 black insulated solid
copper wire pre-installed in a load side receptacle.
• Order part number HLR-2L to obtain
6∑
of #18 black insulated solid
copper wire packaged loose (un-installed).
• An alternative to the HLR fuseholder is the A fuseholder. The A
fuseholder comes WITHOUT leads. The customer inserts #18
insulated solid copper wire into the line side receptacle as well as into
the load side receptacle. It has the same body dimensions, utilizes the
same mounting hole, and takes the same mounting clips as the HLR.
The A fuseholder is UL Recognized, 10A, 300Vac, Guide IZLT2, File
E14853 and CSA Certified, 10A, 300Vac, Class 6225-01, File 47235.
• Fuse and knob are an integral one-piece unit. There are no
replacement knobs (caps).
• Units can be panel mounted with a separate steel clip. For the
knockout hole (see above), choose #BK/A-104. For the keyhole
punch type hole, choose #6374 for panels .043” to .062” thick, or
#4909 for panels .030” to .042” thick.
• Do not put tension on line (rear) terminal of fuse-holder.
TIME IN SECONDS
1
.1
.01
.1
100
CURRENT IN AMPERES
200
10
1
The only controlled copy of this Data Sheet is the electronic read-only version located on the
Bussmann Network Drive. All other copies of this document are by definition uncontrolled.
This bulletin is intended to clearly present comprehensive product data and provide technical
information that will help the end user with design applications. Bussmann reserves the right,
without notice, to change design or construction of any products and to discontinue or limit
distribution of any products. Bussmann also reserves the right to change or update, without
notice, any technical information contained in this bulletin. Once a product has been selected,
it should be tested by the user in all possible applications.
5-22-02
SB02233
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 Vac, 75-1500 Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Form No. GLR & HLR
Page 1 of 1
Data Sheet: 2032
