AR10KL.25 Overview

Precision Potentiometer 1-13/16" 10K OHM3 TURN

Parameter Name	Attribute value
Maker	TT Electronics
Product Category	Precision potentiometer
series	Model A
Termination type	Solder Lug
product	Precision Potentiometers
type	Rotary Metal
Installation style	Panel Mount
Number of revolutions	10 Turn
Number of linkages	1 Gang
resistance	10 kOhms
Shaft diameter	6.3424 mm
Shaft length	20.6 mm
Voltage rating	1 kV
Component type	Wirewound
Shaft type	Round / Plain
Tolerance	3 %
Minimum operating temperature	- 65 C
Maximum operating temperature	+ 85 C
Encapsulation	Bulk
diameter	46.03 mm
range of working temperature	- 65 C to + 85 C
Power rating	5 W
Temperature Coefficient	130 PPM / C
Factory packaging quantity	1

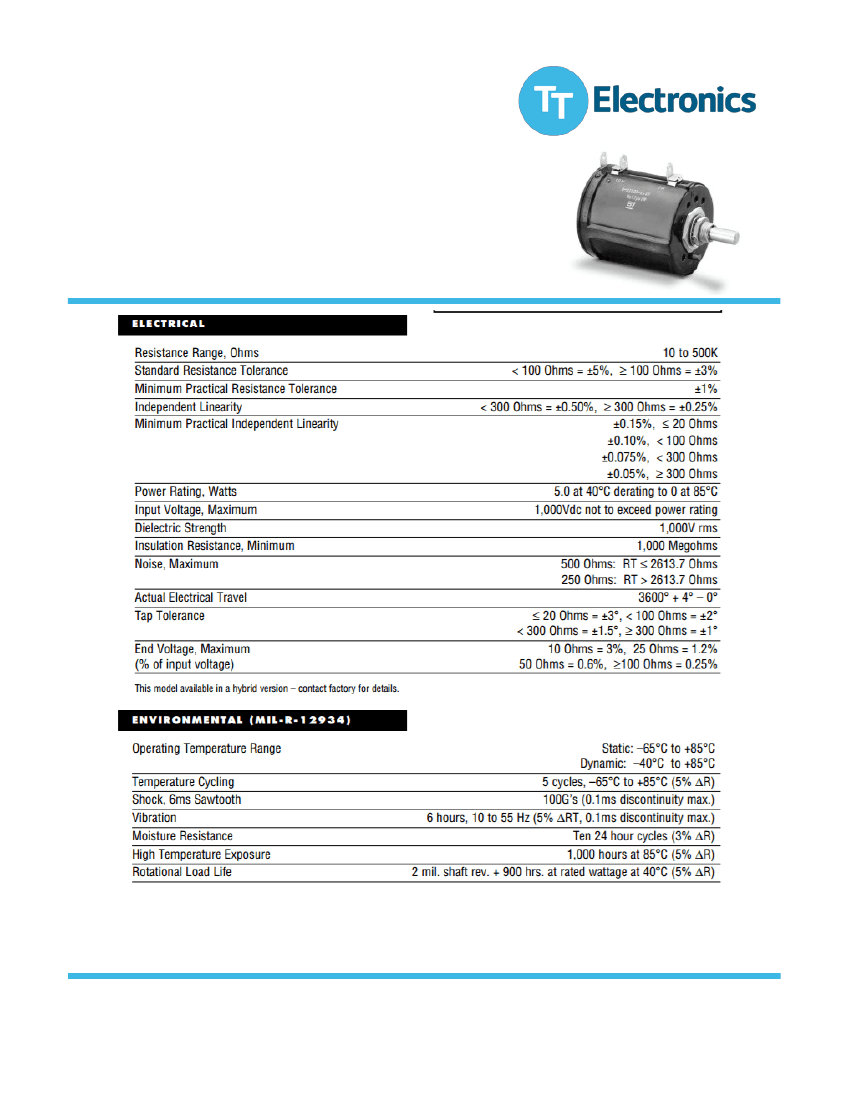

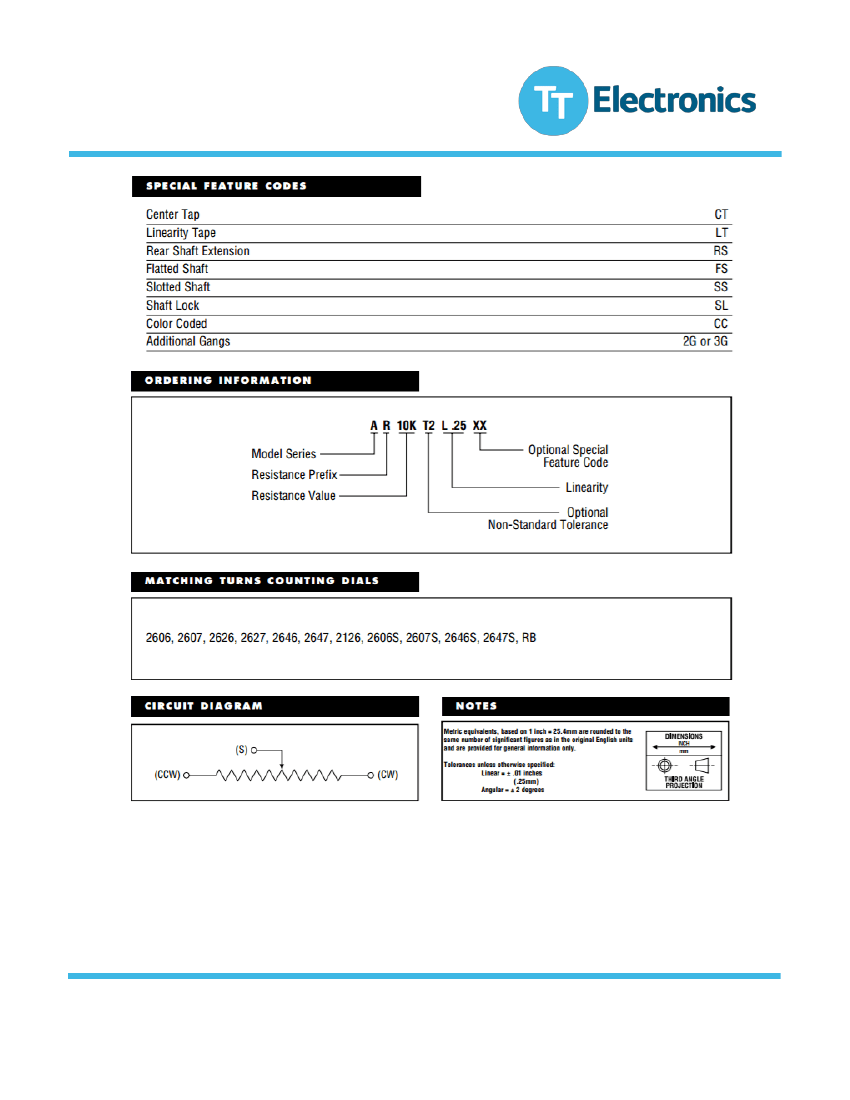

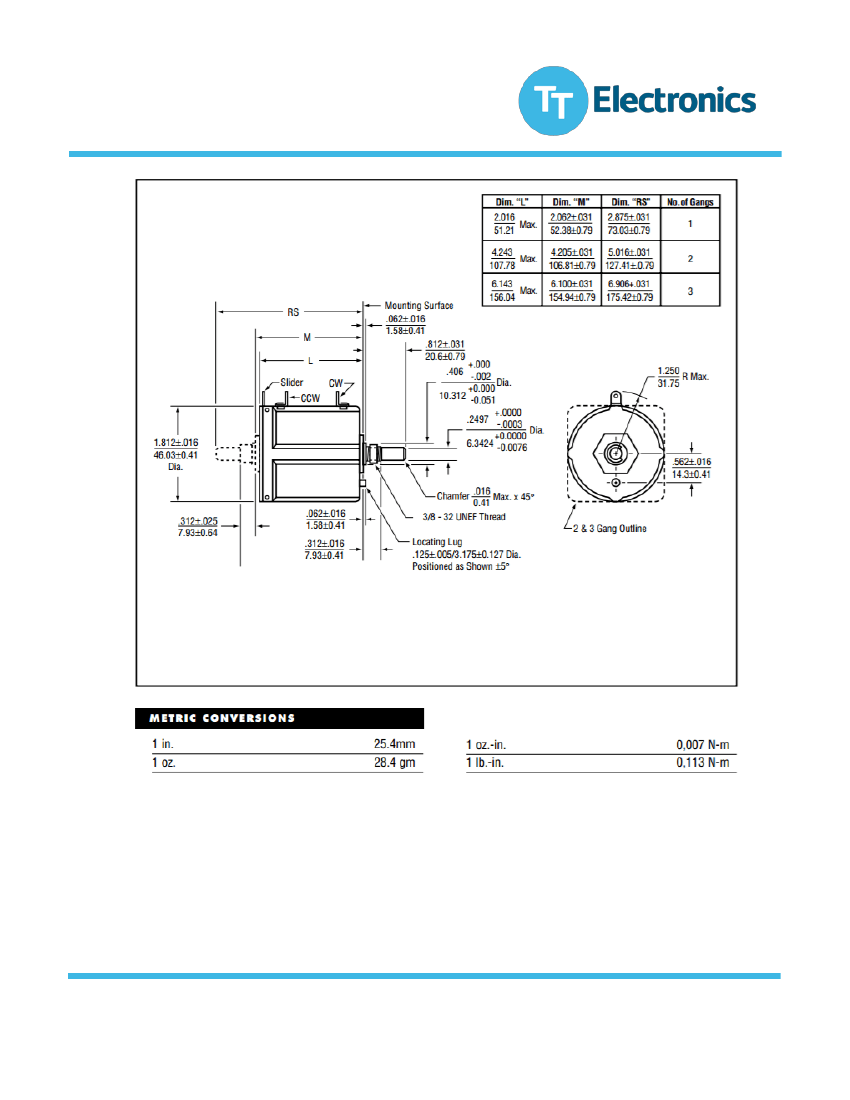

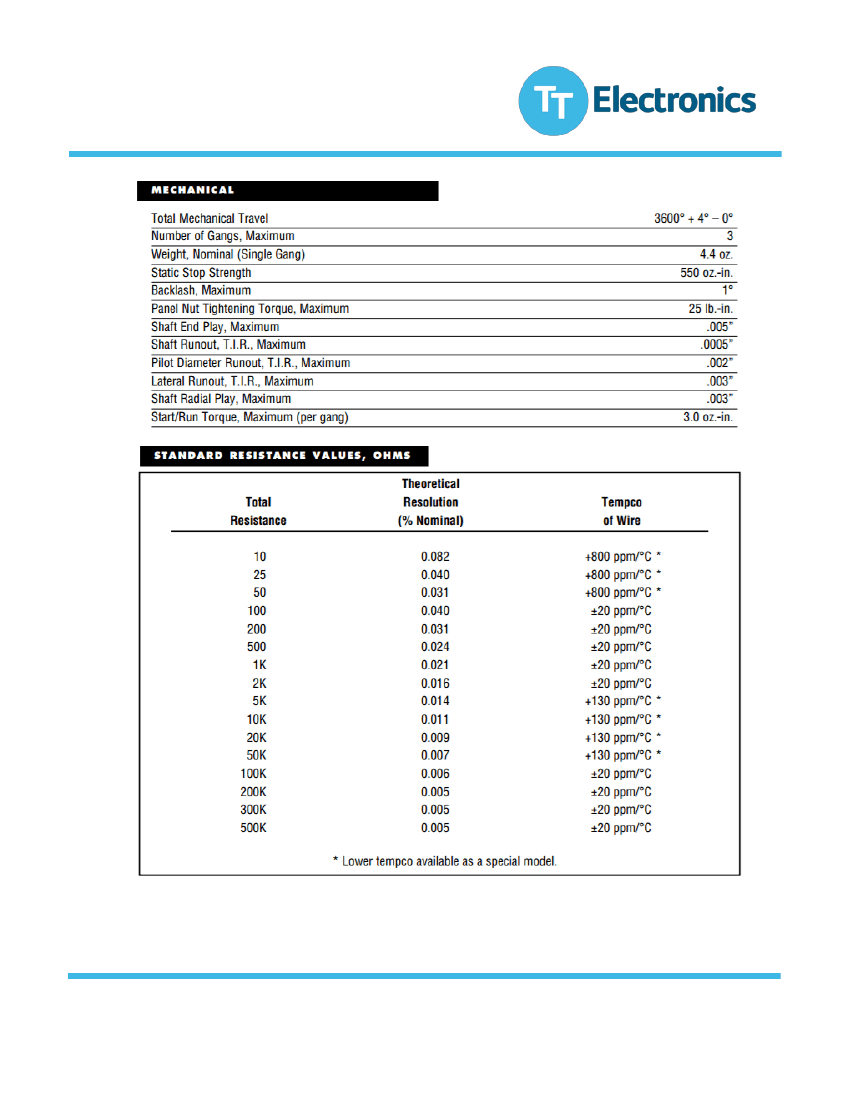

Precision Potentiometer

Model A Series

Features:



1-13/16” diameter



10-turn

Wirewound

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

4200 Bonita Place, Fullerton, CA USA 92835 |Ph: +1 714 447 2345

www.ttelectronics.com | sensors@ttelectronics.com

Issue A

11/2016

Page 1
