PMSST-02-24-K-30.00-S datasheet, PDF

Datasheet> All Categories > The connector> The connector> PMSST-02-24-K-30.00-S

PMSST-02-24-K-30.00-S: DescriptionRectangular Power Connector,; CategoryThe connector The connector; File Size892KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PMSST-02-24-K-30.00-S Overview

Rectangular Power Connector,

PMSST-02-24-K-30.00-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7258428928
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	4 weeks
body width	0.313 inch
subject depth	0.77 inch
body length	0.37 inch
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
empty shell	NO
Filter function	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	WITH CABLE ASSEMBLY
Guideline	UL
Termination type	CRIMP
Total number of contacts	2
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

F-219

PMSS–05–18–K–03.50–D–LUS

PMSDT–02–24–K−03.50−D−LUS

(4.19 mm) .165"

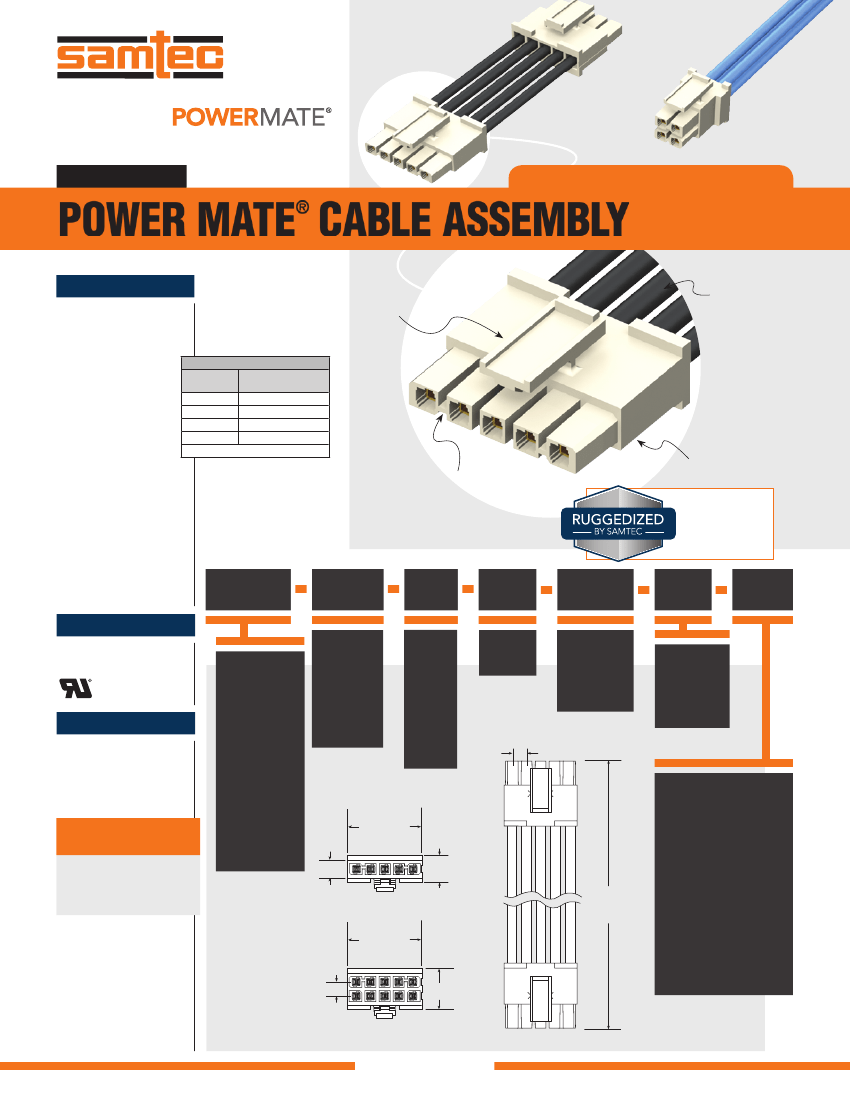

PMSD, PMSDT, PMSS, PMSST SERIES

POWER MATE CABLE ASSEMBLY

DISCRETE WIRE JUMPER CABLE

SPECIFICATIONS

For complete specifications

see www.samtec.com?PMSD,

www.samtec.com?PMSDT,

www.samtec.com?PMSS or

www.samtec.com?PMSST

Insulator Material:

Valox 457

Contact Material:

Phosphor Bronze

Plating:

Sn over 50 µ"

(1.27 µm) Ni

Operating Temp Range:

-10 °C to +105 °C (PVC)

-40 °C to +105 °C (*Teflon )

Voltage Rating:

22 & 24 AWG =

300 VAC/424 VDC (PVC)

16,18 & 20 AWG =

424 VAC/600 VDC (PVC)

24 AWG =

300 VAC/424 VDC (*Teflon )

Wire:

16 to 24 AWG

RoHS Compliant:

Yes

*DuPont

™

Teflon

is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its affiliates.

PMSD/IPBT

WIRE

CURRENT RATING

GAUGE

(PER PIN)

16 AWG

10.3 A

18 AWG

8.8 A

22 AWG

5.7 A

24 AWG

5.2 A

2 PINS POWERED

Mates with:

IPBT

Plastic latch

Wire range

from 16-24

AWG

Keyed

polarization

Single or

Double end

option

• Individually

shrouded contacts

• Plastic latches

TYPE

PINS

PER ROW

WIRE

GAUGE

–K

ASSEMBLED

LENGTH

END

OPTION

LATCH

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

= Double Row

PVC Cable

FILE NO. E111594

PMSD

COMPONENTS

• For body, see

www.samtec.com?IPBD

• For contacts, see

www.samtec.com?CC69L

www.samtec.com?CC69R

= Double Row

*Teflon

Cable

(24 AWG only)

PMSDT

PMSS

(Standard sizes)

*Only

available for

double row

–02,

–03, –04,

–05,–08,

–10, –15*

(20 AWG/

600 volts)

–16

–18

–206

–22

–24

= Keyed

Polarization

–“XX.XX”

= Wire

Length

in Inches

(88.90 mm)

03.50" min.

= Single End

–S

= Double End

(Latch required)

–D

(4.19)

.165

= Single Row

PVC Cable

ALSO AVAILABLE

(MOQ Required)

• Color coded cables

(*Teflon® N/A)

• Other sizes/pin counts

• 20 AWG/300 Volts

= Single Row

*Teflon

Cable

(24 AWG only)

PMSST

No. of Positions

x (4.19) .165

+ (1.02) .040

02 01

= Plastic Latch up,

straight

–LUS

–LDS

(5.41)

.213

(7.95)

.313

= Plastic Latch down,

straight

Assembled

Length

± (3.18)

.125

PMSS/PMSST

No. of Positions

x (4.19) .165

+ (1.02) .040

(4.19)

.165

02 01

= Plastic Latch up,

crossed

–LUX*

–LDX*

Notes:

For wiring option information

refer to drawing on web.

Teflon

cable is intended for

crimp only. Contact Samtec for

solderable cable applications.

Some lengths, styles and

options are non-standard,

non-returnable.

= Plastic Latch down,

crossed

(12.14)

.478

*(PMSD/PMSDT only)

PMSD/PMSDT

–D–LUS

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
