MPCC-2-24-2-T-44-118.1-D-NUS datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Dc power supply cord> MPCC-2-24-2-T-44-118.1-D-NUS

MPCC-2-24-2-T-44-118.1-D-NUS: DescriptionDC power cord 5.00 mm Mini PowerStrip /30 A Signal/Power Combo Cable Assembly; CategoryWire/cable Cable package Dc power supply cord; File Size225KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MPCC-2-24-2-T-44-118.1-D-NUS Overview

DC power cord 5.00 mm Mini PowerStrip /30 A Signal/Power Combo Cable Assembly

MPCC-2-24-2-T-44-118.1-D-NUS Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	DC power cord
Shipping restrictions	Mouser does not currently sell this product.
Encapsulation	Bulk
series	MPCC
Factory packaging quantity	1

Preview

Download Datasheet

View All

F-218

MPCC–2–16–2–L–44–04.00–D–NUS

(5.00 mm) .197"

(PWR)

(2.00 mm) .079"

(SIG)

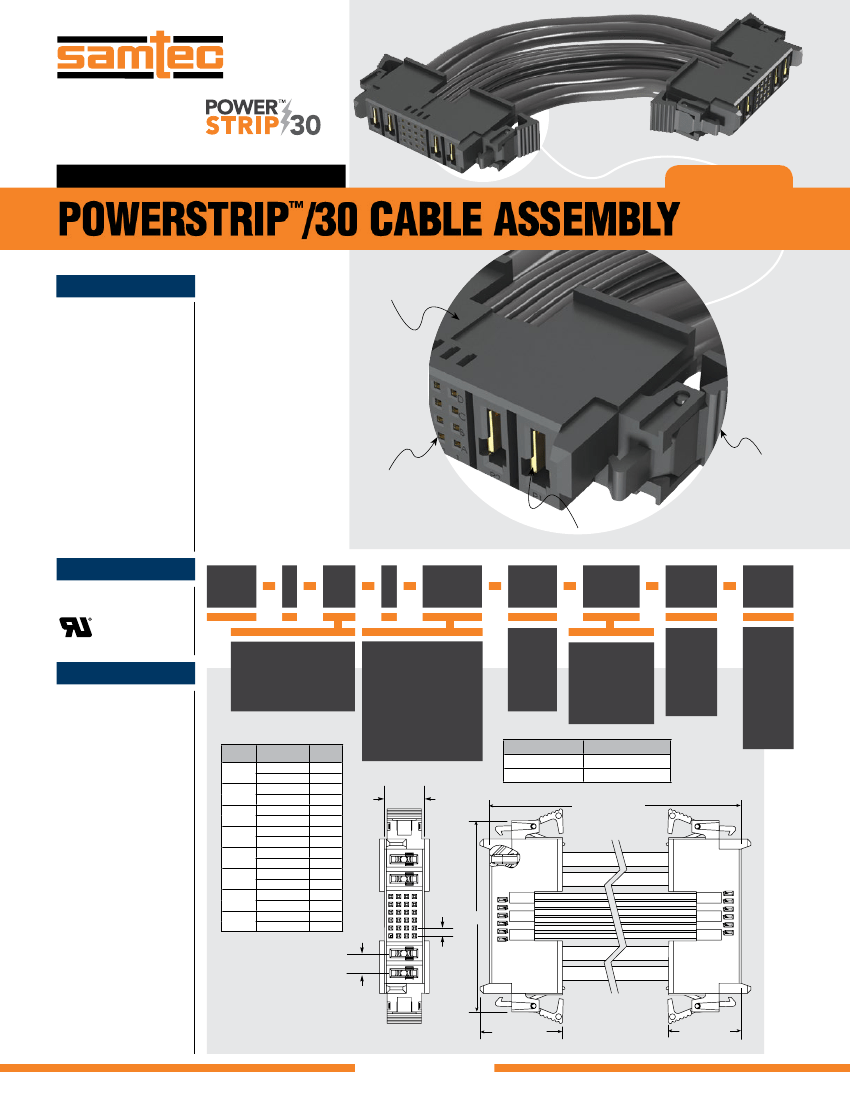

MPCC SERIES

POWERSTRIP /30 CABLE ASSEMBLY

™

SPECIFICATIONS

For complete specifications

see www.samtec.com?MPCC

Insulator Material:

Black LCP

Contact Material:

Signal: BeCu

Power: Copper Alloy

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Current Rating:

Signal Pin (24 AWG):

3.4 A per pin

(4 adjacent pins powered)

Power Pin (14 AWG):

23.2 A per pin

(1 pin powered)

Operating Temp Range:

-10 °C to +105 °C

Voltage Rating:

300 VAC

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

Mates with:

MPTC

Single or

Double Ended

16 or 24

Signal pins

Dual leaf blade

contacts

Positive

latching

system

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

MPCC

SIG

PINS

PLATING

OPTION

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

LENGTH

END 1

OPTION

END 2

OPTION

(Available

with –D

only)

COMPONENTS

• For body, see

www.samtec.com?IMSC5

• For contacts, see

www.samtec.com?CC81L

www.samtec.com?CC81R

www.samtec.com?CC46L

www.samtec.com?CC46R

= Total Signal Pins

–16

–24

= 10 µ" (0.25 µm)

Gold on contact

(Power & Signal)

–L

–T

–“XX.XX”

= Assembled

Length

in Inches

(101.60 mm)

04.00" min.

= Single

End

= Double

End

–S

–D

–NUS

= Notch

up,

straight

(Pin A1 to

Pin AX)

LEAD

STYLE

PWR/SIG AWG

PWR

SIG

PWR

SIG

PWR

SIG

PWR

SIG

PWR

SIG

PWR

SIG

PWR

SIG

PWR

SIG

= Matte Tin on contacts

and tail (Power),

Gold on contact (Signal)

SIGNAL PINS

(44.55) 1.754

(48.55) 1.911

–44

–46

–48

–40

–64

–66

–68

–60

(10.16)

.400

Assembled Length

(2.00)

.0787

(5.00)

.1969

Note:

Some sizes, styles

and options are non-standard,

non-returnable.

(21.10) .831

Due to technical progress, all designs, specifications and components are subject to change without notice.

(18.60) .732

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

MPPT-04-01-01-L-RA-SD MPPT-08-01-01-L-RA-SD MPPT-10-01-02-T-RA-SD MPPT-02-01-01-L-RA-SD-TR MPPT-

04-01-01-L-RA-SD-TR MPPT-04-01-01-T-RA-SD MPPT-08-01-02-L-RA-SD MPPT-08-01-02-T-RA-SD MPPT-10-01-

01-L-RA-SD MPPT-10-01-01-L-RA-SD-TR MPPT-06-01-01-T-RA-SD MPPT-08-01-01-T-RA-SD MPPT-06-01-01-L-

RA-SD MPPT-02-01-01-L-RA-SD MPPT-06-01-01-L-RA-SD-TR MPPT-08-01-01-L-RA-SD-TR MPCC-2-16-2-L-44-

15.00-D-NUS MPCC-2-16-2-L-44-16.00-S MPCC-2-16-2-L-44-18.00-D-NUS MPCC-2-16-2-L-44-24.00-S MPCC-2-16-

2-L-48-12.00-S MPCC-2-16-2-L-48-12.15-S MPCC-2-16-2-T-60-10.00-D-NUS MPCC-2-16-2-T-64-04.00-S MPCC-2-

24-2-L-48-11.00-D-NUS MPCC-2-24-2-L-68-24.00-S MPCC-2-24-2-T-44-22.00-D-NUS MPCC-2-24-2-T-44-60.00-D-

NUS MPCC-2-16-2-L-46-36.00-D-NUS MPCC-2-16-2-L-66-20.00-D-NUS MPCC-2-24-2-L-40-05.00-D-NUS MPCC-2-

24-2-L-44-08.00-S MPCC-2-24-2-L-60-14.00-D-NUS MPCC-2-16-2-T-46-24.00-D-NUS MPCC-2-16-2-T-64-11.81-S

MPCC-2-16-2-T-68-72.00-D-NUS MPCC-2-16-2-L-44-07.00-D-NUS MPCC-2-16-2-L-44-90.00-S MPCC-2-16-2-L-44-

96.00-D-NUS MPCC-2-16-2-L-46-11.81-D-NUS MPCC-2-16-2-L-60-10.00-S MPCC-2-16-2-L-64-04.00-D-NUS MPCC-

2-16-2-L-64-04.00-S MPCC-2-16-2-L-64-10.00-D-NUS MPCC-2-16-2-T-44-09.00-D-NUS MPCC-2-16-2-T-44-10.00-D-

NUS MPCC-2-16-2-T-44-15.00-D-NUS MPCC-2-24-2-L-44-11.00-S MPCC-2-24-2-L-44-39.37-S MPCC-2-24-2-T-64-

10.00-D-NUS MPCC-2-16-2-L-44-07.87-S MPCC-2-24-2-L-44-05.20-D-NUS MPCC-2-24-2-L-44-60.00-S MPCC-2-24-

2-L-44-67.00-D-NUS MPCC-2-24-2-L-44-78.00-S MPCC-2-24-2-L-64-18.00-S MPCC-2-24-2-L-64-24.00-D-NUS

MPCC-2-24-2-L-66-05.00-S MPCC-2-24-2-T-60-08.00-D-NUS MPCC-2-16-2-L-44-36.00-S MPCC-2-16-2-L-44-40.00-S

MPCC-2-16-2-L-60-04.00-S MPCC-2-16-2-L-68-16.00-D-NUS MPCC-2-16-2-T-44-24.00-D-NUS MPCC-2-16-2-T-44-

40.00-D-NUS MPCC-2-24-2-L-44-12.00-D-NUS MPCC-2-24-2-L-64-05.00-D-NUS MPCC-2-24-2-T-44-04.00-S

MPCC-2-24-2-T-44-08.00-D-NUS MPCC-2-24-2-T-44-80.00-S MPCC-2-16-2-L-40-11.81-S MPCC-2-16-2-L-44-20.00-

D-NUS MPCC-2-16-2-L-48-15.00-S MPCC-2-16-2-T-64-08.00-D-NUS MPCC-2-24-2-L-44-14.00-S MPCC-2-24-2-L-

44-18.00-D-NUS MPCC-2-24-2-L-60-16.00-D-NUS MPCC-2-24-2-T-44-118.1-D-NUS MPCC-2-16-2-L-44-05.00-S

MPCC-2-16-2-L-44-10.00-D-NUS MPCC-2-16-2-L-44-30.00-S MPCC-2-16-2-L-48-40.00-D-NUS MPCC-2-16-2-T-44-

05.00-S MPCC-2-16-2-T-44-16.00-S MPCC-2-24-2-L-48-05.00-D-NUS MPCC-2-24-2-L-64-17.70-D-NUS MPCC-2-24-

2-T-44-10.00-D-NUS MPCC-2-16-2-L-68-05.90-D-NUS MPCC-2-16-2-L-68-10.00-S MPCC-2-16-2-L-68-12.00-D-NUS

MPCC-2-16-2-L-68-12.00-S MPCC-2-24-2-L-48-13.00-D-NUS MPCC-2-24-2-L-60-18.00-D-NUS MPCC-2-24-2-T-44-

11.00-D-NUS MPCC-2-24-2-T-44-120.0-D-NUS MPCC-2-16-2-L-44-40.00-D-NUS MPCC-2-16-2-L-46-12.00-S

MPCC-2-16-2-L-60-08.00-S MPCC-2-16-2-L-64-15.00-S MPCC-2-16-2-L-64-36.00-S
