FFTP-05-D-03.85-01-N-R datasheet, PDF

Datasheet> All Categories > The connector> The connector> FFTP-05-D-03.85-01-N-R

FFTP-05-D-03.85-01-N-R: DescriptionFlat data cable/IDC data cable.050" Tiger Eye IDC Twisted Pair Cable Assembly, Socket; CategoryThe connector The connector; File Size778KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FFTP-05-D-03.85-01-N-R Overview

Flat data cable/IDC data cable.050" Tiger Eye IDC Twisted Pair Cable Assembly, Socket

FFTP-05-D-03.85-01-N-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

F-219

(1.27 mm) .050"

EYE

™

IDC

TIGER

™

FMTP–10–D–03.85–01

FFTP–20–D–08.77–01–N

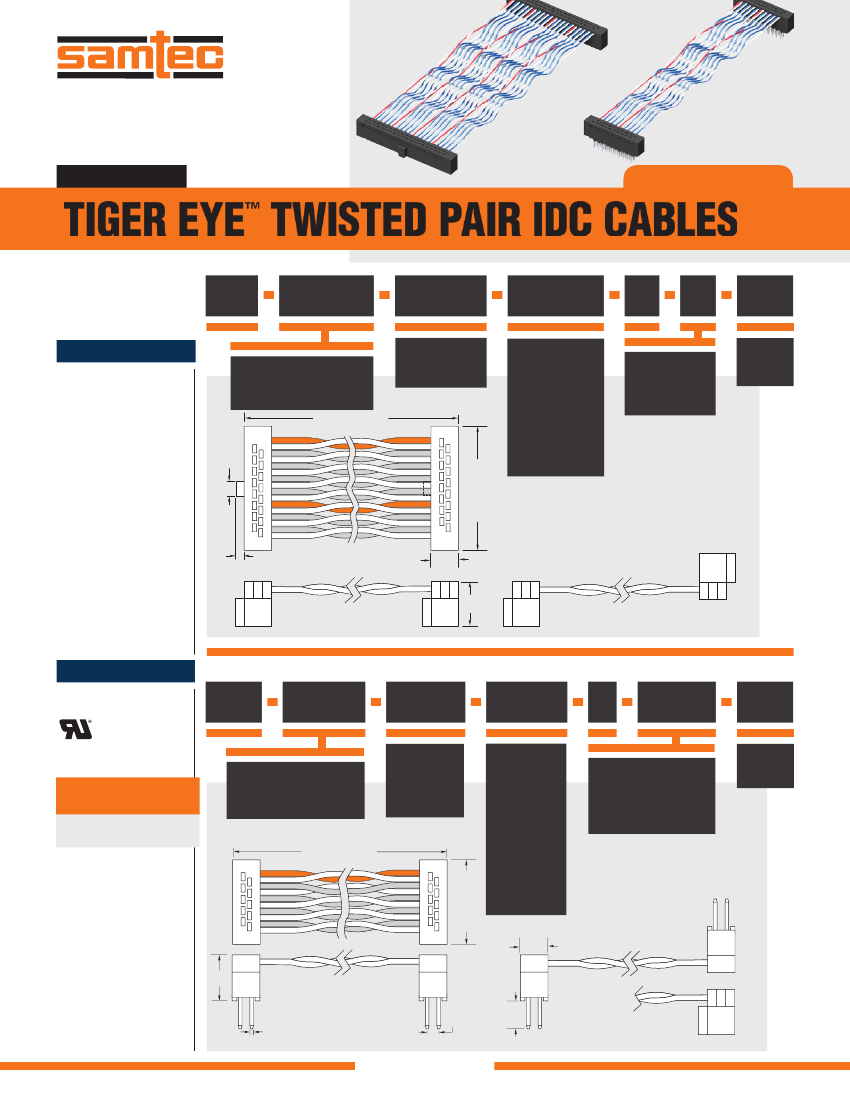

FFTP, FMTP SERIES

TIGER EYE TWISTED PAIR IDC CABLES

FFTP Mates with:

FTS, FTSH, EHF, SHF

FMTP Mates with:

FLE*, SFMC*

FFTP

PINS

PER ROW

END

ASSEMBLY

LENGTH

OPTION

SPECIFICATIONS

For complete specifications

see www.samtec.com?FFTP

or www.samtec.com?FMTP

Insulator Material:

PBT

Contact (FFTP):

BeCu

Terminal (FMTP):

Phosphor Bronze

Plating (FFTP):

10 µ" (0.25 µm)

Au over 50 µ" (1.27 µm)

Ni on contact area; Sn over

50 µ" (1.27 µm) Ni on balance

Plating (FMTP):

Sn over 50 µ" (1.27 µm) Ni

Wire:

30 AWG 7/38,

Tinned, Twisted Pair

with PVC insulator

Operating Temp Range:

-40 °C to +105 °C

Lead Size Accepted:

(0.41 mm) .016" SQ

Insertion Depth (FFTP):

(2.64 mm) .104" to

(3.17 mm) .125"

RoHS Compliant:

Yes

–05, –08, –10,

–13, –17, –20, –25

(Standard sizes)

ASSEMBLY LENGTH

= Double

End

–D

= (97.79 mm) 3.85"

–03.85

–08.77

–18.00

= (222.76 mm) 8.77"

= Notch

Polarization

(Standard)

–N

= Reverse

Connector

–R

= (457.20 mm) 18.00"

(1.90)

.075

No. of

positions

(1.27)

.050

(4.19)

.165

(Standard lengths)

(1.02) .040

(3.05)

.120

–D

(5.08)

.200

–R

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

FMTP

PINS

PER ROW

END

ASSEMBLY

LENGTH

TRANSFER

OPTION

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Other cable lengths

–05, –08, –10,

–13, –17, –20, –25

(Standard sizes)

= Double End

–D

–T

= (97.79 mm)

3.85"

–03.85

= Transfer End

= (222.76 mm)

8.77"

–08.77

–18.00

(Standard

lengths)

Leave blank for

–D End Assembly.

For –T End Assembly

Specify “–N”

(Socket has notch

polarization)

= Reverse

Connector

–R

ASSEMBLY LENGTH

No. of

positions

(1.27)

.050

(4.19)

.165

= (457.20 mm)

18.00"

(3.05)

.120

*Note:

Standard FMTP callout

will not mate with FLE, SFMC.

Must use gold plated callouts.

(See drawing on web.)

When mated with a socket,

Wire 1 mates with Pin 2;

Wire 2 mates wth Pin 1, etc.

Note:

This Series is

non-standard, non-returnable.

(5.08)

.200

–R

–D

(0.41) .016 SQ

(1.27)

.050

(3.07)

.121

–T

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

FFTP-05-D-08.77-01-N FFTP-10-D-18.00-01-N FFTP-08-D-03.85-01-N-R FFTP-05-D-18.00-01-N FFTP-25-D-18.00-

01-N FFTP-17-D-18.00-01-N FFTP-10-D-03.85-01-N FFTP-08-D-03.85-01-N FFTP-20-D-18.00-01-N FFTP-10-D-

08.77-01-N FFTP-13-D-08.77-01-N FFTP-20-D-08.77-01-N FFTP-25-D-08.77-01-N FFTP-25-D-03.85-01-N FFTP-13-

D-08.77-01-N-R FFTP-08-D-08.77-01-N FFTP-15-D-08.77-01-N FFTP-17-D-03.85-01-N FFTP-13-D-18.00-01-N

FFTP-05-D-03.85-01-N FFTP-17-D-08.77-01-N FFTP-08-D-18.00-01-N FFTP-13-D-03.85-01-N FFTP-20-D-03.85-01-

N FFTP-13-D-08.77-01-F-N FFTP-03-D-03.85-01 FFTP-12-D-03.85-01-N FFTP-13-D-03.85-01-N-R FFTP-22-D-

03.85-01-N FFTP-25-D-03.85-01-N-R FFTP-04-D-08.77-01 FFTP-10-D-08.77-01-N-R FFTP-18-D-08.77-01-N FFTP-

06-D-08.77-01-N FFTP-07-D-03.85-01-N FFTP-14-D-08.77-01-N FFTP-15-D-03.85-01-N FFTP-23-D-03.85-01-N

FFTP-17-D-08.77-01-N-R FFTP-05-D-03.85-01-F-N FFTP-07-D-08.77-01-N FFTP-25-D-08.77-01-N-R FFTP-06-D-

03.85-01-N FFTP-06-D-08.77-01-N-R FFTP-10-D-08.77-01-S-N FFTP-17-D-03.85-01-N-R FFTP-20-D-08.77-01-N-R

FFTP-08-D-08.77-01-N-R FFTP-10-D-03.85-01-N-R FFTP-20-D-03.85-01-N-R FFTP-20-D-18.00-01-N-R FFTP-12-D-

08.77-01-N FFTP-16-D-08.77-01-N FFTP-05-D-03.85-01-N-R FFTP-05-D-08.77-01-N-R FFTP-14-D-18.00-01-N

FFTP-15-D-08.77-01-N-R FFTP-15-D-18.00-01-N FFTP-07-D-18.00-01-N FFTP-08-D-18.00-01-N-R FFTP-25-D-

08.77-01-S-N FFTP-25-D-18.00-01-F-N FFTP-02-D-18.00-01-R FFTP-12-D-18.00-01-N FFTP-22-D-08.77-01-N

FFTP-23-D-03.85-01-N-R FFTP-02-D-08.77-01 FFTP-05-D-18.00-01-N-R FFTP-13-D-18.00-01-N-R FFTP-03-D-

08.77-01-R FFTP-03-D-18.00-01-R FFTP-04-D-18.00-01 FFTP-06-D-18.00-01-N-R FFTP-17-D-18.00-01-N-R FFTP-

02-D-18.00-01 FFTP-03-D-08.77-01 FFTP-12-D-18.00-01-N-R FFTP-18-D-18.00-01-N FFTP-25-D-18.00-01-N-R

FFTP-05-D-08.77-01-S-N FFTP-06-D-18.00-01-N FFTP-13-D-18.00-01-S-N FFTP-22-D-18.00-01-N FFTP-10-D-

18.00-01-N-R FFTP-24-D-18.00-01-N FFTP-03-D-18.00-01 FFTP-16-D-18.00-01-N FFTP-05-D-03.85-01-S-N-R

FFTP-05-D-08.77-01-S-N-R FFTP-07-D-18.00-01-N-R FFTP-18-D-18.00-01-N-R FFTP-20-D-08.77-01-S-N FFTP-04-

D-08.77-01-S FFTP-08-D-08.77-01-S-N FFTP-20-D-08.77-01-F-N-R FFTP-08-D-18.00-01-F-N FFTP-13-D-08.77-01-

F-N-R FFTP-17-D-08.77-01-F-N FFTP-04-D-18.00-01-R FFTP-20-D-18.00-01-S-N
