FCF8-20-01-L-60.00-S datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Internet/network connections> FCF8-20-01-L-60.00-S

FCF8-20-01-L-60.00-S: DescriptionNetwork cable/network connection cable 0.80 mm High-Speed Cost-Effective Micro Coax Cable Assembly; CategoryWire/cable Cable package Internet/network connections; File Size773KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FCF8-20-01-L-60.00-S Overview

Network cable/network connection cable 0.80 mm High-Speed Cost-Effective Micro Coax Cable Assembly

FCF8-20-01-L-60.00-S Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Network cable/network connection cable
Shipping restrictions	Mouser does not currently sell this product.
Encapsulation	Bulk
series	FCF8
Factory packaging quantity	1

Preview

Download Datasheet

View All

F-219

FCF8–20–01–L–03.00–S

FCF8–10–01–L–03.00–S

FCS8–10–01–L–S–A–TR

(0.80 mm) .0315"

FCS8–20–01–L–S–A–TR

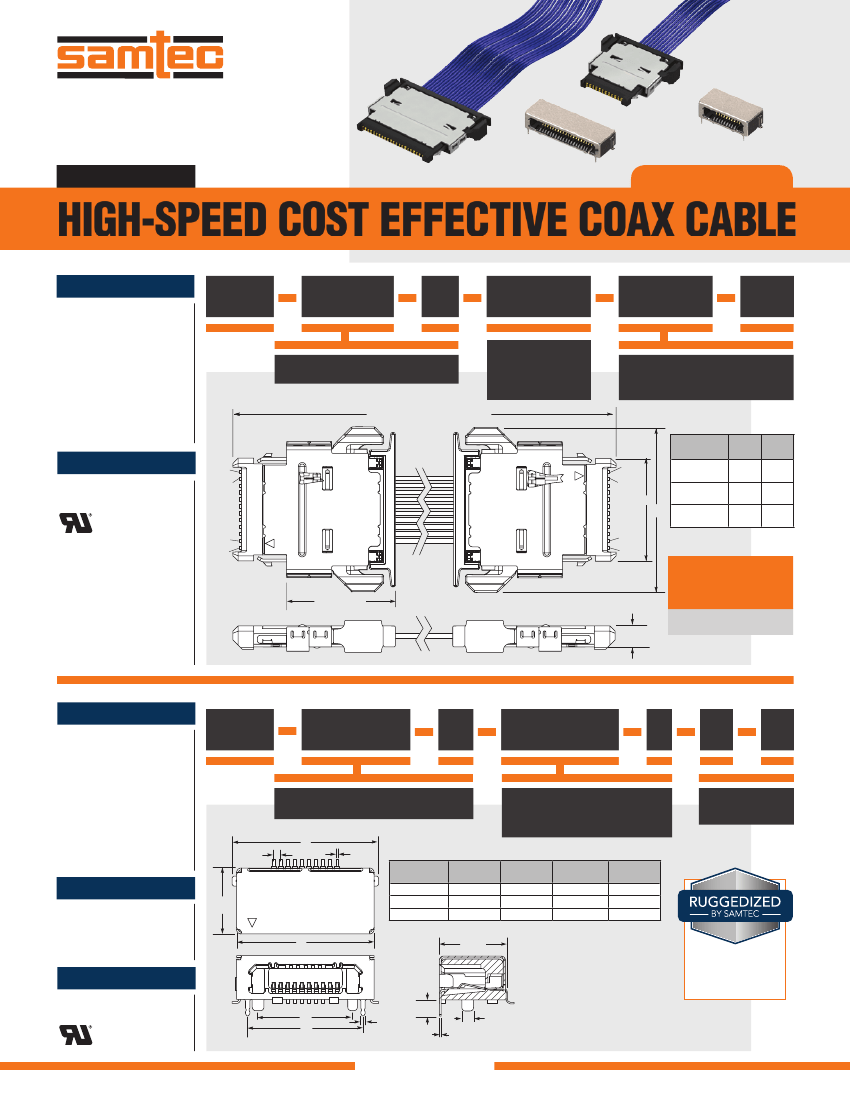

FCF8, FCS8 SERIES

HIGH-SPEED COST EFFECTIVE COAX CABLE

SPECIFICATIONS

For complete specifications see

www.samtec.com?FCF8

Cable:

38 AWG coax

Overmold:

Nylon

Terminal Material:

Phosphor Bronze

Contact Plating:

Au or Sn over 50 µ" (1.27 µm) Ni

Operating Temp Range:

-25 °C to +105 °C

Current Rating:

1.8 A per pin

(1 pin powered)

RoHS Compliant:

Yes

FCF8

Mates with:

FCS8

NO. OF

POSITIONS

PLATING

OPTION

CABLE

LENGTH

–10, –20, –30

CABLE LENGTH + (16.43) .647

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin on tail

–L

= Length in Inches

03.00" (76.2 mm) minimum

–“XX.XX”

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

NO. OF

POSITIONS

GND

–10

–20

(11.85) (19.00)

.467

.748

(19.85) (27.00)

.781

1.063

(27.85) (35.00)

1.096 1.378

–30

Notes:

Design your High-Speed Cable

with Samtec’s High-Speed

Cable Solutionator

at www.samtec.com/hdr

Cable lengths longer than

40.00" (1 meter) are not

supported with S.I. test data.

Some lengths, styles and

options are non-standard,

non-returnable.

GND

ALSO

AVAILABLE

(12.55) .494

(MOV Required)

(2.42)

.095

• Other sizes and lengths

SPECIFICATIONS

For complete specifications and

recommended PCB layouts see

www.samtec.com?FCS8

Insulator Material:

Black LCP

Contact Material:

BeCu

Contact Plating:

Au or Sn over 50 µ" (1.27 µm) Ni

Shield:

Nickel Plated Phosphor Bronze

Operating Temp Range:

-55 °C to +125 °C

Current Rating:

1.8 A per pin

(1 pin powered)

RoHS Compliant:

Yes

FCS8

Mates with:

FCF8

NO. OF

POSITIONS

PLATING

OPTION

–10, –20, –30

(0.30)

.012

= 10 µ" (0.25 µm) Gold on contact,

Matte Tin on tail

–L

= Tape & Reel

–TR

(0.80)

.0315

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.15 mm) .006" max*

*(.004" stencil solution

may be available; contact

IPG@samtec.com)

(7.46)

.294

NO. OF

POSITIONS

(16.59) .653 (15.56) .613 (10.70) .421 (13.06) .514

–10

(24.59) .968 (23.56) .928 (18.70) .736 (21.06) .829

–20

(32.59) 1.283 (31.56) 1.243 (26.70) 1.051 (29.06) 1.144

–30

(7.48)

.294

• Weld tabs

• Positive latching

• Shielded for EMI

protection

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

(0.49)

.019

(1.85)

.073

(0.20)

.008

(1.32)

.052

DIA

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

FCF8-20-01-L-20.00-S FCF8-20-01-L-03.50-S FCF8-20-01-L-27.00-S-1 FCF8-30-01-L-58.00-S FCF8-20-01-L-

16.00-S-1 FCF8-20-01-L-29.53-S-1 FCF8-30-01-L-03.00-S-1 FCF8-30-01-L-78.75-S-1 FCF8-20-01-L-06.50-S FCF8-

30-01-L-40.00-S-1 FCF8-20-01-L-19.68-S-1 FCF8-20-01-L-30.00-S-1 FCF8-20-01-L-15.00-S-1 FCF8-30-01-L-39.37-

S-1 FCF8-20-01-L-59.00-S FCF8-10-01-L-24.00-S FCF8-10-01-L-30.00-S FCF8-30-01-L-12.00-S FCF8-10-01-L-

31.50-S FCF8-20-01-L-118.1-S FCF8-20-01-L-197.0-S FCF8-10-01-L-27.60-S FCF8-20-01-L-16.00-S FCF8-20-01-L-

19.68-S FCF8-30-01-L-05.91-S FCF8-10-01-L-11.00-S FCF8-20-01-L-04.00-S FCF8-20-01-L-10.00-S FCF8-20-01-L-

39.37-S FCF8-30-01-L-16.00-S FCF8-30-01-L-39.37-S FCF8-20-01-L-07.00-S FCF8-20-01-L-08.00-S FCF8-20-01-L-

24.00-S-1 FCF8-20-01-L-38.81-S FCF8-30-01-L-80.00-S FCF8-20-01-L-03.00-S FCF8-20-01-L-05.00-S FCF8-20-01-

L-09.00-S FCF8-20-01-L-11.80-S FCF8-20-01-L-19.69-S FCF8-20-01-L-47.24-S FCF8-30-01-L-14.00-S FCF8-30-01-

L-35.00-S FCF8-20-01-L-72.00-S-1 FCF8-10-01-L-03.00-S FCF8-20-01-L-36.00-S FCF8-30-01-L-84.00-S FCF8-10-

01-L-03.94-S FCF8-10-01-L-04.00-S FCF8-10-01-L-05.50-S FCF8-20-01-L-06.00-S FCF8-20-01-L-08.00-S-1 FCF8-

20-01-L-29.53-S FCF8-30-01-L-40.00-S FCF8-10-01-L-05.90-S FCF8-10-01-L-14.40-S FCF8-20-01-L-23.20-S FCF8-

20-01-L-60.00-S FCF8-10-01-L-19.70-S FCF8-20-01-L-12.00-S FCF8-20-01-L-16.70-S FCF8-20-01-L-19.00-S FCF8-

30-01-L-03.00-S FCF8-30-01-L-06.00-S FCF8-10-01-L-09.00-S FCF8-10-01-L-14.00-S FCF8-20-01-L-09.84-S FCF8-

20-01-L-40.00-S FCF8-30-01-L-10.00-S FCF8-10-01-L-06.00-S FCF8-20-01-L-11.81-S FCF8-20-01-L-24.00-S FCF8-

20-01-L-78.74-S FCF8-30-01-L-07.87-S FCF8-30-01-L-09.00-S FCF8-10-01-L-10.00-S FCF8-10-01-L-36.00-S FCF8-

30-01-L-07.00-S FCF8-10-01-L-40.00-S FCF8-10-01-L-10.70-S FCF8-10-01-L-19.68-S FCF8-30-01-L-25.00-S FCF8-

30-01-L-19.68-S FCF8-30-01-L-24.00-S FCF8-10-01-L-12.00-S FCF8-10-01-L-16.00-S FCF8-20-01-L-15.00-S FCF8-

20-01-L-18.00-S FCF8-30-01-L-04.00-S FCF8-30-01-L-05.00-S FCF8-30-01-L-36.00-S FCF8-10-01-L-07.00-S FCF8-

20-01-L-19.70-S FCF8-20-01-L-27.60-S FCF8-20-01-L-59.05-S FCF8-30-01-L-50.00-S FCF8-10-01-L-03.00-S-1

FCF8-10-01-L-12.40-S FCF8-20-01-L-12.00-S-1
