S2SD-15-28-L-10.00-D-NDS datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> S2SD-15-28-L-10.00-D-NDS

S2SD-15-28-L-10.00-D-NDS: DescriptionFlat data cable/IDC data cable 2.00 mm Tiger Eye Double Row Discrete Wire Cable Assembly, Socket; CategoryThe connector Connector bracket; File Size1MB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

S2SD-15-28-L-10.00-D-NDS Overview

Flat data cable/IDC data cable 2.00 mm Tiger Eye Double Row Discrete Wire Cable Assembly, Socket

S2SD-15-28-L-10.00-D-NDS Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

F-219

S2SD–30–24–L–05.00–S

(2.00 mm) .0787"

S2SD–10–24–L–05.00–DS

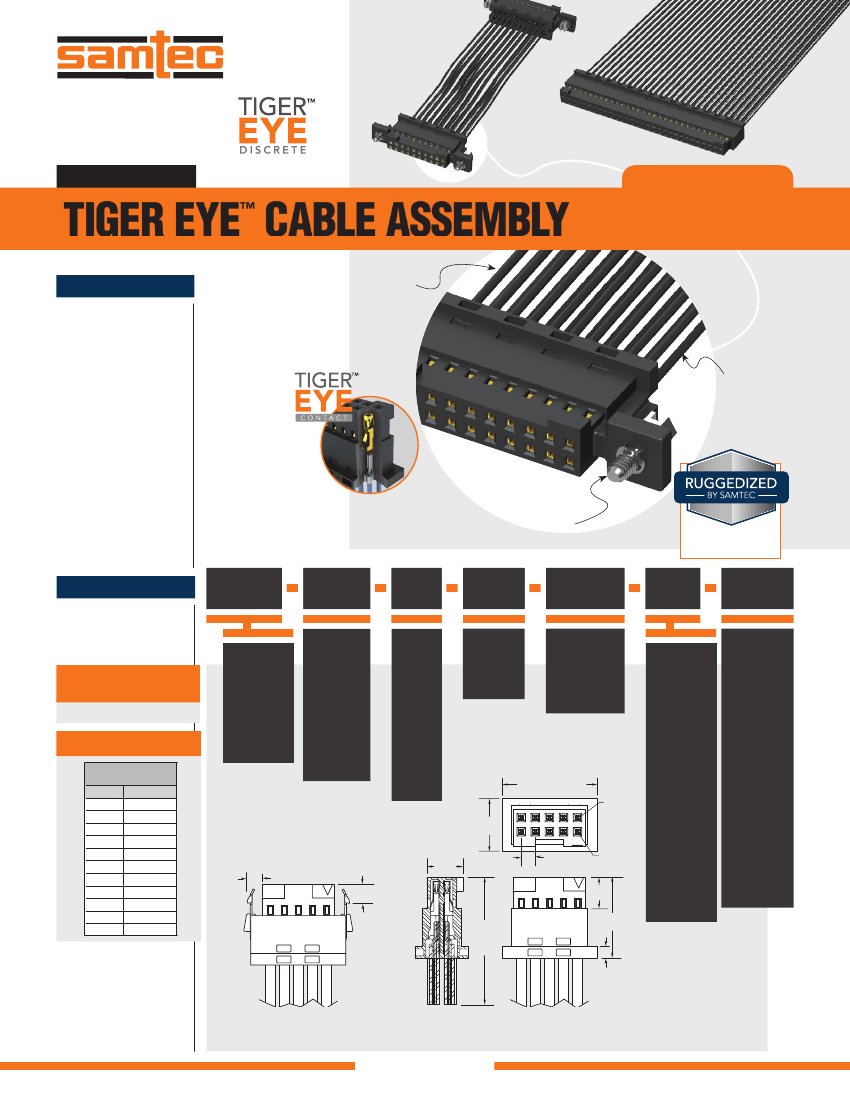

S2SD, S2SDT SERIES

TIGER EYE CABLE ASSEMBLY

™

SPECIFICATIONS

For complete specifications

see www.samtec.com?S2SD

or www.samtec.com?S2SDT

Insulator Material:

Black LCP

Contact Material:

BeCu

Plating:

Au over 50 µ" (1.27 µm) Ni

Wire:

24, 26, 28 or 30 AWG

Operating Temp Range:

-10 °C to +105 °C (PVC)

-40 °C to +125 °C (*Teflon

)

Current Rating

(S2SD-24/T2M):

3.8 A per pin

(2 pins powered)

Voltage Rating:

250 VAC

RoHS Compliant:

Yes

*DuPont

™

Teflon

is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its affiliates.

Mates with:

T2M

Choice of

PVC or

Teflon

cable

24, 26, 28

or 30 Wire

gauge

Optional

screw down

• Tiger Eye™ contacts

• Retention latches

COMPONENTS

• For body, see

www.samtec.com?ISD2

• For contacts, see

www.samtec.com?CC81L

www.samtec.com?CC81R

TYPE

PINS PER

ROW

WIRE

GAUGE

PLATING

OPTION

ASSEMBLED

LENGTH

END

OPTION

END 2

OPTION

(Only available

with –D,

–DR & –DS)

ALSO AVAILABLE

(MOQ Required)

• Other sizes

= Double Row

PVC Cable

S2SD

APPLICATION

–24C CABLE

COLOR CODING

COLOR

ETC

BROWN

RED

ORANGE

YELLOW

GREEN

VIOLET

GRAY

WHITE

BLACK

BLUE

REPEAT

= Double Row

*Teflon

Cable

(24, 28, 30

Gauge only)

S2SDT

(Standard

sizes)

–05,

–07,

–10,

–15,

–20,

–25,

–30

–24

–24C

= Color

Coded

Cable

(S2SD

only)

= 10 µ"

(0.25 µm)

Gold on

contact

–L

–“XX.XX”

= Wire

Length

in Inches

(69.85 mm)

02.75" min.

= Single End

–S

–26

–28

–30

(7.52)

.296

No. of positions x

(2.00) .0787 + (3.50) .138

= Notch up,

= Double End

straight

(Pin 1 to Pin N-1)

Specify "S" for

single ended

and "D" for

double ended. = Notch down,

straight

(Pin 1 to Pin 2)

= Retention

Latch

(-SR mates

= Notch up,

with T2M-WT)

crossed

(Pin 1 to Pin N)

–D

–NUS

–NDS

–NUX

–NDX

–(X)R

(2.11) .083

(2.64)

.104

(5.15)

.203

(2.00)

.0787

(4.42)

.174

Assembly

Length

± (3.18)

.125

(11.38)

.448

= Screw Down

(10 positions

minimum)

(mates with

T2M-DS)

–(X)S

= Notch down,

crossed

(Pin 1 to Pin 1)

Notes:

For wiring option information

refer to drawing on web.

Teflon

cable is

intended for crimp only.

Contact Samtec for

solderable cable applications.

Some lengths, styles and

options are non-standard,

non-returnable.

(1.60)

.063

–SR

–D–NUS

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

S2SD-10-24C-L-04.35-DR-NDX S2SD-05-24-L-04.75-SR S2SD-05-28-L-36.00-SR S2SD-10-26-L-05.00-DS-NDX

S2SD-24-24C-L-40.00-SS S2SD-05-28-L-03.50-DR-NDX S2SD-10-26-L-24.00-DR-NDS S2SD-10-24-L-02.75-DR-NDS

S2SD-02-24C-L-06.00-DR-NUS S2SD-15-24-L-04.00-DS-NDX S2SD-15-24-L-08.00-DS-NDX S2SD-05-24C-L-05.00-

SS S2SD-15-24-L-06.00-DR-NDS S2SD-05-26-L-03.50-DR-NDX S2SD-30-24-L-02.75-DS-NUS S2SD-05-28-L-02.75-

S S2SD-30-24-L-10.00-S S2SD-30-24-S-08.00-DR-NDX S2SD-05-24-L-10.00-SS S2SD-20-24C-L-60.00-S S2SD-

25-24C-L-80.00-SS S2SD-05-26-L-03.50-DR-NUS S2SD-05-28-L-03.50-DR-NUS S2SD-15-24-L-02.75-S S2SD-30-

30-L-03.50-D-NUS S2SD-25-28-L-03.00-D-NUS S2SD-15-30-L-03.50-D-NUS S2SD-30-24C-L-09.00-DR-NDS S2SD-

05-24-L-03.60-DR-NDX S2SD-30-24C-S-36.00-DR-NDX S2SD-30-24C-L-10.00-DR-NDS S2SD-30-30-L-04.00-D-NUS

S2SD-10-24-L-05.00-SR S2SD-10-24-L-18.00-DR-NDX S2SD-10-24-L-18.00-S S2SD-10-26-L-06.00-S S2SD-10-

26-L-20.00-SR S2SD-15-24C-L-10.00-S S2SD-15-24-L-12.00-SR S2SD-15-24-L-18.00-D-NDX S2SD-15-28-L-06.00-

S S2SD-05-24C-L-10.00-D-NDX S2SD-05-24C-L-12.00-SR S2SD-05-24C-L-19.70-SR S2SD-05-24C-L-30.00-SR

S2SD-05-24-L-02.75-DR-NUS S2SD-05-24-L-02.75-SR S2SD-05-24-L-03.00-SR S2SD-05-24-L-06.00-SR S2SD-05-

26-L-12.00-SR S2SD-05-28-L-04.00-SR S2SD-05-28-L-05.00-DR-NUS S2SD-05-28-L-10.00-SR S2SD-05-28-L-

12.00-S S2SD-07-24-L-12.00-S S2SD-07-24-L-15.00-SR S2SD-07-24-S-12.00-DR-NUS S2SD-07-26-L-07.87-SR

S2SD-10-24-L-20.00-SR S2SD-10-26-L-05.00-SR S2SD-10-28-S-12.00-DR-NDX S2SD-15-24C-L-24.00-S S2SD-15-

24-S-18.00-D-NDX S2SD-15-26-L-20.00-SR S2SD-05-24-L-24.00-SR S2SD-05-26-L-04.00-S S2SD-05-26-L-05.00-D-

NUS S2SD-05-26-L-12.00-S S2SD-05-26-L-20.00-SR S2SD-05-28-L-10.00-DR-NUS S2SD-05-30-L-02.75-DR-NUS

S2SD-07-24C-L-15.00-S S2SD-07-24-L-02.75-S S2SD-07-24-L-07.00-SR S2SD-07-24-L-10.00-S S2SD-07-24-L-

12.00-SR S2SD-07-28-L-20.00-S S2SD-10-24C-L-24.00-SR S2SD-10-24C-L-36.00-SR S2SD-10-24-L-03.00-D-NUS

S2SD-10-24-L-12.00-S S2SD-10-26-L-03.00-D-NUS S2SD-10-30-L-12.00-S S2SD-15-24-L-12.00-DR-NDX S2SD-05-

24C-L-06.00-DR-NDX S2SD-05-24C-L-06.00-SR S2SD-05-24C-L-15.00-SR S2SD-05-24-L-03.00-DR-NUS S2SD-05-

24-L-07.87-DR-NUS S2SD-05-24-L-08.00-S S2SD-05-24-L-16.00-SR S2SD-05-24-L-18.00-D-NDX S2SD-05-26-L-

05.00-S S2SD-05-28-L-08.00-SR S2SD-05-30-L-06.00-S S2SD-07-24C-L-48.00-S S2SD-07-24C-L-48.00-SR S2SD-

07-24-L-08.00-DR-NDX S2SD-07-24-L-09.00-DR-NUS S2SD-07-24-L-10.00-D-NDX
