Microcomputer Components
16-Bit CMOS Single-Chip Microcontroller
SAB 80C166/83C166
Data Sheet 09.94
C16x-Family of
High-Performance CMOS 16-Bit Microcontrollers
Preliminary
SAB 80C166/83C166
SAB 80C166/83C166
16-Bit Microcontroller
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
q
High Performance 16-bit CPU with 4-Stage Pipeline
100 ns Instruction Cycle Time at 20 MHz CPU Clock
500 ns Multiplication (16
×
16 bit), 1
µs
Division (32 / 16 bit)
Enhanced Boolean Bit Manipulation Facilities
Register-Based Design with Multiple Variable Register Banks
Single-Cycle Context Switching Support
Up to 256 KBytes Linear Address Space for Code and Data
1 KByte On-Chip RAM
32 KBytes On-Chip ROM (SAB 83C166 only)
Programmable External Bus Characteristics for Different Address Ranges
8-Bit or 16-Bit External Data Bus
Multiplexed or Demultiplexed External Address/Data Buses
Hold and Hold-Acknowledge Bus Arbitration Support
512 Bytes On-Chip Special Function Register Area
Idle and Power Down Modes
8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event
Controller (PEC)
16-Priority-Level Interrupt System
10-Channel 10-bit A/D Converter with 9.7
µs
Conversion Time
16-Channel Capture/Compare Unit
Two Multi-Functional General Purpose Timer Units with 5 Timers
Two Serial Channels (USARTs)
Programmable Watchdog Timer
Up to 76 General Purpose I/O Lines
Supported by a Wealth of Development Tools like C-Compilers, Macro-Assembler Packages,
Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers,
Programming Boards
On-Chip Bootstrap Loader
100-Pin Plastic MQFP Package (EIAJ)
Semiconductor Group
1
09.94
SAB 80C166/83C166
Introduction
The SAB 80C166 is the first representative of the Siemens SAB 80C166 family of full featured
single-chip CMOS microcontrollers. It combines high CPU performance (up to 10 million
instructions per second) with high peripheral functionality and enhanced IO-capabilities.
SAB
80C166
Figure 1
Logic Symbol
Ordering Information
Type
SAB 83C166-5M
Ordering Code Package
Q67121-D...
Function
P-MQFP-100-2 16-bit microcontroller, 0 ˚C to +70 ˚C,
1 KByte RAM and 32 KByte ROM
P-MQFP-100-2 16-bit microcontroller, -40 ˚C to +85 ˚C,
1 KByte RAM and 32 KByte ROM
P-MQFP-100-2 16-bit microcontroller, 0 ˚C to +70 ˚C
1 KByte RAM
P-MQFP-100-2 16-bit microcontroller, -40 ˚C to +85 ˚C
1 KByte RAM
SAB 83C166-5M-T3 Q67121-D...
SAB 80C166-M
SAB 80C166-M-T3
Q67121-C848
Q67121-C900
Note:
The ordering codes (Q67120-D...) for the Mask-ROM versions are defined for each product
after verification of the respective ROM code.
Semiconductor Group
2
SAB 80C166/83C166

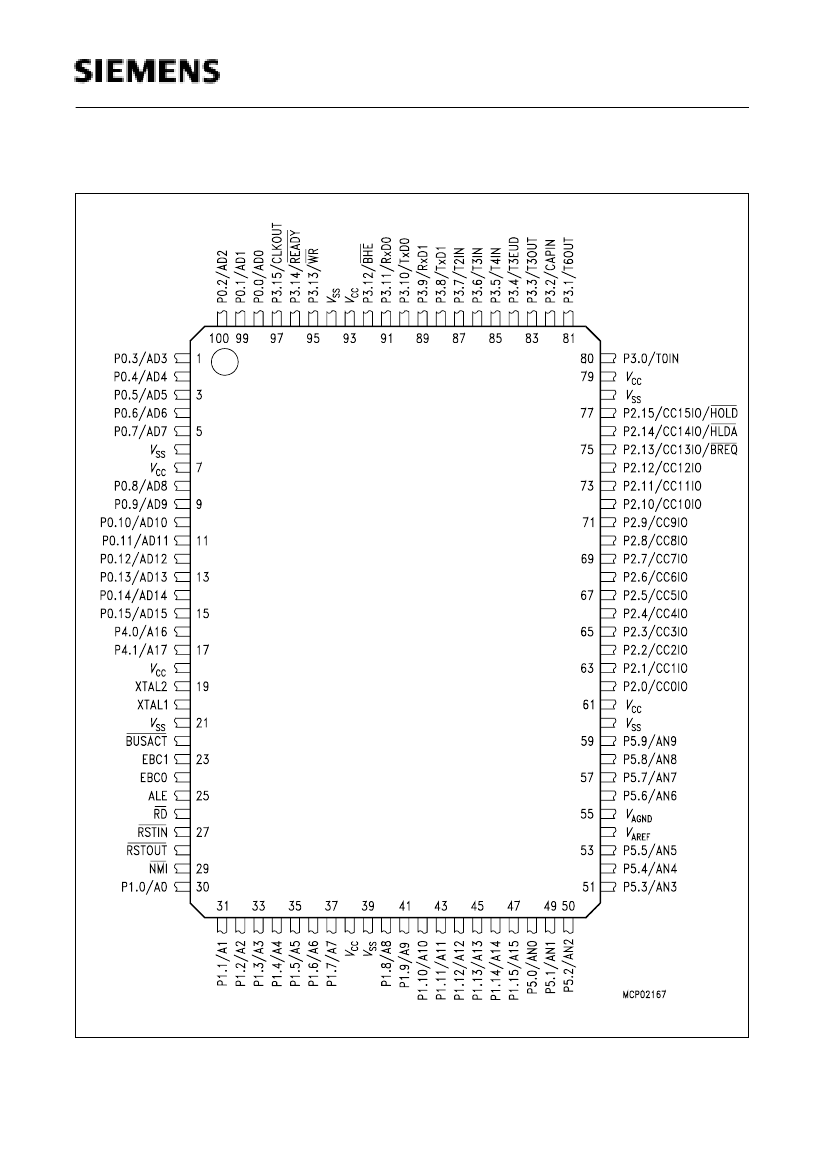

Pin Configuration Rectangular P-MQFP-100-2
(top view)
SAB 80C166
Figure 2
Semiconductor Group
3
SAB 80C166/83C166
Pin Definitions and Functions
Symbol
P4.0 –
P4.1
Pin
Input
Number Output
16-17
I/O
Function
Port 4 is a 2-bit bidirectional I/O port. It is bit-wise
programmable for input or output via direction bits. For a pin
configured as input, the output driver is put into high-impedance
state.
In case of an external bus configuration, Port 4 can be used to
output the segment address lines:
P4.0
A16
Least Significant Segment Addr. Line
P4.1
A17
Most Significant Segment Addr. Line
Input to the oscillator amplifier and input to the
internal clock generator
XTAL2: Output of the oscillator amplifier circuit.
To clock the device from an external source, drive XTAL1, while
leaving XTAL2 unconnected. Minimum and maximum high/low
and rise/fall times specified in the AC Characteristics must be
observed.
External Bus Configuration selection inputs. These pins are
sampled during reset and select either the single chip mode or
one of the four external bus configurations:
BUSACT EBC1 EBC0 Mode/Bus Configuration
0
0
0
8-bit demultiplexed bus
0
0
1
8-bit multiplexed bus
0
1
0
16-bit multiplexed bus
0
1
1
16-bit demultiplexed bus
1
0
0
Single chip mode
1
0
1
Reserved.
1
1
0
Reserved.
1
1
1
Reserved.
ROMless versions must have pin BUSACT tied to ‘0’.
Reset Input with Schmitt-Trigger characteristics. A low level at
this pin for a specified duration while the oscillator is running
resets the SAB 80C166. An internal pullup resistor permits
power-on reset using only a capacitor connected to
V
SS
.
Internal Reset Indication Output. This pin is set to a low level
when the part is executing either a hardware-, a software- or a
watchdog timer reset. RSTOUT remains low until the EINIT
(end of initialization) instruction is executed.
XTAL1:
16
17
XTAL1
XTAL2
20
19
O
O
I
O
BUSACT,
EBC1,
EBC0
22
23
24
I
I
I
RSTIN
27
I
RSTOUT
28
O
Semiconductor Group
4
