PESS-08-12-L-08.00-DR-NUS datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Dc power supply cord> PESS-08-12-L-08.00-DR-NUS

PESS-08-12-L-08.00-DR-NUS: DescriptionDC power cord.250" PowerStrip /40 A Single Row Discrete Wire Cable Assembly, Socket; CategoryWire/cable Cable package Dc power supply cord; File Size1MB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PESS-08-12-L-08.00-DR-NUS Overview

DC power cord.250" PowerStrip /40 A Single Row Discrete Wire Cable Assembly, Socket

PESS-08-12-L-08.00-DR-NUS Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	DC power cord
Shipping restrictions	Mouser does not currently sell this product.
Encapsulation	Bulk
series	PESS
Factory packaging quantity	1

Preview

Download Datasheet

View All

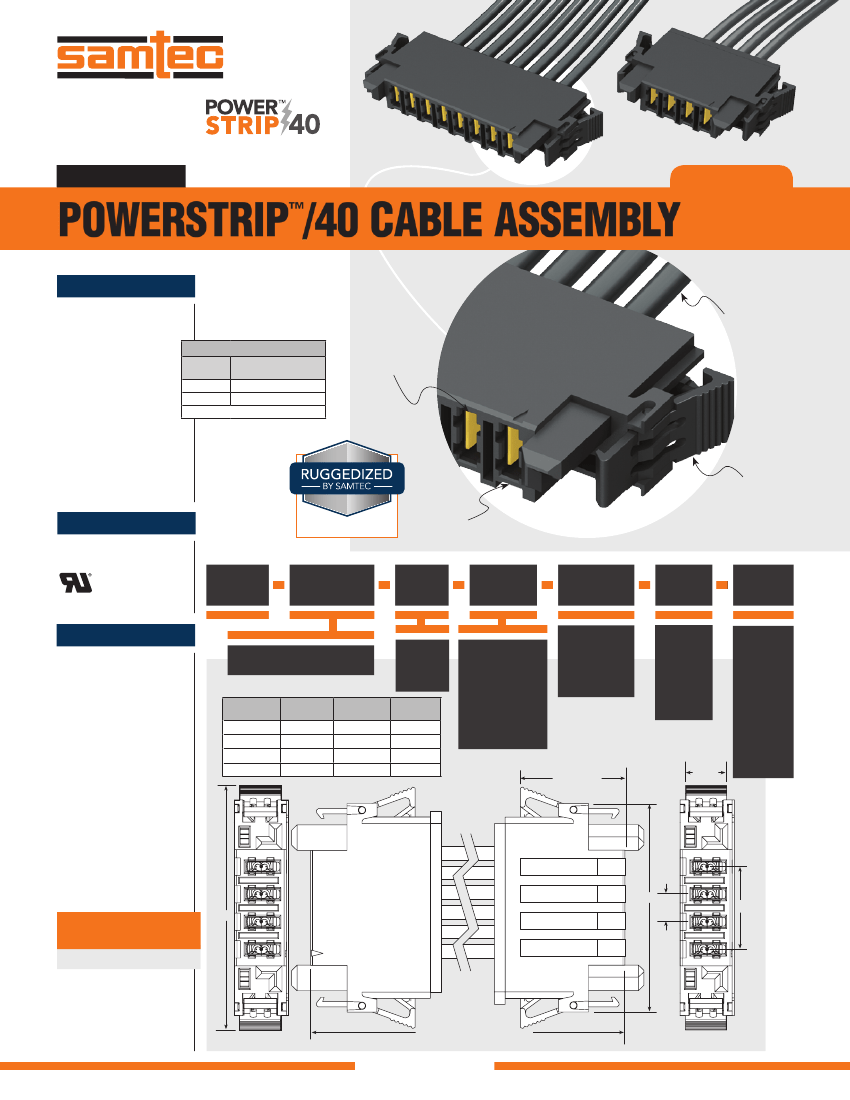

F-219

PESS–08–12–L–06.00–SR

PESS–04–10–L–06.00–SR

(6.35 mm) .250"

PESS SERIES

POWERSTRIP /40 CABLE ASSEMBLY

™

SPECIFICATIONS

For complete specifications

see www.samtec.com?PESS

Insulator Material:

Nylon Black

Contact Material:

Copper Alloy

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Latch:

Nylon Black

Operating Temp Range:

-30 °C to +105 °C

Voltage Rating:

600 VAC

846 VDC

Wire:

10 or 12 AWG

RoHS Compliant:

Yes

PESS/PET

WIRE

CURRENT RATING

GAUGE

(PER PIN)

10 AWG

34.5 A

12 AWG

29.7 A

1 PIN POWERED

Mates with:

PET

10 or 12 AWG

discrete wire

cable

Dual leaf

blade

contacts

Positive

latching system

• Positive latching

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

(6.35 mm)

.250" pitch

PESS

NO. OF

POSITIONS

WIRE

GAUGE

PLATING

OPTION

ASSEMBLED

LENGTH

END 1

OPTION

END 2

OPTION

(Available

with –DR

only)

COMPONENTS

• For body, see

www.samtec.com?IPS6

• For contacts, see

www.samtec.com?CC10L

www.samtec.com?CC10R

–02, –04, –06, –08

NO. OF

POSITIONS

–10

–12

(6.35) .250

= 10 µ" (0.25 µm)

Gold on contact,

Matte Tin

on tail

–L

–“XX.XX”

= Wire Length

in inches

(152.4 mm)

06.00" min.

= Single

End

= Double

End

–SR

–DR

–02

–04

–06

–08

(36.01) 1.418 (43.9) 1.73

(19.05) .750 (48.71) 1.918 (56.6) 2.23

(31.75) 1.250 (61.41) 2.418 (69.3) 2.73

(44.45) 1.750 (74.11) 2.918 (82.0) 3.23

= Matte Tin

(9.50)

.374

–T

= Notch up,

straight

–NUS

–NDS

= Notch

down,

straight

(24.50) .965

ALSO AVAILABLE

(MOQ Required)

• Other platings

(6.35)

.250

Note:

Some sizes, styles

and options are non-standard,

non-returnable.

–DR–NUS

Assembled Length ± (3.2) .13

–DR–NDS

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

PESS-02-10-L-16.00-SR PESS-02-10-L-40.00-DR-NUS PESS-02-10-L-48.00-SR PESS-02-10-L-22.00-SR PESS-

02-10-S-20.00-DR-NUS PESS-02-10-S-80.00-DR-NDS PESS-02-10-L-36.00-DR-NUS PESS-02-10-T-10.00-SR

PESS-02-12-L-16.00-DR-NDS PESS-02-12-S-12.00-SR PESS-04-10-L-15.00-SR PESS-04-10-L-50.00-DR-NUS

PESS-04-10-L-60.00-SR PESS-02-10-L-90.00-SR PESS-02-10-T-36.00-DR-NDS PESS-02-12-L-36.00-DR-NUS

PESS-02-12-L-39.37-DR-NUS PESS-04-10-L-10.00-DR-NDS PESS-04-10-L-12.00-DR-NDS PESS-04-10-L-12.00-DR-

NUS PESS-04-10-L-99.99-SR PESS-04-10-S-24.00-DR-NDS PESS-04-12-L-08.00-DR-NUS PESS-02-10-L-22.00-

DR-NDS PESS-02-10-L-22.50-DR-NDS PESS-02-10-L-24.00-SR PESS-02-10-S-20.00-DR-NDS PESS-02-12-T-

12.00-SR PESS-02-12-T-20.00-SR PESS-04-10-L-22.00-SR PESS-04-10-T-10.00-SR PESS-04-10-T-24.00-DR-NDS

PESS-04-10-T-24.00-SR PESS-04-12-L-20.00-DR-NDS PESS-04-12-L-24.00-SR PESS-04-12-L-30.00-DR-NDS

PESS-04-12-T-18.00-SR PESS-04-12-T-36.00-DR-NDS PESS-06-10-S-36.00-SR PESS-06-10-S-80.00-DR-NDS

PESS-08-10-L-10.00-DR-NDS PESS-08-10-S-14.00-SR PESS-08-10-T-06.01-DR-NDS PESS-02-10-L-09.00-DR-NDS

PESS-02-10-L-60.00-SR PESS-02-10-L-72.00-DR-NDS PESS-02-10-L-99.00-SR PESS-02-12-L-06.01-SR PESS-

02-12-L-12.00-SR PESS-02-12-L-36.00-SR PESS-04-12-L-09.00-SR PESS-04-12-S-14.00-SR PESS-06-10-L-36.00-

DR-NUS PESS-06-10-L-39.37-DR-NUS PESS-06-12-L-08.00-SR PESS-06-12-L-18.00-SR PESS-08-10-T-30.00-SR

PESS-08-10-T-39.37-SR PESS-02-10-L-07.87-DR-NDS PESS-02-10-L-18.00-SR PESS-02-10-T-26.00-SR PESS-02-

12-L-24.00-DR-NDS PESS-04-10-L-08.00-DR-NUS PESS-04-12-T-06.01-SR PESS-02-10-L-16.00-DR-NDS PESS-

02-12-L-15.00-DR-NUS PESS-02-12-L-24.00-SR PESS-02-12-L-30.00-SR PESS-02-12-T-25.40-SR PESS-04-10-L-

20.00-DR-NUS PESS-04-10-L-48.00-DR-NDS PESS-04-10-T-07.87-DR-NUS PESS-04-12-L-06.00-DR-NUS PESS-

04-12-L-132.0-SR PESS-04-12-L-30.00-SR PESS-04-12-L-36.00-SR PESS-04-12-T-08.00-DR-NUS PESS-04-12-T-

12.00-DR-NUS PESS-06-10-L-40.00-DR-NUS PESS-06-10-L-80.00-SR PESS-08-10-L-12.00-DR-NUS PESS-08-12-

L-06.00-DR-NUS PESS-08-12-L-08.00-SR PESS-02-12-L-12.00-DR-NDS PESS-06-12-L-12.60-SR PESS-06-12-L-

15.75-DR-NDS PESS-08-10-L-56.00-SR PESS-02-10-L-10.00-DR-NDS PESS-02-10-L-20.00-DR-NUS PESS-04-12-

T-24.00-SR PESS-06-12-S-12.00-SR PESS-02-12-L-09.00-DR-NDS PESS-04-10-T-15.00-SR PESS-04-10-T-72.00-

DR-NUS PESS-04-12-L-06.01-SR PESS-02-10-L-39.37-SR PESS-04-10-L-06.01-DR-NDS PESS-02-12-L-08.70-SR

PESS-04-12-L-38.00-SR PESS-06-12-L-11.81-DR-NDS
