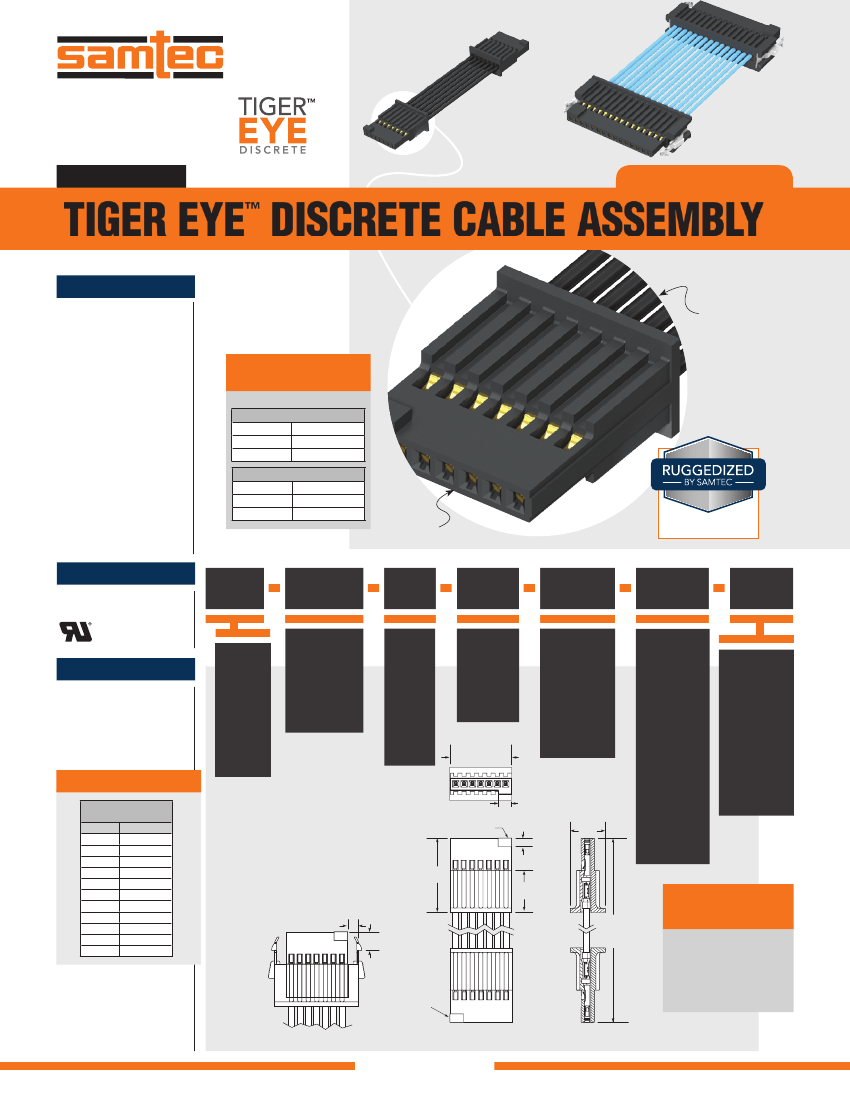

F-219
SFSS–07–30–G–03.00–D–NUS
SFSST–15–28–G–03.25–DR–NUS
(1.27 mm) .050"
SFSS, SFSST SERIES
TIGER EYE DISCRETE CABLE ASSEMBLY
™
SPECIFICATIONS
For complete specifications
see www.samtec.com?SFSS or
www.samtec.com?SFSST
Insulator Material:
Black LCP
Contact Material:
BeCu
Plating:
Au over 50 µ" (1.27 µm) Ni
Operating Temp Range:
-10 °C to +80 °C (PVC)
-40 °C to +125 °C (*Teflon
®
)
Current Rating:
2.9 A per pin (2 pins powered)
Voltage Rating:
275 VAC (PVC)
235 VAC (*Teflon
®
)
Wire:
28 or 30 AWG
RoHS Compliant:
Yes
*DuPont
™
Teflon
®
is a
registered trademark of the
E.I. du Pont de Nemours
and Company or its affiliates.
Mates with:
TFM, TFC
(–SR & –DR requires
–WT option)
28 or 30
AWG
–SR/–DR
APPLICATIONS
When Mated to TFM-WT
Terminal/Housing Retention
Min
Max
Avg
Min
Max
Avg
(22.25 N) 5.0 lb
(26.52 N) 5.96 lb
(24.34 N) 5.47 lb
(20.47 N) 4.6 lb
(36.49 N) 8.2 lb
(29.95 N) 6.73 lb
Wire/Crimp Retention
Single or
double ended
• Retention latch
option
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
FILE NO. E111594
TYPE
STRIP
POSITIONS
PER ROW
WIRE
GAUGE
PLATING
OPTION
ASSEMBLED
LENGTH
END
OPTION
END 2
OPTION
COMPONENTS
• For body, see
www.samtec.com?ISDF
• For contacts, see
www.samtec.com?CC03R
www.samtec.com?CC03M
= Single
Row
PVC Cable
SFSS
SFSST
= Single
Row
*Teflon
®
Cable
(Standard sizes)
–03, –04,
–05, –07,
–10, –15,
–20, –25,
–40, –50
= 28 AWG
= Color
Coded
Cable
(SFSS only)
= 30 AWG
–28
–28C
= 10 µ"
(0.25 µm)
Gold on
contact,
Gold Flash
on balance
–G
–“XX.XX”
= Assembled
Length in
Inches
(76.20 mm)
03.00" min. for
–S end option
(82.60 mm)
03.25" min. for
–D end option
= Single Ended
= Double Ended
–S
–D
Requires
–D or –DR
(End 1 Notch Up)
–30
No. of Positions x
(1.27) .050 +
(0.53) .021
APPLICATION
–28C CABLE
COLOR CODING
PIN
COLOR
1
2
3
4
5
6
7
8
9
10
ETC
BROWN
RED
ORANGE
YELLOW
GREEN
VIOLET
GRAY
WHITE
BLACK
BLUE
REPEAT
= Single Ended
Retention Latch
(TFM -WT
option required
for mating)
–SR
= Notch up,
straight
(Pin 1 to Pin N)
–NUS
–NDS
Note:
Teflon
®
cable is intended for
crimp only. Contact Samtec for
solderable cable applicators.
(2.03)
.080
End 1 Notch
(Always Up)
(1.27)
.050
(6.32)
.249
Assembled
Length
± (3.18)
.125
(5.08)
.200
= Double Ended
Retention Latch
(TFM -WT
option required
for mating)
–DR
= Notch down,
straight
(Pin 1 to Pin 1)
(11.18)
.440
ALSO
AVAILABLE
(MOQ Required)
• Other sizes
• Locking feature for
mating to the TFML Series
• Color coded cable
®
(*Teflon N/A)
• Other plating options
(1.65) .065
(2.86)
.113
Notes:
For wiring option and pin
position location information,
refer to drawings on web.
Some lengths, styles and
options are non-standard,
non-returnable.
–SR
End 2
notch
location
determined
by part
number
–D–NUS
SFSS or SFSST
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
