IDMS-16-T-10.00-G datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Flat cable/IDC data line> IDMS-16-T-10.00-G

IDMS-16-T-10.00-G: DescriptionFlat data cable/IDC data cable.100" Slim Body Single Row, IDC Ribbon Cable Assembly, Terminal; CategoryWire/cable Cable package Flat cable/IDC data line; File Size1MB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

IDMS-16-T-10.00-G Overview

Flat data cable/IDC data cable.100" Slim Body Single Row, IDC Ribbon Cable Assembly, Terminal

IDMS-16-T-10.00-G Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Flat data cable/IDC data cable
Shipping restrictions	Mouser does not currently sell this product.
product	IDC Ribbon Cable Assemblies
Encapsulation	Bulk
series	IDMS
Factory packaging quantity	1

Preview

Download Datasheet

View All

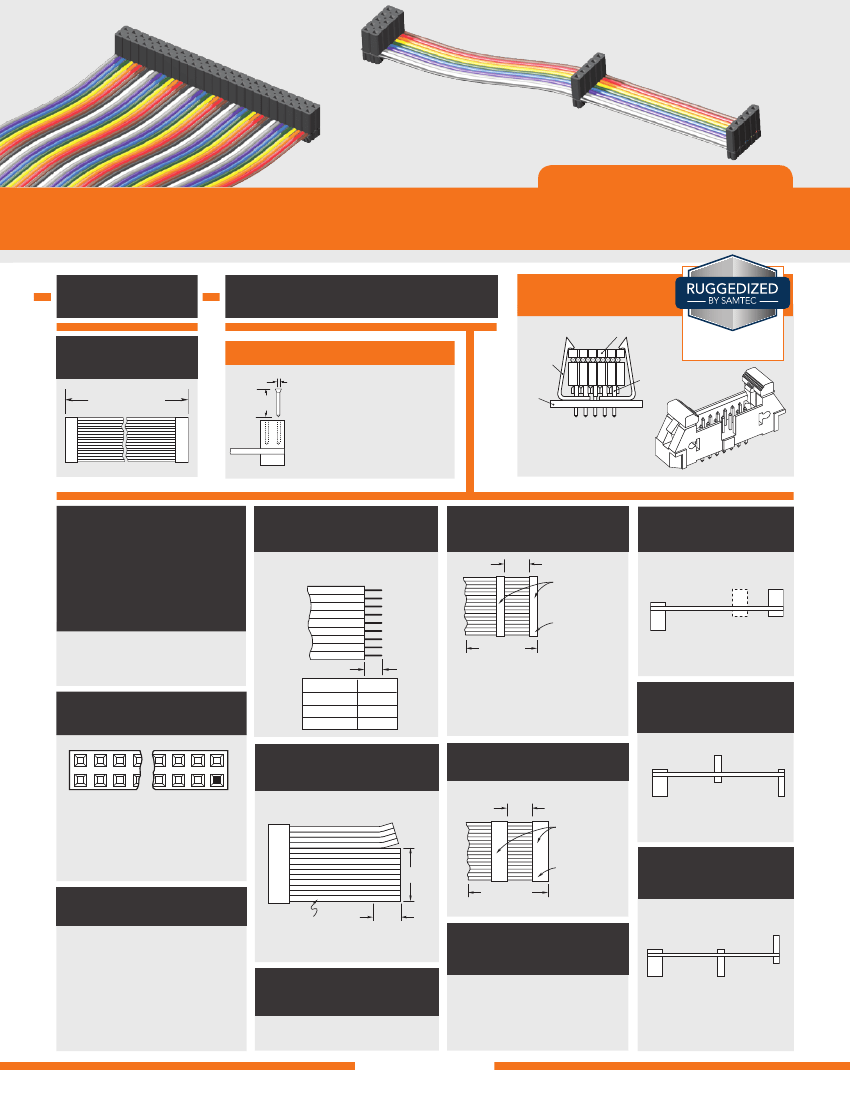

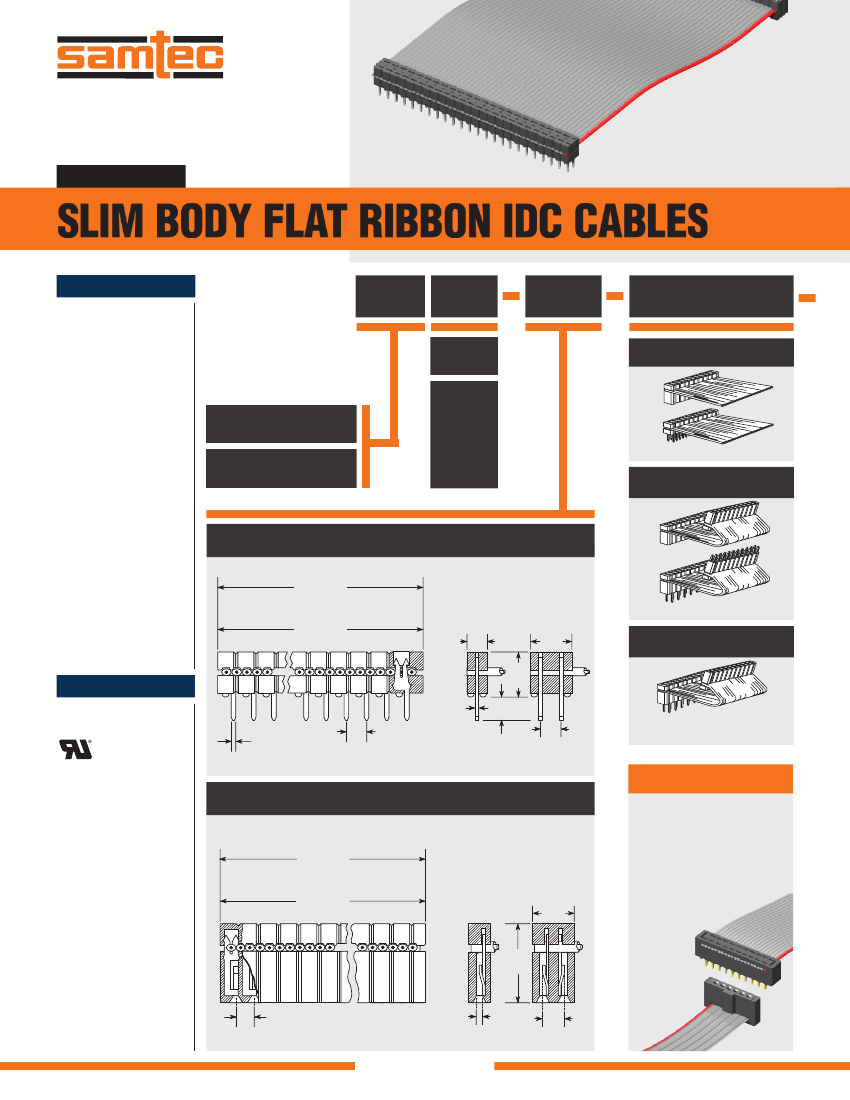

F-219

IDMD–24–D–12.00–G

(2.54 mm) .100"

SLIM BODY FLAT RIBBON IDC CABLES

SPECIFICATIONS

For complete specifications

see www.samtec.com?IDSS,

www.samtec.com?IDSD,

www.samtec.com?IDMS or

www.samtec.com?IDMD

Insulator Material:

Black Glass Filled Polyester

Plating:

Au over 50 µ" (1.27 µm) Ni or

Sn over 100 µ" (2.54 µm) Cu

or 50 µ" (1.27 µm) Ni

Wire:

28 AWG 7/36 stranded

Tinned Copper

Temperature Range:

-20 °C to +105 °C

(Rainbow Cable)

-40 °C to +105 °C

(Gray Cable)

Contact (IDSS/IDSD):

BeCu

Terminal (IDMS/IDMD):

Phosphor Bronze

Current Rating (IDSD/TST):

3.4 A per pin

(2 pins powered)

Current Rating (IDMD):

3 A per pin

(2 pins powered)

Lead Size Range:

(0.56 mm) .022" SQ to

(0.71 mm) .028" SQ

Lead Insertion Depth:

(5.59 mm) .220" to

(6.22 mm) .245"

RoHS Compliant:

Yes

Mates with:

TSW, MTSW, TSM, EJH,

PHT, HMTSW, HTSW,

HW, DW, EW, ZW, MTLW

IDSD Mates with:

TST, HTST, ZST,

BST, EJH

TYPE

STRIP

ROW

OPTION

NO. PINS

PER ROW

END

ASSEMBLY

= Single

–S

= Single

End

= Standard Tail Male Plug

IDM

IDS

= Socket

= Double

(Color coded

cable N/A for

31 thru 36

pins/row.

See –G

option.)

Socket or Male Plug on one end

–D

= Double

End

–02 thru –32

DOUBLE

Full size (64 positions):

(82.55) 3.250

Less than 64 positions:

No. Positions/row X (2.54) .100 + (1.68) .066

SINGLE

Full size (32 positions):

(81.53) 3.210

Less than 32 positions:

No. Positions/row X (2.54) .100 + (0.71) .028

IDMS

(Single)

(2.54)

.100

IDMD

(Double)

Socket or Male Plug on each end

(5.08)

.200

(6.10)

.240

MAX

–T

= Transfer

End

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(0.48)

.019

(0.46)

.018

(0.48)

.019

(2.54)

.100

(3.18)

.125

(2.54)

.100

Male Plug on one end with socket on

other.

Begin part number with IDM.

FILE NO. E111594

(For square or long tail see HCMX Series)

–02 thru –36

DOUBLE

Full size (72 positions):

(92.71) 3.650

Less than 72 positions:

No. Positions/row x (2.54) .100 + (1.50) .059

SINGLE

Full size (36 positions):

(91.69) 3.610

Less than 36 positions:

No. Positions/row x (2.54) .100 + (0.48) .019

OTHER SOLUTIONS

Molded-To-Position

IDC Assemblies

IDSD

(Double)

(5.08)

.200

IDSS

(Single)

•

Low profile

Skinny side locks

Dual beam contacts

Single and double row

(3.05 mm) .120"

and (5.84 mm) .230"

length tail

available

(9.27)

.365

REF

Note:

This Series is non-standard,

non-returnable.

(2.54)

.100

(0.76)

.030

(2.54)

.100

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

IDMS-06-D-02.00-G IDMS-16-D-03.50-T-G IDMS-10-T-02.00-R IDMS-16-T-09.00-G-R IDMS-04-T-02.00-C IDMS-

13-T-03.00-T IDMS-11-T-09.00 IDMS-16-T-06.00-A-P15-G IDMS-12-T-13.00-A-G IDMS-14-T-03.00-T-G IDMS-16-T-

54.00-G IDMS-12-T-18.00-A-G IDMS-16-D-03.50 IDMS-24-S-08.00-ST4 IDMS-11-S-07.20-G IDMS-11-T-13.00-A-G

IDMS-22-D-37.80 IDMS-02-T-05.00 IDMS-08-T-06.00-A-R IDMS-16-T-20.00-R IDMS-18-T-20.00-C IDMS-11-S-

08.50-ST4-RW IDMS-18-S-03.00-G-ST8 IDMS-20-S-02.50-ST8 IDMS-12-D-20.00 IDMS-19-T-03.00-G IDMS-04-S-

06.00-G IDMS-16-D-04.95-G-RW-R IDMS-06-T-05.91 IDMS-16-T-12.00-C-P05 IDMS-16-T-84.00-G IDMS-04-S-

02.00-ST2 IDMS-16-D-06.50-T IDMS-16-D-08.00 IDMS-16-D-09.00 IDMS-16-S-03.62-ST4 IDMS-22-S-02.00-ST8

IDMS-25-S-06.00 IDMS-26-D-08.50-T IDMS-05-T-04.00-A IDMS-06-S-02.75-G-ST8 IDMS-08-T-03.94-R IDMS-08-T-

05.00-A-R IDMS-08-T-07.08 IDMS-13-D-18.00-G IDMS-14-T-02.50-T IDMS-07-S-06.00-T-G-ST4 IDMS-04-S-02.01-

ST8 IDMS-04-T-02.01 IDMS-05-S-07.00-ST8 IDMS-06-T-08.00-G IDMS-18-T-24.00-C-RW-R IDMS-20-T-04.00-RW-

R IDMS-08-D-03.00-G IDMS-14-T-29.00-C-P03 IDMS-30-T-04.00 IDMS-16-D-02.75 IDMS-16-S-24.00-ST4 IDMS-

02-T-18.00 IDMS-03-S-04.00-ST8 IDMS-07-T-18.00 IDMS-12-D-06.00-G IDMS-14-T-03.00-RW-R IDMS-21-D-10.88-

T IDMS-09-T-09.00-T-G IDMS-32-T-03.50 IDMS-16-T-02.00-T-R IDMS-03-T-05.00-A-G-R IDMS-03-T-48.00-G

IDMS-07-T-04.00-C IDMS-03-T-04.00-C IDMS-03-D-48.00-G IDMS-03-S-08.00-ST4 IDMS-06-T-02.65 IDMS-07-T-

08.00-R IDMS-08-D-07.10-T IDMS-09-T-06.00-T-G IDMS-12-T-02.50-G IDMS-14-T-12.00-C-P03 IDMS-04-S-08.00-

ST4 IDMS-05-S-02.75-G-ST8 IDMS-06-T-07.80 IDMS-10-D-05.00-T IDMS-12-T-05.00-R IDMS-15-T-02.00-C-R

IDMS-16-S-04.00-T-ST8 IDMS-16-T-03.00-T IDMS-20-S-05.00 IDMS-10-S-02.00-G-ST8 IDMS-07-D-02.50-R IDMS-

07-T-08.00 IDMS-09-T-04.00-G IDMS-02-S-10.00-ST4 IDMS-06-D-02.75-R IDMS-07-D-02.70 IDMS-10-S-02.36

IDMS-10-S-02.75-G-ST8 IDMS-11-S-07.00-G IDMS-11-T-06.25-A-G-RW IDMS-08-T-03.75-G
