SCRUS-17-G-00.70-AMS-BC Overview

USB data cable/IEEE 1394 data cable AccliMate IP68 Sealed Circular USB Cable Assembly, Receptacle

SCRUS-17-G-00.70-AMS-BC Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	USB data cable/IEEE 1394 data cable
Shipping restrictions	Mouser does not currently sell this product.
Encapsulation	Bulk
series	SCRUS
Factory packaging quantity	1

Preview

Download Datasheet

View All

F-219

SCRUS–17–G–00.25–AMS–BC

SCRES–G–00.25–D–C5E

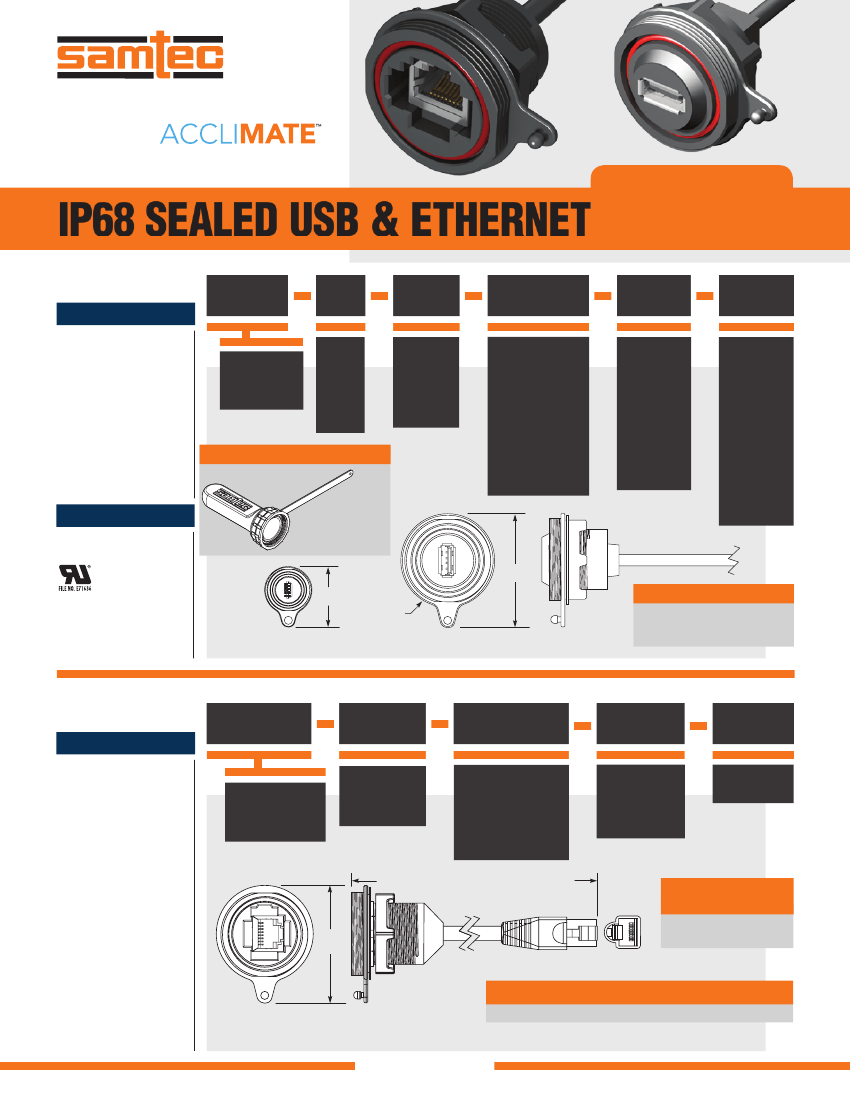

SCRUS, SCRES SERIES

IP68 SEALED USB & ETHERNET

Mates with:

SCPU

TYPE

SPECIFICATIONS

For complete specifications and

recommended panel hole layout

see www.samtec.com?SCRUS

Insulator Material:

PBT

Contact Material:

Phosphor Bronze

Wire:

20 AWG (Power)

25 AWG (Signal)

28 AWG (Drain)

O-Ring:

Silicone

Operating Temp Range:

-20 °C to +75 °C

RoHS Compliant:

Yes

SHELL

SIZE

PLATING

WIRE

LENGTH

END 1

OPTION

END 2

OPTION

= Sealed Circular

USB Receptacle

Cable Assembly

SCRUS

(Standard

USB only)

–17

–10

(Mini

USB only)

= 30 µ"

(0.76 µm)

Gold on

Contact,

Nickel

on Shell

–G

= (0.25 m) 9.84"

Cable

–00.25

–00.50

= USB A Type,

Sealed

–AMS

–BMS

–MBS

= USB A Type,

Not Sealed

–AM

–BM

–MB

–BC

= (0.50 m) 19.68"

Cable

Standard lengths

(Assembled Length

= Wire Length

+ (37.9 mm) 1.50")

= USB B Type,

Sealed

= USB B Type,

Not Sealed

DUST CAP

USB Flash Drive Cover:

DCA–17–03

= Mini

USB B Type,

Sealed

= Mini

USB B Type,

Not Sealed

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

Device dimensions:

80.00 mm x 13.30 mm

x 20.25 mm max.

(48.45)

1.907

(31.80)

1.252

(39.50)

1.55

DIA

= Blunt Cut

OTHER SOLUTIONS

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

END NO. 1

• Termination for standard ethernet cable from panel to board

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
