MRTD-10-22-F-11.8-M1 datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Flat cable/IDC data line> MRTD-10-22-F-11.8-M1

MRTD-10-22-F-11.8-M1: DescriptionFlat data cable/IDC data cable.100" Mini Mate Double Row Panel Mount Discrete Wire Cable Assembly, Terminal; CategoryWire/cable Cable package Flat cable/IDC data line; File Size195KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MRTD-10-22-F-11.8-M1 Overview

Flat data cable/IDC data cable.100" Mini Mate Double Row Panel Mount Discrete Wire Cable Assembly, Terminal

MRTD-10-22-F-11.8-M1 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Flat data cable/IDC data cable
Shipping restrictions	Mouser does not currently sell this product.
product	Discrete Wire Cable Assemblies
Encapsulation	Bulk
series	MRTD
Factory packaging quantity	1

Preview

Download Datasheet

View All

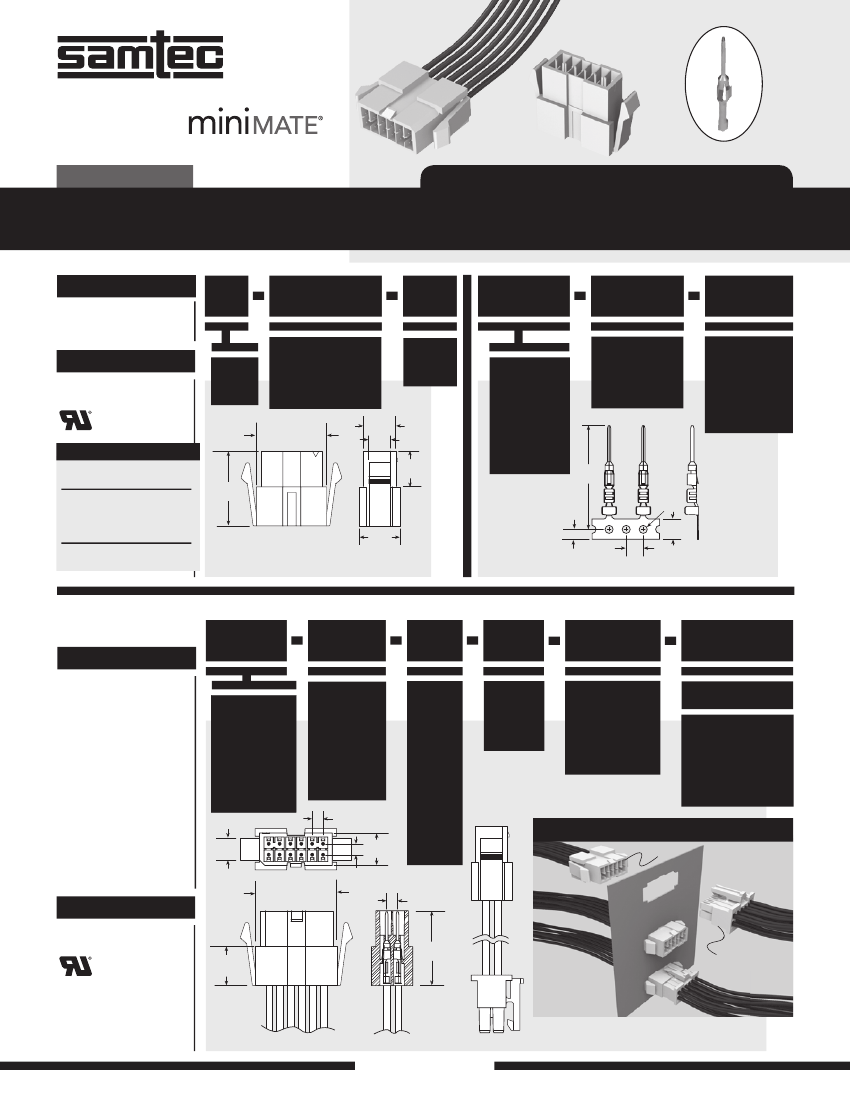

F-219 SUPPLEMENT

IPR1–06–D

MRTD–06–24–L–03.3

T1M74-L–01–F

(2.54 mm) .100"

IPR1, T1M74-L, T1M74-R, MRTD, MRTDT SERIES

DISCRETE WIRE COMPONENTS & TOOLING

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?IPR1,

www.samtec.com?T1M74-L

or www.samtec.com?T1M74-R

TYPE

PINS

PER ROW

–D

TYPE

WIRE

GAUGE

PLATING

OPTION

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

FILE NO. E111594

IPR1

= Body,

Loose

–02, –03, –04,

–05, –06, –08,

–10, –12, –15

(Standard sizes)

No. of positions

x (2.54) .100

+ (3.81) .150

(7.62)

.300

= Double

Row

T1M74-L

= Contact,

Loose

= 26 to 30 AWG

–01

–02

= Gold ﬂash

on contact

–F

–L

= 20 to 24 AWG

T1M74-R

(5.08)

.200

(8.38)

.330

TOOLING

• Hand Tool:

CAT-HT-174-2030-13

• Mini Applicator (20-24 AWG):

CAT-MC-174-2024-XX-01

• Mini Applicator (26-30 AWG):

CAT-MC-174-2630-XX-01

• Extraction Tool:

CAT-EX-74-01

(17.53)

.690

= Contact,

Full Reel

(15,300 Parts

per Reel)

= 10 µ" (0.25 µm)

Gold on contact

(19.33)

.761

(1.91)

.075

(1.57)

.062

DIA

(3.81)

.150

(3.17)

.125

(9.65)

.380

Insulator Material:

Nylon

Contact Material:

Phosphor Bronze

Mates with:

MMSD(T)

TYPE

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?MRTD

or www.samtec.com?MRTDT

Insulator Material:

Nylon 66

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-40 °C to +105 °C (PVC)

-55 °C to +125 °C (*Teﬂon )

Wire:

20 to 30 AWG

RoHS Compliant:

Yes

*DuPont

™

Teflon

is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its affiliates.

PINS PER

ROW

WIRE

GAUGE

PLATING

OPTION

ASSEMBLY

LENGTH

–“XX.X”

PINOUT

Leave blank for single

ended cable assembly.

= Double Row

PVC Cable

MRTD

= Double Row

*Teﬂon

Cable

(20, 24, 28 &

30 AWG only)

(5.08)

.200

MRTDT

(Standard sizes)

(2.54)

.100

(7.62)

.300

–02,

–03, –04,

–05, –06,

–08, –10,

–12, –15

–20

–20C

♦

–22

–24

–24C

♦

–26

–28

–28C

♦

–30

(2.54)

.100

= 10 µ"

(0.25 µm)

Gold on

contact

–L

Note:

♦

C specifies

color coded cable.

See website for color coding.

END 1

= Assembly Length

in Inches

Single ended =

(76.2 mm) 03.0" min.

Double ended =

(84.0 mm) 03.3" min.

= Plastic Transfer

Latch up, straight

= Plastic Transfer

Latch down, straight

–L1

–L4

APPLICATION

MRTD

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

(9.14)

.360

FILE NO. E111594

No. of positions

x (2.54) .100

+ (3.81) .150

(2.54)

.100

(17.53)

.690

MMSD

Note:

Teflon

cable is

intended for crimp only.

Contact Samtec for

solderable cable applications.

MRTD/MRTDT

END 2

Note:

Acceptable panel thickness of

(0.84 mm) .0329" to (2.28 mm) .0897"

Due to technical progress, all designs, speciﬁcations and components are subject to change without notice.

All parts within this catalog are built to Samtec’s speciﬁcations.

Customer speciﬁc requirements must be approved by Samtec and identiﬁed in a Samtec customer-speciﬁc drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

MRTDT-04-20-L-99.9-L1 MRTDT-10-24-S-08.0 MRTDT-02-24-L-04.0-L4 MRTDT-02-24-L-03.3 MRTDT-08-30-L-

06.0-L4 MRTDT-08-30-L-06.0-L1 MRTDT-03-20-F-03.0 MRTDT-05-24-L-24.0-L4 MRTDT-06-20-L-12.0-L1 MRTD-

08-22-L-10.0-L1 MRTD-08-26-L-10.0-L1 MRTD-02-26-L-05.0 MRTD-02-20-L-06.0-M1 MRTD-02-20-L-24.0-L1

MRTD-10-28-L-09.0-L1 MRTD-10-30-L-05.0 MRTD-15-20-L-03.0 MRTD-15-24-L-05.0-L1 MRTD-10-24-L-05.0-L1

MRTD-04-24C-L-08.0-L1 MRTD-05-20-L-04.0-L1 MRTD-05-24C-L-06.0 MRTD-04-20-L-10.0-L1 MRTD-02-20-L-12.0

MRTD-02-22-L-48.0 MRTD-05-24-L-05.0-L1 MRTD-10-22-F-06.0 MRTD-02-26-L-03.0 MRTD-02-24C-L-08.0-L1

MRTD-05-24-L-05.0-L4 MRTD-04-22-F-08.0 MRTD-06-22-L-03.3-L1 MRTD-12-28-L-06.0-L1 MRTD-02-20C-L-24.0

MRTD-03-20-L-10.0 MRTD-04-24-L-03.3 MRTD-06-20-L-06.0 MRTD-06-22C-S-12.0-L1 MRTD-10-22C-S-12.0-L1

MRTD-03-26-L-10.0 MRTD-05-24-L-03.4-L1 MRTD-05-24-L-06.0-L4 MRTD-06-24-L-60.0 MRTD-06-28-F-03.0

MRTD-15-20-L-03.3-L1 MRTD-08-24-L-04.0 MRTD-10-28C-L-24.0-L1 MRTD-02-20-F-12.0-L1 MRTD-02-20-L-03.3-L1

MRTD-03-20-L-29.2-L1 MRTD-06-20-F-24.0 MRTD-06-20-L-20.0 MRTD-10-22-L-03.3-L1 MRTD-04-20C-F-15.0

MRTD-04-24-L-05.0-L1 MRTD-10-20C-L-26.0 MRTD-10-26-L-08.0-L1 MRTD-02-28-F-08.0 MRTD-03-20-S-80.0-L1

MRTD-04-20C-L-03.0 MRTD-04-24-L-04.0-L1 MRTD-04-28-L-10.0 MRTD-05-26-F-03.0 MRTD-10-24-L-08.0-L1

MRTD-02-20-S-06.0-L1 MRTD-02-22-L-12.0 MRTD-02-24-L-15.7-L1 MRTD-08-20-F-05.0-L1 MRTD-02-26-F-29.2-L1

MRTD-03-24-L-03.3-L1 MRTD-05-20C-L-36.0-L1 MRTD-03-26-F-03.0 MRTD-05-24-L-03.3-L1 MRTD-05-24-L-06.0-

L1 MRTD-08-20C-L-11.8 MRTD-08-20C-S-24.0 MRTD-15-20-L-24.0 MRTD-02-20-L-04.0 MRTD-03-20-F-08.0-L1

MRTD-03-20-F-40.0-L1 MRTD-03-20-L-11.1-L1 MRTD-04-22-L-03.3-L1 MRTD-10-22-F-11.8-M1 MRTD-02-24-L-04.0-

L1 MRTD-02-24-L-12.0-L1 MRTD-03-26-L-03.3-L1 MRTD-03-28-L-03.0 MRTD-05-22C-S-12.0-L1 MRTD-15-28C-L-

24.0-L1 MRTD-03-24-L-03.3 MRTD-04-22C-S-12.0-L1 MRTD-06-20C-L-08.0-L4 MRTD-06-22-L-10.0 MRTD-02-20-L-

68.0 MRTD-02-28-L-10.0 MRTD-04-20-L-04.0-L1 MRTD-05-26-L-03.3-L1 MRTD-08-22-L-03.3-L1 MRTD-06-20-F-

12.0-L1 MRTD-10-20-L-10.0-L1
