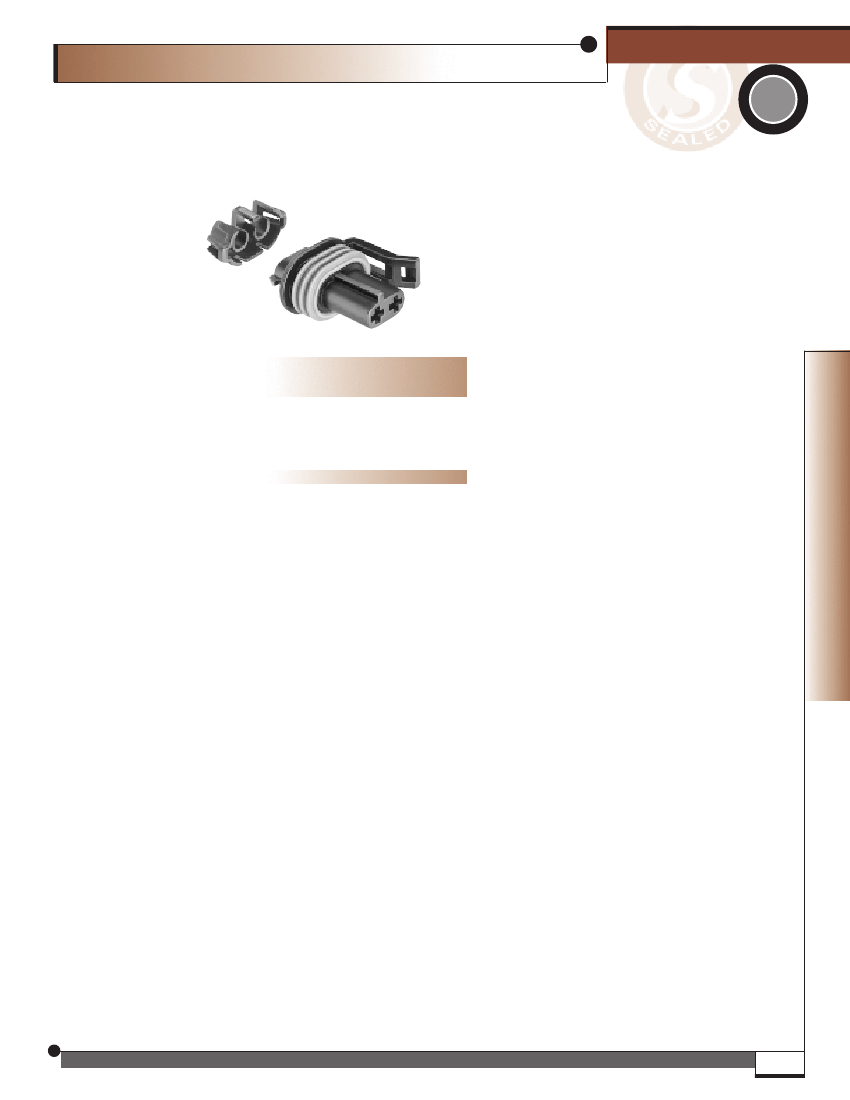

Ducon Series
S
S
S
E
L
E
A
ED
2.8

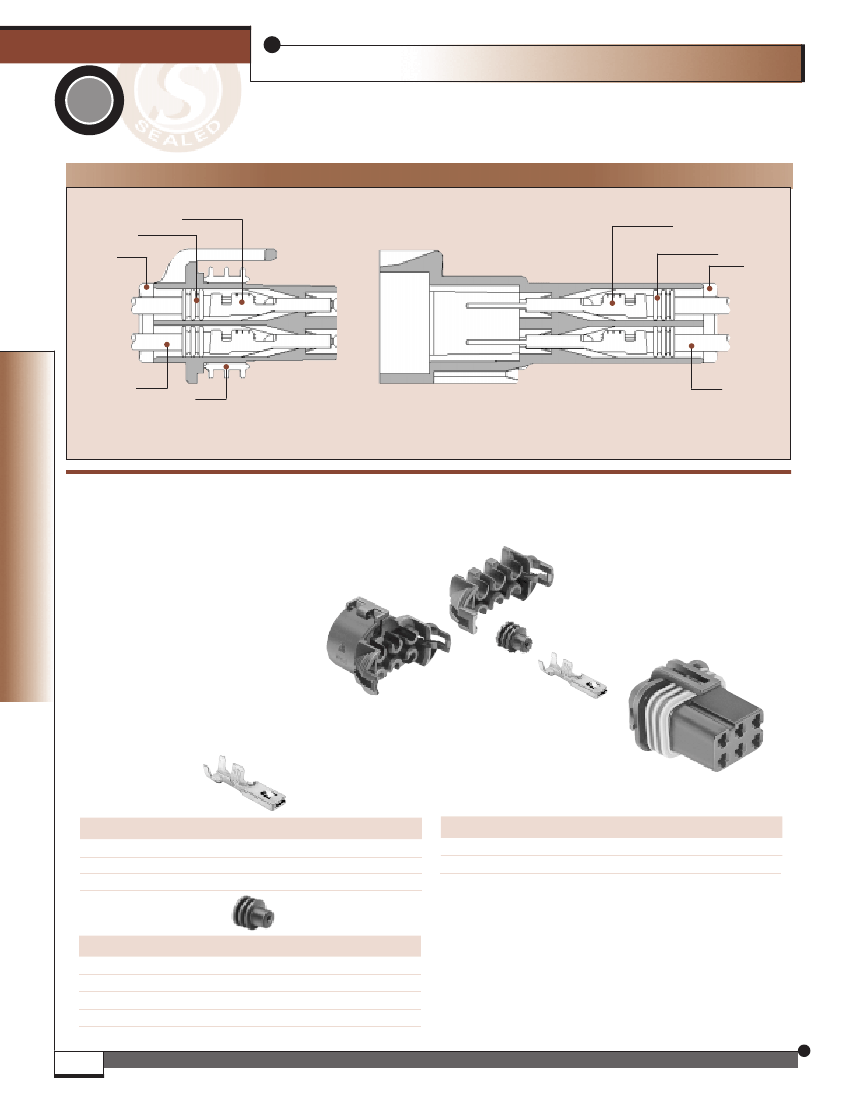

Cross Sectional View
AL
E
D
Terminal
Cable Seal
TPA
Terminal
Cable Seal
TPA
Cable
Connector Seal
Cable
Female Connector Assembly
Male Connector
TPA
(Terminal Position
Assurance)
Cable Seal
Optional Conduit
TPA Cap
Female Terminal
Female Connector Assembly
2.8 FEMALE TERMINALS SEALED
Part #
12158098
12185008
Cable Range (mm
2
)
1.5-0.5
2.5-1.5
Material
Copper Nickel Silicon Alloy
Copper Nickel Silicon Alloy
Plating
Tin
Tin
2.8 FEMALE CONNECTOR ASSEMBLY SEALED
# Cavities
Connector
Color
Black
Black
Material
PA6
PA6
TPA
12185000
10717815
6
15344052
Optional Conduit TPA Cap
2.8 DUCON CABLE SEALS
Reel Part #
12089442
10720769
15363992
Loose Part #
12048087
15363981
12048086
Cable Diameter
2.00-1.20
2.40-1.60
2.90-2.00
Material
Silicone
Silicone
Silicone
Color
Blue
White
Dk. Red
http://delphi.com/products/connect
206
North American Region
1-800-PACKARD
European Region
49-202-291-2000
Asia Pacific Region
65-730-9900
South American Region
55-12-378-2002
2.8
Ducon Series
S
S
S
E
L
E
A
ED
AL
E
D
Sealed System Application Information
2.8 SERIES TERMINALS–Tin Plated
CABLE RANGE
(
mm
2
):
.......... 0.5-2.5
............ 33
T
EMPERATURE RISE
( C)
105
90
75
60
45
30
15
0
0
10
0.5
M
AXIMUM
C
URRENT
(AMPS)
TEMPERATURE RISE ABOVE
AMBIENT (25
o
C ) VS CURRENT*
O

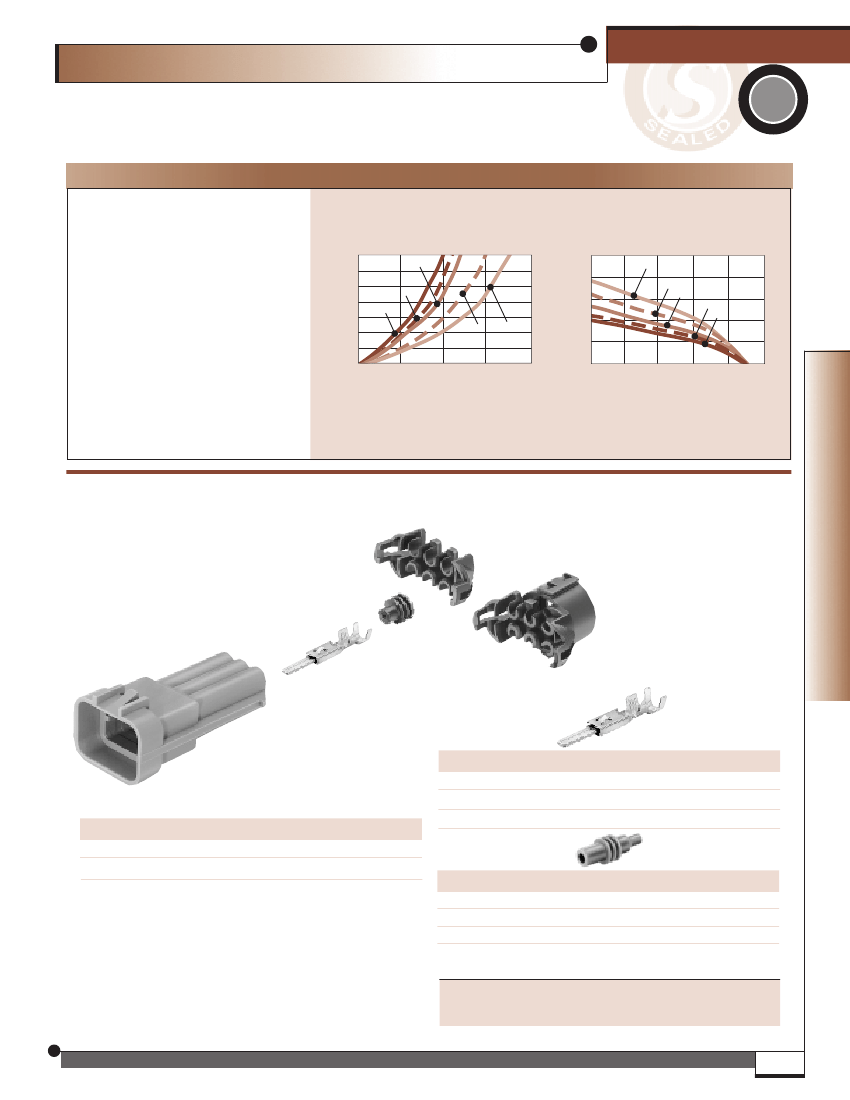

TEMPERATURE DERATING CURVES*
50
40
30
20
10
0
25
50
75
100
125
O
1.0
0.75
2.5
1.5
1.0
0.75
0.5
CURRENT RANGE
(
AMPS
):
TEMP RANGE
O
C
:
RESISTANCE
:
........... -40 to 135
....... <4.0mV/amp
6.0
2.8
....... <10m
Ω
@20mV
1.5
2.5
VOLTAGE DROP
:
CENTERLINE SPACING
(
mm
): ........
BLADE WIDTH
(
mm
): ..................
20
30
40
150
C
URRENT
(AMPS)
A
MBIENT
T
EMPERATURE
( C )
*The test data are based on single circuits in free space and were generated using a “Lumped
Resistance” model. This model does not account for all of the variables that would be present
in an actual application. For actual product performance, contact your regional support
representative at the number listed below.
TPA
(Terminal Position
Assurance)
Cable Seal
Male Terminal
Optional Conduit
TPA Cap

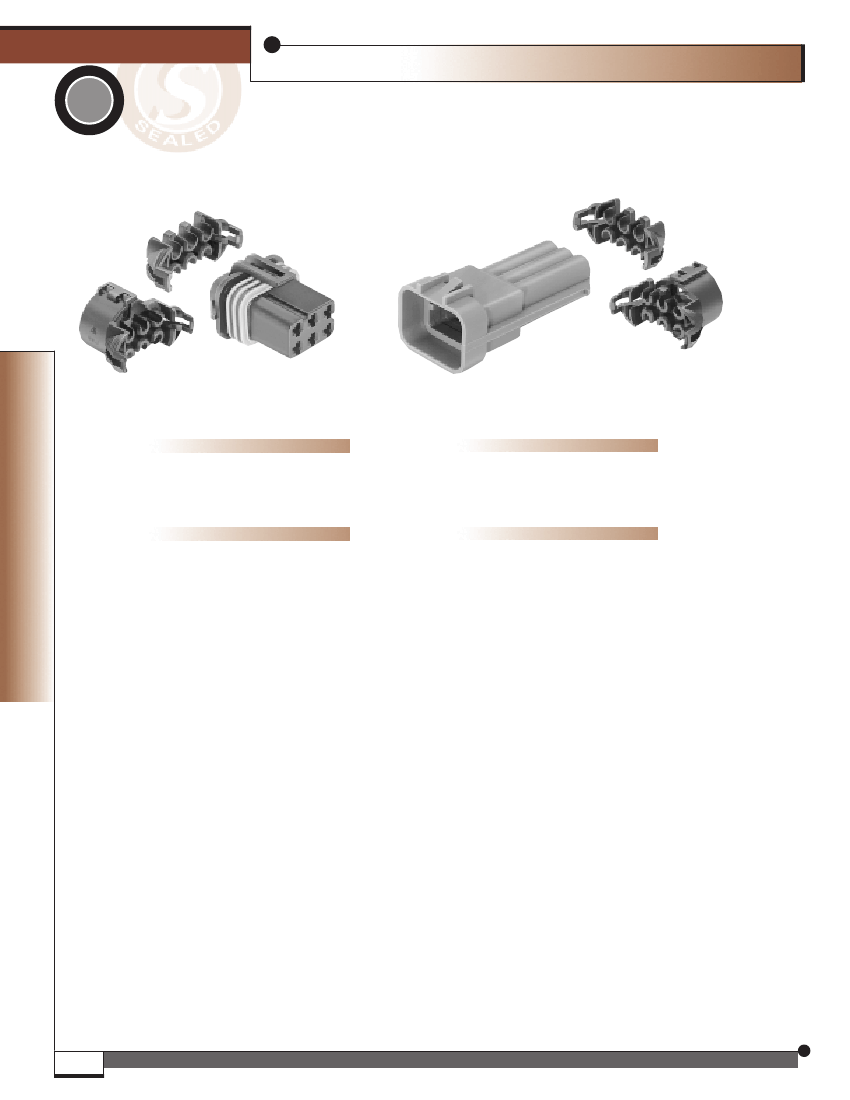

2.8 MALE TERMINALS SEALED
Part #
Male Connector
Cable Range (mm
2
)
1.5-0.5
2.5-1.5
Material
Copper Nickel Silicon Alloy
Copper Nickel Silicon Alloy
Plating
Tin
Tin
12185129
12185237
TPA
12185000
10717815
Part #
15337197
10730124
2.8 MALE CONNECTOR SEALED
# Cavities
6
Connector
12185126
Color
Gray
Black
Material
PA6
PA6
Optional Conduit TPA Cap
2.8 DUCON CAVITY PLUGS*
Cavity Inside Diameter
5.2mm
5.2mm
Material
Silicone
Silicone
Color
White
Green
*Cavity plugs seal unused female and male cavitites.
SECTION NOTES:
Contact your regional support representative at the number listed below.
• Ducon Connection Systems have been validated using
DIN Cable Standards.
http://delphi.com/products/connect
North American Region
1-800-PACKARD
European Region
49-202-291-2000
Asia Pacific Region
65-730-9900
South American Region
55-12-378-2002
