Military COTS 28V
IN
Filter
M-FIAM7
Actual size:
2.28 x 2.2 x 0.5in
57,9 x 55,9 x 12,7mm
Model Number
M-FIAM7M21*
Input Attenuator Module
Features & Benefits
•
EMI filtering-MIL-STD-461E
[1]
•
Transient protection-MIL-STD-1275A/B/D,
MIL-STD-704A-F and DO-160E
•
Environments-MIL-STD-810, MIL-STD-202
•
Environmental stress screening
•
Low profile mounting options
•
Output power up to 130W
•
Output current up to 10A
•
Mini sized package
•
Inrush current limiting
Absolute Maximum Rating
Parameter
+IN to –IN
Mounting torque
Pin soldering temperature
Rating
50
100
5 (0.57)
500 (260)
750 (390)
Unit
V
DC
V
DC
in-lbs
°F(°C)
°F(°C)
Notes
Continuous
See Fig.1
6 each, #4-40 or M3
<5sec; wave solder
<7sec; hand solder
Thermal Resistance and Capacity
Parameter
Baseplate to sink
flat, greased surface
with thermal pad (P/N 20264)
Baseplate to ambient
Free convection
1000LFM
Min
Typ
0.16
0.1
7.9
2.2
Max
Unit
°C/Watt
°C/Watt
°C/Watt
°C/Watt
Product Highlights
The M-FIAM7 is a DC front-end module that
provides EMI filtering and transient protection.
The M-FIAM7 enables designers using Vicor’s
28V DC-DC VI Chip modules to meet conducted
emission/conducted susceptibility per
MIL-STD-461E; and input transients per
MIL-STD-1275A/B/D, MIL-STD-704A-F and DO-
160E. The M-FIAM7 accepts an input voltage of
14 – 50V
DC
and delivers output current
up to 10A.
M-FIAM7 is housed in an industry
standard “half brick” module measuring
2.28” x 2.2” x 0.5” and depending upon
model selected, may be mounted onboard
or inboard for height critical applications.
MTBF per MIL-HDBK-217F (M-FIAM7M21)
Temperature
25°C
50°C
65°C
Environment
Ground Benign: G.B.
Naval Sheltered: N.S.
Airborne Inhabited Cargo: A.I.C.
MTBF
3,540
637
499
Unit
1,000Hrs
1,000Hrs
1,000Hrs
Part Numbering
M-FIAM7
Product
M
Product Grade Temperatures (°C)
Grade
Operating
Storage
H
=
–40 to +100 –55 to +125
M
=
–55 to +100 –65 to +125
1
=
2
=
S
=
N
=
F
=
G
=
K
=
2
Pin Style
Short Pin
Long Pin
Short ModuMate
[2]
Long ModuMate
[2]
Short RoHS
Long RoHS
Extra Long RoHS
[3]
1
Baseplate
1
= Slotted
2
= Threaded
3
= Thru hole
Compatible Products
•
28V Input DC-DC VI Chip
®
modules
Note:
This product is not compatible with Maxi,
Mini, Micro DC-DC converters.
performance is subject to a wide variety of
external influences such as PCB construction, circuit
layout etc. As such, external components in addition
to those listed herein may be required in specific
instances to gain full compliance to the standards
specified.
[1]
EMI
[2]
[3]
Compatible with SurfMate and InMate socketing system
Not intended for socket or Surfmate mounting
M-FIAM 7
Page 1 of 6
Rev 3.1
06/2017
vicorpower.com
800 927.9474
M-FIAM7M21
Specifications
(Typical at T
BP
= 25°C, nominal line and 75% load, unless otherwise specified)
INPUT SPECIFICATIONS
Parameter
Input voltage
Inrush limiting
Min
14
Typ
28
Max
50
0.007
100
Transient immunity
250
70
80
Unit
V
DC
A/µF
V
DC
V
DC
V
DC
V
DC
50ms per MIL-STD-1275A/B/D, continuous operation
70µs per MIL-STD-1275B, continuous operation
20ms per MIL-STD-704A, continuous operation
100ms per DO-160E, Section 16, Power Input, Category Z
Notes
Continuous
OUTPUT SPECIFICATIONS
Parameter
Output current
Output power
Efficiency
Internal voltage drop
External capacitance
330
1000
µF
96
98
0.5
Min
Typ
Max
10
130
0.7
Unit
A
W
%
V
Notes
Over continuous input and temp. range (see Fig.4)
Transient compliance over temp. range (see Fig.6)
@ 10A, 100°C baseplate
See illustration C1 on page 4
63V
CONTROL PIN SPECIFICATIONS
Parameter
ON/OFF control
Enable (ON)
Disable (OFF)
Min
0.0
4.0
Typ
Max
1.0
5.50
Unit
V
DC
V
DC
Notes
Referenced to – V
OUT
100kΩ internal pull-up resistor
SAFETY SPECIFICATIONS
Parameter
Dielectric withstand
Min
1,500
2,121
Typ
Max
Unit
V
RMS
V
DC
Notes
Input/Output to Base
Input/Output to Base
EMI
Standard
MIL-STD-461E
Conducted emissions:
Conducted susceptibility:
Test Procedure
CE101, CE102
CS101, CS114, CS115, CS116
Notes
EMI performance is subject to a wide variety of external influences such as PCB construction, circuit layout etc. As such, external components in addition
to those listed herein may be required in specific instances to gain full compliance to the standards specified.
GENERAL SPECIFICATIONS
Parameter
Weight
Warranty
Min
Typ
Max
3.3 (94)
2
Unit
Ounces (grams)
Years
Notes
M-FIAM 7
Page 2 of 6
Rev 3.1
06/2017
vicorpower.com
800 927.9474
M-FIAM7M21
Specifications (Cont.)

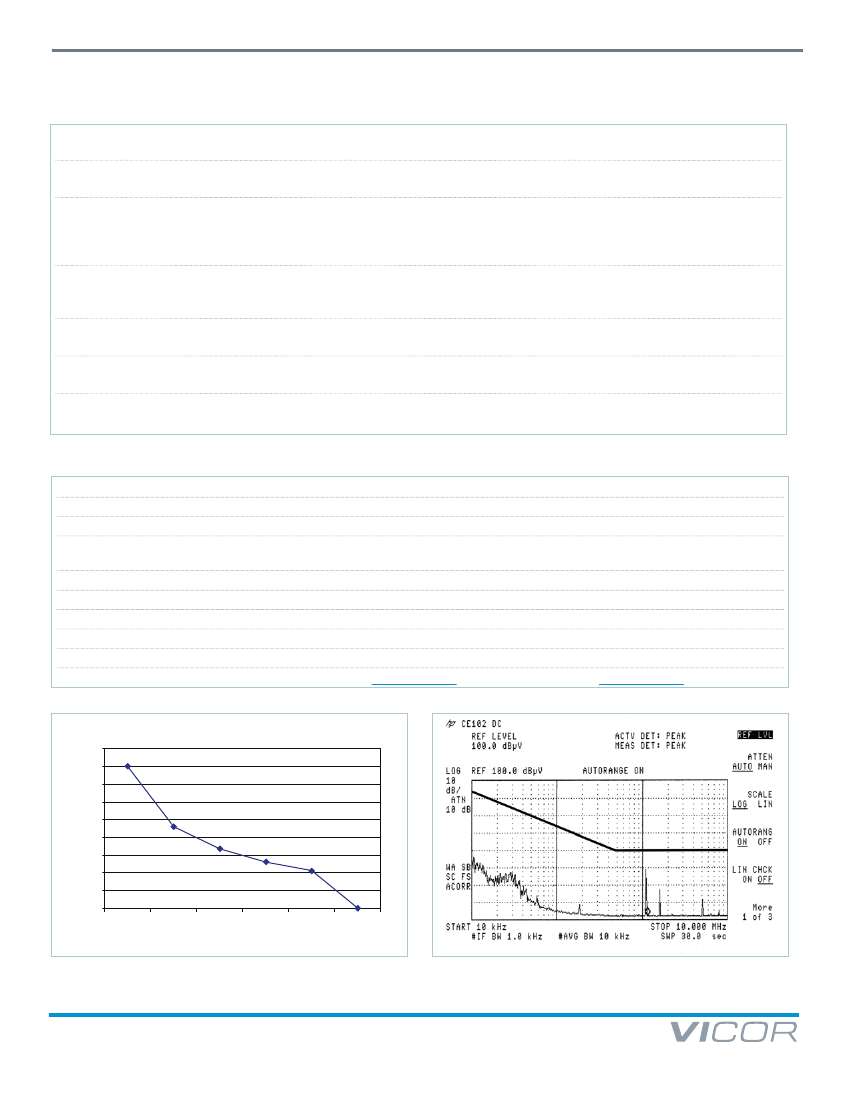

ENVIRONMENTAL QUALIFICATION
Altitude
MIL-STD-810F, Method 500.4, Procedure I & II, 40,000ft. and 70,000ft. Operational.
Explosive Atmosphere
MIL-STD-810F, Method 511.4, Procedure I, Operational.
Vibration
MIL-STD-810F, Method 514.5, Procedure I, Category 14, Sine and Random vibration per Table 514.5C for Helicopter AH-6J Main Rotor with overall level
of 5.6Grms for 4 hours per axis. MIL-STD-810F, Method 514.5C, General Minimum Integrity Curve per Figure 514.5C-17 with overall level of 7.7Grms
for 1 hour per axis.
Shock
MIL-STD-810F, Method 516.5, Procedure I, Functional Shock, 40g. MIL-S-901D, Lightweight Hammer Shock, 3 impacts/axis, 1,3,5ft.
MIL-STD-202F, Method 213B, 60g, 9ms half sine. MIL-STD-202F, Method 213B, 75g, 11ms Saw Tooth Shock.
Acceleration
MIL-STD-810F, Method 513.5, Procedure II, table 513.5-II, Operational, 2-7g, 6 directions.
Humidity
MIL-STD-810F, Method 507.4.
Solder Test
MIL-STD-202G, Method 208H, 8 hour aging.
ENVIRONMENTAL STRESS SCREENING
Parameter
Operating temperature
Storage temperature
Temperature cycling*
Ambient test @ 25°C
Power cycling burn-in
Functional and parametric ATE tests
Hi-Pot test
Visual inspection
Test data
H-Grade
-40°C to +100°C
-55°C to +125°C
12 cycles
-65°C to +100°C
Yes
12 hours, 29 cycles
-40°C and +100°C
Yes
Yes
M-Grade
-55°C to +100°C
-65°C to +125°C
12 cycles
-65°C to +100°C
Yes
24 hours, 58 cycles
-55°C and +100°C
Yes
Yes
vicorpower.com
vicorpower.com
*Temperature cycled with power off, 17°C per minute rate of change.

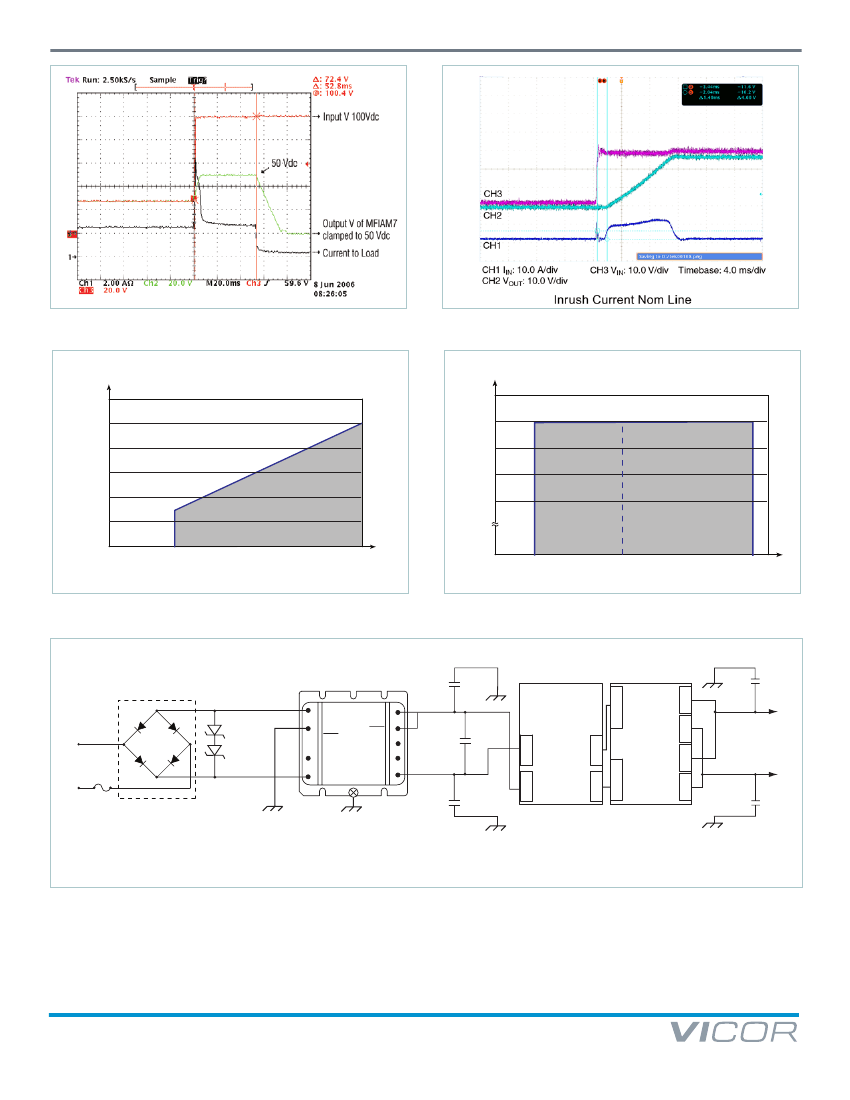

Shut Down Time vs. Overvoltage
900
800
700
600
500
400
300
200
100
0
60
70
80
90
100
105
T (ms)
Vin (V)
Figure 1 —
T = Time period before over-voltage protection.
V
IN
= Input voltage (switching up from 28V
DC
)
M-FIAM 7
Page 3 of 6
Rev 3.1
06/2017
Figure 2 —
Conducted Noise; M-FIAM7 and MP028F036M12AL
+ MV036F120M010 DC-DC VI Chip modules
operating at 28V
DC
, 120W
vicorpower.com
800 927.9474
M-FIAM7M21
Figure 3 —
Transient Immunity; M-FIAM7 output response to an
input transient
Figure 4 —
Inrush Limiting; Inrush current with 1000µF
external capacitance
600
M-FIAM7 EMI Compliance Only
Output Power (W)
140
130
120
110
100
M-FIAM7 EMI and MIL-STD-1275D
Transient Compliance
Output Power (W)
500
400
300
200
100
0
5
10
15
20
25
30
35
40
45
50
Safe Operating
Area
Safe Operating
Area
(Normal Operation)
(Transient 50 mS max.)
0
Input Voltage (V
DC
)
0
10 14 20
30
Input Voltage (V
DC
)
40
50
60
70
80
90
100
110
Figure 5 —
M-FIAM7 EMI Compliance only
Figure 6 —
M-FIAM7 EMI and MIL-STD-1275D
Transient Compliance
C
–
–
ON
OFF
Input
Transorb
P/N
19180-510
F1
EMI
GND
NC
+
VC
PC
TM
IL
NC
PR
MFIAM7
NC
NC
+
C1
+IN
PRM-AL
VH
SC
SG
OS
NC
CD
C
+IN
+OUT
+OUT
TM
VC
PC
VTM
K
Ro
-OUT
+OUT
–IN
–OUT
-IN
-OUT
C
Component Suggestions
Recommended Fuse: (F1) 10A (max), Bussmann ABC style
Capacitance: (C1) 330µF (min), 1000µF (max); (C) 4700pF
C
Figure 7 —
Basic connection diagram with Transient, Surge Protection and Recommended Reverse Polarity Protection.
Storage
Vicor products, when not installed in customer units, should be stored in ESD safe packaging in accordance with ANSI/ESD S20.20,
“Protection of Electrical and Electronic Parts, Assemblies and Equipment” and should be maintained in a temperature controlled factory/
warehouse environment not exposed to outside elements controlled between the temperature ranges of 15°C and 38°C. Humidity shall not
be condensing, no minimum humidity when stored in an ESD compliant package.
M-FIAM 7
Page 4 of 6
Rev 3.1
06/2017
vicorpower.com
800 927.9474
M-FIAM7M21

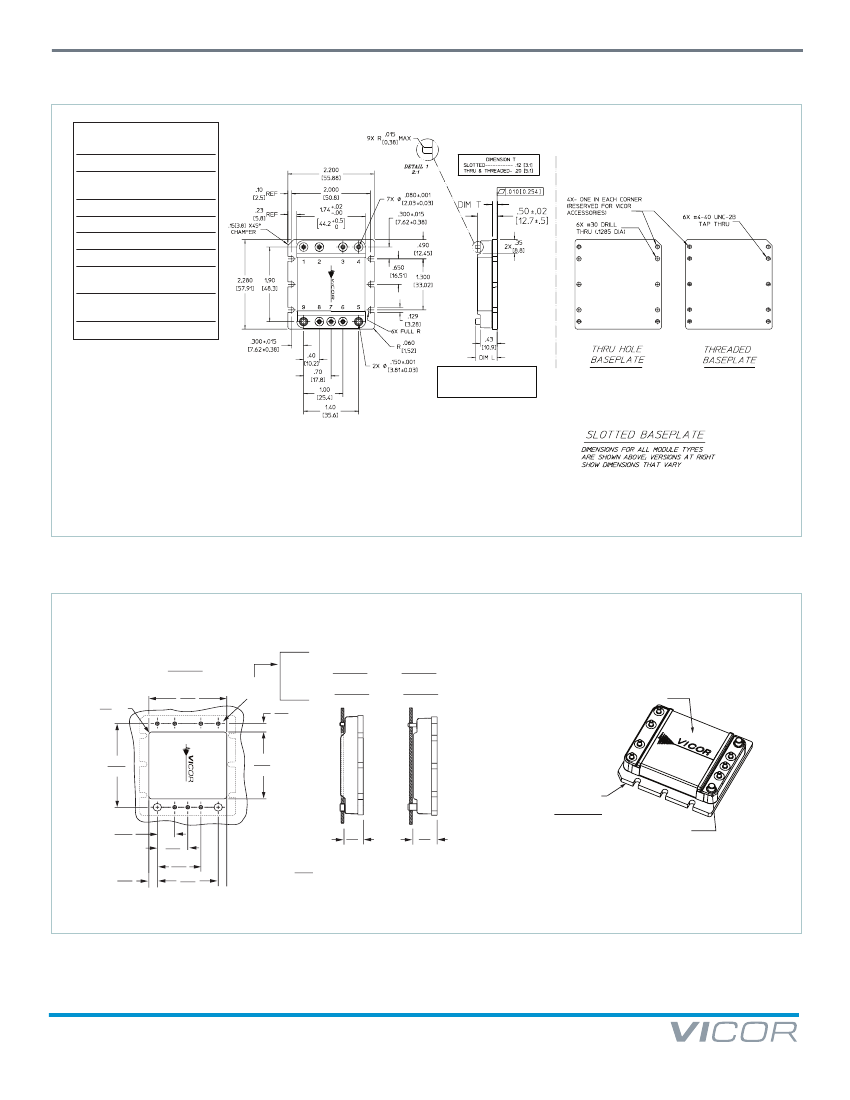

Mechanical Drawings
Module Pins
No.
