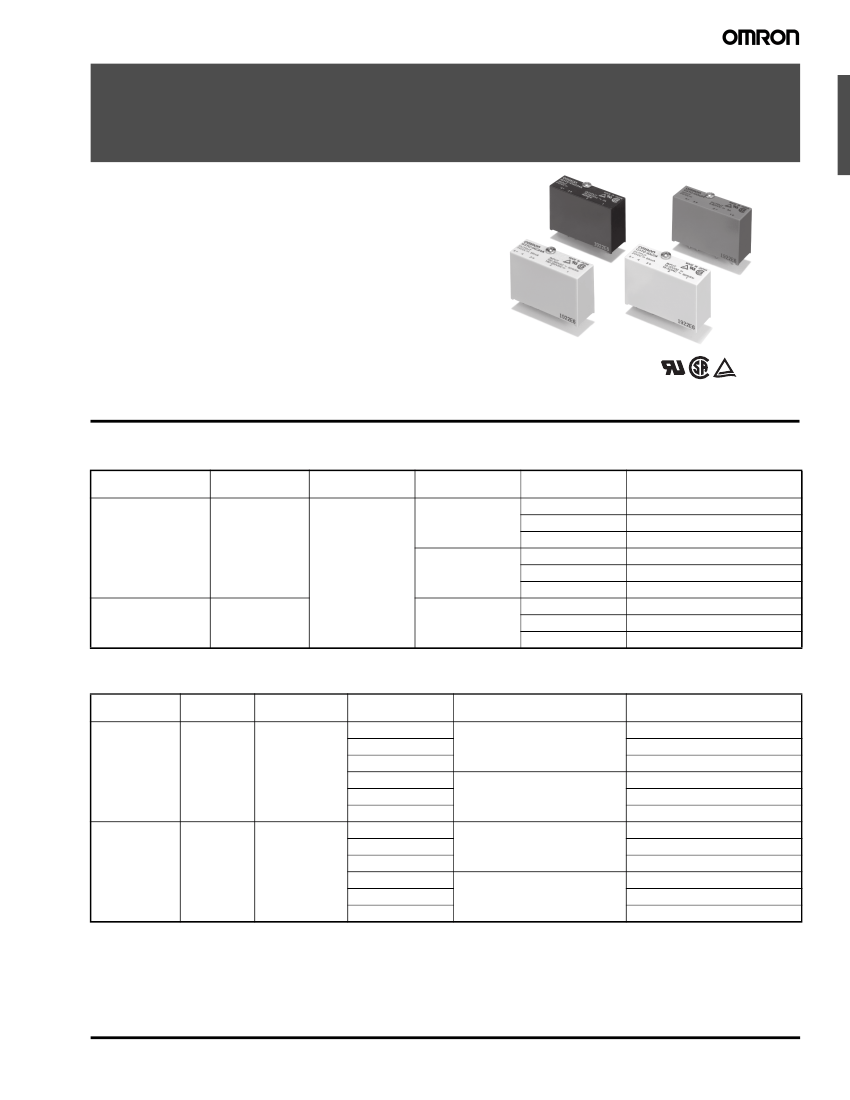

Solid State Relays for Industrial I/O
G3TC
Reliable SSRs for I/O Module Mounting
Boards
• Use I/O SSRs as an interface between logic circuitry and the load.
• Variety of AC/DC input and output modules with industry-standard
footprint and color coding.
• Built-in hold down screw fastens relay to board to eliminate loosen-
ing by vabration.
• Optical Isolation - Dielectric strength of 4 kV between input and out-
put terminals.
• Zero cross function on AC output models.
• AC and DC input versions incorporate a rectifier to accept both AC
or DC inputs.
• UL, CSA and TUV approved.
Ordering Information
■
Input Module
Function
AC input
Yellow
Color
Isolation
Photo-coupler
Input operating
voltage range
90-140 VDC/AC
Logic level output
supply voltage
5 VDC
15 VDC
24 VDC
180-280 VDC/AC
5 VDC
15 VDC
24 VDC
DC input
White
10-32 VDC/AC
5 VDC
15 VDC
24 VDC
Model
G3TC-IAC5 AC/DC120
G3TC-IAC15 AC/DC120
G3TC-IAC24 AC/DC120
G3TC-IAC5A AC/DC240
G3TC-IAC15A AC/DC240
G3TC-IAC24A AC/DC240
G3TC-IDC5 DC/AC24
G3TC-IDC15 DC/AC24
G3TC-IDC24 DC/AC24
■
Output Module
Function
AC output
Color
Black
Isolation
Photo-triac
Rated input
voltage
5 VDC
15 VDC
24 VDC
5 VDC
15 VDC
24 VDC
DC output
Red
Photo-coupler
5 VDC
15 VDC
24 VDC
5 VDC
15 VDC
24 VDC
1 A at 200 VDC
(1 A at 5-200 VDC)
3 A at 60 VDC
(3 A at 5-60 VDC)
3 A at 240 VAC
(3 A at 75-280 VAC)
Rated output voltage
(Applicable output voltage)
3 A at 120 VAC
(3 A at 75-140 VAC)
Model
G3TC-OAC5 DC5
G3TC-OAC15 DC15
G3TC-OAC24 DC24
G3TC-OAC5A DC5
G3TC-OAC15A DC15
G3TC-OAC24A DC24
G3TC-ODC5 DC5
G3TC-ODC15 DC15
G3TC-ODC24 DC24
G3TC-ODC5A DC5
G3TC-ODC15A DC15
G3TC-ODC24A DC24
Solid State Relays for Industrial I/O
G3TC
419
■
Typical Applications
•
HVAC, refrigeration equipment
•
Automation controls
•
Injection molding machines
•
Packaging equipment
■

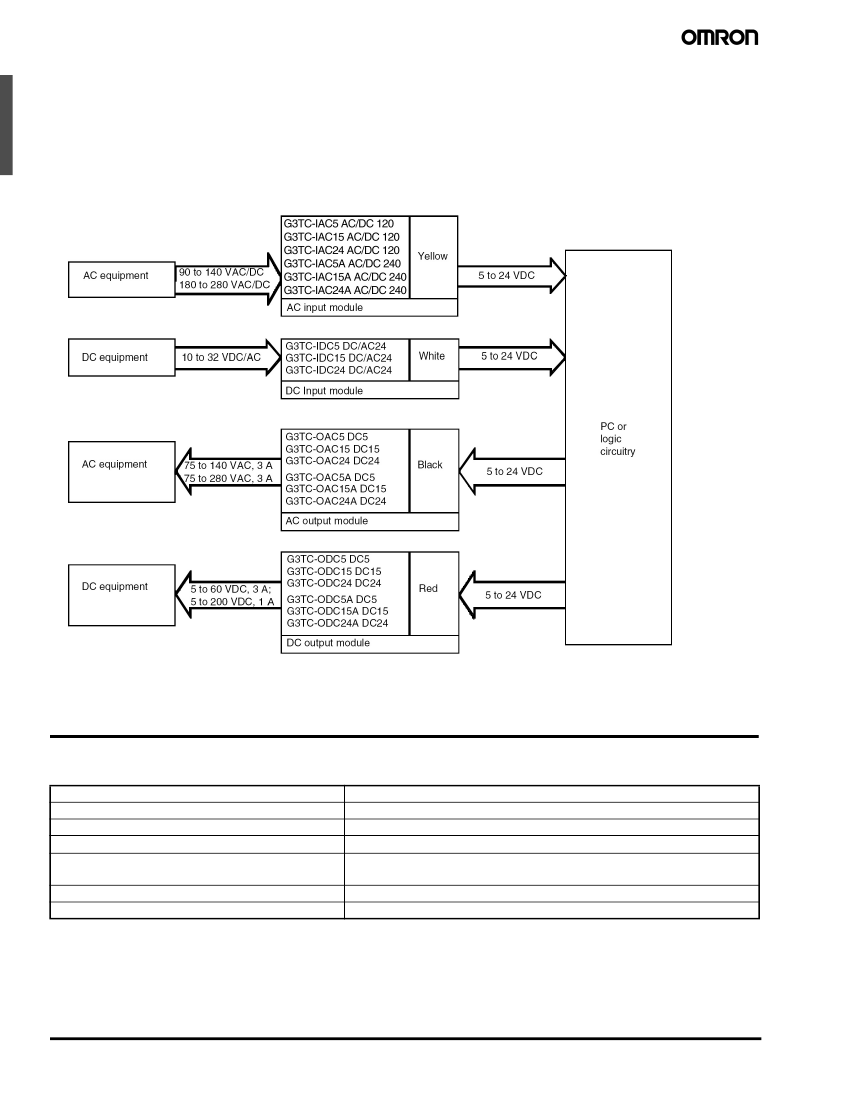

I/O Classification by Color
Specifications
■
Common Characteristics
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Approved standards
100 MΩ min at 500 VDC
4000 VAC, 50/60 Hz for 1 minute between input and output
Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
Malfunction: 1,000 m/s
2
Operating: -30°C to 80°C with no icing or condensation
Storage: -30°C to 100°C with no icing or condensation
Operating: 45% to 85%
UL Recognized, CSA Certified, EN60950
420
Solid State Relays for Industrial I/O
G3TC
■
AC Input Module G3TC-IAC
Ratings (Ambient Temperature 25°C)
Input
Item
Rated voltage
Operating voltage
Must operate voltage
Must release voltage
Input current at rated voltage
Input resistance (see note 1)
G3TC-IAC5
120 VAC/DC
90-140 VAC/DC
90 VAC/DC max.
25 VAC/DC min.
5 mA max.
30 kΩ
G3TC-IAC15
G3TC-IAC24
G3TC-IAC5A
240 VAC/DC
180-280 VAC/DC
180 VAC/DC max.
45 VAC/DC min.
5 mA max.
69 kΩ
G3TC-IAC15A
G3TC-IAC24A
Output
Item
Output supply voltage-nominal
Output supply voltage-range
Output supply current at rated
input voltage (see note 2)
Control resistance (Rc in circuit
configuration - see note 1)
Output current
G3TC-IAC5
5 VDC
4.5-6 VDC
18 mA max.
240
Ω
50 mA max.
G3TC-IAC15
15 VDC
12-18 VDC
15 mA max.
1 kΩ
G3TC-IAC24
24 VDC
20-30 VDC
12 mA max.
2.2 kΩ
G3TC-IAC5A
5 VDC
4.5-6 VDC
18 mA max.
240
Ω
G3TC-IAC15A
15 VDC
12-18 VDC
15 mA max.
1k
Ω
G3TC-IAC24A
24 VDC
20-30 VDC
12 mA max.
2.2k
Ω
Characteristics
Item
Operate time (see note 3)
Release time (see note 3)
Output ON voltage drop
Leakage current
Weight
G3TC-IAC5
20 ms max.
20 ms max.
0.4 V max.
100
μA
max.
Approx. 40g
G3TC-IAC15
G3TC-IAC24
G3TC-IAC5A
G3TC-IAC15A
G3TC-IAC24A
Note: 1.
Resistance values are reference.
2.
The input module supplies the current on I/O circuit board at nominal ouput voltage.
3.
At nominal output supply voltage, rated input voltage and 25°C.
■
DC Input Module G3TC-IDC
Ratings (Ambient Temperature 25°C)
Input
Item
Rated voltage
Operating voltage
Must operate voltage
Must release voltage
Input current rated voltage
Input resistance (see note 1)
G3TC-IDC5
24 VDC/AC
10-32 VDC/ 15-32 VAC
10 VDC/15 VAC max.
3 VDC/ 3 VAC min.
25 mA max.
1.5 kΩ
G3TC-IDC15
G3TC-IDC24
Output
Item
Output supply voltage-nominal
Output supply voltage-range
Output supply current at rated input voltage (see note 2)
Output current
5 VDC
4.5-6 VDC
18 mA max.
50 mA max.
G3TC-IDC5
G3TC-IDC15
15 VDC
12-18 VDC
15 mA max.
1 kΩ
G3TC-IDC24
24 VDC
20-30 VDC
12 mA max.
2.2 kΩ
Control resistance (Rc in circuit configuration - see note 1)
240
Ω
Solid State Relays for Industrial I/O
G3TC
421
Characteristics
Item
Operate time (see note 3)
Release time (see note 3)
Output ON voltage drop
Leakage current
Weight
G3TC-IDC5
5 ms max.
5 ms max.
0.4 V max.
100
μA
max.
Approx. 40g
G3TC-IDC15
G3TC-IDC24
Note: 1.
Resistance values are reference.
2.
The input module supplies the current on I/O circuit board at nominal ouput voltage.
3.
At nominal output supply voltage, rated input voltage and 25°C.
■
AC Output Module G3TC-OAC
Ratings (Ambient Temperature 25°C)
Input
Item
Rated voltage
Operating voltage
Must operate
voltage
Must release
voltage
Input current at rated
voltage (see note 2)
G3TC-OAC5
5 VDC
2.5-8 VDC
2.5 VDC max.
1 VDC min.
18 mA max.
1 kΩ
2.2 kΩ
240
Ω
1 kΩ
2.2 kΩ
G3TC-OAC15
15 VDC
9-16 VDC
9 VDC max.
G3TC-OAC24
24 VDC
18-32 VDC
18 VDC max.
G3TC-OAC5A
5 VDC
2.5-8 VDC
2.5 VDC max.
G3TC-OAC15A
15 VDC
9-16 VDC
9 VDC max.
G3TC-OAC24A
24 VDC
18-32 VDC
18 VDC max.
Control resistance (Rc
240
Ω
in circuit configuration
- see note 1)
Output
Item
Rated load voltage
Load voltage range
Load current
Inrush current
G3TC-OAC5
120 VAC
75-140 VAC
0.05 to 3 A
45 A (60 Hz, 1 cycle)
G3TC-OAC15
G3TC-OAC24
G3TC-OAC5A
240 VAC
75-280 VAC
G3TC-OAC15A
G3TC-OAC24A
Characteristics
Item
Operate time (see note 3)
Release time (see note 3)
Output ON voltage drop
Leakage current
Weight
G3TC-OAC5
G3TC-OAC15
G3TC-OAC24
G3TC-OAC5A
G3TC-OAC15A
G3TC-OAC24A
1/2 of load power source cycle + 1 ms max.
1/2 of load power source cycle + 1 ms max.
1.6 V (RMS) max.
2.5 mA max. (at 120 VAC)
Approx. 45g
5 mA max. (at 240 VAC)
Note: 1.
Resistance values are reference.
2.
The output module supplies the current on I/O circuit board at nominal input voltage.
3.
At nominal output supply voltage, rated input voltage and 25°C.
422
Solid State Relays for Industrial I/O
G3TC
■
DC Output Module G3TC-ODC
Ratings (Ambient Temperature 25°C)
Input
Item
Rated voltage
Operating voltage
Must operate
voltage
Must release
voltage
Input current at rated
voltage (see note 2)
G3TC-ODC5
5 VDC
2.5-8 VDC
2.5 VDC max.
1 VDC min.
18 mA max.
1 kΩ
2.2 kΩ
240
Ω
1 kΩ
2.2 kΩ
G3TC-ODC15
15 VDC
9-16 VDC
9 VDC max.
G3TC-ODC24
24 VDC
18-32 VDC
18 VDC max.
G3TC-ODC5A
5 VDC
2.5-8 VDC
2.5 VDC max.
G3TC-ODC15A
15 VDC
9-16 VDC
9 VDC max.
G3TC-ODC24A
24 VDC
18-32 VDC
18 VDC max.
Control resistance (Rc
240
Ω
in circuit configuration
- see note 1)
Output
Item
Rated load voltage
Load voltage range
Load current
Inrush current
G3TC-ODC5
60 VDC
5-60 VDC
0.01 to 3 A
18 A (10 ms)
G3TC-ODC15
G3TC-ODC24
G3TC-ODC5A
200 VDC
5-200 VDC
0.01 to 1.0 A
9 A (10 ms)
G3TC-ODC15A
G3TC-ODC24A
Characteristics
Item
Operate time (see note 3)
Release time (see note 3)
Output ON voltage drop
Leakage current
Weight
Note: 1.
2.
3.
4.
G3TC-ODC5
50
μs
max.
50
μs
max. (see note 4)
1.6 V max.
1 mA max. (at 60 VDC)
Approx. 45g
1 mA max. (at 200 VDC)
Approx. 40g
G3TC-ODC15
G3TC-ODC24
G3TC-ODC5A
100
μs
max.
750
μs
max.
G3TC-ODC15A
G3TC-ODC24A
Resistance values are reference.
The output module supplies the current on I/O circuit board at nominal input voltage.
At rated load voltage, maximum rated load current, rated input voltage and 25°C.
At 24 VDC load voltage, 3 A load current and 25°C.
Solid State Relays for Industrial I/O
G3TC
423
