Part Number

Search

4930-03-5A

Description
断路器 Single pole remote control circuit breaker, standard, without auxiliary contacts, 5A
CategoryCircuit protection    Circuit breakers and accessories    The circuit breaker
File Size202KB,5 Pages
ManufacturerE-T-A [E-T-A Circuit Breakers]
Environmental Compliance
Download Datasheet Parametric View All

4930-03-5A Online Shopping

Suppliers Part Number Price MOQ In stock
4930-03-5A - - View Buy Now

4930-03-5A Overview

断路器 Single pole remote control circuit breaker, standard, without auxiliary contacts, 5A

4930-03-5A Parametric

Parameter NameAttribute value
MakerE-T-A [E-T-A Circuit Breakers]
Product Categorybreaker
Shipping restrictionsMouser does not currently sell this product.
series4930
typeRemote Control
Current rating5 A
Voltage ratingAC125 VAC
Voltage ratingDC28 V
Number of poles1 Pole
Actuator typePlunger
Minimum operating temperature- 54 C
Maximum operating temperature+ 71 C
illuminationNot Illuminated
high108.2 mm
length82.55 mm
Termination typeScrew
Voltage rating115 VAC, 28 VDC
width31.9 mm
Installation styleFlange

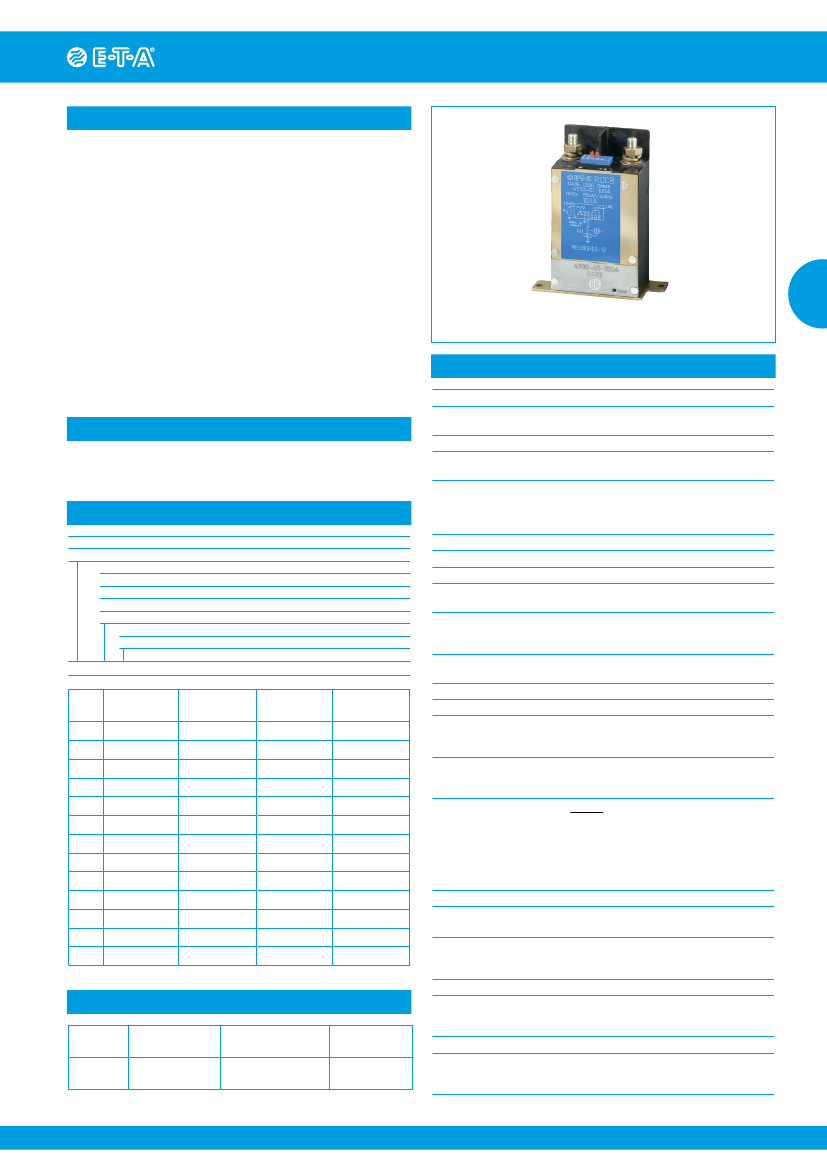

Remote Control Circuit Breaker 4930 (RCCB)
Description
Single pole remote control circuit breaker (RCCB), temperature
compensated, either with or without auxiliary contacts, and featuring
a bimetal actuator which trips the circuit breaker mechanism within
a specified time under overcurrent conditions. The switching contact
latching system is operated by a bi-stable linear motor controlled by
electronic circuitry incorporated within the device. Remote control
is achieved through the use of a conventional single pole manually
operated aircraft style thermal circuit breaker type 4120-0,5 A which
connects the control input of the RCCB to ground.
With the control circuit breaker (ICU) in the ON position, the RCCB will
switch on. When the control circuit breaker is switched off, the RCCB
will change to the OFF condition. If power is applied to a previously
de-energised RCCB, the device will adopt the same switching status
as the control circuit breaker.
If the RCCB trips thermally in the event of a load circuit fault, the
electronic circuitry will also cause the control circuit breaker to trip,
thereby providing a visual indication through the position of the circuit
breaker actuator.
Approved to MIL-PRF-83383.
1
4930 (RCCB)
Technical data
(T
A
= 25 °C, U
e
= DC 28 V or AC 115V/400 Hz)
Operating data LINE
Voltage ratings U
e
(operating voltage range)
Current rating range I
N
Bias current
Switching current/
switching period for
internal linear motor
(see also MIL-PRF-83383)
AC 115 V 400 Hz (AC 104...126 V);
DC 28 V (DC 18...36 V)
5...100 A (see ordering information)
typically 2.5 mA at DC 28 V
typically 25 mA at AC 115 V
Typical applications
Aircraft electrical systems and equipment, and other high performance
applications.
Ordering information
Type No.
4930
single pole remote control circuit breaker (RCCB)
Variation
01
standard, with auxiliary contacts
02
with modified terminal barrier and auxiliary contacts
03
standard, without auxiliary contacts
04
with modified terminal barrier but without auxiliary contacts
Current ratings
5...100 A
4930 - 01 - 5 A
I
N
/A
5
7.5
10
15
20
25
35
40
50
60
75
80
100
ordering example
MIL
part number
M83383/02-01
M83383/02-02
M83383/02-03
M83383/02-04
M83383/02-05
M83383/02-06
M83383/02-07
M83383/02-08
M83383/02-09
M83383/02-10
M83383/02-11
M83383/02-12
M83383/02-13
E-T-A
part number
4930-03-5A
4930-03-7.5A
4930-03-10A
4930-03-15A
4930-03-20A
4930-03-25A
4930-03-35A
4930-03-40A
4930-03-50A
4930-03-60A
4930-03-75A
4930-03-80A
4930-03-100A
MIL
part number
M83383/01-01
M83383/01-02
M83383/01-03
M83383/01-04
M83383/01-05
M83383/01-06
M83383/01-07
M83383/01-08
M83383/01-09
M83383/01-10
M83383/01-11
M83383/01-12
M83383/01-13
E-T-A
part number
4930-01-5A
4930-01-7.5A
4930-01-10A
4930-01-15A
4930-01-20A
4930-01-25A
4930-01-35A
4930-01-40A
4930-01-50A
4930-01-60A
4930-01-75A
4930-01-80A
4930-01-100A
typically 3.4 A / 28 ms at DC
typically 2.8 A / 17 ms at AC
Optical indication ON/OFF status indicator (near terminal A1)
Load circuit LOAD
Current rating range I
N
5...100 A (see ordering information)
Interrupting capacity
DC 28 V: 6,000 A
AC 115 V 400 Hz: 3,600 A
Voltage drop at I
N
see table 1
(standard current ratings and
typical voltage drop values)
Overload disconnection
see table 2
(typical time/current characteristics)
Trip limits
see table 2
Control circuit ICU
ICU
Indicator/Control Unit
thermal circuit breaker 0.5 A
e.g. 4120-G111-K1M1-A1S0ZN-0.5A
Trigger current for ICU
(“TRIP FREE“-mode) /
duration
approx. 3.2 A / 5 s max
Control voltage U
ICU
Limits:
RCCB “OFF”
U
ICU
> 2 V (25 °C)
(ICU open)
(> 1.5 V between -54...+71 °C /
-65...+160 °F)
RCCB “ON”
U
ICU
< 0.6 V (25 °C)
(ICU closed)
(< 0.2 V between -54...+71 °C /
-65...+160 °F)
Control current I
ICU
typically 0.4 mA
Additional control units
ON/OFF-cycling time
(e. g. additional relay
contact in ICU circuit)
Signal output AUX
Auxiliary contacts
one relay contact or one ON/OFF switch
is applicable (see application note ICU)
ON > 80 ms / OFF > 80 ms
change over contacts
S1 - S2 is open, when RCCB main
contact is open
DC 28 V, AC 115 V (400 Hz)
resistive load: 3 A
inductive load 1.5 A
lamp load: 0.5 A
Approvals
Authority
DSCC
Standard
MIL-PRF-83383
Voltage ratings
AC 115 V, 400 Hz
DC 28 V
Current
ratings
5 A…100 A
5 A…100 A
Voltage ratings
Current ratings
1646
www.e-t-a.de
