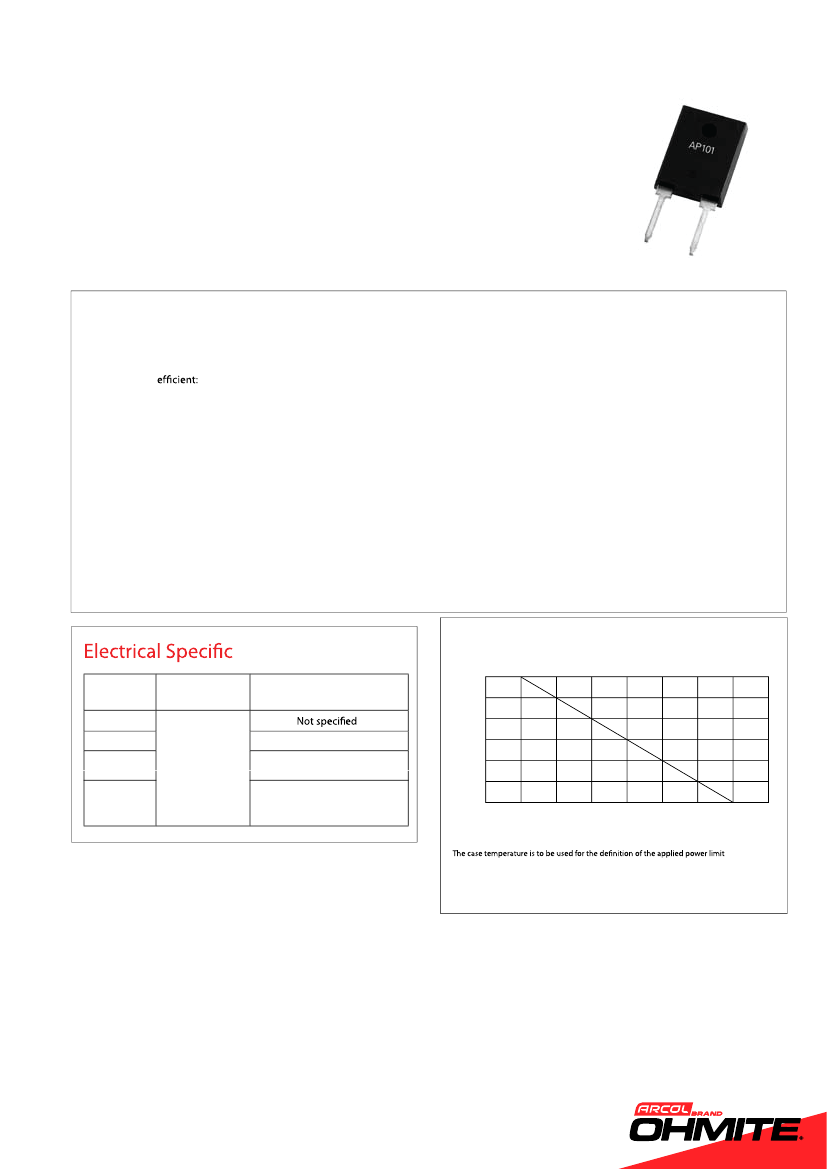

AP101
100W TO-247 High Power Resistors
•
100 watts at 25°C case temperature heat sink mounted
•
TO- 247 style power package
•
Sin gle screw mounting to heat sink
•
Mou lded case for protection
•
Elec trically isolated case
•
Non -Inductive design
•
RoHS Compliant
Characteristics
Tolerance (Code):
Operating temperature:
Temperature co
Operating voltage:
Dielectric strength:
Insulation resistance:
Maximum torque:
Free air:
Load Life
Solderability
Momentary Overload
Moisture resistance
Thermal Shock
Terminal Strength
Vibration, High Frequency
± 1% (F), ± 5% (J), ± 10% (K)
-65°C to +175°C
± 50ppm/°C to ± 300ppm/°C (re to ohmic values), referenced to 25°C, ∆R taken at +105°C
700V max
1800Vac 60 seconds, ∆R±0.15%
10G min
0.9 Nm
25°C, rated at 3.5W
∆R±1.0%, Rated power, 2,000 hours
90% min. coverage, 245±5°C for 3 seconds
∆R±0.5%,1.5 times rated power and V (dc) ≤ 1.5VMax. for 5 seconds
∆R±0.5%, -10°C - +65°C, RH>90%, cycle 240 hours
∆R±0.5%, -65°C - 150°C, 100 cycles
∆R±0.2%, (Pull Test) 2.4N
∆R±0.4%, 20g peak
ations
Value Range
R05 - 1R
> 1R - 3R
> 3R - 10R
> 10R - 10K
Tolerance
Pref. Value Range
± 1% (F)
E12, E24, E96
± 5% (J)
E12, E24
± 10% (K)
E12
± 300ppm/°C
± 100ppm/°C (std.),
± 200ppm/°C
±50ppm/°C, ±100ppm/°C (std.),
± 200ppm/°C
TCR (ppm/˚C)
Derating Curve
100
Power Rated %
80
60
40
20
0
0
25
50
75
100
125
150
175
Case Temperature (°C)
The case temperature measurement must be made with a thermocouple contacting
the centre of the component mounted on the designed heat sink
Thermal grease should be applied properly
For more information and ordering, please consult
www.arcolresistors.com
Page 1 of 2
AP101
100W TO-247 High Power Resistors
Standard part numbers
AP101R05J
AP101R1J
AP101R2J
AP101R5J
AP1011RJ
AP1011R2J
AP1011R5J
AP1011R8J
AP1012R2J
AP1012R7J
AP1013RJ
AP1013R3J
AP1013R9J
AP1014R3J
AP1014R7J
AP1015R6J
AP1016R2J
AP1016R8J
AP1017R5J
AP1018R2J
AP10110RJ
AP10112RJ
AP10115RJ
AP10118RJ
AP10122RJ
AP10124RJ
AP10127RJ
AP10130RJ
AP10133RJ
AP10139RJ
AP10147RJ
AP10151RJ
AP10156RJ
AP10162RJ
AP10168RJ
AP10182RJ
AP101100RJ
AP101120RJ
AP101150RJ
AP101180RJ
AP101200RJ
AP101220RJ
AP101270RJ
AP101330RJ
AP101390RJ
AP101470RJ
AP101560RJ
AP101620RJ
AP101680RJ
AP101820RJ
AP1011KJ
AP1011K2J
AP1011K5J
AP1011K8J
AP1012KJ
AP1012K2J
AP1012K7J
AP1013KJ
AP1013K3J
AP8213K6J
AP1013K9J
AP1014K3J
AP1014K7J
AP1015K6J
AP1016K8J
AP1018K2J
AP1017K5J
AP10110KJ
Dimensions (mm)
20.44 - 20.96
5.07 - 5.59
15.49 - 16.01
4.69 - 5.21
3.53 - 3.73
3.45 - 3.81
9.90 - 10.42
2.03 - 3.55
1.42 - 1.62
0.55 - 1.07
2.15 - 2.67
Ordering Information
AP101 10K JV
Series
Resistance
Tolerance
F = 1%
J = 5%
K = 10%
TCR
N = 50ppm
L = 200ppm
Blank = standard
ARCOL UK Limited,
Threemilestone Ind. Estate,
Truro, Cornwall, TR4 9LG, UK.
T +4 4 (0) 1872 277431
F +4 4 (0) 1872 222002
E s ales @ arcolresistors.com
13.21 - 15.75
The information contained herein does not form part of
a contract and is subject to change without notice. Arcol
operate a policy of continual product development, therefore,
speci cations may change.
It is the responsibility of the customer to ensure that the
component selected from our range is suitable for the intended
application. If in doubt please ask Arcol.
3/12.10
www.arcolresistors.com
Page 2 of 2
